Metal Oxide Varistor
SIOV-Q14K550
Data sheet
Disc type
Ordering code: B72214Q0551K101
Form: FBLE3K/b
File name: Q14K550_a
MODIFICATIONS:
New data sheet
REMARKS:
signed: PE / Hotwagner
Prepared by
Hotwagner
Release
signed:
ISSUE DATE
22.05.02
ISSUE
a
PUBLISHER
signed: QS / Zödl
signed:
KH PE VAR
PAGE
0/6
Metal Oxide Varistor
SIOV-Q14K550
Data sheet
Disc type
Ordering code: B72214Q0551K101
SIOV nomenclature
Q
14
K
550
=
=
=
=
EnergetiQä Series
Rated disk diameter
Tolerance of V
V
at 1mA :
±10%
Max. AC voltage
Figure:
Dimensions given in Millimeters (mm)
b
max
h
max
s
max
e
a
l
min
∅d
=
=
=
=
=
=
=
16,5
19,5
9,0
10,0±1,0
4,8±1,0
30,0
1,0± 0,05
Electrical data:
Maximum Ratings (85°C):
Max. operating AC voltage
Max. operating DC voltage
Surge current (8/20µs)
1 time
Energy absorption (2ms) 1 time
Average power dissipation
V
RMS
V
DC
I
max
W
max
P
max
=
=
=
=
=
550V
745V
6000A
260J
0,80W
Characteristics (25°C):
Varistor voltage at 1mA
Clamping voltage at 65A (8/20µs)
Typ. capacitance at 1 kHz
ISSUE DATE
22.05.02
ISSUE
V
V
V
C,max
C
a
=
=
=
PUBLISHER
910V
±
10%
1500V
245pF
KH PE VAR
PAGE
1/6
Metal Oxide Varistor
SIOV-Q14K550
Data sheet
Disc type
Ordering code: B72214Q0551K101

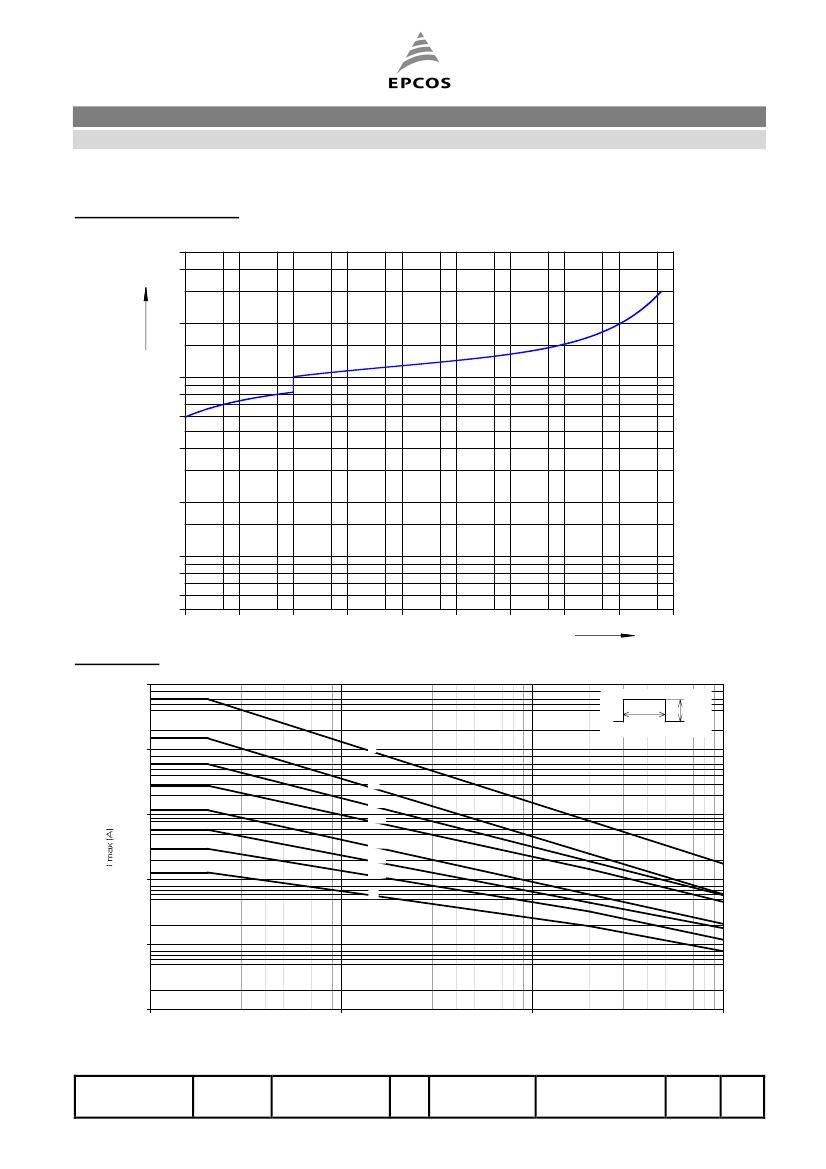

V/I Characteristic:
5000
v
4000
V
VAR9719A
2000
1000
800
600
400
200
100
80
60
50
10
-5
10
-4
10
-3
10
-2
10
-1
10
0
10
1
10
2
10
3
i
A 10
4
Derating:
10000
Q14K510 ... 680
i
max.
t
r
1000
1x
10 x
10^2 x
100
10^3 x
10^4 x
10^5 x
10
10^6 x
inf.
1
0,1
10
100
t r [µs]
1000
10000
ISSUE DATE
22.05.02
ISSUE
a
PUBLISHER
KH PE VAR
PAGE
2/6
Metal Oxide Varistor
SIOV-Q14K550
Data sheet
Disc type
Ordering code: B72214Q0551K101
Reliability Data:
Characteristics
Varistor
Voltage
Test Methods/Description
The voltage between two terminals with the
specified measuring current applied is called V
v
(1 mA
DC
@ 0.2 - 2 s).
The maximum voltage between two terminals
with the specified standard impulse current
(8/20µs) illustrated below applied.
Peak
Specifications
To meet the
specified value.
E
L
E
C
T
R
I
Clamping
Voltage
To meet the
specified value.
Leading
Edge
Trailing Edge
T
S
T
r
O
1
I
m
Rise Time µs
Decay time to half value µs
Nominal start
Peak value
C
A
L
Surge current
derating,
8/20 µs
100 surge currents (8/20 µs), unipolar, interval
30 s, amplitude corresponding to derating curve
for 20 µs
|
∆
V/V (1 mA) |
≤
10 % (measured
in direction of surge
current)
No visible damage
|
∆
V/V (1 mA) |
≤
10 % (measured
in direction of surge
current)
No visible damage
Surge current
derating,
2 ms
100 surge currents (2ms), unipolar, interval
120s, amplitude corresponding to derating curve
for 2ms
ISSUE DATE
22.05.02
ISSUE
a
PUBLISHER
KH PE VAR
PAGE
3/6
Metal Oxide Varistor
SIOV-Q14K550
Data sheet
Disc type
Ordering code: B72214Q0551K101
Characteristics
Tensile
strength
Test Methods/Description
After gradually applying the force specified
below and keeping the unit fixed for 10 seconds,
the terminal shall be visually examined for any
damage.
Terminal diameter
0.5 mm
0.6 mm
0.8 mm
1.0 mm
Force
5N
10 N
10 N
20 N
Specifications
|
∆
V/V (1 mA) |
≤
5%
No break of solder
joint, no wire break
M
E
C
H
A
N
I
C
A
L
Vibration
After repeatedly applying a single harmonic
vibration according to the table below.
Thereafter, the unit shall be visually examined.
frequency range:
amplitude:
duration:
pulse:
10 .... 55 Hz
0.75 mm or 98 m/s²
6 h (3 x 2 h)
sine wave
|
∆
V/V (1 mA) |
≤
5%
No visible damage
Solderability
After dipping the terminals to a depth of
approximately 3 mm from the body in a
soldering bath of 235°C for 5 seconds, the
terminals shall be visually examined.
The inspection shall
be carried out under
adequate light with
normal eyesight or
with the assistance
of a magnifier
capable of giving a
magnification of 4
times to 10 times.
The dipped surface
shall be covered
with a smooth and
bright solder coating
with no more than
small amounts of
scattered
imperfections such
as pinholes or un-
wetted or de-wetted
areas. These
imperfections shall
not be concentrated
in one area.
ISSUE DATE
22.05.02
ISSUE
a
PUBLISHER
KH PE VAR
PAGE
4/6
