1351-6-19-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 1351-6-19-1

1351-6-19-1: DescriptionBoard Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal; CategoryThe connector The connector; File Size175KB，1 Pages; ManufacturerConexcon Group; Environmental Compliance

Download Datasheet Parametric View All

1351-6-19-1 Overview

Board Connector, 19 Contact(s), 1 Row(s), Male, Straight, 0.05 inch Pitch, Solder Terminal

1351-6-19-1 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	308942727
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.098 inch
subject depth	0.157 inch
body length	0.95 inch
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU ON NI
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	300VAC V
Durability	50 Cycles
Insulation resistance	1000000000 Ω
insulator material	THERMOPLASTIC
Manufacturer's serial number	1351
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Plating thickness	30u inch
Rated current (signal)	1 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.047 inch
Terminal pitch	1.27 mm
Termination type	SOLDER
Total number of contacts	19

Preview

Download Datasheet

View All

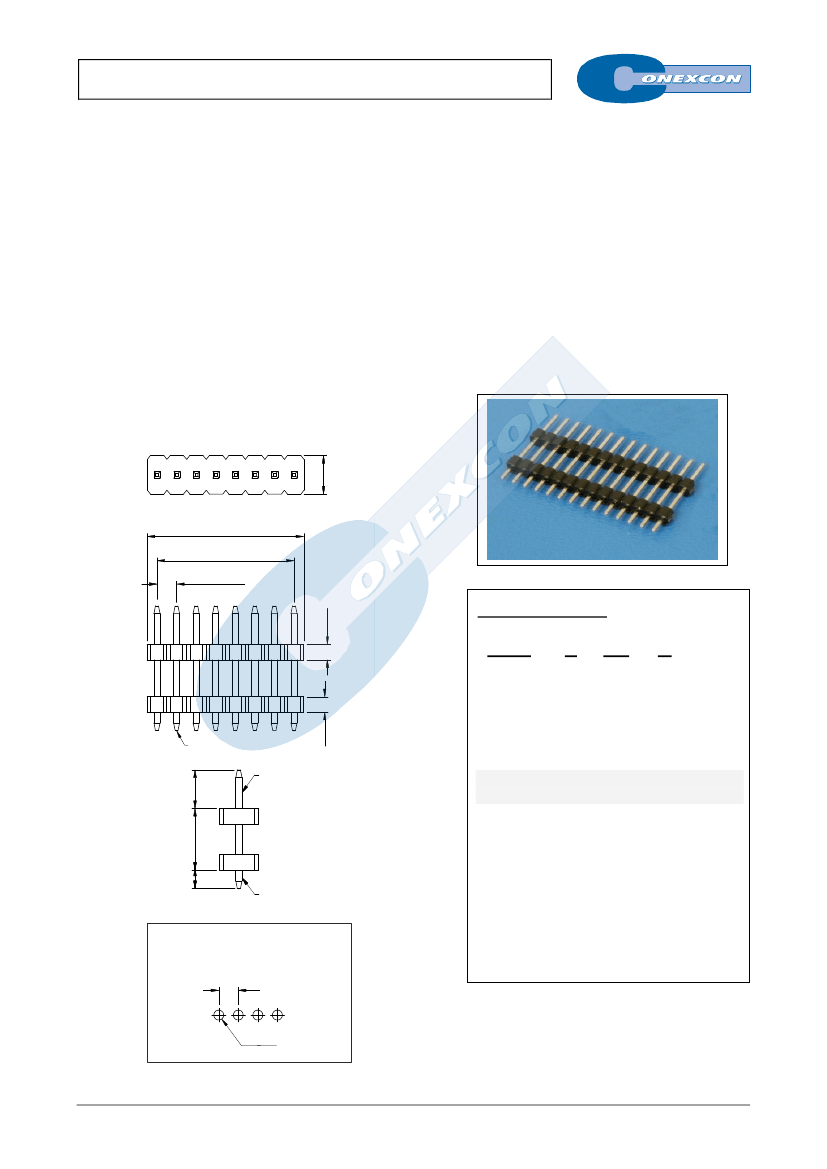

S/ ROW DUAL BODY VERTICAL PIN HEADER

1351 SERIES.

1.27 mm (0.050”) pitch.

General Features

Electrical Features



Available in 2 through 33 circuits

Mates with sockets 1.27mm.pitch 1376,1377 & 1378 series

0,40 mm. square pin with different plating

Available with different pin length

Contact sales office



Voltage rating: < 100V

Current rating: < 1 A

Contact resistance: < 20 mΩ

Dielectric withstanding Voltage: 300 V AC/minute

Insulation resistance: >1000 MΩ

Capacitance: < 2 pF at 1 KHz

Materials

Mechanical Features

Pin retention force to insulator: > 0,15 Kgf

Durability: 50 cycles



Insulator: High temperature thermoplastic UL 94 V-0

Contact: Brass

Operating temperature: -40ºC to +105ºC

RoHS compliant

Dimension Information

1.27±0.10

1.00

Ordering Information:

2.50

1351 -

T-

XX-

1. Connector Series

1.00

PIN 0.40 SQ.

2. (T) Contact Plating

Contact end



T =

Tin plated

T =

Gold flash over 50µ” nickel

Recommended Finish

T =

15µ” gold over 50µ” nickel

T =

30µ” gold over 50µ” nickel

Solder end

3. (XX) Circuit Size

Available in 2 through 33 circuits

4. (C) Pin dimensions



RECOMMENDED HOLE PATTERN

(Tolerance: ±0.05)

1.27

C =

1. H:

2.50mm.

4.00 mm.

1.20 mm.

Other options consult the Sales Office

Dimensions:

(In mm.)

= 1.27 x (XX*-1)

= 1.27 x (XX)

* XX

(Nº of circuits)

ø0.65

A-XX
