54F299/BSA datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> 54F299/BSA

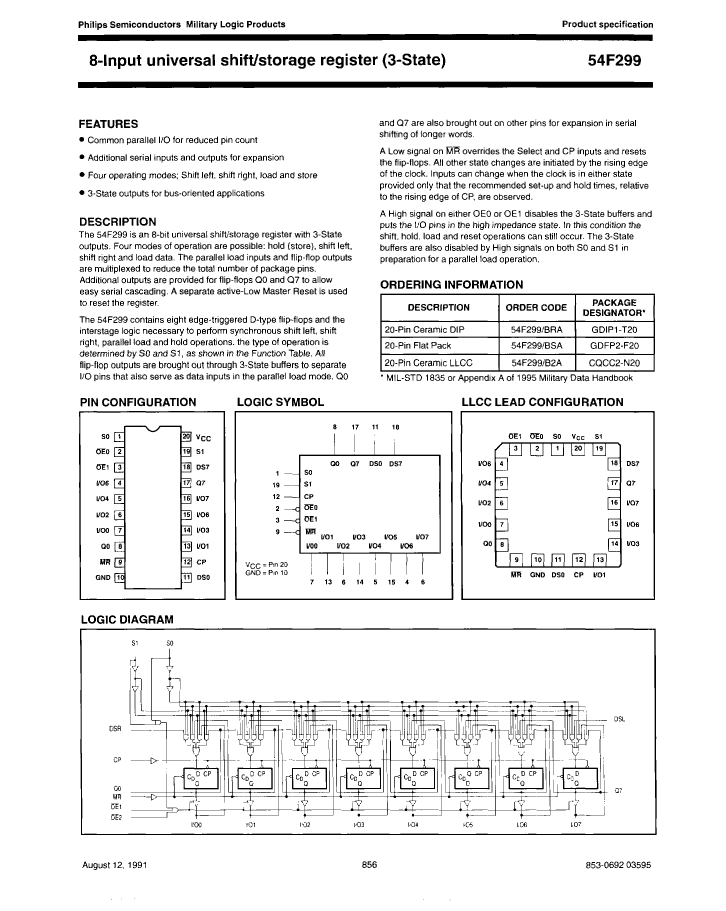

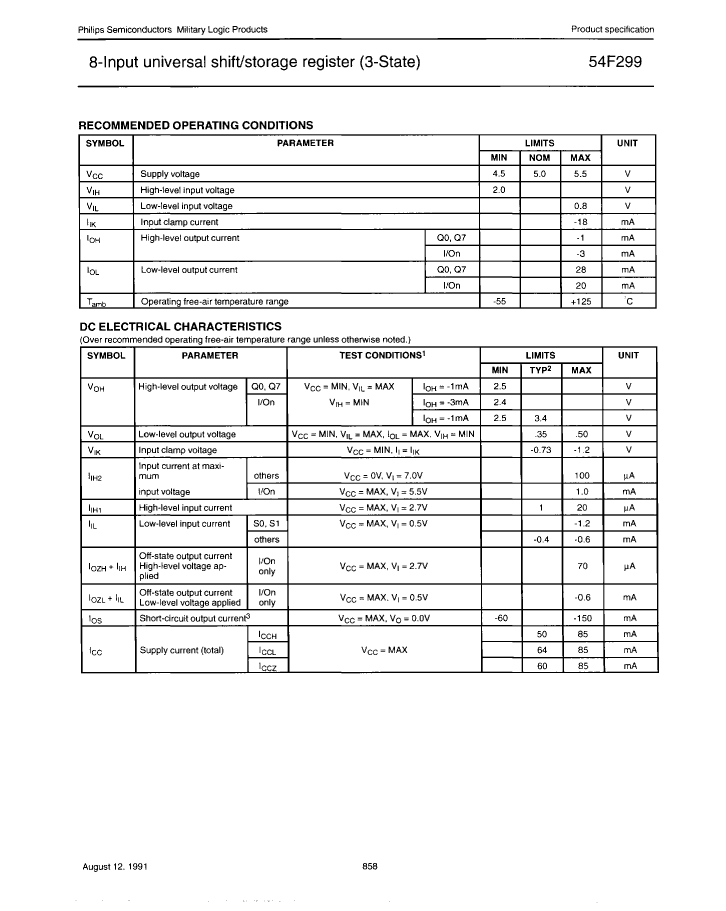

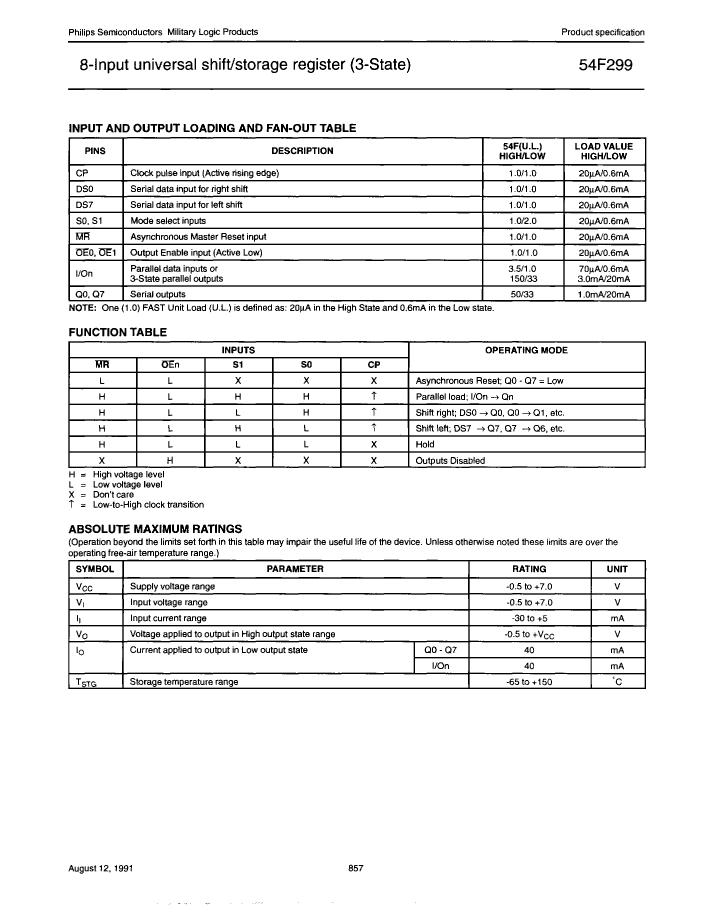

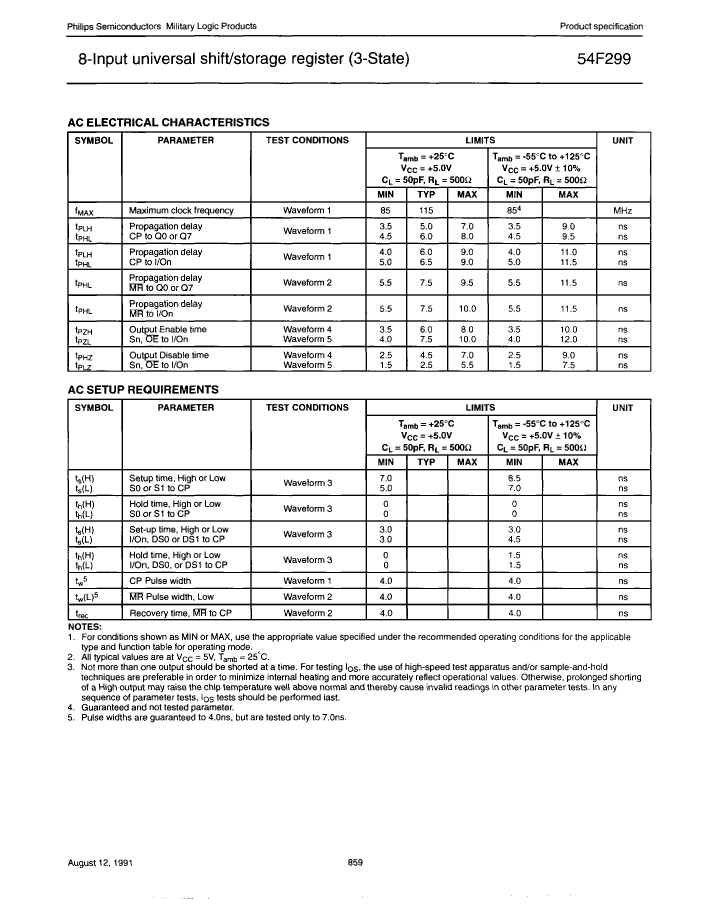

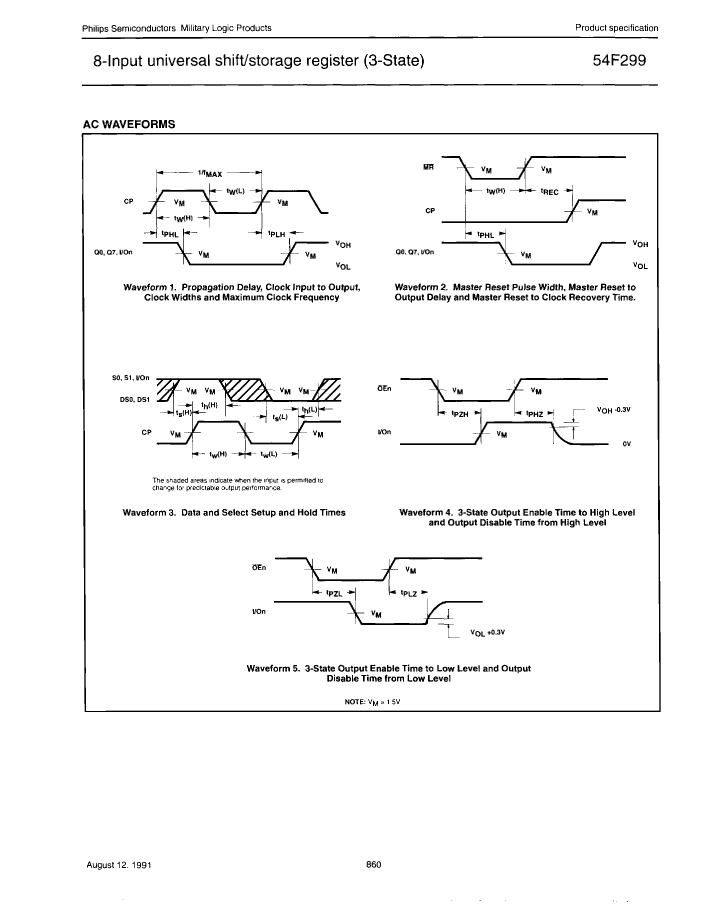

54F299/BSA: DescriptionIC F/FAST SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP20, Shift Register; Categorylogic logic; File Size164KB，6 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

54F299/BSA Overview

IC F/FAST SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP20, Shift Register

54F299/BSA Parametric

Parameter Name	Attribute value
package instruction	DFP,
Reach Compliance Code	unknow
Other features	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL
Counting direction	BIDIRECTIONAL
series	F/FAST
JESD-30 code	R-CDFP-F20
Load capacitance (CL)	50 pF
Logic integrated circuit type	PARALLEL IN PARALLEL OUT
Number of digits	8
Number of functions	1
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP
Package shape	RECTANGULAR
Package form	FLATPACK
Maximum supply current (ICC)	85 mA
propagation delay (tpd)	11.5 ns
Certification status	Not Qualified
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL
Trigger type	POSITIVE EDGE
minfmax	85 MHz
Base Number Matches	1

Preview

Download Datasheet

View All

54F299/BSA Related Products

	54F299/BSA	N54F299/B2A	SIT9025AEL22-33DL1.000000E	54F299/BRA	N54F299/BSA
Description	IC F/FAST SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP20, Shift Register	IC F/FAST SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CQCC20, CERAMIC, LLCC-20, Shift Register	LVCMOS Output Clock Oscillator, 1MHz Nom,	IC F/FAST SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDIP20, Shift Register	IC F/FAST SERIES, 8-BIT BIDIRECTIONAL PARALLEL IN PARALLEL OUT SHIFT REGISTER, TRUE OUTPUT, CDFP20, DFP-20, Shift Register
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown
package instruction	DFP,	QCCN,	-	DIP,	DFP,
Other features	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL	-	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL	HOLD MODE; COMMON I/O PINS; TOTEMPOLE SERIAL SHIFT RIGHT & SHIFT LEFT OUTPUTS; GATED OUTPUT CONTROL
Counting direction	BIDIRECTIONAL	BIDIRECTIONAL	-	BIDIRECTIONAL	BIDIRECTIONAL
series	F/FAST	F/FAST	-	F/FAST	F/FAST
JESD-30 code	R-CDFP-F20	S-CQCC-N20	-	R-GDIP-T20	R-CDFP-F20
Load capacitance (CL)	50 pF	50 pF	-	50 pF	50 pF
Logic integrated circuit type	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT	-	PARALLEL IN PARALLEL OUT	PARALLEL IN PARALLEL OUT
Number of digits	8	8	-	8	8
Number of functions	1	1	-	1	1
Number of terminals	20	20	-	20	20
Maximum operating temperature	125 °C	125 °C	-	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-	-55 °C	-55 °C
Output characteristics	3-STATE	3-STATE	-	3-STATE	3-STATE
Output polarity	TRUE	TRUE	-	TRUE	TRUE
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	-	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DFP	QCCN	-	DIP	DFP
Package shape	RECTANGULAR	SQUARE	-	RECTANGULAR	RECTANGULAR
Package form	FLATPACK	CHIP CARRIER	-	IN-LINE	FLATPACK
Maximum supply current (ICC)	85 mA	85 mA	-	85 mA	85 mA
propagation delay (tpd)	11.5 ns	11.5 ns	-	11.5 ns	11.5 ns
Certification status	Not Qualified	Not Qualified	-	Not Qualified	Not Qualified
Maximum supply voltage (Vsup)	5.5 V	5.5 V	-	5.5 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	-	4.5 V	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V	5 V
surface mount	YES	YES	-	NO	YES
technology	TTL	TTL	-	TTL	TTL
Temperature level	MILITARY	MILITARY	-	MILITARY	MILITARY
Terminal form	FLAT	NO LEAD	-	THROUGH-HOLE	FLAT
Terminal location	DUAL	QUAD	-	DUAL	DUAL
Trigger type	POSITIVE EDGE	POSITIVE EDGE	-	POSITIVE EDGE	POSITIVE EDGE
minfmax	85 MHz	85 MHz	-	85 MHz	85 MHz
Base Number Matches	1	1	-	1	1
