5223513-2 datasheet, PDF - EEWORLD Datasheet

5223513-2: Descriptionconn 2mm FB plug 48pos R/A gold; CategoryThe connector; File Size168KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5223513-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5223513-2	-	-	View	Buy Now

conn 2mm FB plug 48pos R/A gold

Parameter Name	Attribute value
Datasheets

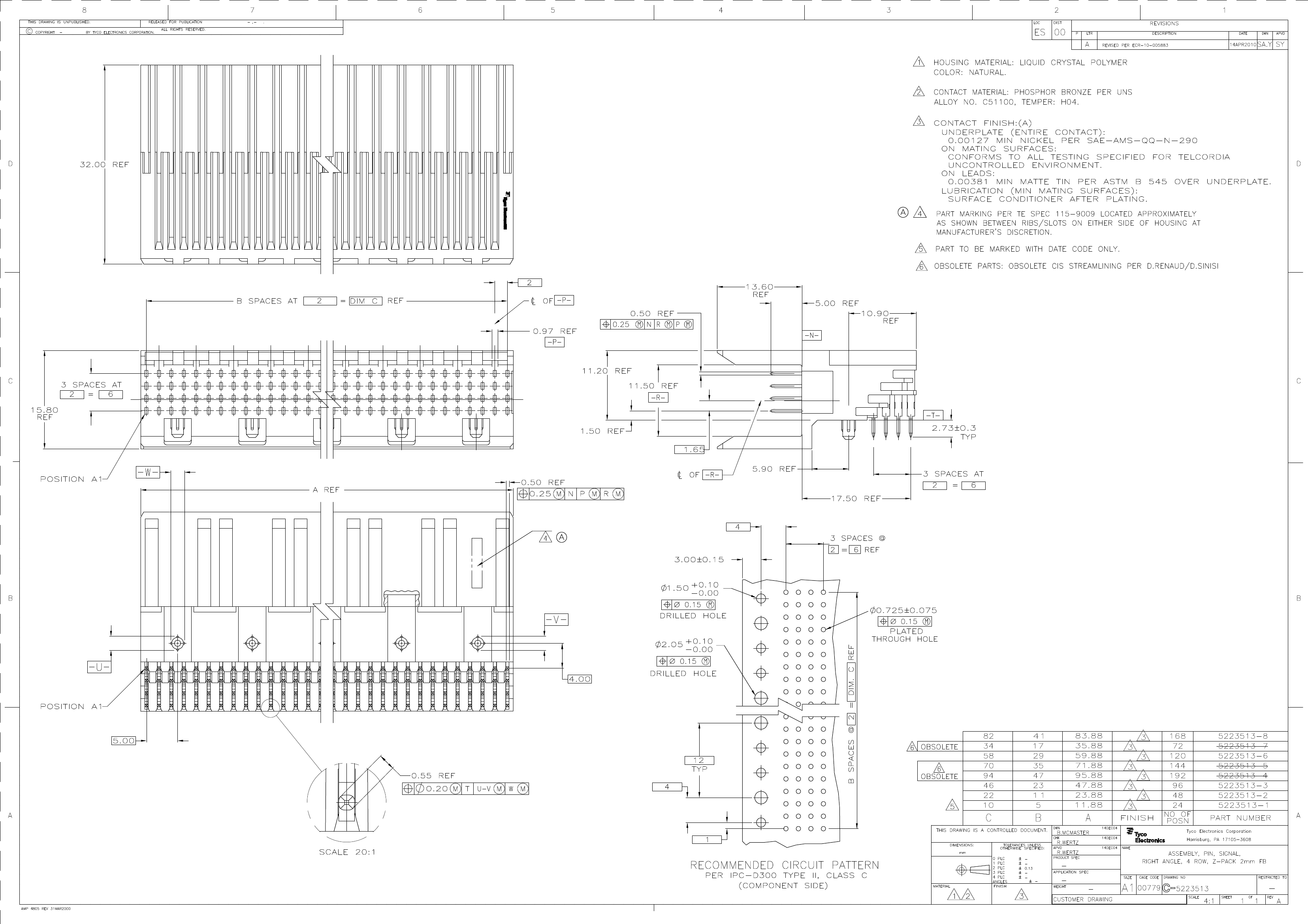

5223513 Drawing
RoHS Informati
5223513-2 Statement of Compliance
RoHS 2 Stateme
3D Model
5223513-2.pdf
Standard Package	24
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	-
Connector Type	Header, Male Pins
Connector Style	Futurebus
Number of Positions	48
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	4
Number of Columns	-
Mounting Type	Board Edge, Through Hole, Right Angle
Terminati	Solde
Contact Layout, Typical	-
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	-
Col	Natural
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-55°C ~ 125°C
Voltage Rating	30V
Mating Products	5223660-2-ND - 2MM FB,4RV,REC,ASY,048,SL,3.205223655-2-ND - 2MM FB,4RV,REC,ASY,048,SL,4.255223650-2-ND - 2MM FB,4RV,REC,ASY,048,PF,4.25A31572-ND - CONN RECEPT RT/A 2MM 48POS 30AUA31568-ND - CONN RECEPT RT/A 2MM 48POS 30AUA31563-ND - CONN RECEPT RT/A 2MM 48POS 30AU
Other Names	5223513-2-NDA115345

	5223513-2	5223513-1
Description	conn 2mm FB plug 48pos R/A gold	conn 2mm FB plug 24pos R/A gold
Standard Package	24	49
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube
Connector Type	Header, Male Pins	Header, Male Pins
Connector Style	Futurebus	Futurebus
Number of Positions	48	24
Number of Positions Loaded	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	4	4
Mounting Type	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle
Terminati	Solde	Solde
Features	Board Guide	Board Guide
Contact Finish	Gold	Gold
Col	Natural	Natural
Material Flammability Rating	UL94 V-0	UL94 V-0
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C
Voltage Rating	30V	30V
Mating Products	5223660-2-ND - 2MM FB,4RV,REC,ASY,048,SL,3.205223655-2-ND - 2MM FB,4RV,REC,ASY,048,SL,4.255223650-2-ND - 2MM FB,4RV,REC,ASY,048,PF,4.25A31572-ND - CONN RECEPT RT/A 2MM 48POS 30AUA31568-ND - CONN RECEPT RT/A 2MM 48POS 30AUA31563-ND - CONN RECEPT RT/A 2MM 48POS 30AU	5223650-1-ND - 2MM FB,4RV,REC,ASY,024,PF,4.25A31571-ND - CONN RECEPT RT/A 2MM 24POS 30AUA31567-ND - CONN RECEPT RT/A 2MM 24POS 30AUA31562-ND - CONN RECEPT RT/A 2MM 24POS 30AU
Other Names	5223513-2-NDA115345	5223513-1-NDA115344
