2102444-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 2102444-2

2102444-2: Descriptionlow power mod RA gold tails; CategoryThe connector; File Size128KB，1 Pages; ManufacturerAll Sensors

Download Datasheet Parametric Compare View All

2102444-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2102444-2	-	-	View	Buy Now

2102444-2 Overview

low power mod RA gold tails

2102444-2 Parametric

Parameter Name	Attribute value
Datasheets
2102446 Drawing
Standard Package	115
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	-
Connector Type	Header, Male Blades
Connector Style	Multi-Beam
Number of Positions	2
Number of Positions Loaded	All
Pitch	-
Number of Rows	-
Number of Columns	-
Mounting Type	Through Hole, Right Angle
Terminati	Press-Fi
Contact Layout, Typical	5 Powe
Features	Board Guide
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Current Rating	-
Material Flammability Rating	-
Operating Temperature	-20°C ~ 105°C
Voltage Rating	-
Dynamic Catalog	Multi-Beam XL™ Series
Other Names	A119877

Preview

Download Datasheet

View All

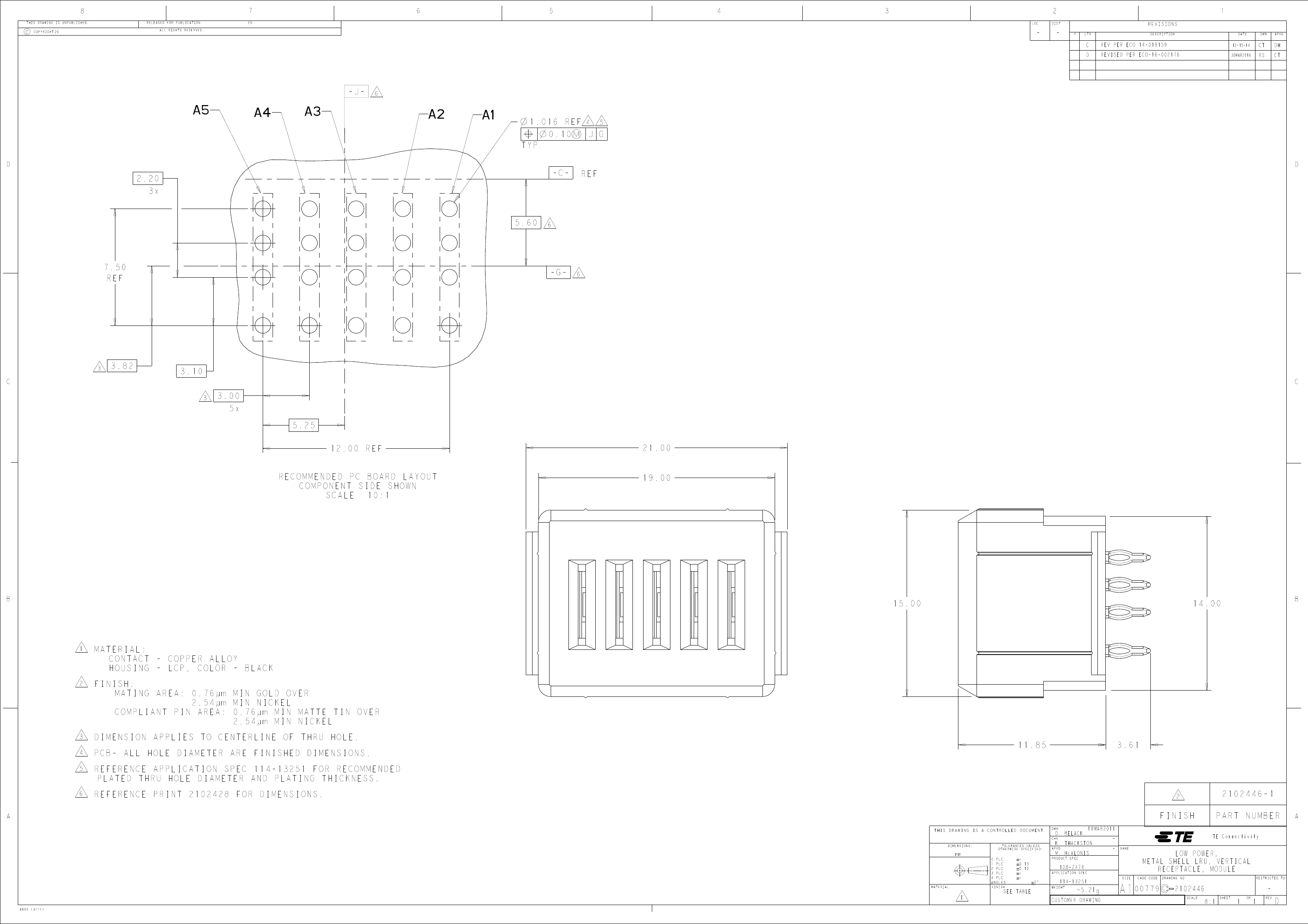

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REV PER ECO 14-018159

REVISED PER ECO-16-002176

12-15-14

30MAR2016

-J-

1.016

TYP

REF

2.20

-C-

REF

5.60

7.50

REF

-G-

3.82

3.10

3.00

5.25

12.00

REF

21.00

19.00

RECOMMENDED PC BOARD LAYOUT

COMPONENT SIDE SHOWN

SCALE

10:1

15.00

14.00

MATERIAL:

CONTACT - COPPER ALLOY

HOUSING - LCP, COLOR - BLACK

FINISH:

MATING AREA: 0.76µm MIN GOLD OVER

2.54µm MIN NICKEL

COMPLIANT PIN AREA: 0.76µm MIN MATTE TIN OVER

2.54µm MIN NICKEL

DIMENSION APPLIES TO CENTERLINE OF THRU HOLE.

PCB- ALL HOLE DIAMETER ARE FINISHED DIMENSIONS.

REFERENCE APPLICATION SPEC 114-13251 FOR RECOMMENDED

PLATED THRU HOLE DIAMETER AND PLATING THICKNESS.

REFERENCE PRINT 2102428 FOR DIMENSIONS.

11.85

3.61

2102446-1

PART NUMBER

TE Connectivity

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

FINISH

D. BELACK

K. THACKSTON

M. McALONIS

108-2474

11MAR2011

NAME

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

0.13

0.10

PRODUCT SPEC

APPLICATION SPEC

2°

4805 (3/11)

SEE TABLE

WEIGHT

114-13251

CUSTOMER DRAWING

5.21

00779

SIZE

CAGE CODE

LOW POWER,

METAL SHELL LRU, VERTICAL

RECEPTACLE, MODULE

DRAWING NO

RESTRICTED TO

2102446

SCALE

8:1

SHEET

REV

2102444-2 Related Products

	2102444-2	2102446-1	2102444-1	2102446-2
Description	low power mod RA gold tails	low power mod tin tails	low power mod RA tin tails	low power mod gold tails
Standard Package	115	120	115	120
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube	Tube	Tube
Connector Type	Header, Male Blades	Receptacle, Female Blade Sockets	Header, Male Blades	Receptacle, Female Blade Sockets
Connector Style	Multi-Beam	Multi-Beam	Multi-Beam	Multi-Beam
Number of Positions	2	5	2	5
Number of Positions Loaded	All	All	All	All
Mounting Type	Through Hole, Right Angle	Through Hole	Through Hole, Right Angle	Through Hole
Terminati	Press-Fi	Press-Fi	Press-Fi	Press-Fi
Contact Layout, Typical	5 Powe	5 Powe	5 Powe	5 Powe
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black	Black	Black
Operating Temperature	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C
Dynamic Catalog	Multi-Beam XL™ Series	Multi-Beam XL™ Series	Multi-Beam XL™ Series	Multi-Beam XL™ Series
Other Names	A119877	A119858	A119873	A119861
