2102247-1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> 2102247-1

Preview

2102247-1: Descriptionconn hard metric 90pos; CategoryThe connector; File Size2MB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

2102247-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	2102247-1	-	-	View	Buy Now

2102247-1 Overview

conn hard metric 90pos

2102247-1 Parametric

Parameter Name	Attribute value
Datasheets

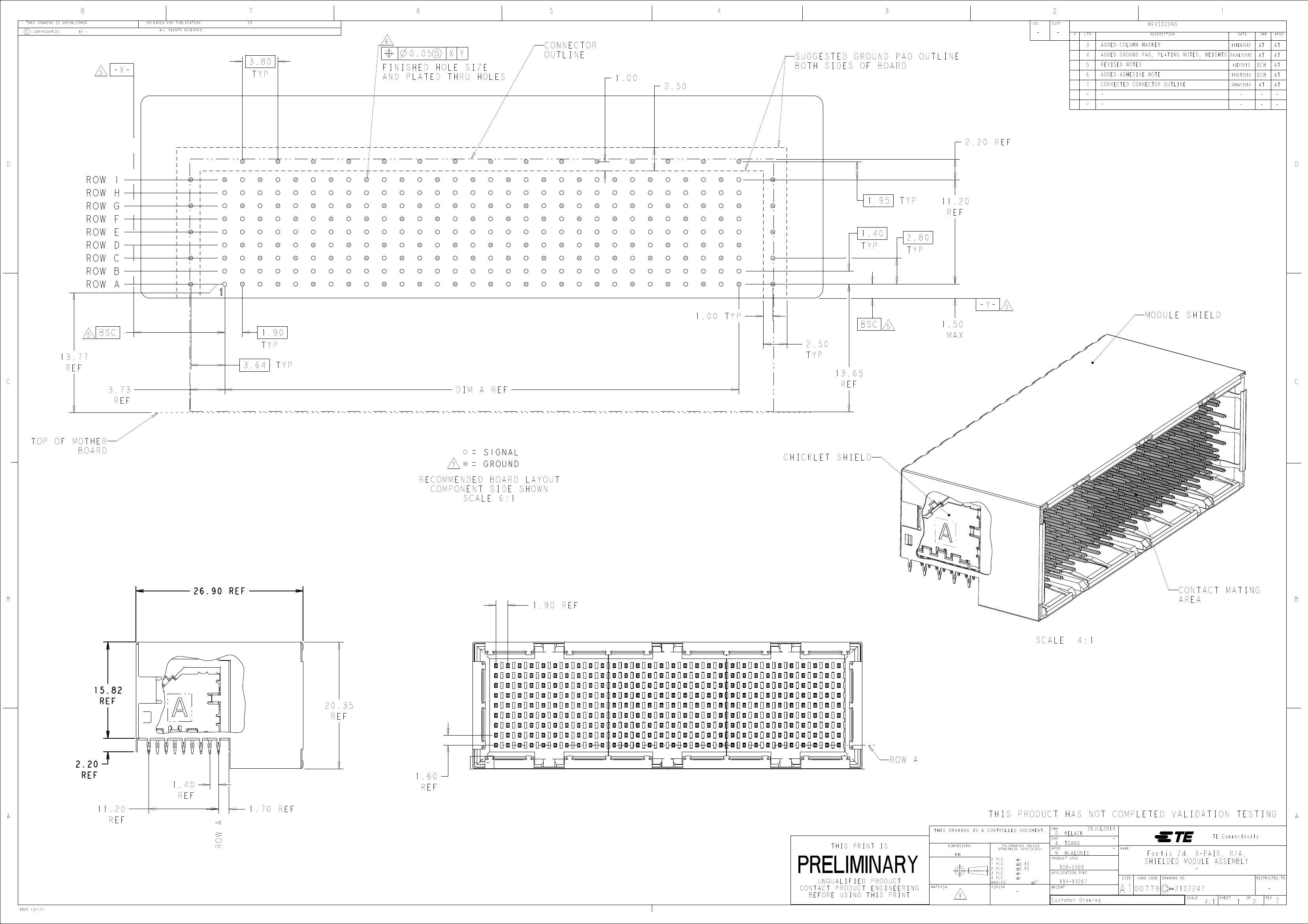

2102247 Drawing
Standard Package	19
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	Daughtercard
Connector Type	Header, Male Pins
Connector Style	-
Number of Positions	90
Number of Positions Loaded	All
Pitch	-
Number of Rows	-
Number of Columns	10
Mounting Type	Board Edge, Through Hole, Right Angle
Terminati	Press-Fi
Contact Layout, Typical	-
Features	Shielded, Space
Contact Finish	Gold
Contact Finish Thickness	50µin (1.27µm)
Col	Black
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-65°C ~ 125°C
Voltage Rating	-
Dynamic Catalog	Fortis Zd Series
Other Names	A118860

Preview

Download Datasheet

View All

8

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

7

20

6

5

4

3

LOC

2

DIST

1

REVISIONS

P

LTR

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

20

6

5

-X-

3.80

TYP

FINISHED HOLE SIZE

AND PLATED THRU HOLES

CONNECTOR

OUTLINE

1.00

2.50

-

SUGGESTED GROUND PAD OUTLINE

BOTH SIDES OF BOARD

-

3

4

5

6

7

-

ADDED COLUMN MARKER

ADDED GROUND PAD, PLATING NOTES, WEIGHTS

REVISED NOTES

ADDED ADHESIVE NOTE

CORRECTED CONNECTOR OUTLINE

-

14FEB2012

24JULY2012

4SEP2012

14OCT2013

30MAY2014

-

AT

DCB

AT

-

AT

-

2.20

D

REF

D

1.95

1.40

TYP

11.20

REF

2.80

TYP

1.00

5

TYP

2.50

TYP

13.65

REF

-Y-

BSC

5

BSC

1.90

TYP

3.64

TYP

DIM A REF

1.50

MAX

MODULE SHIELD

13.77

REF

C

3.73

REF

C

TOP OF MOTHER

BOARD

7

CHICKLET SHIELD

RECOMMENDED BOARD LAYOUT

COMPONENT SIDE SHOWN

SCALE 6:1

B

26.90

REF

1.90

REF

CONTACT MATING

AREA

B

SCALE

4:1

15.82

REF

20.35

REF

2.20

REF

11.20

REF

1.40

REF

1.60

REF

1.70

ROW A

REF

-R-

ROW A

A

THIS PRODUCT HAS NOT COMPLETED VALIDATION TESTING

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

A

D. BELACK

A. TSANG

PRELIMINARY

UNQUALIFIED PRODUCT

CONTACT PRODUCT ENGINEERING

BEFORE USING THIS PRINT

4805 (3/11)

THIS PRINT IS

DIMENSIONS:

mm

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

-

0.13

0.05

-

PRODUCT SPEC

M. McALONIS

108-2409

PRELIMINARY

-

NAME

26JUL2010

TE Connectivity

APPLICATION SPEC

2°

1

-

WEIGHT

114-13267

Customer Drawing

A1

00779

SIZE

CAGE CODE

Fortis Zd, 3-PAIR, R/A,

SHIELDED MODULE ASSEMBLY

-

DRAWING NO

RESTRICTED TO

2102247

SCALE

4:1

SHEET

1

OF

2

REV

-

7

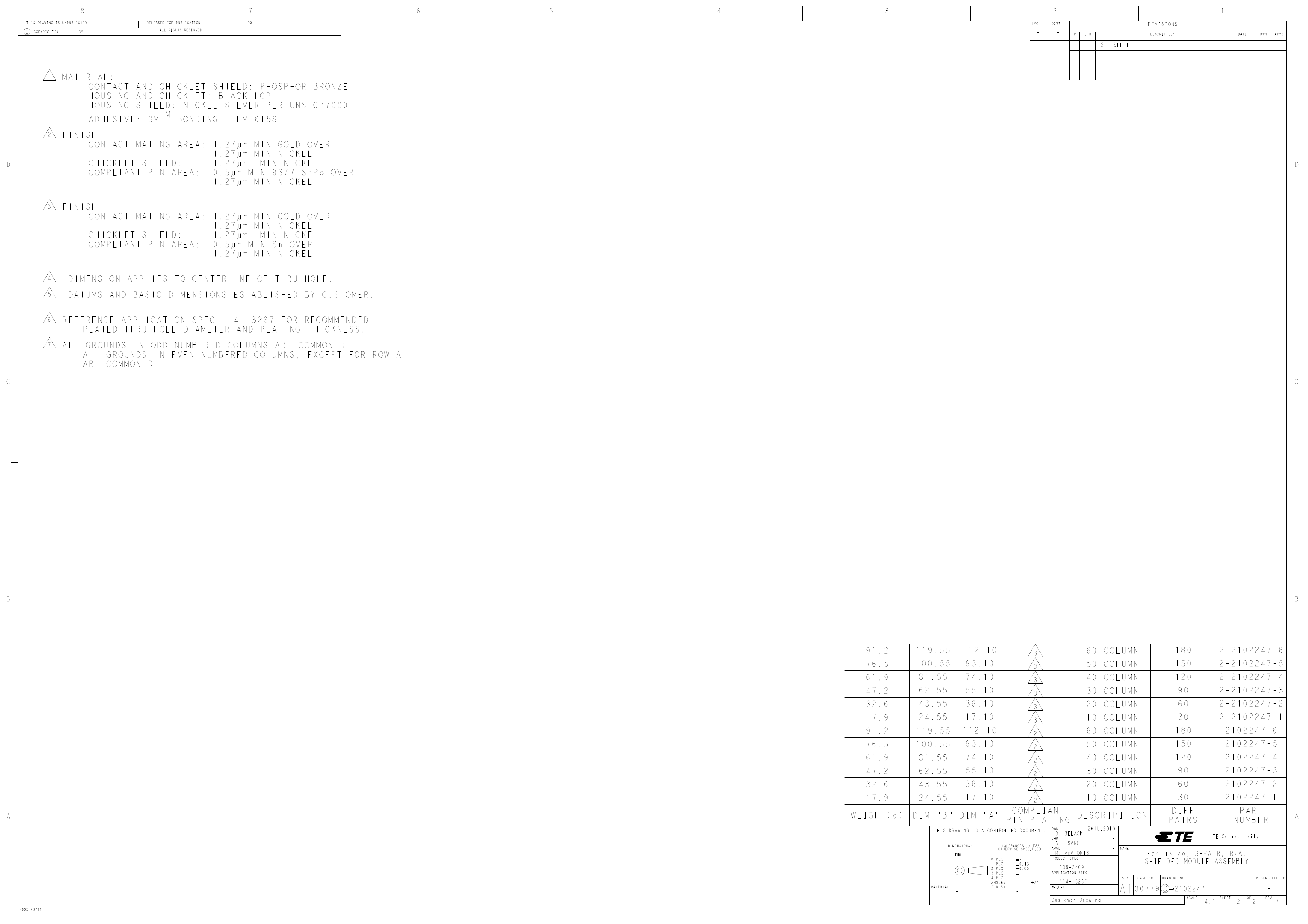

2102247-1 Related Products

	2102247-1	2102247-2
Description	conn hard metric 90pos	conn hard metric 180pos
Standard Package	19	11
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube
Connector Usage	Daughtercard	Daughtercard
Connector Type	Header, Male Pins	Header, Male Pins
Number of Positions	90	180
Number of Positions Loaded	All	All
Number of Columns	10	20
Mounting Type	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle
Terminati	Press-Fi	Press-Fi
Features	Shielded, Space	Shielded, Space
Contact Finish	Gold	Gold
Contact Finish Thickness	50µin (1.27µm)	50µin (1.27µm)
Col	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-1
Operating Temperature	-65°C ~ 125°C	-65°C ~ 125°C
Dynamic Catalog	Fortis Zd Series	Fortis Zd Series
Other Names	A118860	A118861
