1.5SMC480AHE3_ALL datasheet, PDF

Datasheet> All Categories > Circuit protection> 1.5SMC480AHE3_ALL

1.5SMC480AHE3_ALL: Descriptiontvs diode 408vwm 658vc do214ab; CategoryCircuit protection; File Size91KB，5 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric View All

1.5SMC480AHE3_ALL Overview

tvs diode 408vwm 658vc do214ab

1.5SMC480AHE3_ALL Parametric

Parameter Name	Attribute value
Datasheets
1.5SMC Series
Product Photos
DO-214AB, SMC
Standard Package	3,500
Category	Circuit Protecti
Family	TVS - Diodes
Packaging	Tape & Reel (TR)
Type	Zene
Unidirectional Channels	1
Bidirectional Channels	-
Voltage - Reverse Standoff (Typ)	408V
Voltage - Breakdown (Min)	456V
Voltage - Clamping (Max) @ I	658V
Current - Peak Pulse (10/1000µs)	2.28A
Power - Peak Pulse	1500W (1.5kW)
Power Line Protecti	N
Applications	General Purpose
Capacitance @ Frequency	-
Operating Temperature	-65°C ~ 150°C (TJ)
Mounting Type	Surface Mou
Package / Case	DO-214AB, SMC
Supplier Device Package	DO-214AB (SMCJ)
Other Names	1.5SMC480AHE3/9AT1.5SMC480AHE3/9AT-ND

Preview

Download Datasheet

View All

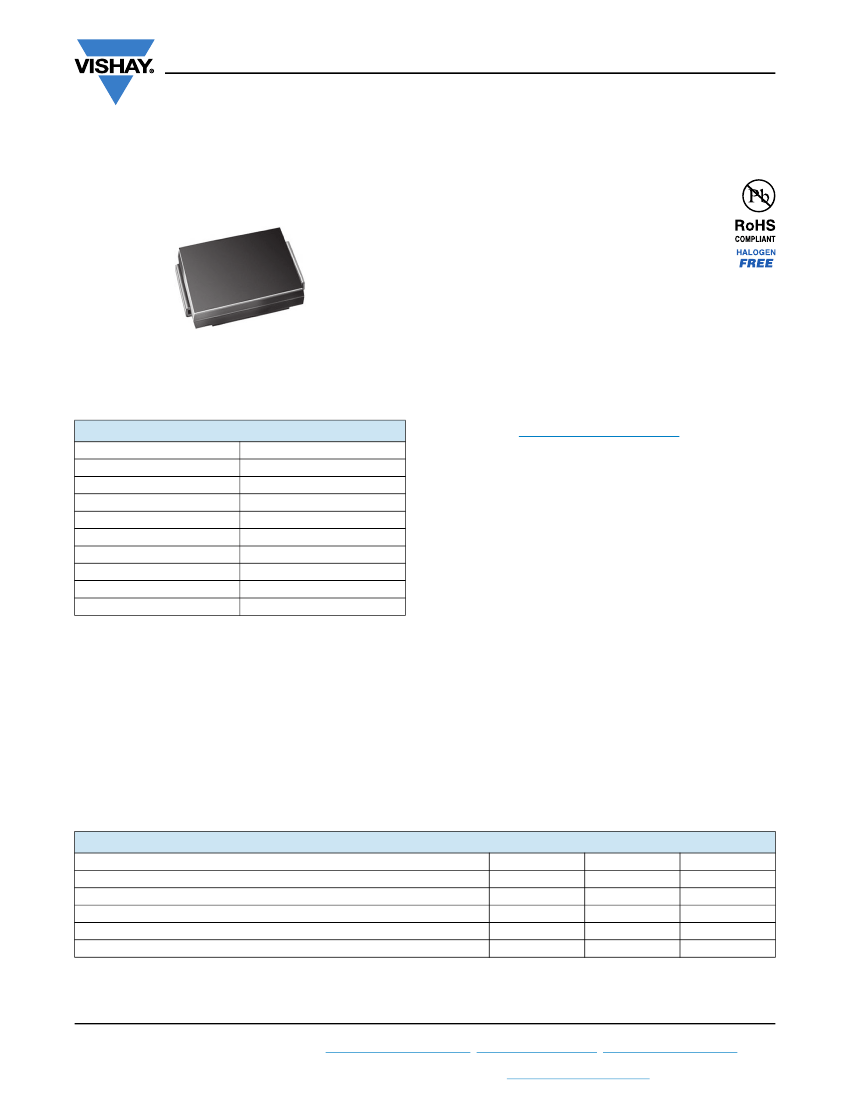

1.5SMC Series

www.vishay.com

Vishay General Semiconductor

Surface Mount T

RANS

ORB®

Transient Voltage Suppressors

FEATURES

•

Low profile package

Ideal for automated placement

Glass passivated chip junction

Available in uni-directional and bi-directional

1500 W peak pulse power capability with a

Available

10/1000 μs waveform, repetitive rate (duty cycle):

0.01 %

Excellent clamping capability

Very fast response time

Low incremental surge resistance

Meets MSL level 1, per J-STD-020, LF maximum peak of

260 °C

AEC-Q101 qualified available

- Automotive ordering code: base P/NHE3 or P/NHM3

Material categorization: for definitions of compliance

please see

www.vishay.com/doc?99912

SMC (DO-214AB)

•

PRIMARY CHARACTERISTICS

(uni-directional)

(bi-directional)

(uni-directional)

(bi-directional)

PPM

FSM

(uni-directional only)

max.

Polarity

Package

5.8 V to 459 V

5.8 V to 185 V

6.8 V to 540 V

6.8 V to 220 V

1500 W

6.5 W

200 A

150 °C

Uni-directional, bi-directional

SMC (DO-214AB)

•

TYPICAL APPLICATIONS

Use in sensitive electronics protection against voltage

transients induced by inductive load switching and lightning

on ICs, MOSFET, signal lines of sensor units for consumer,

computer, industrial, automotive, and telecommunication.

MECHANICAL DATA

Case:

SMC (DO-214AB)

Molding compound meets UL 94 V-0 flammability rating

Base P/N-E3 - RoHS-compliant, commercial grade

Base P/N-M3 - halogen-free, RoHS-compliant, commercial

grade

Base P/NHE3_X - RoHS-compliant and AEC-Q101 qualified

Base P/NHM3_X - halogen-free, RoHS-compliant, and

AEC-Q101 qualified

(“_X” denotes revision code e.g. A, B, ..... and only available

for 250 V to 540 V type)

Terminals:

matte tin plated leads, solderable per

J-STD-002 and JESD 22-B102

E3, M3, HE3, and HM3 suffix meets JESD 201 class 2

whisker test

Polarity:

for uni-directional types the band denotes cathode

end, no marking on bi-directional types

DEVICES FOR BI-DIRECTION APPLICATIONS

For bi-directional devices use CA suffix (e.g. 1.5SMC220CA).

Electrical characteristics apply in both directions.

MAXIMUM RATINGS

= 25 °C unless otherwise noted)

PARAMETER

Peak power dissipation with a 10/1000 μs waveform

Power dissipation on infinite heatsink at T

= 50 °C

Peak forward surge current 8.3 ms single half sine-wave uni-directional only

Operating junction and storage temperature range

Notes

(1)

Non-repetitive current pulse, per fig. 3 and derated above T = 25 °C per fig. 2

(2)

Mounted on 0.31" x 0.31" (8.0 mm x 8.0 mm) copper pads to each terminal

Revision: 11-Jul-17

Document Number: 88303

For technical questions within your region:

DiodesAmericas@vishay.com, DiodesAsia@vishay.com, DiodesEurope@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT

www.vishay.com/doc?91000

(2)

(1)(2)

SYMBOL

(fig. 1)

PPM

FSM

, T

STG

VALUE

1500

See next table

6.5

200

-65 to +150

UNIT

°C

Peak pulse current with a 10/1000 μs waveform

(1)

(fig. 3)
