DG541DN-E3 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> DG541DN-E3

DG541DN-E3: DescriptionIC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PQCC20, PLASTIC, LCC-20, Multiplexer or Switch; CategoryAnalog mixed-signal IC The signal circuit; File Size343KB，10 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

DG541DN-E3 Overview

IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PQCC20, PLASTIC, LCC-20, Multiplexer or Switch

DG541DN-E3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Parts packaging code	QLCC
package instruction	QCCJ,
Contacts	20
Reach Compliance Code	unknow
Other features	VIDEO APPLICATION
Analog Integrated Circuits - Other Types	SPST
JESD-30 code	S-PQCC-J20
JESD-609 code	e3
length	8.9662 mm
Humidity sensitivity level	1
Nominal Negative Supply Voltage (Vsup)	-3 V
Number of channels	1
Number of functions	4
Number of terminals	20
Nominal off-state isolation	60 dB
On-state resistance matching specifications	2 Ω
Maximum on-state resistance (Ron)	60 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	QCCJ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum seat height	4.57 mm
Maximum supply current (Isup)	9 mA
Nominal supply voltage (Vsup)	15 V
surface mount	YES
Maximum disconnect time	50 ns
Maximum connection time	70 ns
technology	NMOS
Temperature level	INDUSTRIAL
Terminal surface	MATTE TIN
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	40
width	8.9662 mm
Base Number Matches	1

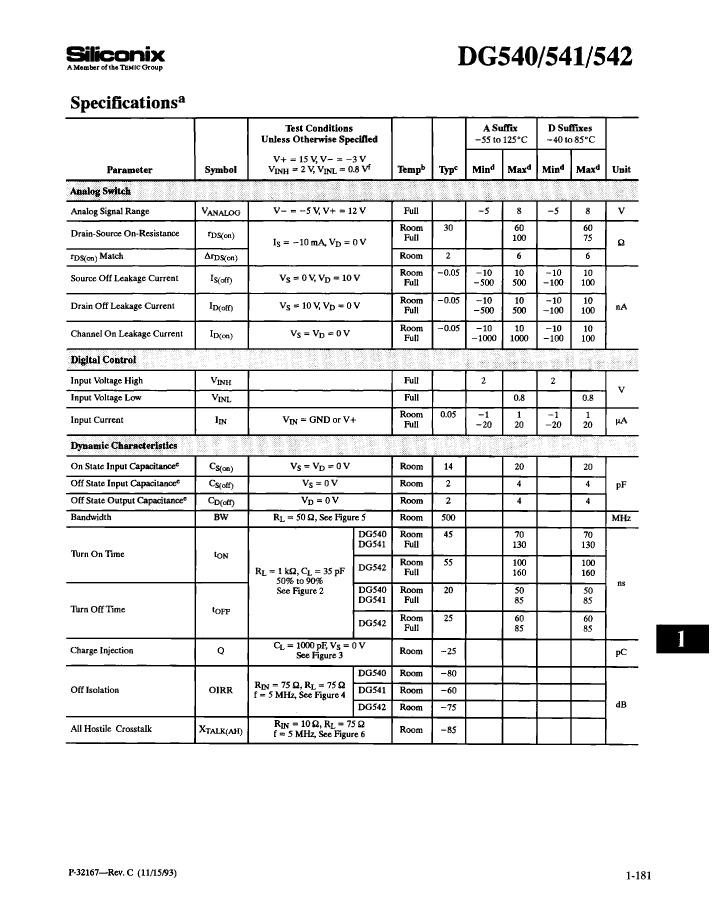

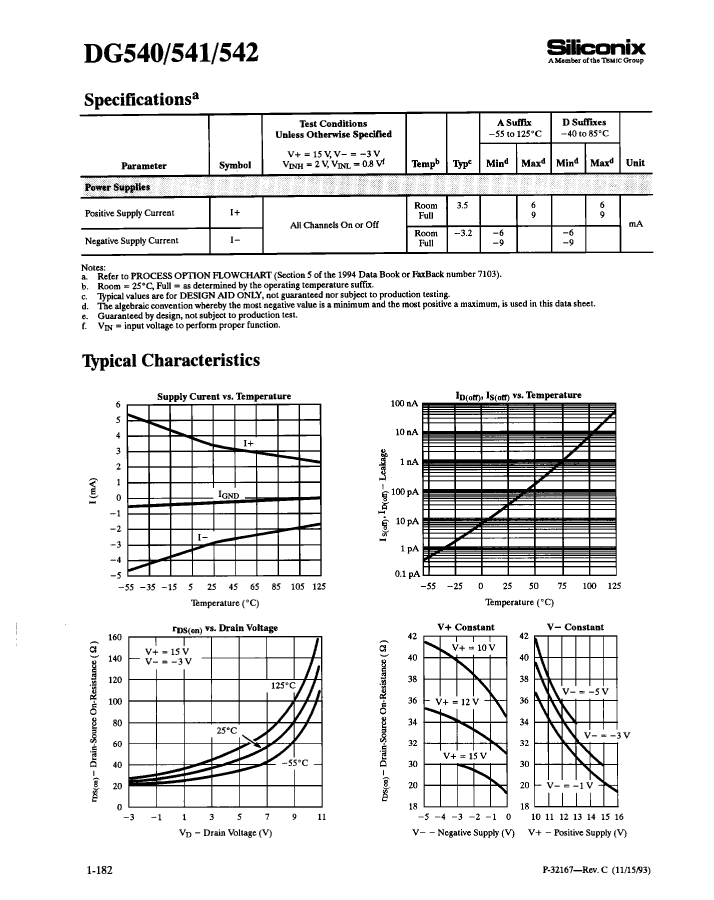

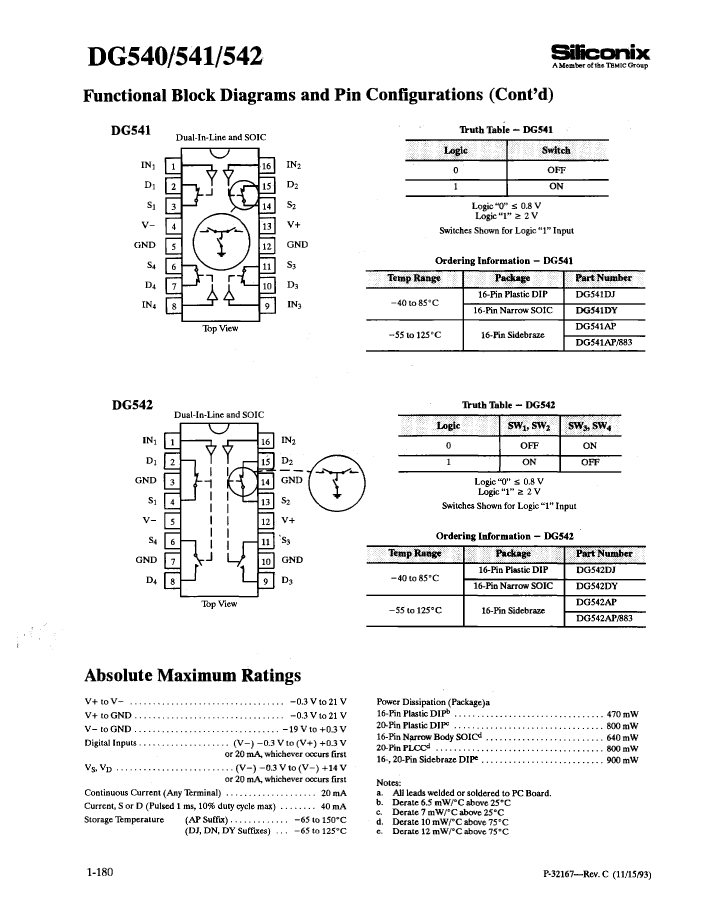

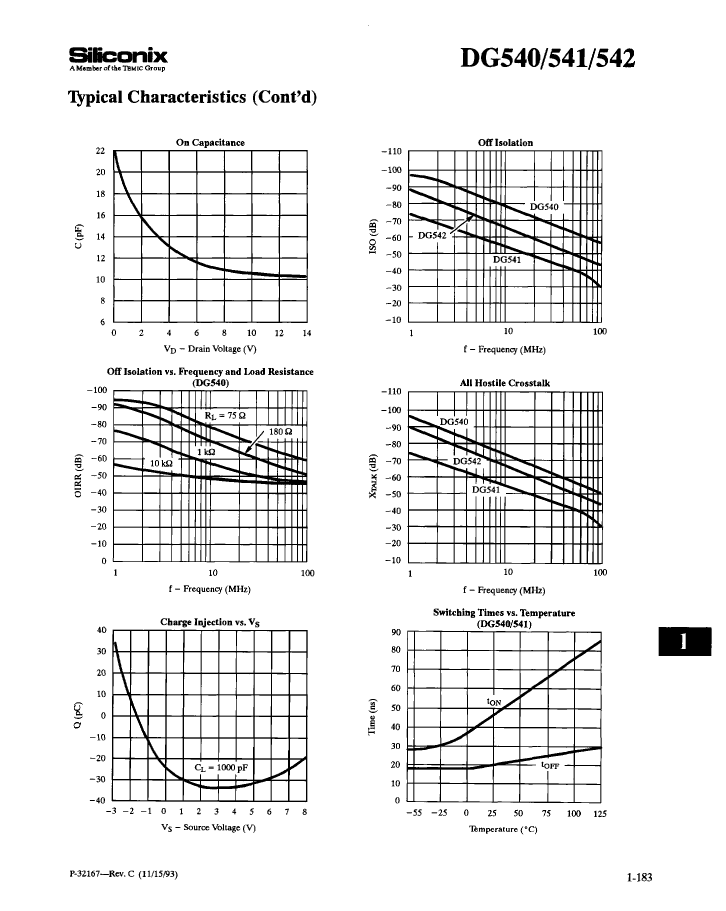

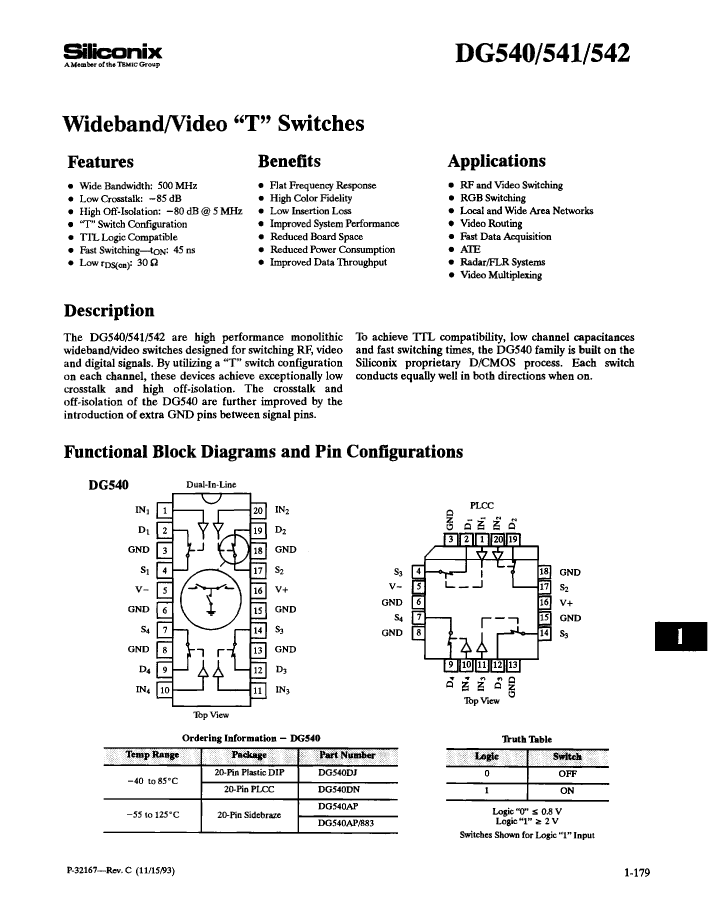

Preview

Download Datasheet

View All

DG541DN-E3 Related Products

	DG541DN-E3	5962-9155201MEA	DG541DN	5962-9076401MEX	DG542DN	5962-9155201MEX
Description	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PQCC20, PLASTIC, LCC-20, Multiplexer or Switch	SPST, 4 Func, CDIP16	IC QUAD 1-CHANNEL, SGL POLE SGL THROW SWITCH, PQCC20, PLASTIC, LCC-20, Multiplexer or Switch	IC QUAD 4-CHANNEL, AUDIO/VIDEO SWITCH, CDIP16, CERAMIC, DIP-16, Multiplexer or Switch	IC DUAL 1-CHANNEL, SGL POLE DOUBLE THROW SWITCH, PQCC20, PLASTIC, LCC-20, Multiplexer or Switch	Audio/Video Switch, 2 Func, 1 Channel, NMOS, CDIP16, CERAMIC, DIP-16
Parts packaging code	QLCC	DIP	QLCC	DIP	QLCC	DIP
Contacts	20	16	20	16	20	16
Reach Compliance Code	unknow	unknown	unknown	unknown	unknown	unknown
Analog Integrated Circuits - Other Types	SPST	SPST	SPST	AUDIO/VIDEO SWITCH	SPDT	AUDIO/VIDEO SWITCH
JESD-30 code	S-PQCC-J20	R-XDIP-T16	S-PQCC-J20	R-GDIP-T16	S-PQCC-J20	R-CDIP-T16
Number of functions	4	4	4	4	2	2
Number of terminals	20	16	20	16	20	16
Maximum on-state resistance (Ron)	60 Ω	100 Ω	60 Ω	60 Ω	60 Ω	60 Ω
Maximum operating temperature	85 °C	125 °C	85 °C	125 °C	85 °C	125 °C
Minimum operating temperature	-40 °C	-55 °C	-40 °C	-55 °C	-40 °C	-55 °C
Package body material	PLASTIC/EPOXY	CERAMIC	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	PLASTIC/EPOXY	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCJ	DIP	QCCJ	DIP	QCCJ	DIP
Package shape	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR	SQUARE	RECTANGULAR
Package form	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE	CHIP CARRIER	IN-LINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	NO	YES	NO	YES	NO
Maximum connection time	70 ns	70 ns	70 ns	70 ns	100 ns	70 ns
Temperature level	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY	INDUSTRIAL	MILITARY
Terminal form	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE	J BEND	THROUGH-HOLE
Terminal location	QUAD	DUAL	QUAD	DUAL	QUAD	DUAL
Base Number Matches	1	1	1	1	1	1
Is it Rohs certified?	conform to	incompatible	incompatible	-	incompatible	-
package instruction	QCCJ,	-	QCCJ,	DIP,	QCCJ,	DIP,
JESD-609 code	e3	e0	e0	e0	e0	-
Nominal Negative Supply Voltage (Vsup)	-3 V	-	-3 V	-3 V	-3 V	-3 V
Number of channels	1	-	1	4	1	1
Nominal off-state isolation	60 dB	-	60 dB	-	75 dB	75 dB
On-state resistance matching specifications	2 Ω	-	2 Ω	6 Ω	2 Ω	-
Nominal supply voltage (Vsup)	15 V	-	15 V	15 V	15 V	15 V
Maximum disconnect time	50 ns	-	50 ns	50 ns	60 ns	50 ns
technology	NMOS	-	NMOS	-	NMOS	NMOS
Terminal surface	MATTE TIN	Tin/Lead (Sn/Pb) - hot dipped	TIN LEAD	TIN LEAD	TIN LEAD	-
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	-	1.27 mm	-
