2545R-12GB-L datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The connector> The connector> 2545R-12GB-L

Preview

2545R-12GB-L: DescriptionBoard Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle; CategoryThe connector The connector; File Size2MB，1 Pages; ManufacturerRatioplast Electronics

Download Datasheet Parametric View All

2545R-12GB-L Overview

Board Connector, 12 Contact(s), 1 Row(s), Male, Right Angle, 0.1 inch Pitch, Solder Terminal, Locking, Receptacle

2545R-12GB-L Parametric

Parameter Name	Attribute value
Objectid	304375250
Reach Compliance Code	compliant
ECCN code	EAR99
body width	0.275 inch
subject depth	0.535 inch
body length	1.299 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	1000000000 Ω
insulator material	GLASS FILLED POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	2545
Plug contact pitch	0.1 inch
Installation option 1	LOCKING
Installation option 2	LATCH
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
PCB contact pattern	RECTANGULAR
Plating thickness	FLASH inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	12

Preview

Download Datasheet

View All

Ratioplast - Electronics

Homepage: www.ratioplast.de / E-Mail: info@ratioplast.de

Tel.:+49 (0) 5741 / 23661-0 / Fax: +49 (0) 5741 / 23661-20

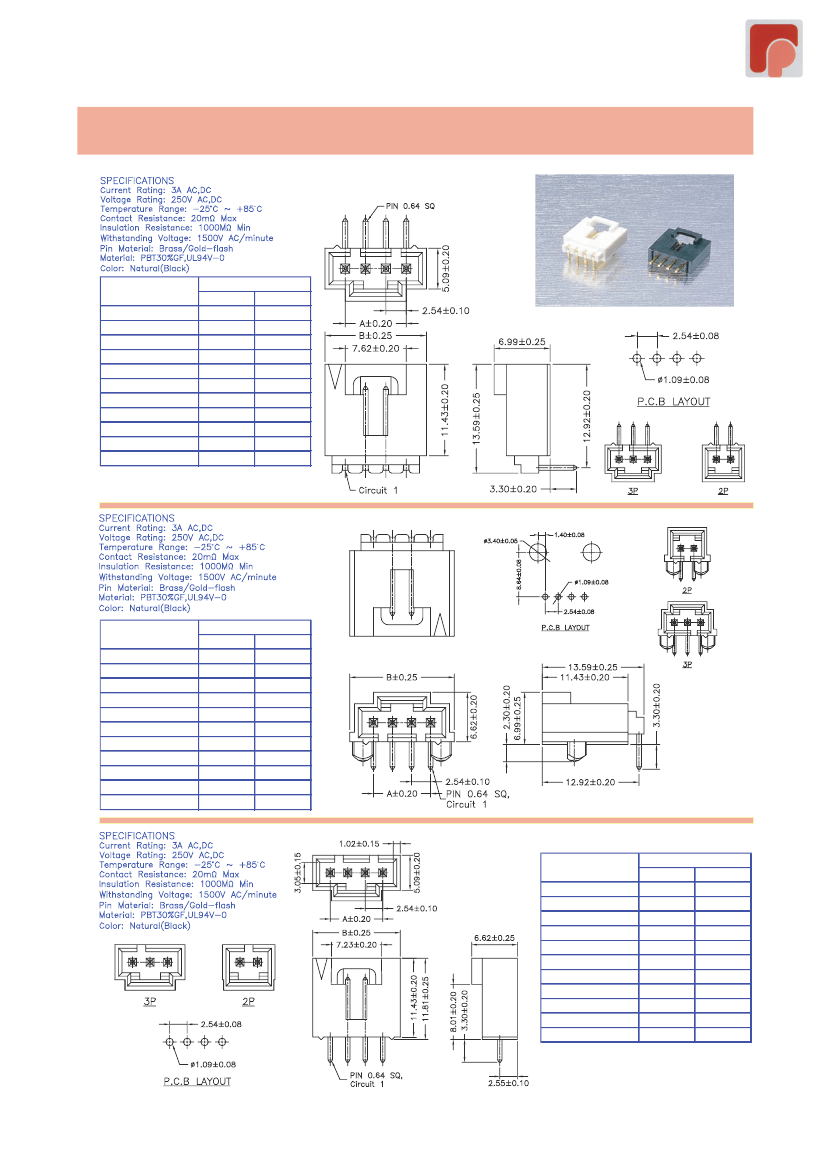

2.54mm MINI LATCH WAFER

RIGHT ANGLE / STRAIGHT TYPE

PART NO.

2545R-02GB-L

2545R-03GB-L

2545R-04GB-L

2545R-05GB-L

2545R-06GB-L

2545R-07GB-L

2545R-08GB-L

2545R-09GB-L

2545R-10GB-L

2545R-11GB-L

2545R-12GB-L

Dimensions

A

B

2.54

7.59

5.08

10.13

7.62

12.67

10.16

15.21

12.70

17.75

15.24

20.29

17.78

22.83

20.32

25.37

22.86

27.91

25.40

30.45

27.94

32.99

Part No.:2545R-XXGB-L

PART NO.

2545R-02GB1-L

2545R-03GB1-L

2545R-02GB1-L

2545R-05GB1-L

2545R-06GB1-L

2545R-07GB1-L

2545R-08GB1-L

2545R-09GB1-L

2545R-10GB1-L

2545R-11GB1-L

2545R-12GB1-L

Dimensions

A

B

2.54

8.89

5.08

11.43

7.62

13.97

10.16

16.51

12.70

19.05

15.24

21.59

17.78

24.13

20.32

26.67

22.86

29.21

25.40

31.75

27.94

34.29

Part No.:2545R-XXGB1-L

Dimensions

A

B

2.54

7.59

5.08

10.13

7.62

12.67

10.16

15.21

12.70

17.75

15.24

20.29

17.78

22.83

20.32

25.37

22.86

27.91

25.40

30.45

27.94

32.99

PART NO.

2545S-02GB-L

2545S-03GB-L

2545S-04GB-L

2545S-05GB-L

2545S-06GB-L

2545S-07GB-L

2545S-08GB-L

2545S-09GB-L

2545S-10GB-L

2545S-11GB-L

2545S-12GB-L

Part No.:2545S-XXGB-L
