SPO-G10250AER-156.250M datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> SPO-G10250AER-156.250M

SPO-G10250AER-156.250M: DescriptionLVPECL Output Clock Oscillator,; CategoryPassive components oscillator; File Size256KB，4 Pages; ManufacturerSunny Electronics Corp; Websitehttp://www.sunny.co.kr

Download Datasheet Parametric View All

SPO-G10250AER-156.250M Overview

LVPECL Output Clock Oscillator,

SPO-G10250AER-156.250M Parametric

Parameter Name	Attribute value
Objectid	7009588566
Reach Compliance Code	unknown
Other features	TR, 7/13 INCH
maximum descent time	0.7 ns
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Installation features	SURFACE MOUNT
Nominal operating frequency	156.25 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	LVPECL
Output load	50 OHM
physical size	7.0mm x 5.0mm x 1.7mm
longest rise time	0.7 ns
Maximum supply voltage	2.625 V
Minimum supply voltage	2.375 V
Nominal supply voltage	2.5 V
surface mount	YES
maximum symmetry	40/60 %

Preview

Download Datasheet

View All

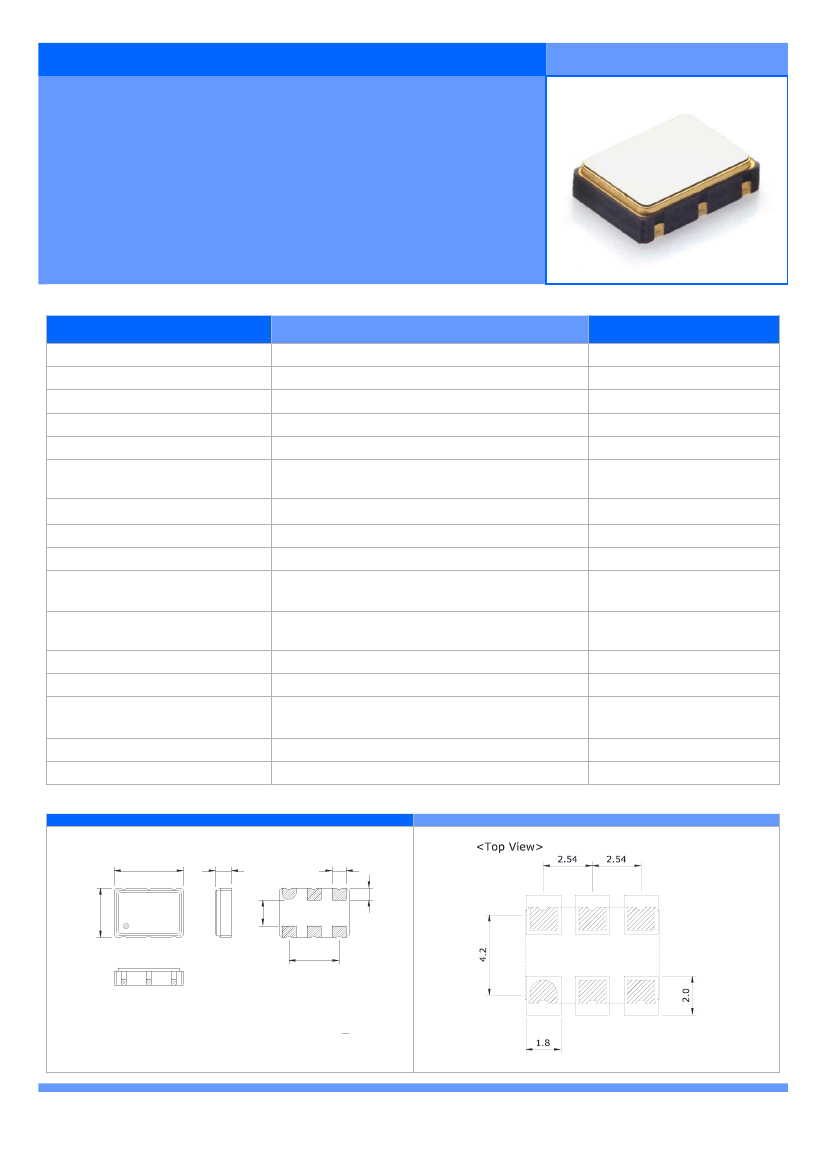

CRYSTAL OSCILLATORS

LVPECL TYPE

SPO-G10

7×5 mm Industrial Standard Package

0.5 ps typical, RMS phase jitter(12 kHz to 20 MHz)

2.5 V, 3.3 V Supply Voltage

LVPECL Output

Tri-state Function Available

■ ELECTRICAL SPECIFICATIONS

ITEM

Output Logic Type

Frequency Range

Supply Voltage(V

)

Operating Temperature Range

Storage Temperature Range

Frequency Stability

Input Current

Output Voltage Logic High(V

)

Output Voltage Logic Low(V

)

Rise / Fall Time

Duty Cycle

Start-up Time

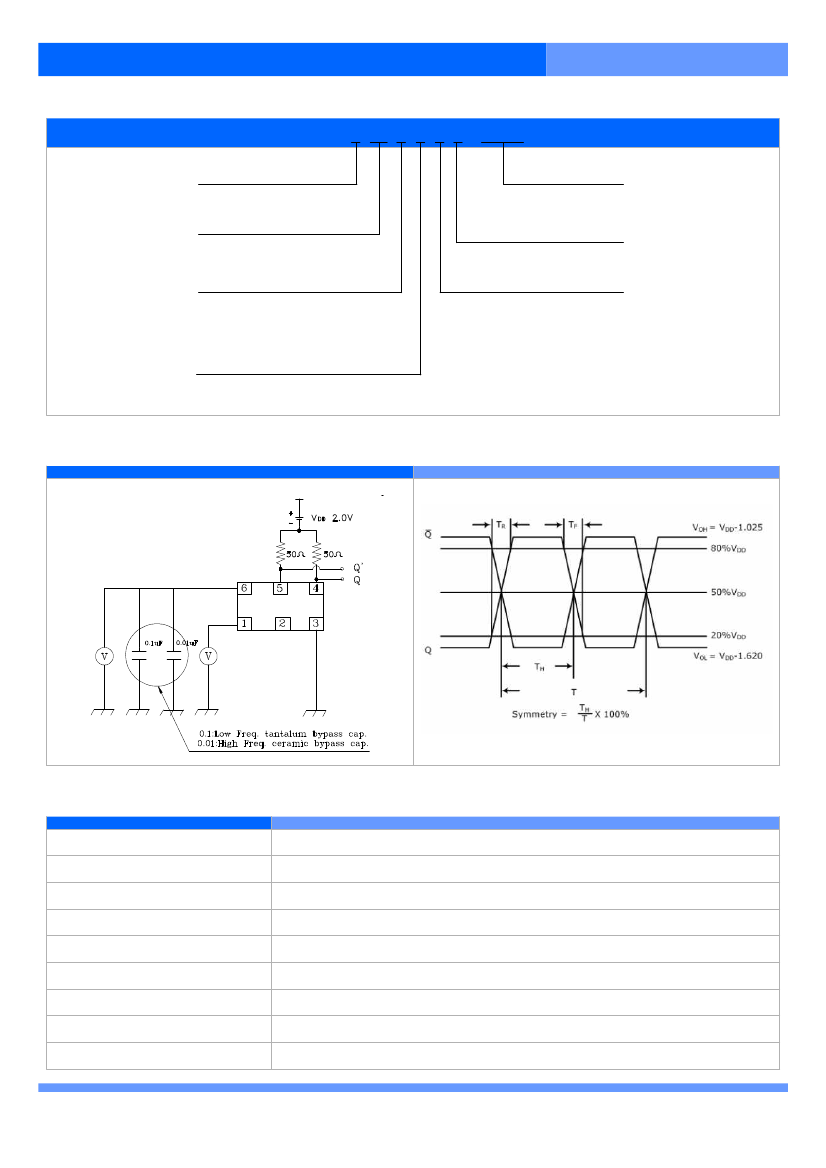

Output Load Condition(LVPECL)

Output Enable Function

and V

)

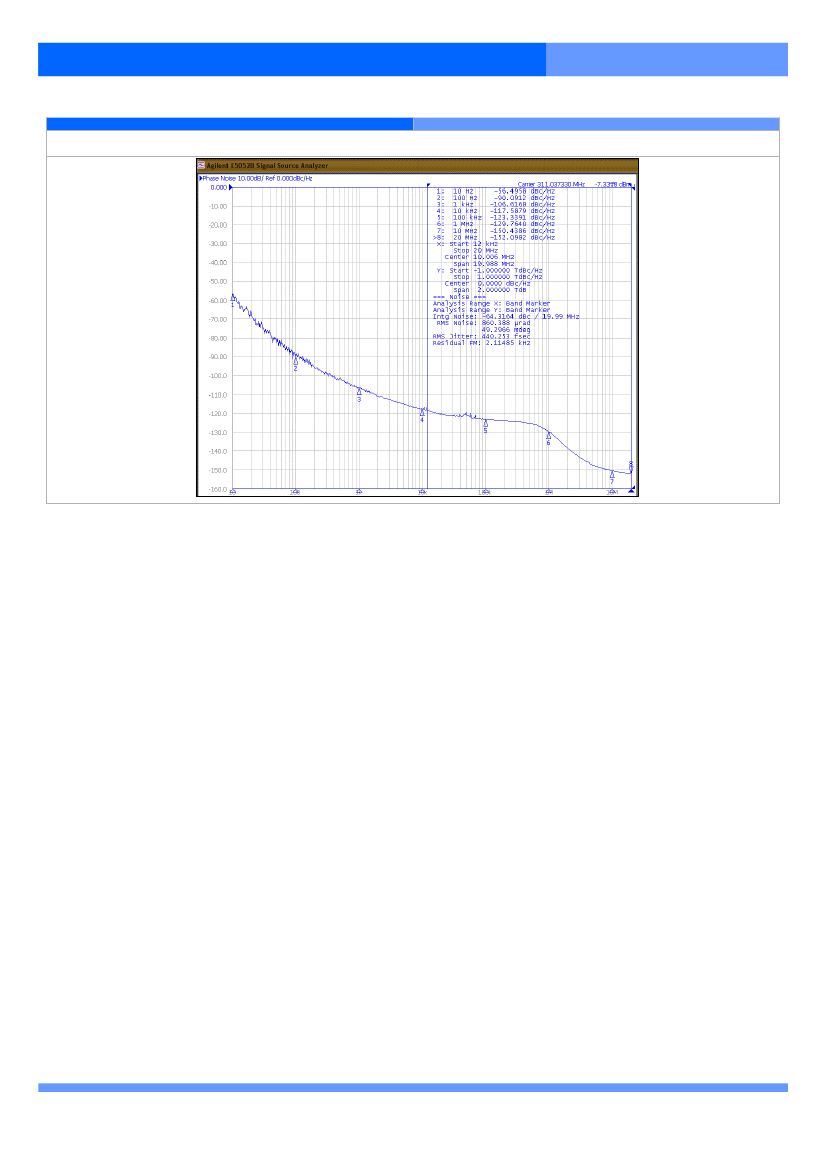

RMS Phase Jitter

Frequency Aging

LVPECL

10.000 MHz to 400.000 MHz

2.5 V

±5 %, 3.3 V

±5 %

-20 to +70 ℃, -40 to +85 ℃

-55 to +125 ℃

±25 ppm, ±50 ppm, ±100 ppm Max.

55 mA Max. at 2.5 V, 88 mA Max. at 3.3 V

–

1.025 V

Min.

–

1.620 V

Max.

0.3 ns Typ., 0.7 ns Max.

45 to 55 %, 40 to 60 %

10 ms Max.

50 Ω into V

- 2.0 V

70 % of V

Min. to Enable Output

30 % of V

Max. to Disable Output

0.5 ps Typ., 1 ps Max.

±5 ppm Max.

High Impedance

BW : 12 kHz to 20 MHz

25 ℃, First year

Measured over

20 % to 80 % of waveform

Measured at 50 % of

waveform

Over operating temperature

range

Value

Remarks

LVPECL XO

■ MECHANICAL DIMENSIONS

(mm)

■ LAND PATTERN

(mm)

7.0±0.2

1.7 MAX

1.4

5.0±0.2

2.6

5.08

CONNECTION

#1 : Tri-state

#2 : NC

#3 : GND

#4 : OUTPUT(Q)

#5 : OUTPUT(Q)

#6 : V

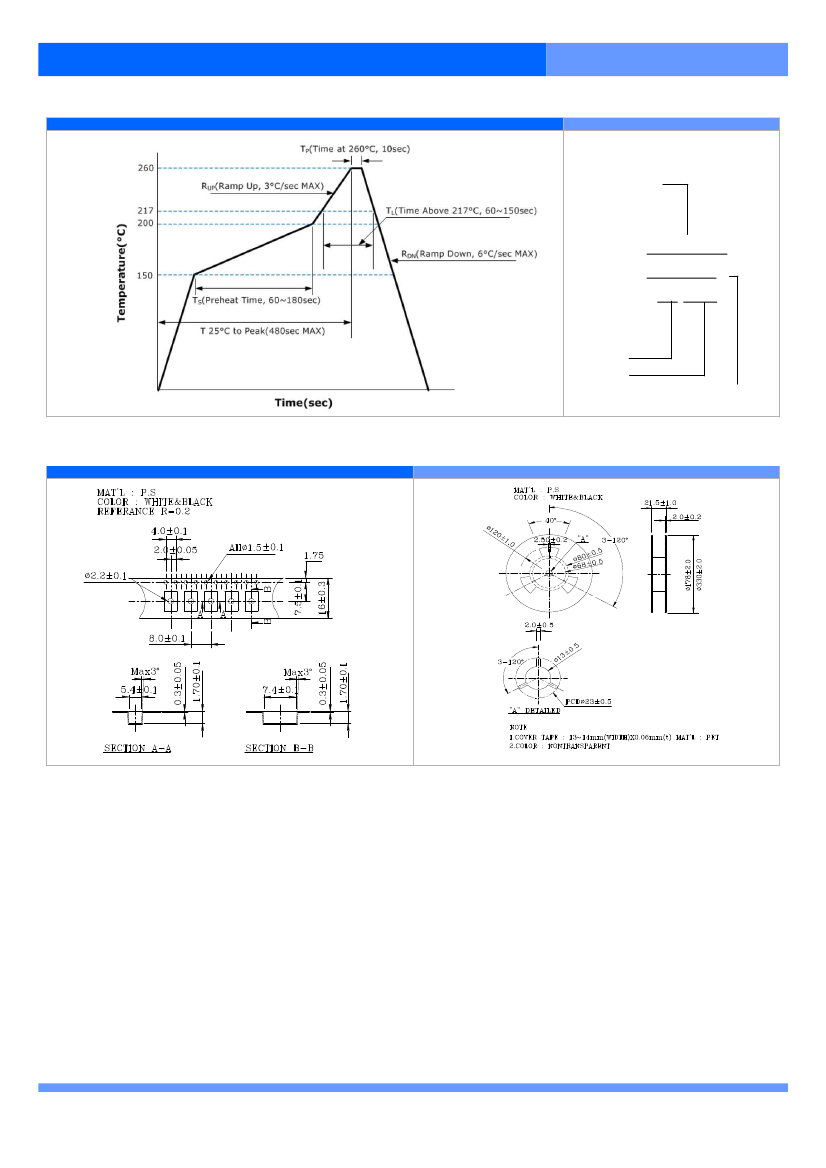

http://www.sunny.co.kr

1.2

SUNNY ELECTRONICS CORP
