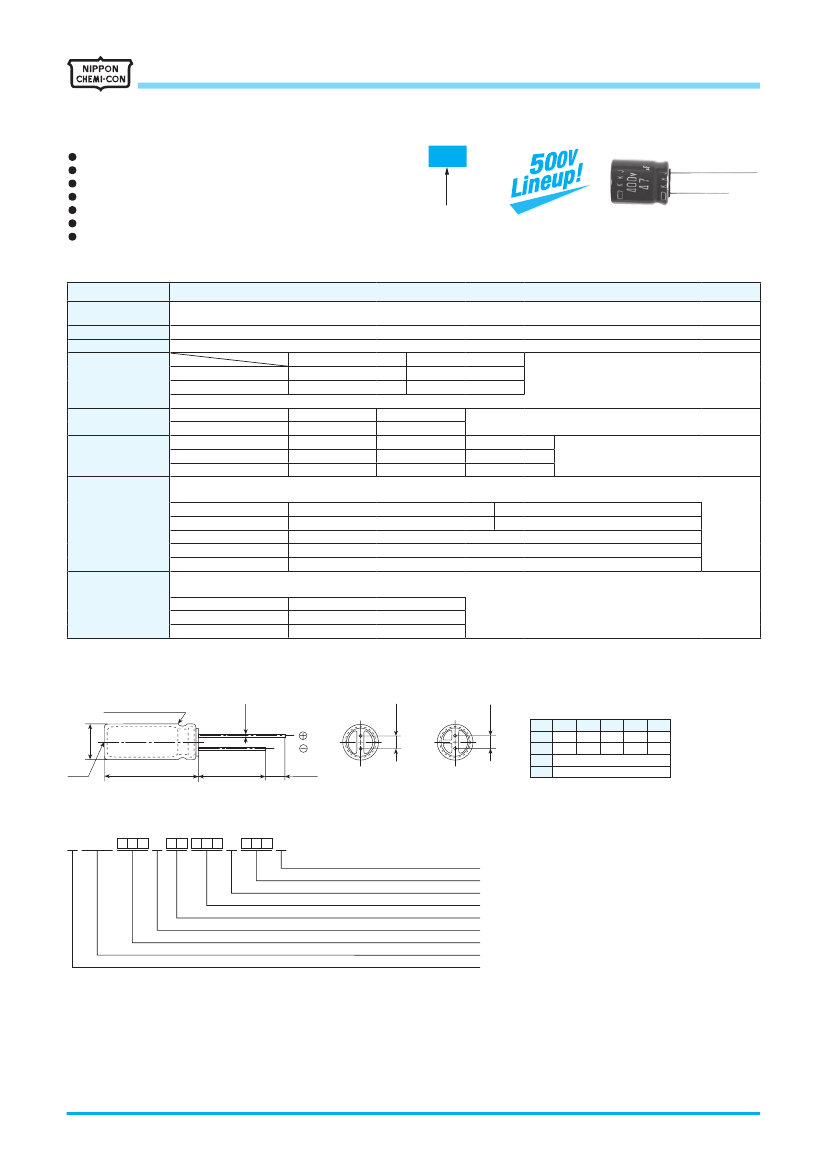

MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
160 to 500V
dc
, long life, 105℃
KXJ
Series
KXJ
・Downsized
and Longer life from current KXG series
・Endurance
with ripple current : 8,000 to 12,000 hours at 105℃
・Rated
voltage range : 160 to 500V, Capacitance range : 6.8 to 680µF
Downsized
・For
electronic ballast circuits and other long life applications
KXG
・Non
solvent resistant type
・RoHS2
Compliant
・AEC-Q200
compliant : Please contact Chemi-Con for more details, test data, information.
◆SPECIFICATIONS
Items
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
–40 to +105℃ (160 to 450V
dc
)
160 to 500V
dc
±20%
(M)
-25 to +105℃ (500V
dc
)
Characteristics
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
(Max. Impedance Ratio)
Endurance
Shelf Life
(at 20℃, 120Hz)
After 1 minute
After 5 minutes
CV≦1000
I=0.1CV+40
I=0.03CV+15
CV>1000
I=0.04CV+100
I=0.02CV+25
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
(at 20℃)
Rated voltage (V
dc
)
160 to 250V
350 to 500V
tanδ (Max.)
0.20
0.24
(at 20℃, 120Hz)
Rated voltage (V
dc
)
160 to 250V
350, 400V
420 to 500V
Z(－25℃)/Z(+20℃)
3
5
6
Z(－40℃)/Z(+20℃)
6
6
(at 120Hz)
－
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied(the peak voltage shall not exceed the rated voltage) for the specified time at 105℃.
Rated voltage (V
dc
)
160 to 450V
500V
Time
16L to 20L：10,000hours, 25L to 50L：12,000hours
φ10：8,000hours, φ12.5
to
φ18：10.000hours
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200％
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦500%
of the initial specified value
◆DIMENSIONS
[mm]
●
Terminal
Code : E
F
±
0.5
F
±
0.5
φd
φ
D
φ
d
Sleeve (PET : Brown)
F
φ
D'
10
0.6
5.0
Vent
L'
15min.
4min.
(
φ
10)
φ
18)
( 12.5 to
φ
Gas escaped end seal
L'
12.5 14.5 16
0.6 0.8 0.8
5.0 7.5 7.5
φD+0.5max.
L+1.5max.
18
0.8
7.5
◆PART
NUMBERING SYSTEM
E KX J
AAA
E
AA AAA
M
AAA
S
Supplement code
Size code
Capacitance tolerance code
Capacitance code (ex. 6.8µF:6R8,10µF:100,100µF:101)
Lead forming·taping code
T erminal code
Voltage code (ex. 160V:161,400V:401)
Series code
Category
1
2
3
4
5
6
7
8
9
10
11 12
13
14
15 16 17
18
Please refer to "Product code guide (radial lead type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
φD'
CAT. No. E1001T
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
160 to 500V
dc
, long life, 105℃
KXJ
Series
◆STANDARD
RATINGS
WV
(V
dc
)
Cap
(µF)
6.8
8.2
10
12
15
15
15
18
18
22
22
27
33
39
Case size
tanδ
φD×L(mm)
10× 20
10
×
25
10×30
12.5×20
10× 35
10× 40
12.5
×
25
10
×45
12.5× 30
10
×
50
12.5
×
35
12.5×40
12.5×45
12.5
×
50
0.24
0.24
0.24
0.24
0.24
0.24
0.24
0.24
0.24
0.24
0.24
0.24
0.24
0.24
Rated ripple
current
(mArms/105℃, 120Hz)
90
110
130
135
170
175
165
190
190
230
220
260
285
330
Part No.
EKXJ501E□□6R8MJ20S
EKXJ501E□□8R2MJ25S
EKXJ501E□□100MJ30S
EKXJ501E□□120MK20S
EKXJ501E□□150MJ35S
EKXJ501E□□150MJ40S
EKXJ501E□□150MK25S
EKXJ501E□□180MJ45S
EKXJ501E□□180MK30S
EKXJ501E□□220MJ50S
EKXJ501E□□220MK35S
EKXJ501E□□270MK40S
EKXJ501E□□330MK45S
EKXJ501E□□390MK50S
500
□□
: Enter the appropriate lead forming or taping code.
◆RATED
RIPPLE CURRENT MULTIPLIERS
・Frequency
Multipliers
(160 to 450V
dc
)
Capacitance(µF)
Frequency(Hz)
(500V
dc
)
1k
1.75
1.67
10k
2.25
2.05
100k
2.50
2.25
Capacitance(µF)
Frequency(Hz)
6.8 to 82
100 to 680
120
1.00
1.00
6.8 to 22
27 to 39
120
1.00
1.00
1k
1.78
1.75
10k
2.30
2.25
100k
2.59
2.50
The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with every 5℃ rise.
When long life performance is required in actual use, the rms ripple current has to be reduced.
