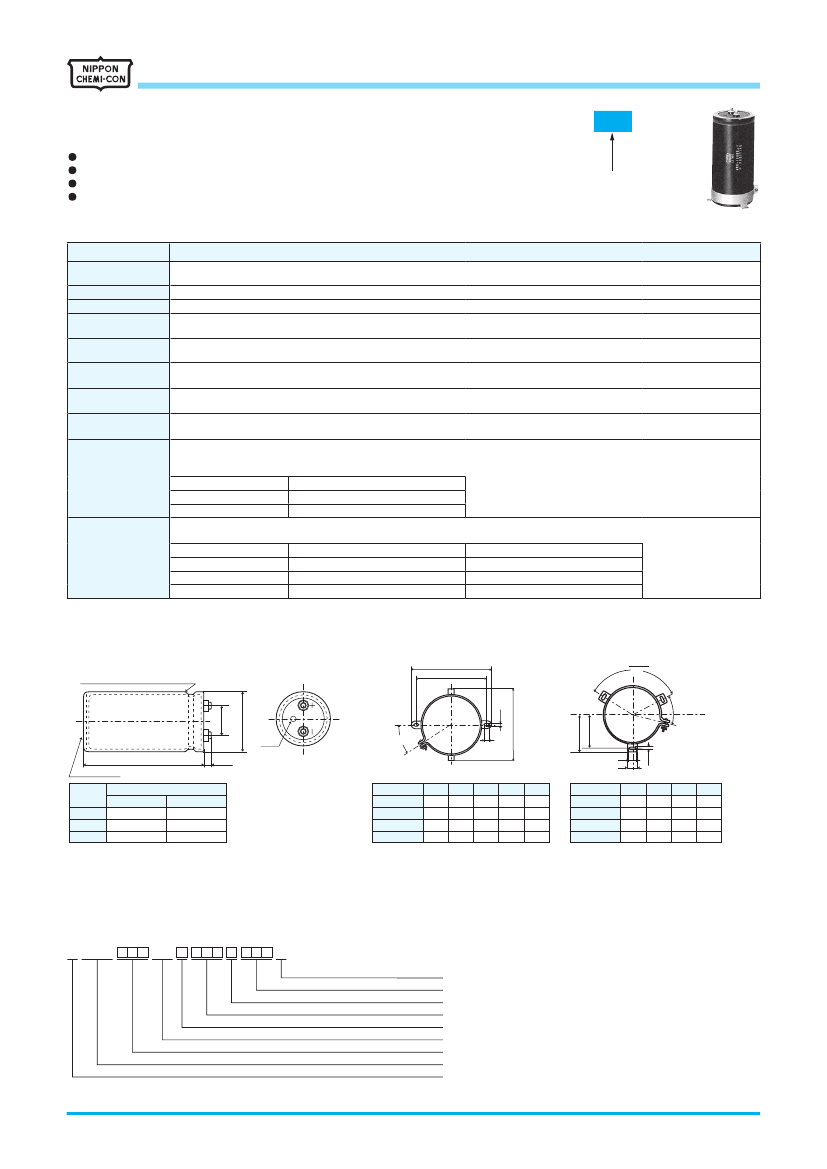

LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
long life screw terminals ,105℃
LXA
Long life
KMH P292
LXA
Items
Series
・Rated
voltage range up to 525V
dc
・Endurance
with ripple current : 5,000 hours at 105℃ (2,000 hours for 500V
dc
& 525V
dc
)
・High
reliability products
・RoHS
Compliant
◆SPECIFICATIONS
Characteristics
-40 to +105℃ (10 to 100V
dc
)
-25 to +105℃ (160 to 525V
dc
)
(at 20℃, 120Hz)
(at 20℃ after 5 minutes)
(at 20℃, 120Hz)
Category
Temperature Range
Rated Voltage Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
(tanδ)
Low Temperature
Characteristics
Insulation Resistance
Insulation
Withstanding Voltage
Endurance
10 to 525V
dc
-10 to +50% (T) (10 to 250V
dc
)
±20%
(M) (350 to 525V
dc
)
I=0.02CV or 5mA, whichever is smaller.
Where, I : Max. leakage current (µA), C : Nominal capacitance (µF), V : Rated voltage (V)
See STANDARD RATINGS (10 to 250V
dc
)
0.20max. (350 to 525V
dc
)
Shelf Life
Capacitance change C(-40℃)/C(+20℃)≧0.6(10 to 100V
dc
) C(-25℃)/C(+20℃)≧0.7(160 to 250V
dc
)
(at 120Hz)
C(-25℃)/C(+20℃)≧0.65(350 to 525V
dc
)
When measured between the terminals that are connected to each other and to the mounting clamp on the insulating sleeve covering
the case by using an insulation resistance meter of 500V
dc
, the insulation resistance shall not be less than 100MΩ.
When a voltage of 2,000V
ac
is applied for 1 minute between the terminals that are connected to each other and to the mounting clamp
on the insulating sleeve covering the case, there shall not be electrical damage.
The following specifications shall be satisfied when the capacitors are restored to 20℃ after subjected to DC voltage with the rated
ripple current is applied (the peak voltage shall not exceed the rated voltage) for 5,000 hours (2,000 hours for 500 & 525V
dc
products)
at 105℃.
Capacitance change
≦±20%
of the initial value
D.F. (tanδ)
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
The following specifications shall be satisfied when the capacitors are restored to 20℃ after exposing them for 1,000 hours at 105℃ without
voltage applied. Before the measurement, the capacitor shall be preconditioned by applying voltage according to Item 4.1 of JIS C 5101-4.
Rated voltage
10 to 250V
dc
350 to 525V
dc
Capacitance change
of the initial value
≦±15%
≦±20%
of the initial value
D.F. (tanδ)
≦150%
of the initial specified value
≦200%
of the initial specified value
Leakage current
≦The
initial specified value
≦The
initial specified value
◆DIMENSIONS
(Screw-Mount) [mm]
●
Terminal
Code : LG
●
Mounting
Clamp Code : B
Sleeve (Pb-free PVC : Brown)
φD+1.8max.
A±1
W±1
●
Mounting Clamp
360°
3
Code : C
F±1
H
B±1
45°±5°
K±1
E±1
Vent
30°±5°
6
L+4max.
Plastic disk
φ
D
G±1
φ
D
8
J
A
58
78
90
104.5
B
44
64
76
90
W
48
68
80
93.5
H
3.5
4.5
4.5
4.5
F
12.7
22.4
28.0
31.5
φ
D
4.5
½
63.5
φ
φ
76.2
φ
89
G
10 to 250V
dc
350 to 525V
dc
6
6
5
6
5
4
35
50
63.5
76.2
50
63.5
76.2
89
E
32.5
38.1
44.5
50.8
K
37.0
43.5
50.0
56.5
J
14.0
14.0
14.0
16.0
F
22.4
28.0
31.5
31.5
<Screw specifcations>
Plus hexagon-headed screw :M5×0.8×10
Maximum screw tightening torque :3.23Nm
* The screw and the mounting clamp are separately supplied and not attached to the product.
◆PART
NUMBERING SYSTEM
E L XA
AAA
LG
N AAA M AAA
M
Supplement code
Size code
Capacitance tolerance code (ex. M, T)
Capacitance code (ex. 390
µ
F:391, 3,300
µ
F:332)
Mounting clamp code (N, B, C)
Terminal code
Voltage code (ex. 10V:100, 100V:101, 525V:5C1)
Series code
Category
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Please refer to "Product code guide (screw-mount terminal type)"
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
316
CAT. No. E1001O
LARGE CAPACITANCE ALUMINUM ELECTROLYTIC CAPACITORS
long life screw terminals ,105℃
LXA
Series
◆RATED
RIPPLE CURRENT MULTIPLIERS
・Frequency
Multiplirs
Frequency (Hz)
10 to 50V
dc
63 to 80V
dc
100 to 250V
dc
350 to 525V
dc
50
0.95
0.90
0.80
0.80
120
1.00
1.00
1.00
1.00
300
1.03
1.06
1.12
1.20
1k
1.05
1.10
1.22
1.50
3k
-
-
-
1.60
10k
1.09
1.18
1.30
-
50k
1.12
1.22
1.33
-
Note : The endurance of capacitors is reduced with internal heating produced by ripple current at the rate of halving the lifetime with
every 5 to 10℃ rise. When long life performance is requested in actual use, the rms ripple current has to be reduced. Also, for the
LXA series capacitors (350 to 525V
dc
products), using them at operating voltage can extend their lifetime. For details, please contact a
representative of Nippon Chemi-con.
Product specifications in this catalog are subject to change without notice.Request our product specifications before purchase and/or use. Please use our products based on the information contained in this catalog and product specifications.
319
CAT. No. E1001O
