conn header vert 2mm 24pos 30au

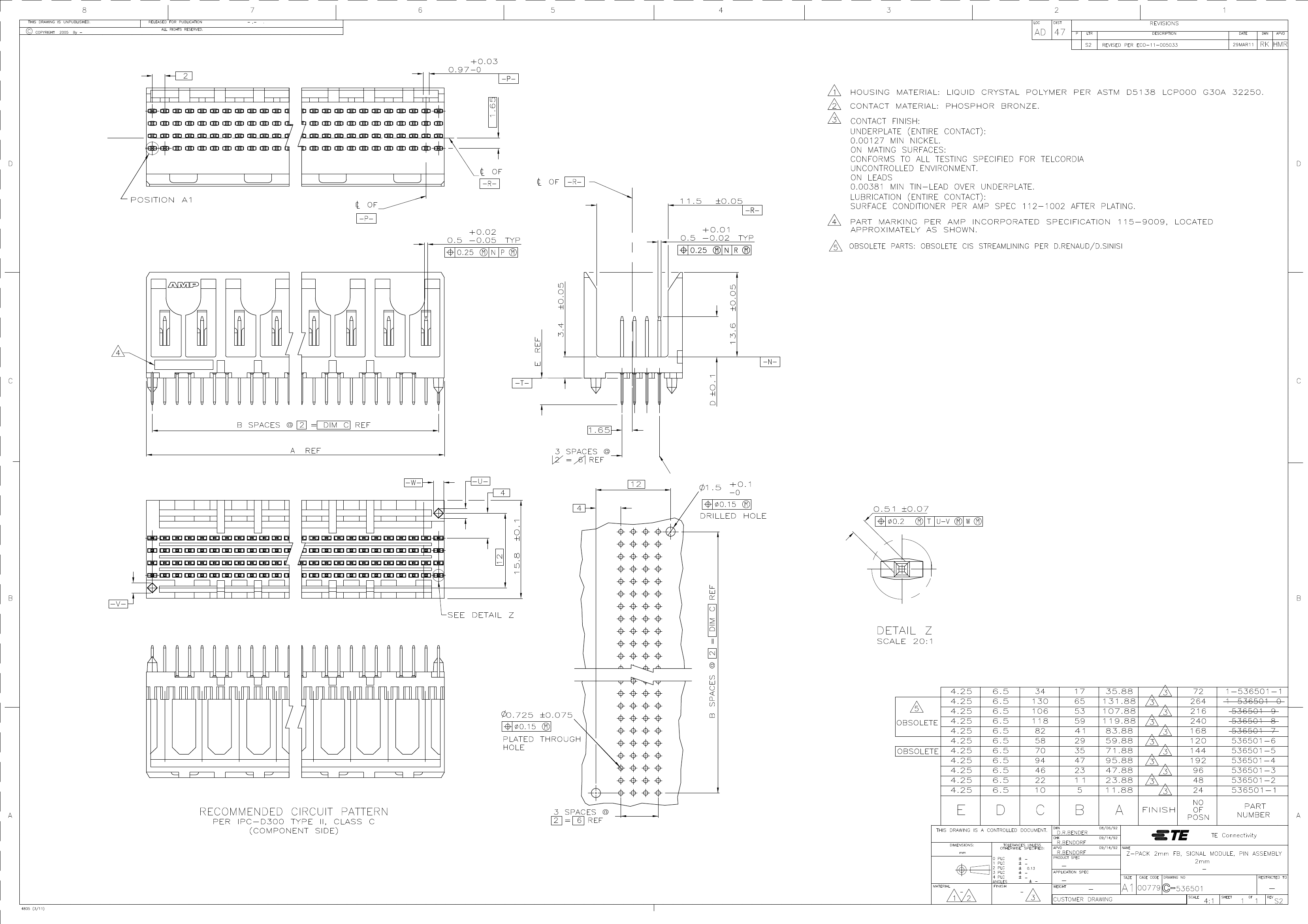

| Parameter Name | Attribute value |
| Datasheets | |
| 536501 | |
| Product Photos | |
| 536501-1, 5536501-1 | |
| RoHS Informati | |
| 536501-1 Statement of Compliance | |
| Standard Package | 576 |
| Category | Connectors, Interconnects |
| Family | Backplane Connectors - Specialized |
| Packaging | Tube |
| Connector Usage | - |
| Connector Type | Header, Male Pins |
| Connector Style | Futurebus |
| Number of Positions | 24 |
| Number of Positions Loaded | All |
| Pitch | 0.079" (2.00mm) |
| Number of Rows | 4 |
| Number of Columns | - |
| Mounting Type | Through Hole |
| Terminati | Solde |
| Contact Layout, Typical | - |
| Features | Board Guide |
| Contact Finish | Gold |
| Contact Finish Thickness | - |
| Col | - |
| Current Rating | - |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -55°C ~ 125°C |
| Voltage Rating | 30V |
| Mating Products | 5223650-1-ND - 2MM FB,4RV,REC,ASY,024,PF,4.25A31571-ND - CONN RECEPT RT/A 2MM 24POS 30AUA31567-ND - CONN RECEPT RT/A 2MM 24POS 30AUA31562-ND - CONN RECEPT RT/A 2MM 24POS 30AUA3274-ND - CONN RCEPT RTANG 2MM 24POS 30AUA3278-ND - CONN RCEPT RTANG 2MM 24POS 30AUA3270-ND - CONN RECEPT 24POS 2MM RTANG 30AUA3270-ND - CONN RECEPT 24POS 2MM RTANG 30AU |
| Other Names | A3262 |
| 536501-1 | 536501-2 | 536501-3 | 1-536501-1 | 536501-4 | |
|---|---|---|---|---|---|
| Description | conn header vert 2mm 24pos 30au | conn header vert 2mm 48pos 30au | conn header vert 2mm 96pos 30au | conn 2mm FB header 4row str gold | conn header vert 2mm 192pos 30au |
| Standard Package | 576 | 24 | 144 | 960 | 288 |
| Category | Connectors, Interconnects | Connectors, Interconnects | Connectors, Interconnects | Connectors, Interconnects | Connectors, Interconnects |
| Family | Backplane Connectors - Specialized | Backplane Connectors - Specialized | Backplane Connectors - Specialized | Backplane Connectors - Specialized | Backplane Connectors - Specialized |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Connector Type | Header, Male Pins | Header, Male Pins | Header, Male Pins | Header, Male Pins | Header, Male Pins |
| Connector Style | Futurebus | Futurebus | Futurebus | Futurebus | Futurebus |
| Number of Positions | 24 | 48 | 96 | 72 | 192 |
| Number of Positions Loaded | All | All | All | All | All |
| Pitch | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) | 0.079" (2.00mm) |
| Number of Rows | 4 | 4 | 4 | 4 | 4 |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Terminati | Solde | Solde | Solde | Solde | Solde |
| Features | Board Guide | Board Guide | Board Guide | Board Guide | Board Guide |
| Contact Finish | Gold | Gold | Gold | Gold | Gold |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 | UL94 V-0 |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -65°C ~ 125°C | -55°C ~ 125°C |
| Voltage Rating | 30V | 30V | 30V | 30V | 30V |
| Mating Products | 5223650-1-ND - 2MM FB,4RV,REC,ASY,024,PF,4.25A31571-ND - CONN RECEPT RT/A 2MM 24POS 30AUA31567-ND - CONN RECEPT RT/A 2MM 24POS 30AUA31562-ND - CONN RECEPT RT/A 2MM 24POS 30AUA3274-ND - CONN RCEPT RTANG 2MM 24POS 30AUA3278-ND - CONN RCEPT RTANG 2MM 24POS 30AUA3270-ND - CONN RECEPT 24POS 2MM RTANG 30AUA3270-ND - CONN RECEPT 24POS 2MM RTANG 30AU | 5223660-2-ND - 2MM FB,4RV,REC,ASY,048,SL,3.205223655-2-ND - 2MM FB,4RV,REC,ASY,048,SL,4.255223650-2-ND - 2MM FB,4RV,REC,ASY,048,PF,4.25A31572-ND - CONN RECEPT RT/A 2MM 48POS 30AUA31568-ND - CONN RECEPT RT/A 2MM 48POS 30AUA31563-ND - CONN RECEPT RT/A 2MM 48POS 30AUA3271-ND - CONN RECEPT 48POS 2MM RTANG 30AUA3279-ND - CONN RCEPT RTANG 2MM 48POS 30AUA3275-ND - CONN RCEPT RTANG 2MM 48POS 30AU | A31573-ND - CONN RECEPT RT/A 2MM 96POS 30AUA31569-ND - CONN RECEPT RT/A 2MM 96POS 30AUA31564-ND - CONN RECEPT RT/A 2MM 96POS 30AUA3276-ND - CONN RCEPT RTANG 2MM 96POS 30AUA3280-ND - CONN RCEPT RTANG 2MM 96POS 30AUA3272-ND - CONN RECEPT RTANG 2MM 96POS 30AU | 1-5536507-1-ND - 2MM FB,ASY,072,SIG,REC,SL,2.73A114891-ND - 2MM FB,ASY,072,SIG,REC,EN,3.55 | A31574-ND - CONN RECEPT RT/A 2MM 192POS 30AUA31570-ND - CONN RECEPT RT/A 2MM 192POS 30AUA31565-ND - CONN RECEPT RT/A 2MM 192POS 30AUA3273-ND - CONN RECPT 192POS 2MM RTANG 30AUA3277-ND - CONN RCEPT RTANG 2MM 192POS 30AUA3281-ND - CONN RCEPT RTANG 2MM 192POS 30AU |
| Other Names | A3262 | A3263 | A3264 | - | A3265 |
