EFVHA253900045070: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 39000uF,; CategoryPassive components capacitor; File Size74KB，2 Pages; ManufacturerLeclanche Capacitors; Websitehttp://www.lcap.ch; Environmental Compliance

Download Datasheet Parametric View All

EFVHA253900045070 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum, 25V, 20% +Tol, 20% -Tol, 39000uF,

EFVHA253900045070 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	234716942
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	39000 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	45 mm
dielectric materials	ALUMINUM (WET)
length	70 mm
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	Screw Ends
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	25 V

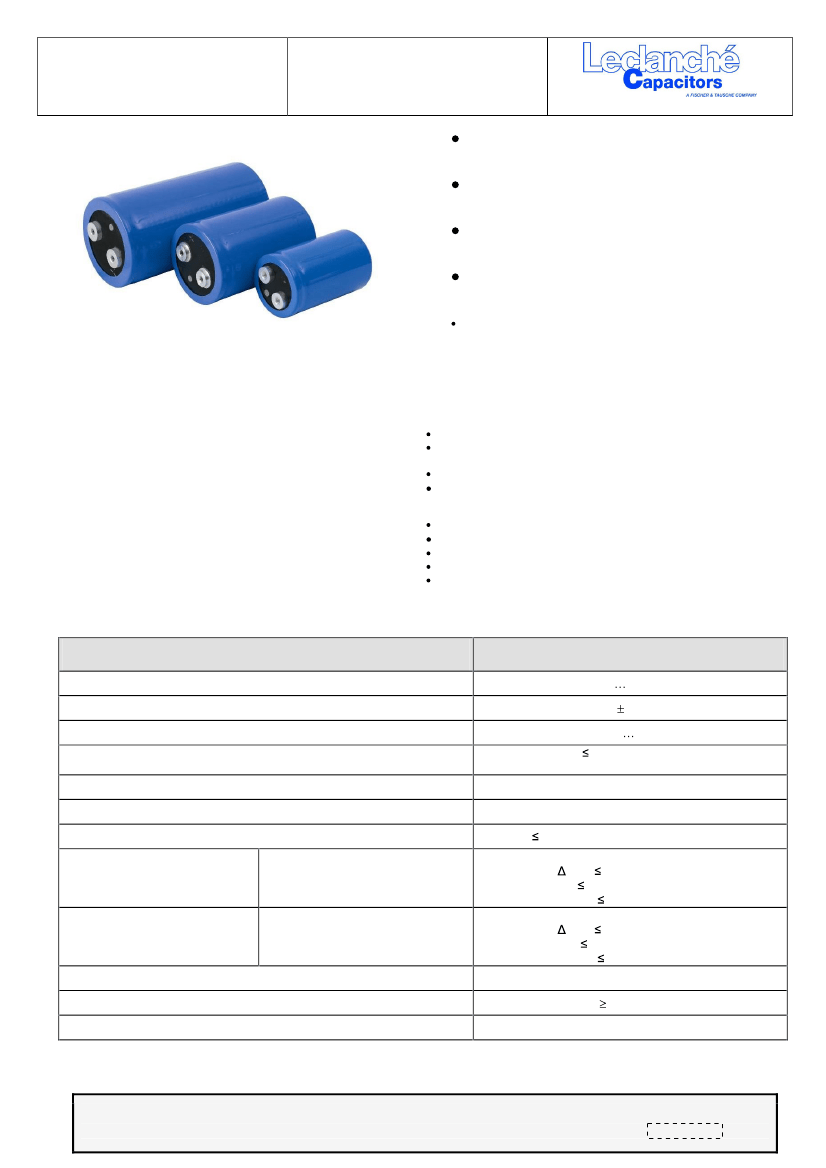

Preview

Download Datasheet

View All

High-Temp 125°C

Electrolytic Capacitors

Screw Terminals

Very Long Lifetime

Compact design (C

N

/U

N

)

High-Temp 125°C

Low Inductance (ESL)

EFHA

EFVHA

(with stud)

Features

high-temp. 125°C

polarized aluminium electrolytic capacitors,

non-solid electrolyte

pressure relief in the sealing

all internal contacts welded

Applications

standard and switched mode power supplies

computer

telecommunications

uninterruptible power supplies

welding machinery and general industrial

Items

Rated capacitance range C

R

Capacitance tolerance

Rated voltage range U

R

Surge voltage U

S

Max. reverse voltage

Category temperature range

Leakage current I

L

after 5 min @ U

R

Useful life

2.000 h@ 125 °C ; U

R

; I

R~

Characteristics

3900

150000µF

20%

16

63 V

U

R

315 V: U

S

= 1,15 U

R

U

R

> 315 V: U

S

= 1,10 U

R

-2V

- 55°C ... + 125°C

0,006 * C

R

[µF] * U

R

[V] + 6 µA [µA]

Requirements

C/C 30 % of initial value

ESR 300 % of specified limit

I

L

specified limit

Requirements

C/C 20 % of initial value

ESR 130 % of specified limit

I

L

specified limit

55/125/56

2500 V AC

IEC 60384-4

Endurance test

Climatic category IEC 60068

1.000 h@ 125 °C , U

R

Voltage proof of the external insulation

Sectional specification

General specifications

Leclanché Capacitors for Critical Applications and Extreme Environments.

1400 Yverdon, Switzerland. Tel. +41 24 445 66 88 - Fax +41 24 445 66 89 capinfo@Lcap.ch www.Lcap.ch
