3-6450160-7 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 3-6450160-7

3-6450160-7: Descriptionmbxlr/arcpt4p+24s+4P; CategoryThe connector; File Size2MB，15 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

3-6450160-7 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	3-6450160-7	-	-	View	Buy Now

3-6450160-7 Overview

mbxlr/arcpt4p+24s+4P

3-6450160-7 Parametric

Parameter Name	Attribute value
Datasheets
6450160
Standard Package	165
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tray
Connector Usage	-
Connector Type	Receptacle, Female Sockets and Blade Sockets
Connector Style	Multi-Beam
Number of Positions	32
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	4
Number of Columns	-
Mounting Type	Through Hole, Right Angle
Terminati	Solde
Contact Layout, Typical	24 Signal, 8 Powe
Features	Board Lock, Guide Pi
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-20°C ~ 105°C
Voltage Rating	-
Other Names	A108373

Preview

Download Datasheet

View All

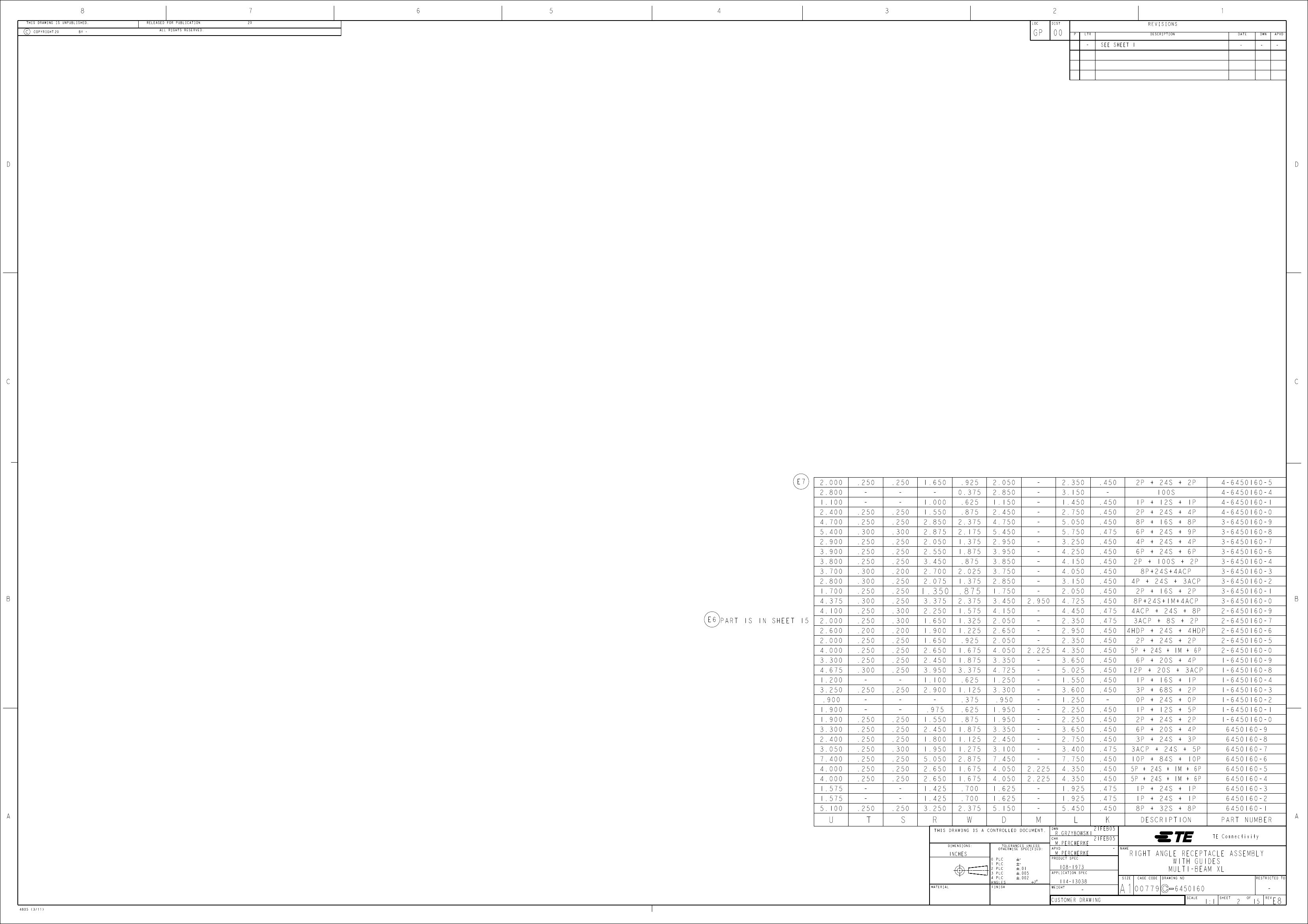

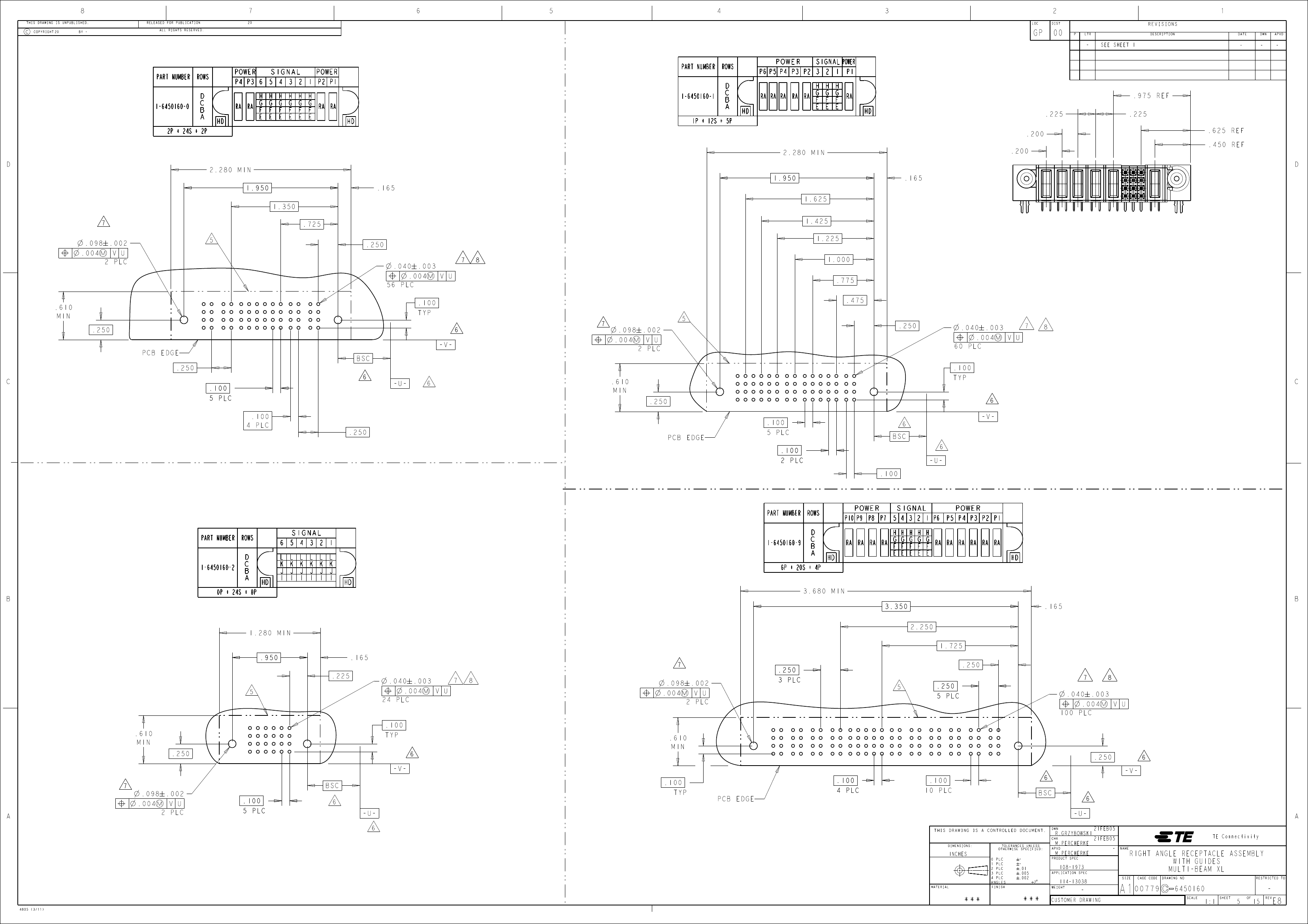

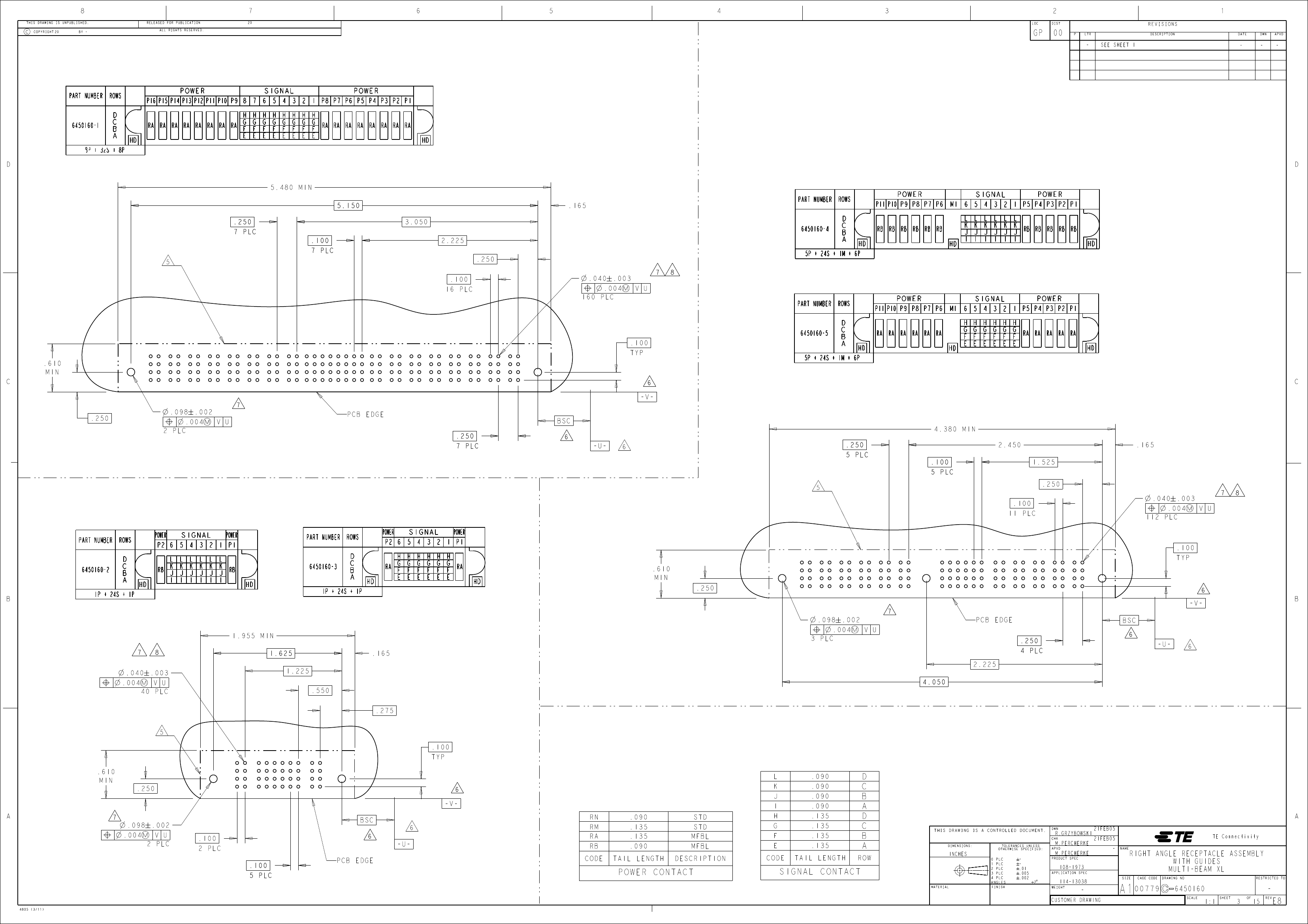

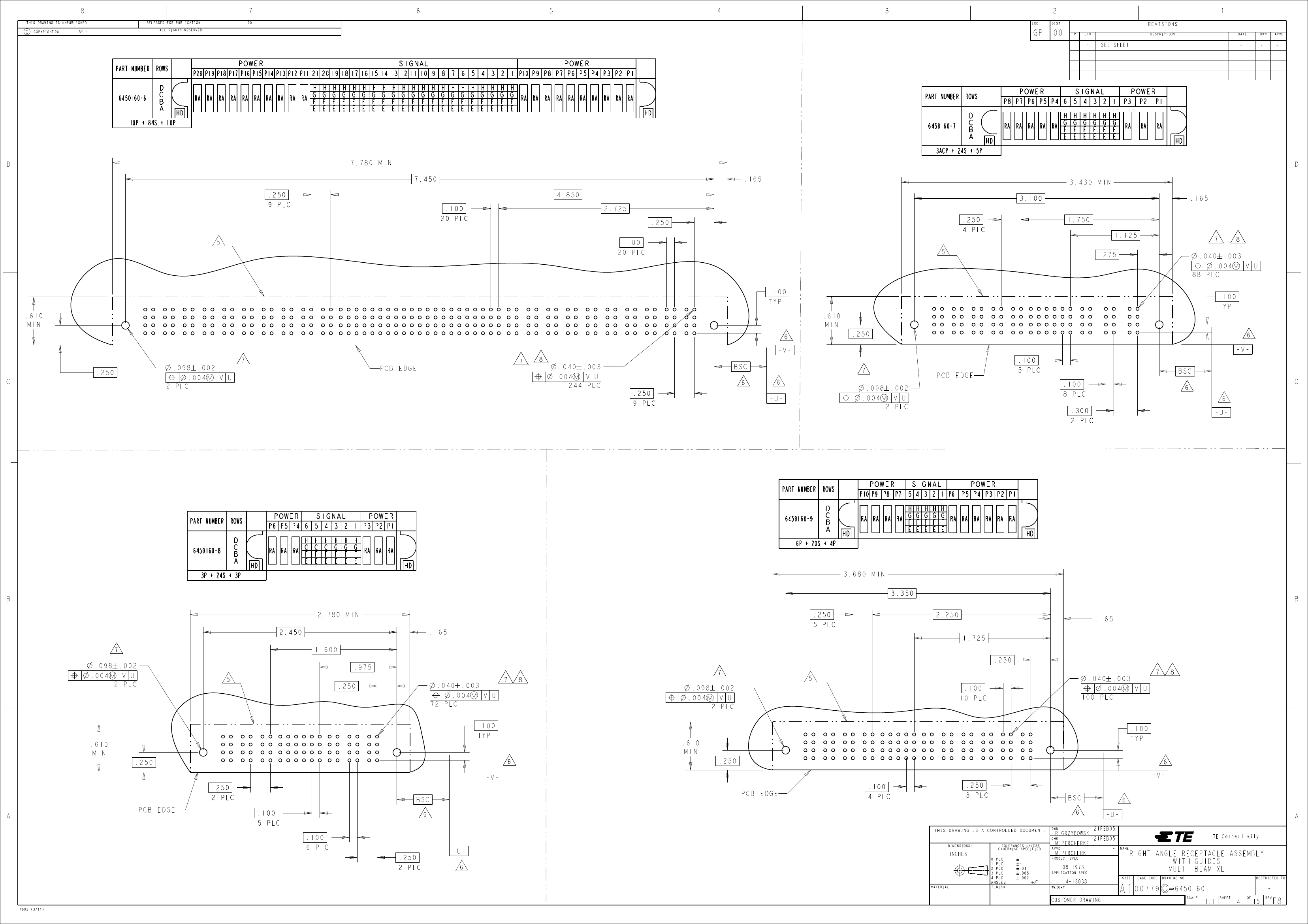

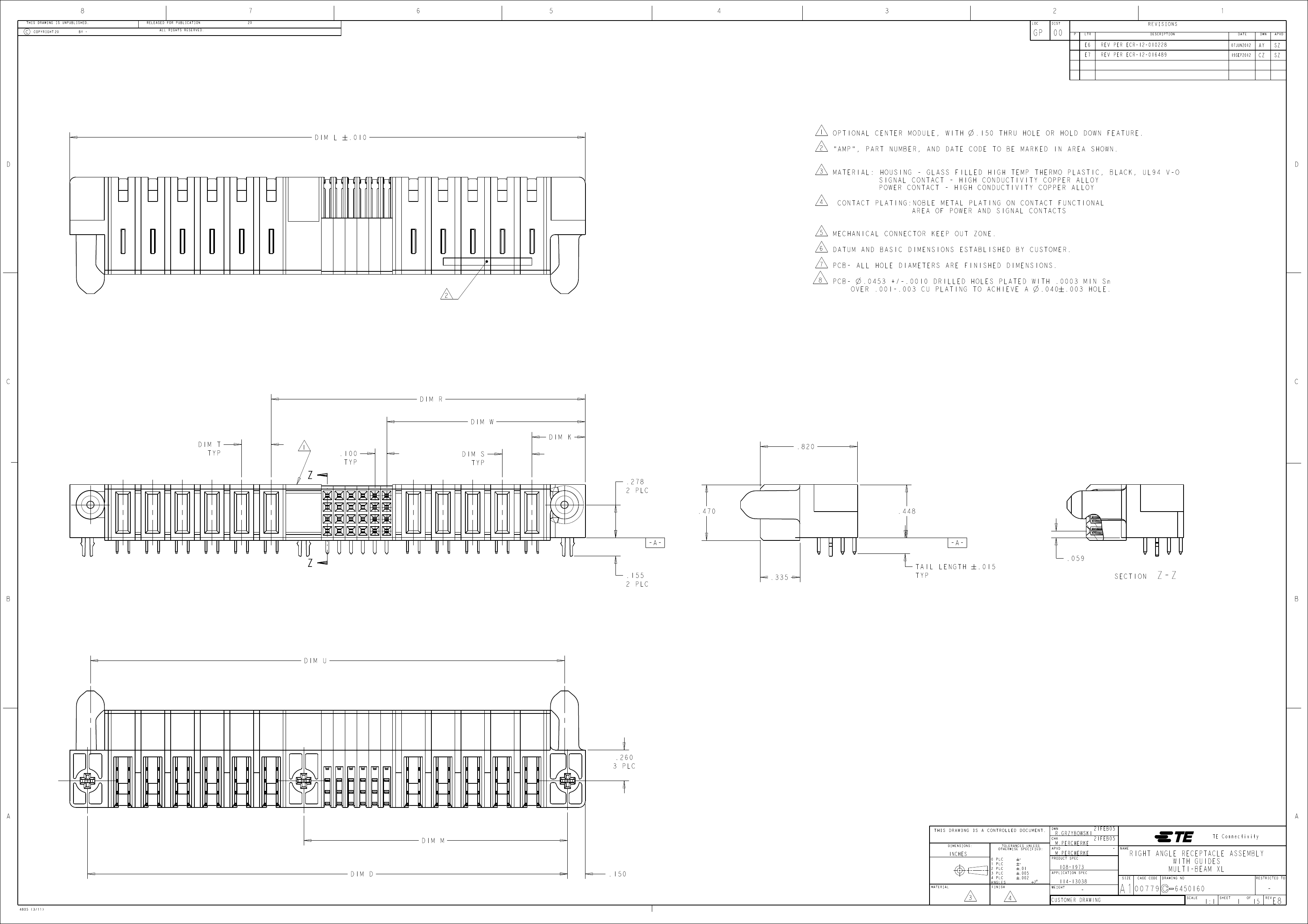

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

LOC

DIST

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

REV PER ECR-12-010228

REV PER ECR-12-016489

07JUN2012

19SEP2012

DIM L

# .010

OPTIONAL CENTER MODULE, WITH

n .150 THRU HOLE OR HOLD DOWN FEATURE.

"AMP", PART NUMBER, AND DATE CODE TO BE MARKED IN AREA SHOWN.

MATERIAL: HOUSING - GLASS FILLED HIGH TEMP THERMO PLASTIC, BLACK, UL94 V-O

SIGNAL CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

POWER CONTACT - HIGH CONDUCTIVITY COPPER ALLOY

CONTACT PLATING:NOBLE METAL PLATING ON CONTACT FUNCTIONAL

AREA OF POWER AND SIGNAL CONTACTS

MECHANICAL CONNECTOR KEEP OUT ZONE.

DATUM AND BASIC DIMENSIONS ESTABLISHED BY CUSTOMER.

PCB- ALL HOLE DIAMETERS ARE FINISHED DIMENSIONS.

PCB- n .0453 +/-.0010 DRILLED HOLES PLATED WITH .0003 MIN Sn

OVER .001-.003 CU PLATING TO ACHIEVE A n .040 # .003 HOLE.

DIM R

DIM W

DIM T

TYP

DIM K

.100

TYP

DIM S

TYP

.278

2 PLC

.470

.820

.448

-A-

TAIL LENGTH

TYP

# .015

.059

SECTION

.155

2 PLC

.335

Z-Z

DIM U

.260

3 PLC

THIS DRAWING IS A CONTROLLED DOCUMENT.

DWN

CHK

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DIM M

R.GRZYBOWSKI

M.PERCHERKE

108-1973

21FEB05

NAME

TE Connectivity

INCHES

APVD

DIM D

.150

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

.01

.005

.002

PRODUCT SPEC

APPLICATION SPEC

2 $

WEIGHT

114-13038

4805 (3/11)

CUSTOMER DRAWING

00779

SIZE

RIGHT ANGLE RECEPTACLE ASSEMBLY

WITH GUIDES

MULTI-BEAM XL

CAGE CODE

DRAWING NO

RESTRICTED TO

6450160

SCALE

1:1

SHEET

REV

3-6450160-7 Related Products

	3-6450160-7	6450160-3	1-6450160-0	6450160-5
Description	mbxlr/arcpt4p+24s+4P	mbxl R/A rcpt 1P+24s+1P	mbxl R/A rcpt	mbxl R/A rcpt 5P+24s+1M+6P
Standard Package	165	275	1,100	22
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tray	Bulk	Tray	Bulk
Connector Type	Receptacle, Female Sockets and Blade Sockets	Receptacle, Female Sockets and Blade Sockets	Receptacle, Female Sockets and Blade Sockets	Receptacle, Female Sockets and Blade Sockets
Connector Style	Multi-Beam	Multi-Beam	Multi-Beam	Multi-Beam
Number of Positions	32	26	28	35
Number of Positions Loaded	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	4	4	4	4
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle	Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde
Contact Layout, Typical	24 Signal, 8 Powe	24 Signal, 2 Powe	24 Signal, 4 Powe	24 Signal, 11 Powe
Features	Board Lock, Guide Pi	Board Lock, Guide Pi	Board Lock, Guide Pi	Board Lock, Guide Pi
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C	-20°C ~ 105°C
Other Names	A108373	6450160-3-NDA114240	1287814A108892	6450160-5-NDA114241
Mating Products	-	A114245-ND - MBXL R/A HDR 1P+24S+1P	A107783-ND - MBXL VERT HDR 2P+24S+2PA114227-ND - MBXL R/A HDR 2P+24S+2P	A114244-ND - MBXL R/A HDR 5P+24S+1M+6P
