Eclipse Family Data Sheet
••••••
Combining Performance, Density, and Embedded RAM
Device Highlights
Flexible Programmable Logic
• 0.25 µ, 5 layer metal CMOS process
• 2.5 V Vcc, 2.5/3.3 V dive capable I/O
• Up to 4032 logic cells
• Up to 583,000 max system gates
• Up to 347 I/O
Programmable I/O
• High performance: <3.2 ns Tco
• Programmable slew rate control
• Programmable I/O standards:
LVTTL, LVCMOS, PCI, GTL+, SSTL2,
and SSTL3
Eight independent I/O banks
Three register configurations: input, output and
output enable
Embedded Dual Port SRAM
• Up to thirty-six 2,304-bit dual port SRAM blocks
• Up to 82,900 RAM bits
• RAM/ROM/FIFO Wizard for automatic
configuration
• Configurable and cascadable
Advanced Clock Network
• Nine global clock networks
One dedicated
Eight programmable
• Sixteen I/O (high-drive) networks
• Twenty quad-net networks: five per quadrant

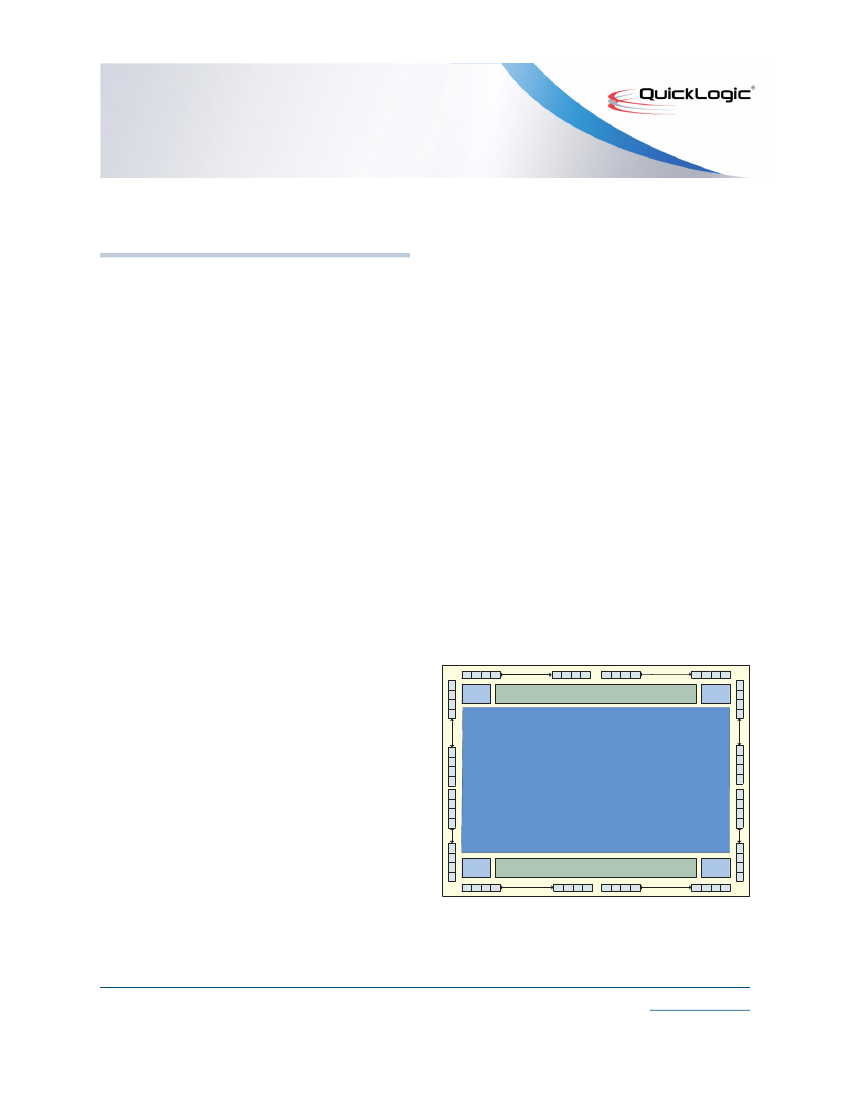

Figure 1: Eclipse Block Diagram
Applications
• Signal processing operators
• Signal processing functions
• Networking/communications for VoIP
• Speech/voice processing
• Channel coding
PLL
Embedded RAM Blocks
PLL
Fabric
PLL
Embedded RAM Blocks
PLL
© 2007 QuickLogic Corporation
www.quicklogic.com
•
•
•
•
•
•
1
Eclipse Family Data Sheet Rev. F
Table 1: Eclipse Product Family Members
QL6250
Max Gates
Logic Array
Logic Cells
Max Flip-Flops
Max I/O
RAM Modules
RAM bits
PQFP
Packages
PBGA (1.27 mm)
FPBGA (1.0 mm)
LFBGA (0.8 mm)
248,160
40x24
960
2,670
250
20
46,100
208
-
484
280
QL6325
320,640
48x32
1,536
4,002
310
24
55,300
208
-
484
280
QL6500
488,064
64x48
3,072
7,185
347
32
73,700
-
516
484
280
QL6600
583,008
72x56
4,032
9,105
347
36
82,900
-
516
484
280
Table 2: Max I/O per Device /Package Combination
Device
QL6250
QL6325
QL6500
QL6600
208 PQFP
99
99
-
-
280 FPBGA
163
163
163
163
484 PBGA
250
310
327
327
516 PBGA
-
-
347
347
QuickWorks Design Software
The QuickWorks
®
package provides the most complete ESP and FPGA software solution from design entry
to logic synthesis, to place and route to simulation. The packages provide a solution for designers who use
third party tools from Cadence, Mentor, OrCAD, Synopsys, Viewlogic and other third-party tools for design
entry, synthesis, or simulation.
Process Data
Eclipse is fabricated on a 0.25
μm
five-layer metal CMOS process. The core voltage is 2.5 V V
CC
supply and
3.3 V tolerant I/O with the addition of 3.3 V V
CCIO
. Eclipse is available in commercial, industrial, and military
temperature grades.
Programmable Logic Architectural Overview
The Eclipse logic cell structure is presented in
Figure 2.
This architectural feature addresses current register-
intensive designs.
•
2
•
www.quicklogic.com
•
•
•
•
© 2007 QuickLogic Corporation
Eclipse Family Data Sheet Rev. F
Figure 2: Eclipse Logic Cell
QS
A1
A2
A3
A4
A5
A6
OS
OP
B1
B2
C1
C2
MP
MS
D1
D2
E1
E2
NP
NS
F1
F2
F3
F4
F5
F6
PS
PP
QC
QR
AZ
OZ
QZ
NZ
Q2Z
FZ
Table 3: Performance Standards
Function
Multiplexer
Parity Tree
Counter
Description
16:1
24
36
16 bit
32 bit
128 x 32
FIFO
Clock to Out
System
clock
256 x 16
128 x 64
Slowest Speed Grade
5 ns
6 ns
6 ns
250 MHz
250 MHz
155 MHz
155 MHz
155 MHz
4.5 ns
200 MHz
Fastest Speed Grade
2.8 ns
3.4 ns
3.4 ns
450 MHz
450 MHz
280 MHz
280 MHz
280 MHz
2.5 ns
400 MHz
The second register has a two-to-one multiplexer controlling its input. The register can be loaded from the NZ
output or directly from a dedicated input.
NOTE:
The input “PP” is not an “input” in the classical sense. It can only be tied high or low using default
links only and is used to select which path “NZ” or “PS” is used as an input to the register. All other inputs
can be connected not only to “tiehi” and “tielo” but to multiple routing channels as well.
The complete logic cell consists of 2 six-input AND gates, 4 two-input AND gates, 7 two-to-one multiplexers,
and 2 D flip-flop with asynchronous SET and RESET controls. The cell has a fan-in of 30 (including register
control lines) and fits a wide range of functions with up to 17 simultaneous inputs. It has 6 outputs;
4 combinatorial and 2 registered. The high logic capacity and fan-in of the logic cell accommodate many user
functions with a single level of logic delay while other architectures require two or more levels of delay.
•
•
•
•
© 2007 QuickLogic Corporation
www.quicklogic.com
•
•
3
Eclipse Family Data Sheet Rev. F
RAM Modules
The Eclipse Family includes multiple dual-port 2,304-bit RAM modules for implementing RAM, ROM and
FIFO functions. Each module is user-configurable into four different block organizations. Modules can also be
cascaded horizontally to increase their effective width or vertically to increase their effective depth as shown
in
Figure 3.
The RAM can also be configured as a modified Harvard Architecture, similar to those found in
DSPs.
Figure 3: 2,304-bit Eclipse RAM Module
MODE[1:0]
WA[9:0]
WD[17:0]
WE
WCLK
ASYNCRD
RA[9:0]
RD[17:0]
RE
RCLK
The number of RAM modules varies from 20 to 36 blocks within the Eclipse family, for a total of 46.1 to 82.9
K bits of RAM. Using two “mode” pins, designers can configure each module into 128 x 18 (Mode 0), 256 x
9 (Mode 1), 512 x 4 (Mode 2), or 1024 x 2 blocks (Mode 3). The blocks are also easily cascadable to increase
their effective width and/or depth. See
Figure 4.
Figure 4: Cascaded RAM Modules
WDATA
WADDR
RAM
Module
(2,304 bits)
RDATA
RADDR
WDATA
RAM
Module
(2,304 bits)
RDATA
The RAM modules are dual-port, with completely independent READ and WRITE ports and separate READ
and WRITE clocks. The READ ports support asynchronous and synchronous operation, while the WRITE
ports support synchronous operation. Each port has 18 data lines and 10 address lines, allowing word lengths
of up to 18 bits and address spaces of up to 1024 words. Depending on the mode selected, however, some
higher order data or address lines may not be used.
•
4
•
www.quicklogic.com
•
•
•
•
© 2007 QuickLogic Corporation
Eclipse Family Data Sheet Rev. F
The Write Enable (WE) line acts as a clock enable for synchronous write operation. The Read Enable (RE) acts
as a clock enable for synchronous READ operation (ASYNCRD input low), or as a flow-through enable for
asynchronous READ operation (ASYNCRD input high).
Designers can cascade multiple RAM modules to increase the depth or width allowed in single modules by
connecting corresponding address lines together and dividing the words between modules.
A similar technique can be used to create depths greater than 512 words. In this case address signals higher
than the ninth bit are encoded onto the write enable (WE) input for WRITE operations. The READ data outputs
are multiplexed together using encoded higher READ address bits for the multiplexer SELECT signals.
The RAM blocks can be loaded with data generated internally (typically for RAM or FIFO functions) or with
data from an external PROM (typically for ROM functions).
Phase Locked Loops (PLLs)
Instead of requiring extra components, designers simply need to instantiate one of the pre-configured models
described in this section and listed in
Table 4.
The QuickLogic built-in PLLs support a wider range of
frequencies than many other PLLs. Also, QuickLogic PLLs can be cascaded to support different ranges of
frequency multiplications or divisions, driving the device at a faster or slower rate than the incoming clock
frequency. Most importantly, they achieve a very short clock-to-out time—generally less than 3 ns. This low
clock-to-out time is achieved by the PLL subtracting the clock tree delay through the feedback path, effectively
making the clock tree delay zero.
Figure 5
illustrates a typical QuickLogic ESP PLL.
Figure 5: PLL Block
1st Quadrant
2nd Quadrant
3rd Quadrant
Frequency Divide
_1
.
.
.
_2
.
.
_4
.
+
-
Filter
vco
PLL Bypass
4th Quadrant
Clock
Tree
FIN
Frequency Multiply
.
_1
.
.
_2
.
.
_4
.
FOUT
© 2007 QuickLogic Corporation
www.quicklogic.com
•
•
•
•
•
•
5
