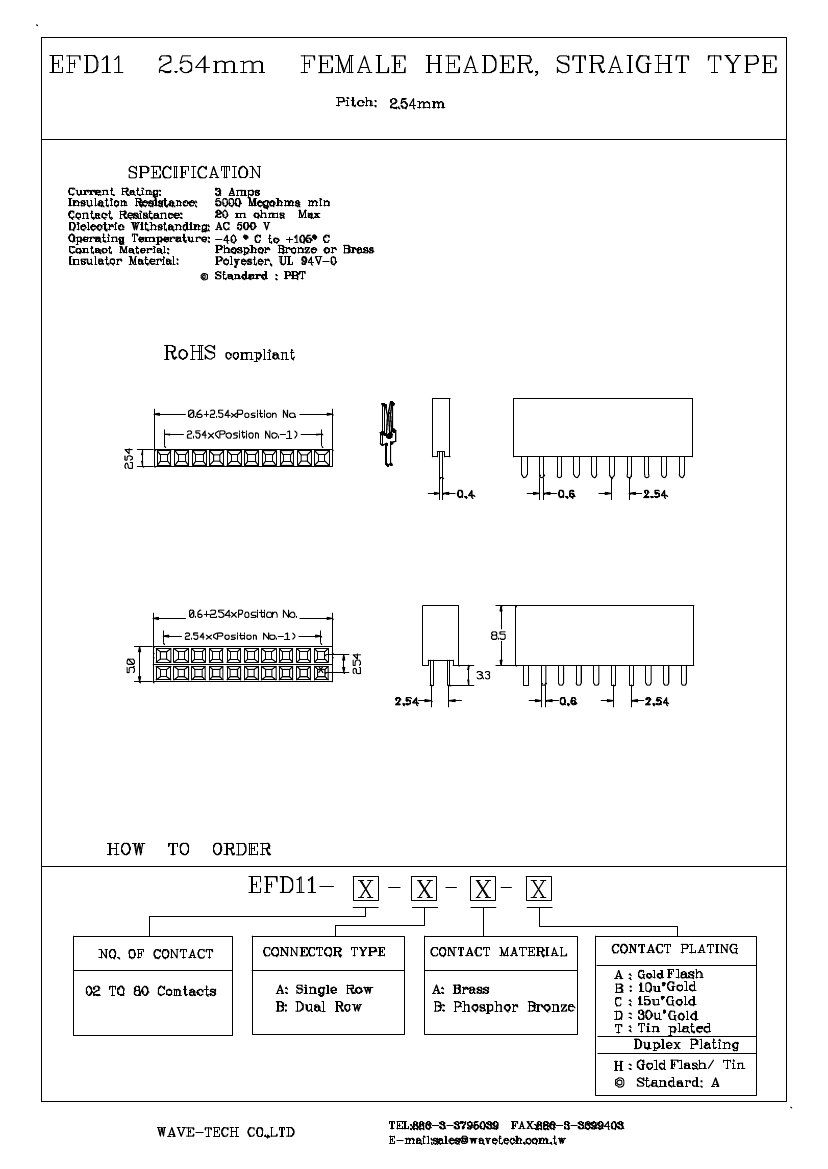

EFD11-80-A-B-A datasheet, PDF - EEWORLD Datasheet

EFD11-80-A-B-A: DescriptionBoard Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Plug; CategoryThe connector The connector; File Size49KB，1 Pages; ManufacturerWave Tech Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

EFD11-80-A-B-A Overview

Board Connector, 80 Contact(s), 2 Row(s), Female, Straight, 0.1 inch Pitch, Solder Terminal, Locking, Plug

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	303831734
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.197 inch
subject depth	0.335 inch
body length	4.024 inch
Body/casing type	PLUG
Connector type	BOARD CONNECTOR
Contact to complete cooperation	AU
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	DUAL PRONG
Dielectric withstand voltage	500VAC V
Insulation resistance	5000000000 Ω
insulator material	POLYBUTYLENE TEREPHTHALATE
Manufacturer's serial number	EFD11
Plug contact pitch	0.1 inch
Match contact row spacing	0.1 inch
Installation option 1	LOCKING
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	2.54 mm
Plating thickness	FLASH inch
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.13 inch
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	80
