BIM8-2403S-DIL24 datasheet, PDF

Datasheet> All Categories > Analog mixed-signal IC> The signal circuit> BIM8-2403S-DIL24

BIM8-2403S-DIL24: DescriptionAnalog Circuit; CategoryAnalog mixed-signal IC The signal circuit; File Size234KB，3 Pages; ManufacturerHN Electronic Components GmbH & Co Kg; Environmental Compliance

Download Datasheet Parametric View All

BIM8-2403S-DIL24 Overview

Analog Circuit

BIM8-2403S-DIL24 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	114000204
Reach Compliance Code	unknown
Maximum input voltage	36 V
Minimum input voltage	18 V
Number of terminals	7
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Maximum output current	2 A
Nominal output voltage	3.3 V
Package body material	METAL
Encapsulate equivalent code	DIP7/24,.6
Certification status	Not Qualified
surface mount	NO
Temperature level	INDUSTRIAL

Preview

Download Datasheet

View All

DC/DC

BIM-MODUL

DIL 24

BIM8 - DIL24

8W, 2:1 Regulated Single & Dual output Converter, High Power Density

HN-POWER

Besondere Merkmale

Weiter 2:1 Eingangsspannungsbereich

komplett in SMD Technologie

Isolationsspannung 1.5KVdc

hoher Wirkungsgrad (bis zu 85%)

dauerhaft Kurzschlußfest

Strombegrenzung

Hohe Leistungsdichte

DIL 24 Metall-Gehäuse

RoHS 2002/95/EC konform

Technische Daten

(bei 25°C Umgebungstemperatur,

Nennspannung und Volllast)

Eingangsdaten

Nennspannungen

Spannungsbereiche

Eingangsfilter

Eingangsstrom (o./m. Last)

reflektierter Eingangs-Ripple-Strom

Ausgangsdaten

Regelabweichung

Eingangsregelung

Lastregelung (Io = 0-100% Last)

Regelgenauigkeit von Dual-Ausgängen

Restwelligkeit

Strombegrenzung

Kurzschlußfestigkeit

Temperaturkoeffizient

Kapazitive Last

Allgemeine Daten

Leistung

Wirkungsgrad

Isolationsspannung

(über 3 Sek. getestet)

Isoaltions- Widerstand / Kapazität

Schaltfrequenz

Luftfeuchtigkeit

kalkulierte Zuverlässigkeit MTBF

Betriebstemperatur

Maximale Gehäusetemperatur

Lagertemperatur

Löttemperatur

Kühlung

Gehäusematerial

Abmaße

[mm]

/ Gewicht

[g]

Sicherheitsstandard

EMV-Eigenschaften

Features

Wide 2:1 Input Range

Full SMD Technology

1.5KVdc Isolation

high Efficiency (up to 85%)

Continuous Short Circuit Protection

Over Current Protection

(8)

High Power Density

DIL 24 metal case

RoHS 2002/95/EC conform

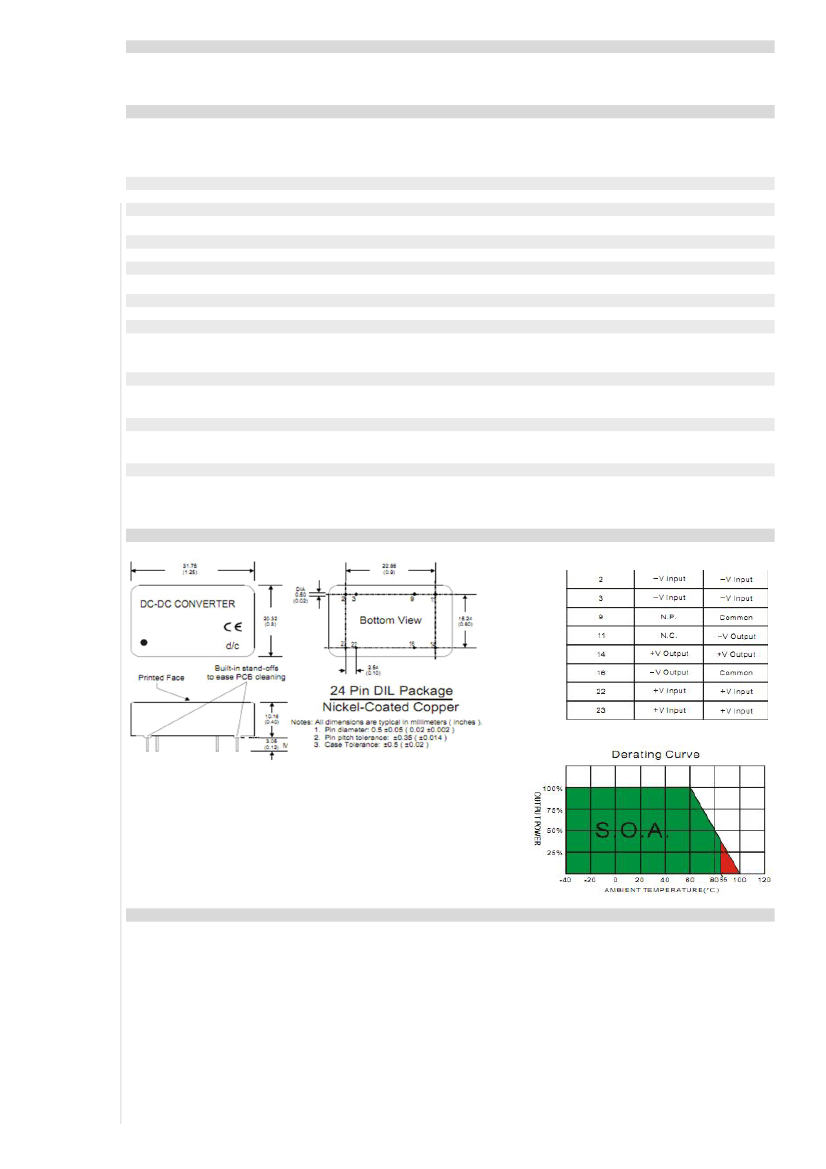

Specification

(at 25°C ambient temperatur,

nominal input voltage and full load)

Input Specifications

Input voltages

Voltage ranges

Input filter

Input Current (w.o./full Load)

Input Reflected Ripple Current

(4)

Output Specifications

Voltage accuracy

Line regulation

Load regulation (Io = 0-100% load)

Cross regulation at dual outputs

(1)

Ripple & Noise

(2)

Over Current Protection

(8)

Short Circuit Protection

Temperature Coefficient

Capacitive Load

(3)

General Specifications

Power

Efficiency

Isolation voltage

(tested over 3 Sec.)

Isolation Resistance / Capacitance

Switching frequency

Humidity

Calculated reliability MTBF

Operating Temperature

Maximum Case Temperature

Storage Temperature

Soldering Temperature

Cooling

Case material

Dimension

[mm]

/ Weight

[g]

Safety Standard

EMC Specifications

12 / 24 / 48

9-18 / 18-36 / 36-72

Pi type

siehe Tabelle / see table

typ. 35mA pk-pk

typ. ±1%

±0.5% max.

±0.5%, max.

(Single)

, ±1.0%, max.

(Dual)

±1.5%, max.

(3.3V models only)

±5% max.

75mV p-p max.

typ. ±150% of full Load

dauerhaft / continuous

(auto recovery)

±0.02%/°C

siehe Tabelle / see table

8 Watt

85% max.

(see table)

1500Vdc

(Input/Output)

1000Vdc

(Case/Input & Output)

1000 MΩ,

min. / 1000 pF, typ.

typ. 330kHz

95% rel.

> 0.91 Mhrs

(MIL-HDBK-217 F)

-40°C ... +85°C

(see derating curve)

-40°C ... +60°C at 100% Load

100°C

-40°C ... +125°C

260°C max.

(1.5mm from case, 10 sec. max.)

Luftkühlung / Air Convection

Nickel-coated Copper

31.75*20.32*10.16 / 17

erfüllt / comply EN 60950

EN 55022 Class A

(6)

EN 61000-4-3/6/8 Criteria A

EN 61000-4-2/4/5 Criteria B

(7)

HN Electronic Components GmbH & Co. KG

● Birkenweiherstraße 16 ● D-63505 Langenselbold

Tel. (06184) 92780

● Fax (06184) 62316 ● www.hn-electronic.de

DC/DC

BIM-MODUL

DIL 24

Remarks

1. One load is 25% to 100% load, the other load is 100% load, the output voltage variable rate is within ±5%.

2. Typical value at nominal input voltage and full load.

3. Test by nominal input voltage and constant resistor load.

4. Measured Input reflected ripple current with a simulated source inductance of 12µH.

5. Operation under no-load and 10% conditions will not damage these devices, but they may not meet all listed specifications.

6. It’s necessary to add minimum capacitor in output for some models, please check single model datasheet for detail value.

7. Input filter components (C1, C2, L) are used to help meet conducted emissions requirement for the module.

8. An external filter capacitor is required if the module has to meet EN61000-4-5 and EN61000-4-5.

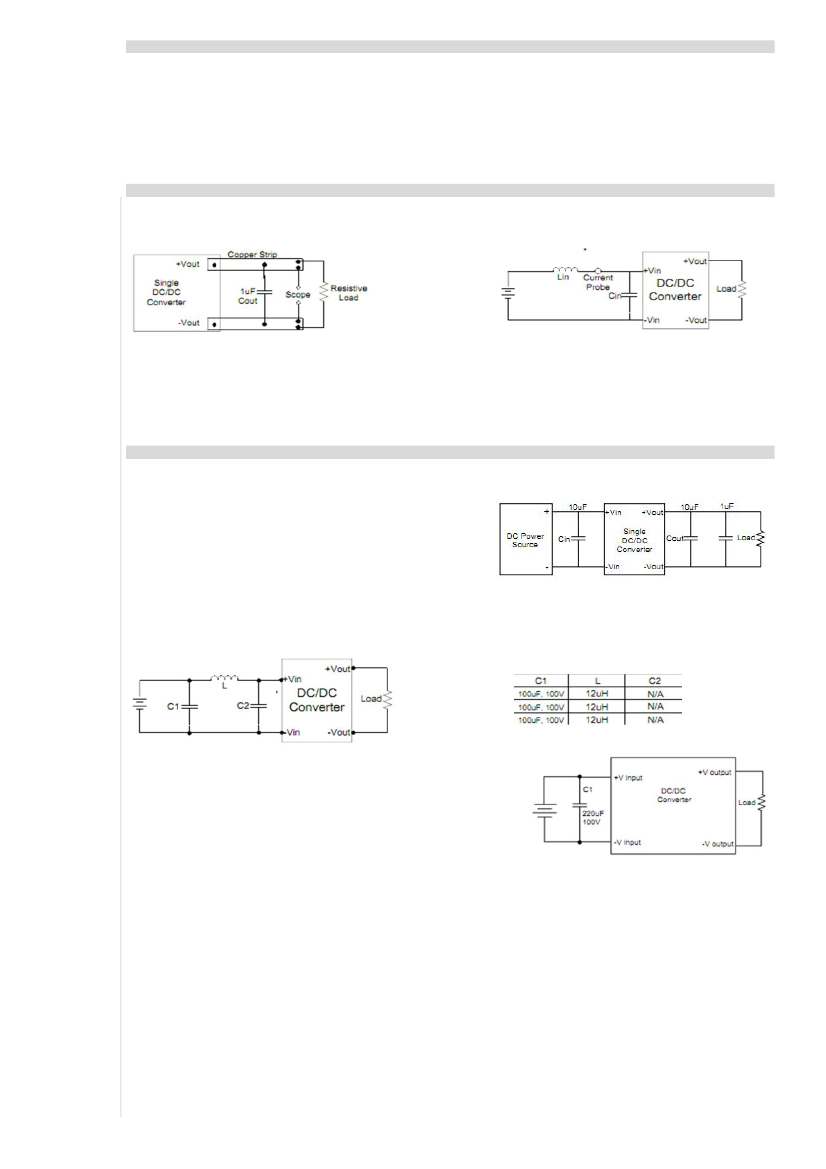

Meßbedingungen / Test configurations

MEMO:

Ripple/Noise Messung /

Ripple/Noise measurement

(2)

Messung Reflektierter Eingangs-Ripple-Strom /

Input reflected ripple current measurement

(4)

Ripple/Noise gemessen mit 20MHz Bandbreite und einem

1.0µF Keramikkondensator über die Ausgangspins.

Ripple/Noise measured with 20MHz bandwidth and 1.0µF

ceramic capacitor across output rails.

Reflektierter Eingangs-Ripple-Strom gemessen nach

einer Induktionsspule Lin (12µH) an +Vin und einer

Kapazität Cin (47µF) an den Vin's.

Measured Input reflected ripple current with a simulated

source inductance Lin of 12µH on +Vin and a source

capacitor Cin (47µF) across the input.

Entwurfs- & Eigenschaften Konfiguration / Design & Feature configurations

Reduzierung von Ripple & Noise am Ausgang / Output Ripple & Noise Reduction

(2)

Um Ripple und Noise zu reduzieren, empfiehlt es sich, an den Wandler-

Ausgang einen Elektrolytkondensator (10µF) und einen Keramik-

scheibenkondensator (1µF) anzuschließen.

To reduce ripple and noise, it is recommended to use a 1.0µF ceramic

disk capacitor and a 10µF electrolytic.

Eingangsfilter / Input filter components

(6 & 7)

Die Eingangsfilter (C1, L, C2) dienen zur Einhaltung der Emissionensanforderungen an den Wandler.

The input filter components (C1, L, C2) are used to help meet conducted emissions requirement for the module.

(6)

Vin = 12V

Vin = 24V

Vin = 48V

Soll der Wandler die EN61000-4-4 und EN61000-4-5 erfüllen, ist ein externer

Siebkondensator erforderlich. Empfohlener Filterkondensator:

Nippon Chemi-Con KY Serie 220µF/100V.

If the module has to meet EN61000-4-5 and EN61000-4-5 an external input

filter capacitor is required. Suggested filter capacitor:

Nippon chemi-con KY series, 220µF/100V.

(12)

EFT/Surge (12)

Diese Komponenten sollten so dicht wie möglich am Wandler platziert werden; um die Störstrahlung zu verringern sollten alle

Leiterbahnen möglichst kurz sein.

These components should be mounted as close as possible to the module; and all leads should be minimized to decrease radiated

noise.

Überlastschutz / Over Current Protection

(8)

Der Wandler verfügt über eine interne Überlastschutzschaltung, die für eine unbegrenzte Dauer eines Überlastzustand am Ausgang den

Strom begrenzt. Wenn der Ausgangsstrom den OCP-Sollwert übersteigt, wird der Wandler automatisch heruntergefahren (hiccup).

Der Wandler versucht, neu zu starten, nachdem er heruntergefahren ist. Liegt die Überlast noch vor, wird der Wandler wieder

ausgeschaltet.

The module includes an internal over current protection circuit, which will endure current limiting for an unlimited duration during output over

load condition. If the output current exceeds the OCP set point, the module will shut down automatically (hiccup). The module will try to

restart after shut down. If the over load condition still exists, the module will shut down again.

HN Electronic Components GmbH & Co. KG

● Birkenweiherstraße 16 ● D-63505 Langenselbold

Tel. (06184) 92780

● Fax (06184) 62316 ● www.hn-electronic.de

Technische Änderungen vorbehalten

Technical specifications are subject to change without notice
