FTX25.999M8SM2A-30/50D datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> FTX25.999M8SM2A-30/50D

FTX25.999M8SM2A-30/50D: DescriptionParallel - Fundamental Quartz Crystal,; CategoryPassive components Crystal/resonator; File Size170KB，2 Pages; ManufacturerFronter Electronics Co., Ltd.; Environmental Compliance

Download Datasheet Parametric View All

FTX25.999M8SM2A-30/50D Overview

Parallel - Fundamental Quartz Crystal,

FTX25.999M8SM2A-30/50D Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	7019835597
package instruction	SMD, 4 PIN
Reach Compliance Code	unknown
Other features	AT-CUT; TR, 7 INCH
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	10 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	8 pF
Installation features	SURFACE MOUNT
Nominal operating frequency	25.999 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
physical size	L2.0XB1.6XH0.5 (mm)/L0.079XB0.063XH0.02 (inch)
Series resistance	80 Ω
surface mount	YES

Preview

Download Datasheet

View All

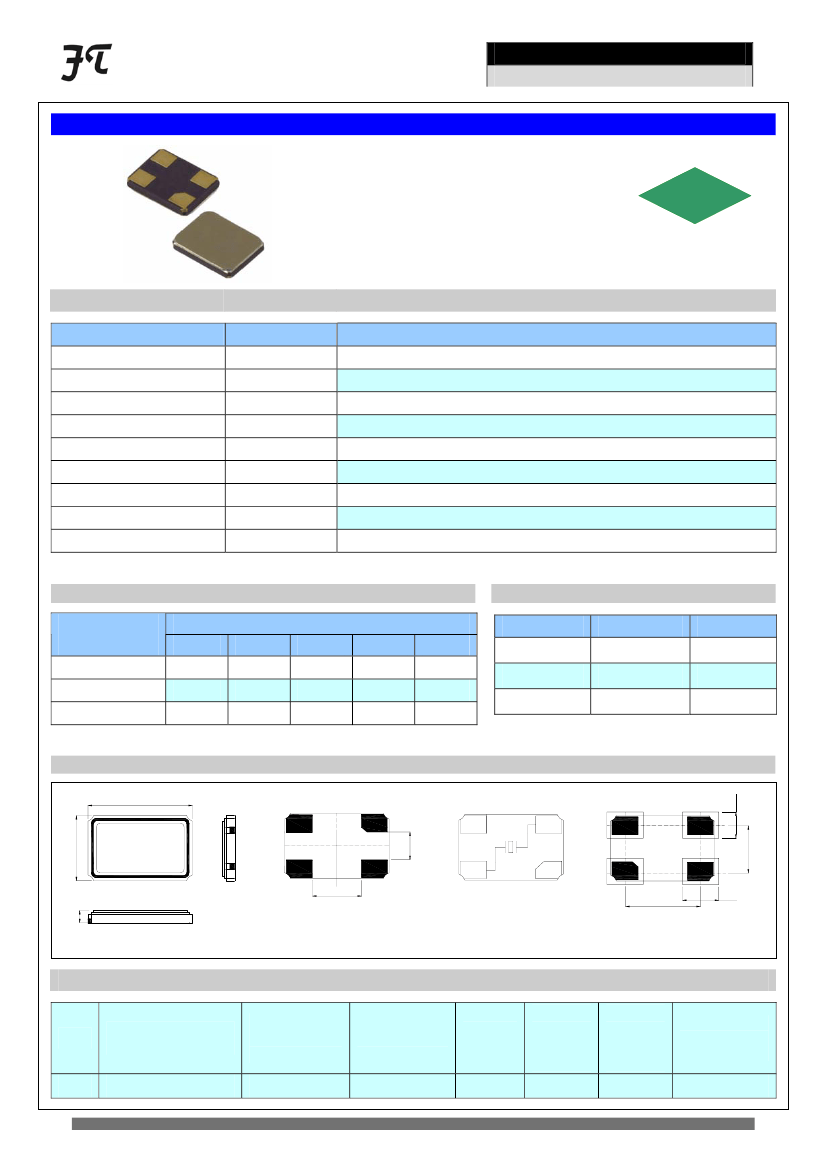

FRONTER ELECTRONICS CO., LTD.

深圳市福浪电子有限公司

SMD QUARTZ CRYSTAL RESONATOR

4 Pad Version 2.0×1.6 mm

±10 ppm type available

Excellent Reliability Performance

EMI shielding possible by grounded lid

石英晶 ½ 谐振器

RoHS

2002/95/EC

RoHS compliant

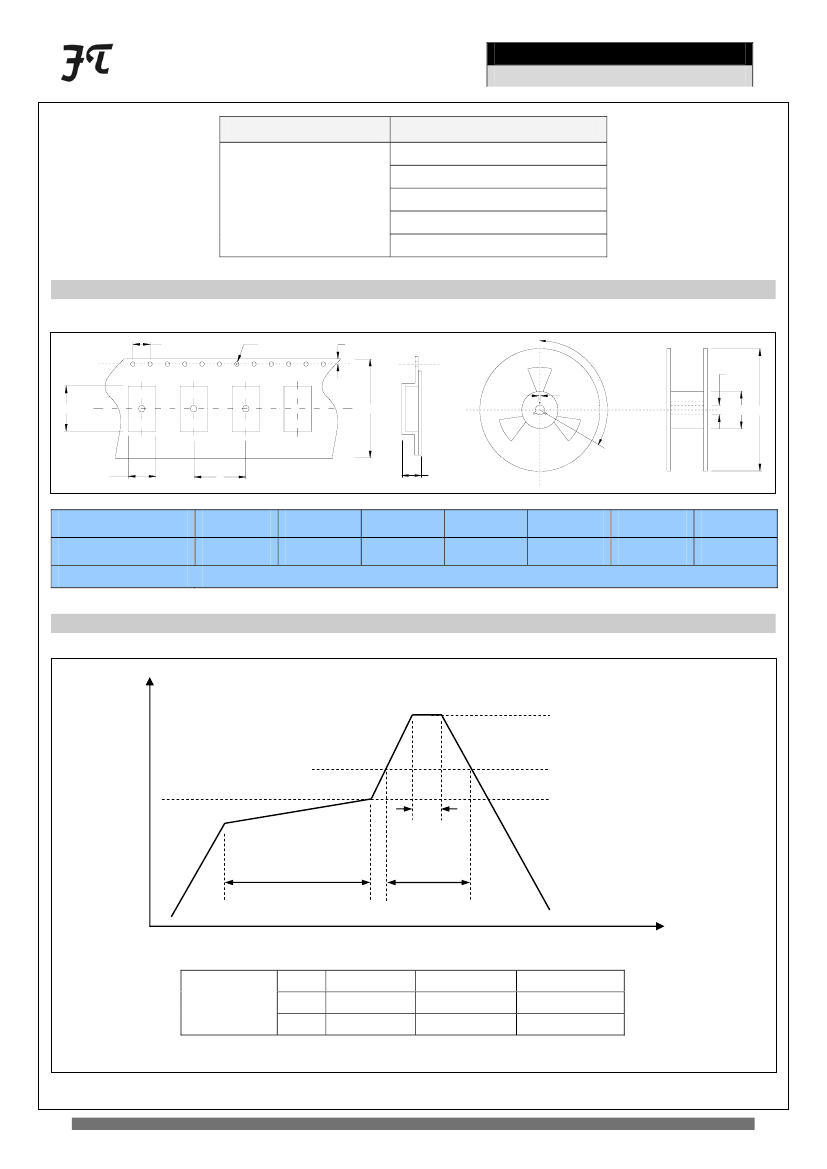

Reflow soldering temperature: 260℃ max

Ceramic Seam Weld package

★

PARAMETERS

技术参数

参数

频率范围

振动模式

负½½电容

激励电平

频率偏差

谐振电阻

频率稳定性

工½温度范围

储存温度范围

9pF Std.

SPECIFICATION

规格

24½50MHz

Fundamental

8 to 32pF / Series available

PARAMETERS

Frequency Range

Operation Mode

Loading Capacitance

Drive Level

Frequency Tolerance

Equivalent Resistance

Frequency Stability

Operating Temp. Range

Storage Temp. Range

10μW（100μW Max）

±10ppm½±30ppm（at 25℃）

80Ω Max

±10ppm½±50ppm

-10½+60℃ to -40½+85℃

-55½+125℃

☉All

specification subject change without notice.

规格变化，恕不另行通知。

★

FREQUENCY STABILITY VS. TEMPERATURE

频率温度特性

★

ESR（SERIES RESISTANCE RS）

谐振电阻

Frequency

±50ppm

○

40-50.999MHz

AT CUT/FUND.

50Ω(MAX)

24-25.999MHz

26-39.999MHz

Vibration Mode

AT CUT/FUND.

ESR

80Ω(MAX)

60Ω(MAX)

Operation

Temperature Range

-10℃~+60℃

-20℃~+70℃

-40℃~+85℃

●

standard

★

○

available

±10ppm

●

○

±15ppm

○

Frequency Stability

±20ppm

○

●

○

±30ppm

○

●

DIMENSIONS& LAND PATTERN LAYOUT (Unit: mm)

2.0

0.1

外½尺寸

0.8

1.6

0.1

0.5

0.7

0.5

0.05

1.4

0.9

Marking #2, #4 is connected with metal cap of top.

Recommended land Pattern

★

PART NUMBER GUIDE

部件号示例

Frequency

频率

16.000M

e.g. FTX16.000M10SM2A-10/10B (*

SM2A=2.0

1.6 SMD SEAM TYPE

)

Load Capacitance

负½½电容

Frequency

Tolerance

常温频差

ppm

Frequency

Stability

温度频差

ppm

Operating Temp.

Range

工½温度

Logo

Quartz Crystal Resonator

石英晶½谐振器

Package

盒型

SM2A

Address:Rm 1112-1117., Xinian Center. NO. 6021, Shennan Rd. Shenzhen Gaungdong 518040, China Tel:(86)755-83458718 Fax: (86)755-83459818 E-mial: sales@chinafronter.com
