Datasheet> All Categories > The connector> 5223016-2

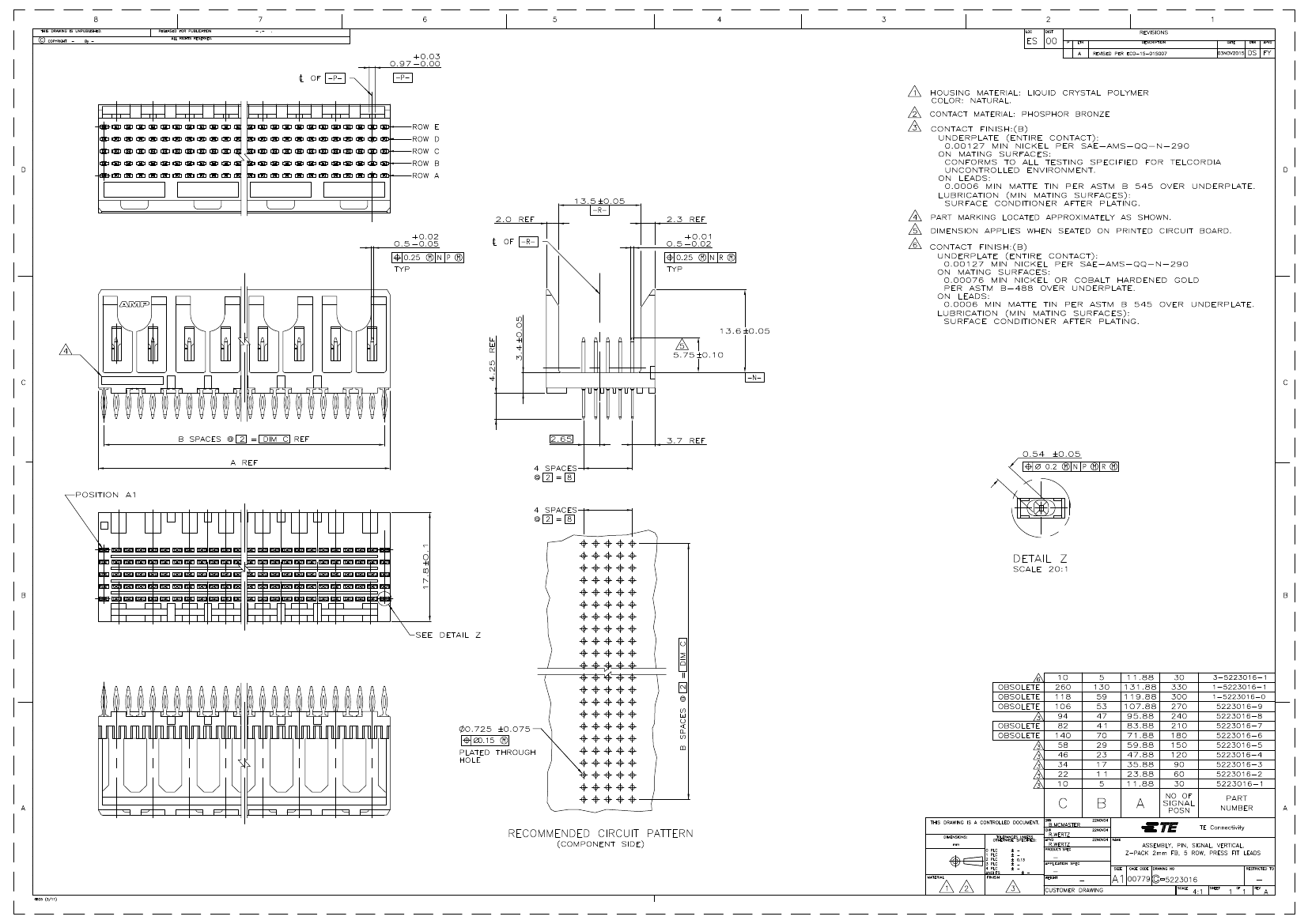

Preview

5223016-2: Descriptionconn header 60pos 2mm pressfit; CategoryThe connector; File Size147KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5223016-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5223016-2	-	-	View	Buy Now

5223016-2 Overview

conn header 60pos 2mm pressfit

5223016-2 Parametric

Parameter Name	Attribute value
Datasheets
5223016
Product Photos
5223016-2
RoHS Informati
5223016-2 Statement of Compliance
RoHS 2 Stateme
Standard Package	288
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	-
Connector Type	Header, Male Pins
Connector Style	Futurebus
Number of Positions	60
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	5
Number of Columns	-
Mounting Type	Through Hole
Terminati	Press-Fi
Contact Layout, Typical	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	-
Col	Natural
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-55°C ~ 125°C
Voltage Rating	30V
Mating Products	A97843-ND - CONN RCPT 60POS R/A 2MM PRESSFITA97841-ND - CONN RCPT 60POS R/A 2MM SOLDERA97839-ND - CONN RCPT 60POS R/A 2MM SOLDER
Other Names	A99413

Preview

Download Datasheet

View All

5223016-2 Related Products

	5223016-2	1-5223016-0	1-5223016-1	5223016-1	5223016-4	5223016-8
Description	conn header 60pos 2mm pressfit	conn header 300pos 2mm pressfit	conn header 330pos 2mm pressfit	conn header 30pos 2mm pressfit	conn header 120pos 2mm pressfit	FB-5R,asy,240,sig,hdr,EN,4.25
Standard Package	288	4	4	48	144	1,152
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube	Tube	Tube	Tube	Tube
Connector Type	Header, Male Pins	Header, Male Pins	Header, Male Pins	Header, Male Pins	Header, Male Pins	Header, Male Pins
Connector Style	Futurebus	Futurebus	Futurebus	Futurebus	Futurebus	Futurebus
Number of Positions	60	300	330	30	120	240
Number of Positions Loaded	All	All	All	All	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	5	5	5	5	5	5
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Press-Fi	Press-Fi	Press-Fi	Press-Fi	Press-Fi	Press-Fi
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold
Col	Natural	Natural	Natural	Natural	Natural	Natural
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Voltage Rating	30V	30V	30V	30V	30V	30V
Mating Products	A97843-ND - CONN RCPT 60POS R/A 2MM PRESSFITA97841-ND - CONN RCPT 60POS R/A 2MM SOLDERA97839-ND - CONN RCPT 60POS R/A 2MM SOLDER	-	-	5223668-1-ND - 2MM FB,5RV,REC,ASY,030,PF,3.205223652-1-ND - 2MM FB,5RV,REC,ASY,030,PF,4.25A97842-ND - CONN RCPT 30POS R/A 2MM PRESSFITA97840-ND - CONN RCPT 30POS R/A 2MM SOLDERA97838-ND - CONN RCPT 30POS R/A 2MM SOLDER223008-1-ND - CONN 2MM FB RCPT 30POS R/A GOLD	5223652-4-ND - 2MM FB,5RV,REC,ASY,120,PF,4.255223007-4-ND - FB-5R,ASY,120,SIG,REC,SL,3.53A97844-ND - CONN RCPT 120PS R/A 2MM PRESSFIT5223004-4-ND - CONN 2MM FB RCPT 120POS R/A GOLD223008-4-ND - CONN 2MM FB RCPT 120POS R/A GOLD5223652-4-ND - 2MM FB,5RV,REC,ASY,120,PF,4.255223007-4-ND - FB-5R,ASY,120,SIG,REC,SL,3.53A97844-ND - CONN RCPT 120PS R/A 2MM PRESSFIT5223004-4-ND - CONN 2MM FB RCPT 120POS R/A GOLD223008-4-ND - CONN 2MM FB RCPT 120POS R/A GOLD223004-4-ND - CONN 2MM FB RCPT 120POS R/A GOLD	A97845-ND - CONN RCPT 240PS R/A 2MM PRESSFITA97884-ND - CONN RCPT 240POS R/A 2MM SOLDER223008-8-ND - CONN 2MM FB RCPT 240POS R/A GOLD223004-8-ND - CONN 2MM FB RCPT 240POS R/A GOLD
