536510-2 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 536510-2

536510-2: Descriptionconn rcept rtang 2mm 48pos 30au; CategoryThe connector; File Size209KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

536510-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	536510-2	-	-	View	Buy Now

536510-2 Overview

conn rcept rtang 2mm 48pos 30au

536510-2 Parametric

Parameter Name	Attribute value
Datasheets
536510
Product Photos
536510-2, 5536510-2
RoHS Informati
536510-2 Statement of Compliance
Standard Package	480
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	-
Connector Type	Receptacle, Female Sockets
Connector Style	Futurebus
Number of Positions	48
Number of Positions Loaded	All
Pitch	0.079" (2.00mm)
Number of Rows	4
Number of Columns	-
Mounting Type	Board Edge, Through Hole, Right Angle
Terminati	Solde
Contact Layout, Typical	-
Features	Space
Contact Finish	Gold
Contact Finish Thickness	-
Col	Natural
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-55°C ~ 125°C
Voltage Rating	30V
Mating Products	223513-2-ND - CONN 2MM FB PLUG 48POS R/A GOLD536514-2-ND - 2MMFB,ASY,048,SIG,HDR,EN,4.25536526-2-ND - HDR PIN VERT 48 POS AU FLASH 2MM536514-4-ND - 2MMFB,ASY,192,SIG,HDR,EN,4.25A3263-ND - CONN HEADER VERT 2MM 48POS 30AUA3267-ND - CONN HEADER VERT 2MM 48POS 30AU
Other Names	A3275

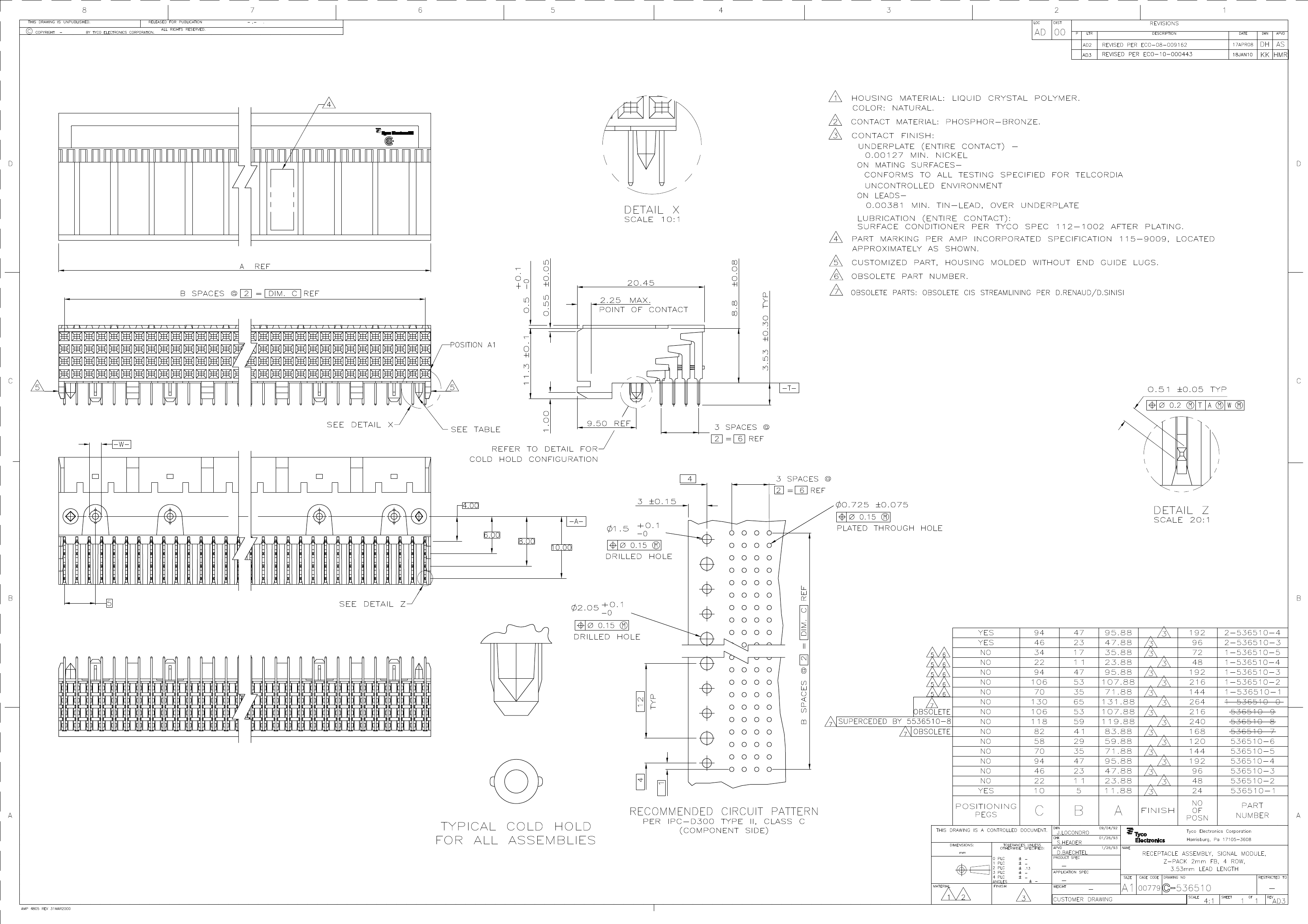

Preview

Download Datasheet

View All

536510-2 Related Products

	536510-2	536510-1	536510-5	536510-9	536510-3	536510-4
Description	conn rcept rtang 2mm 48pos 30au	conn rcept rtang 2mm 24pos 30au	conn recept RT/A 144pos 2mm pcb	conn Z-pack 2mm 216pos R/A pcb	conn rcept rtang 2mm 96pos 30au	conn rcept rtang 2mm 192pos 30au
Standard Package	480	576	640	5	240	6
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube	Tube	Tube	Tube	Tube
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets	Receptacle, Female Sockets
Connector Style	Futurebus	Futurebus	Futurebus	Futurebus	Futurebus	Futurebus
Number of Positions	48	24	144	216	96	192
Number of Positions Loaded	All	All	All	All	All	All
Pitch	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)	0.079" (2.00mm)
Number of Rows	4	4	4	4	4	4
Mounting Type	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle	Board Edge, Through Hole, Right Angle
Terminati	Solde	Solde	Solde	Solde	Solde	Solde
Features	Space	Board Guide, Space	Space	Space	Space	Space
Contact Finish	Gold	Gold	Gold	Gold	Gold	Gold
Col	Natural	Natural	Natural	Natural	Natural	Natural
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C	-55°C ~ 125°C
Voltage Rating	30V	30V	30V	30V	30V	30V
Mating Products	223513-2-ND - CONN 2MM FB PLUG 48POS R/A GOLD536514-2-ND - 2MMFB,ASY,048,SIG,HDR,EN,4.25536526-2-ND - HDR PIN VERT 48 POS AU FLASH 2MM536514-4-ND - 2MMFB,ASY,192,SIG,HDR,EN,4.25A3263-ND - CONN HEADER VERT 2MM 48POS 30AUA3267-ND - CONN HEADER VERT 2MM 48POS 30AU	536514-1-ND - CONN HEADER PIN 24POS VERT GOLD223513-1-ND - CONN 2MM FB PLUG 24POS R/A GOLDA3262-ND - CONN HEADER VERT 2MM 24POS 30AUA3266-ND - CONN HEADER VERT 2MM 24POS 30AU	536507-7-ND - CONN 2MM FB RCPT 144POS R/A GOLD	-	536514-3-ND - HDR PIN VERT 96 POS 30AU 2MMA3264-ND - CONN HEADER VERT 2MM 96POS 30AUA3268-ND - CONN HEADER VERT 2MM 96POS 30AU	536513-4-ND - CONN HEADER 192POS 4ROW STR GOLD536514-4-ND - 2MMFB,ASY,192,SIG,HDR,EN,4.25A3269-ND - CONN HEADER VERT 2MM 192POS 30AUA3265-ND - CONN HEADER VERT 2MM 192POS 30AU
Other Names	A3275	A3274	-	-	A3276	A3277
