5532447-3 datasheet, PDF - EEWORLD Datasheet

5532447-3: Descriptionconn hdi plug 96pos 3row vert; CategoryThe connector; File Size139KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5532447-3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5532447-3	-	-	View	Buy Now

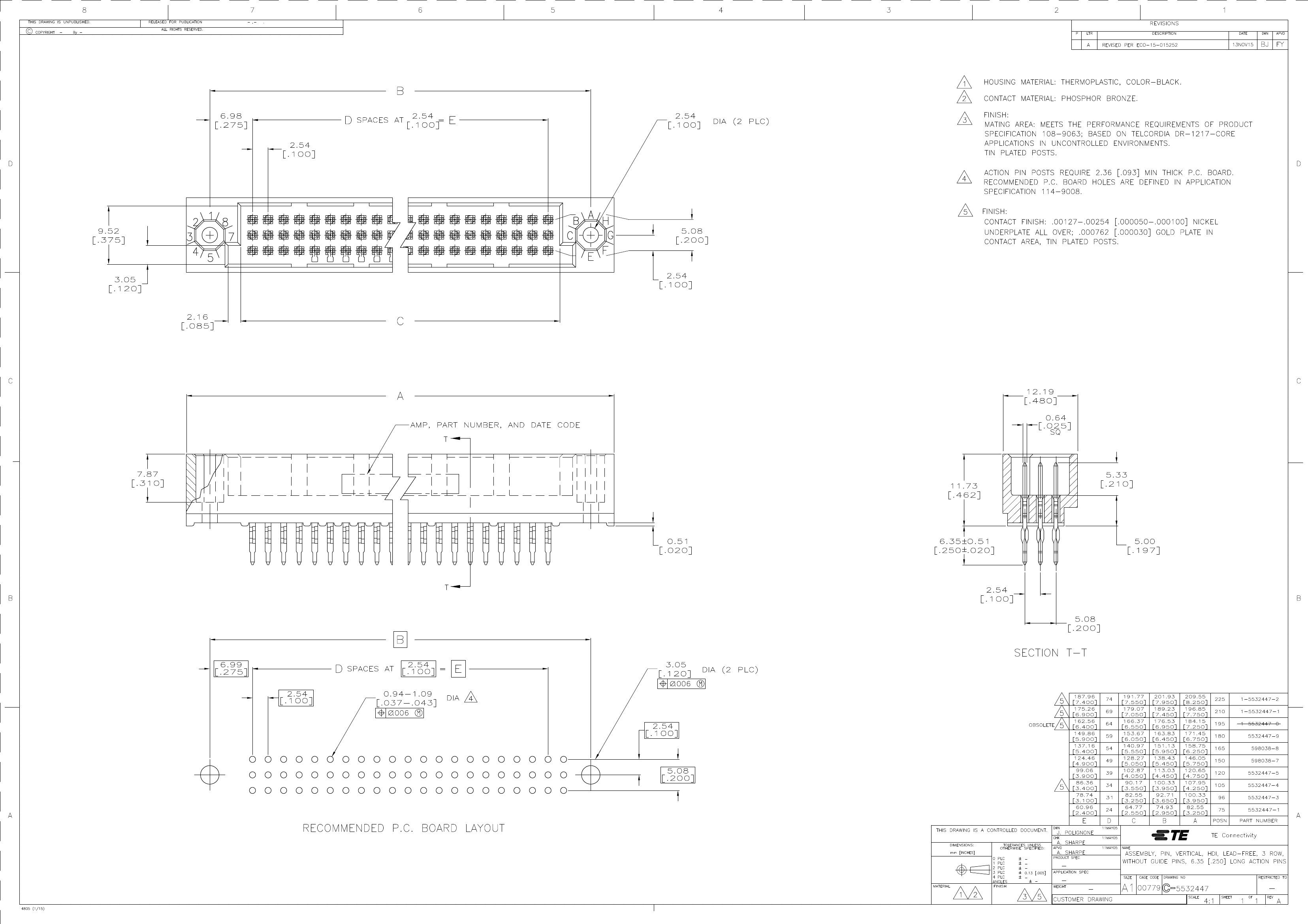

conn hdi plug 96pos 3row vert

Parameter Name	Attribute value
Datasheets
5532447
RoHS Informati
5532447-3 Statement of Compliance
RoHS 2 Stateme
3D Model
5532447-3.pdf
Standard Package	1,000
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	-
Connector Type	Header, Male Pins
Connector Style	High Density (HDC, HDI, HPC)
Number of Positions	96
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	3
Number of Columns	-
Mounting Type	Through Hole
Terminati	Press-Fi
Contact Layout, Typical	-
Features	Mating Guide
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-65°C ~ 125°C
Voltage Rating	-

	5532447-3	5532447-5
Description	conn hdi plug 96pos 3row vert	conn plug hdi 120pos 3row vert
Standard Package	1,000	160
Category	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube
Connector Type	Header, Male Pins	Header, Male Pins
Connector Style	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)
Number of Positions	96	120
Number of Positions Loaded	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	3	3
Mounting Type	Through Hole	Through Hole
Terminati	Press-Fi	Press-Fi
Features	Mating Guide	Mating Guide
Contact Finish	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0
Operating Temperature	-65°C ~ 125°C	-65°C ~ 125°C
