5120674-2: Descriptionconn header 60pos 6row str gold; CategoryThe connector; File Size153KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

5120674-2 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	5120674-2	-	-	View	Buy Now

5120674-2 Overview

conn header 60pos 6row str gold

5120674-2 Parametric

Parameter Name	Attribute value
Datasheets
5120674-1
RoHS Informati
5120674-2 Statement of Compliance
RoHS 2 Stateme
3D Model
5120674-2.pdf
Standard Package	300
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	Backplane
Connector Type	Header, Male Pins and Blades
Connector Style	Dual Beam, Cente
Number of Positions	60
Number of Positions Loaded	All
Pitch	0.098" (2.50mm)
Number of Rows	6
Number of Columns	10
Mounting Type	Through Hole
Terminati	Press-Fi
Contact Layout, Typical	-
Features	-
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	-
Current Rating	1.15A
Material Flammability Rating	UL94 V-0
Operating Temperature	-65°C ~ 105°C
Voltage Rating	250V
Mating Products	A101808-ND - CONN RCPT 2MM HM 60POS R/A GOLD120786-1-ND - CONN 2MM HM RCPT 60POS R/A GOLD

Preview

Download Datasheet

View All

8

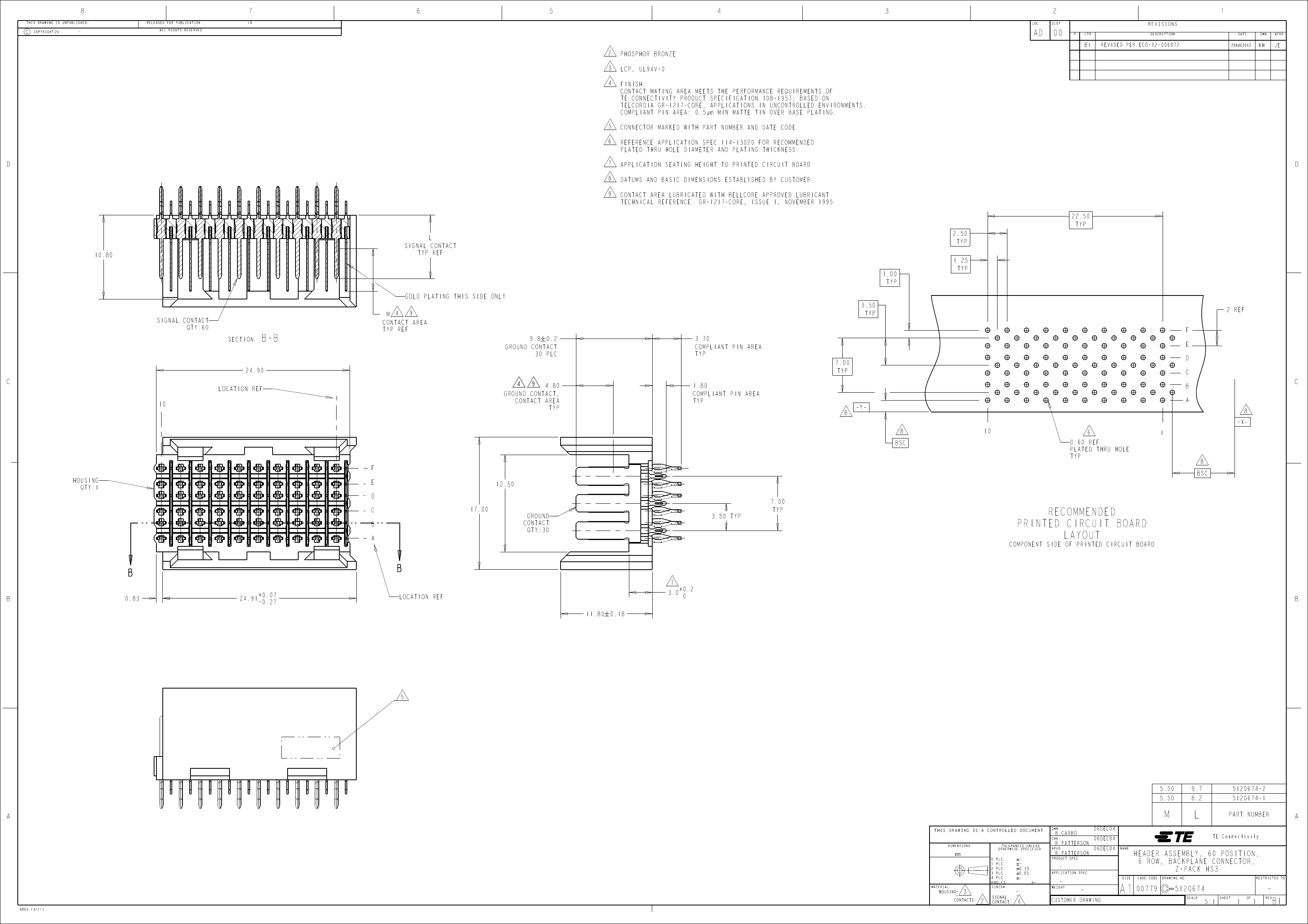

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

7

6

5

4

3

LOC

2

DIST

P

LTR

1

REVISIONS

DESCRIPTION

DATE

DWN

APVD

C

COPYRIGHT

D

10.80

L

SIGNAL CONTACT

TYP REF

1.00

TYP

GOLD PLATING THIS SIDE ONLY

SIGNAL CONTACT

QTY:60

SECTION

M

CONTACT AREA

TYP REF

3.50

TYP

9.8 0.2

GROUND CONTACT

30 PLC

3.70

COMPLIANT PIN AREA

TYP

2.50

TYP

1.25

TYP

22.50

TYP

2 REF

F

E

B-B

24.90

7.00

TYP

D

C

B

-Y-

10

BSC

0.60 REF

PLATED THRU HOLE

TYP

A

-X-

1

C

10

LOCATION REF

1

4.80

GROUND CONTACT,

CONTACT AREA

TYP

1.80

COMPLIANT PIN AREA

TYP

C

F

HOUSING

QTY:1

E

D

C

B

A

17.00

GROUND

CONTACT

QTY:30

3.50 TYP

12.50

7.00

TYP

BSC

COMPONENT SIDE OF PRINTED CIRCUIT BOARD

RECOMMENDED

PRINTED CIRCUIT BOARD

LAYOUT

B

0.83

+0.07

24.91

-0.27

B

LOCATION REF

11.80 0.18

3.0

+0.2

0

B

5.50

9.7

8.2

5120674-2

5120674-1

PART NUMBER

TE Connectivity

A

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

APVD

PRODUCT SPEC

NAME

M

L

A

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

APPLICATION SPEC

HOUSING:

CONTACTS:

WEIGHT

SIGNAL

CONTACT:

A1

SIZE

CAGE CODE

DRAWING NO

RESTRICTED TO

SCALE

SHEET

OF

REV

4805 (3/11)

5120674-2 Related Products

	5120674-2
Description	conn header 60pos 6row str gold
Standard Package	300
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	Backplane
Connector Type	Header, Male Pins and Blades
Connector Style	Dual Beam, Cente
Number of Positions	60
Number of Positions Loaded	All
Pitch	0.098" (2.50mm)
Number of Rows	6
Number of Columns	10
Mounting Type	Through Hole
Terminati	Press-Fi
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Current Rating	1.15A
Material Flammability Rating	UL94 V-0
Operating Temperature	-65°C ~ 105°C
Voltage Rating	250V
Mating Products	A101808-ND - CONN RCPT 2MM HM 60POS R/A GOLD120786-1-ND - CONN 2MM HM RCPT 60POS R/A GOLD
