1469028-1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> 1469028-1

1469028-1: Descriptionconn rcpt 40pos 2row RT ang T/H; CategoryThe connector; File Size232KB，1 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric View All

1469028-1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	1469028-1	-	-	View	Buy Now

1469028-1 Overview

conn rcpt 40pos 2row RT ang T/H

1469028-1 Parametric

Parameter Name	Attribute value
Datasheets
1469028 Drawing
RoHS Informati
1469028-1 Statement of Compliance
RoHS 2 Stateme
3D Model
1469028-1.pdf
Standard Package	20
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	Daughtercard
Connector Type	Receptacle, Female Sockets
Connector Style	High Speed
Number of Positions	60
Number of Positions Loaded	All
Pitch	0.098" (2.50mm)
Number of Rows	4
Number of Columns	10
Mounting Type	Board Edge, Through Hole, Right Angle
Terminati	Press-Fi
Contact Layout, Typical	40 Signal, 20 Ground
Features	-
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	-
Current Rating	0.700A
Material Flammability Rating	UL94 V-0
Operating Temperature	-65°C ~ 105°C
Voltage Rating	250V
Mating Products	6469076-2-ND - HM-ZD 2PR HDR ASSY 1.8MM6469076-1-ND - HM-ZD 2PR HDR ASSY 1.8MM6469025-2-ND - HM-ZD 2PR HDR 40P 3.7MM1469334-1-ND - HM ZD 2PR HEADER, SEQUENCED1469054-1-ND - HM-ZD 2PR HDR SELECT LOAD6469025-1-ND - CONN HEADER 40POS 2PAIR HM-ZD6469169-1-ND - CONN HEADER 40POS R/A HM-ZD TIN1469025-1-ND - CONN HEADER 40POS 2ROW VERT
Other Names	1469028-1-NDA114846

Preview

Download Datasheet

View All

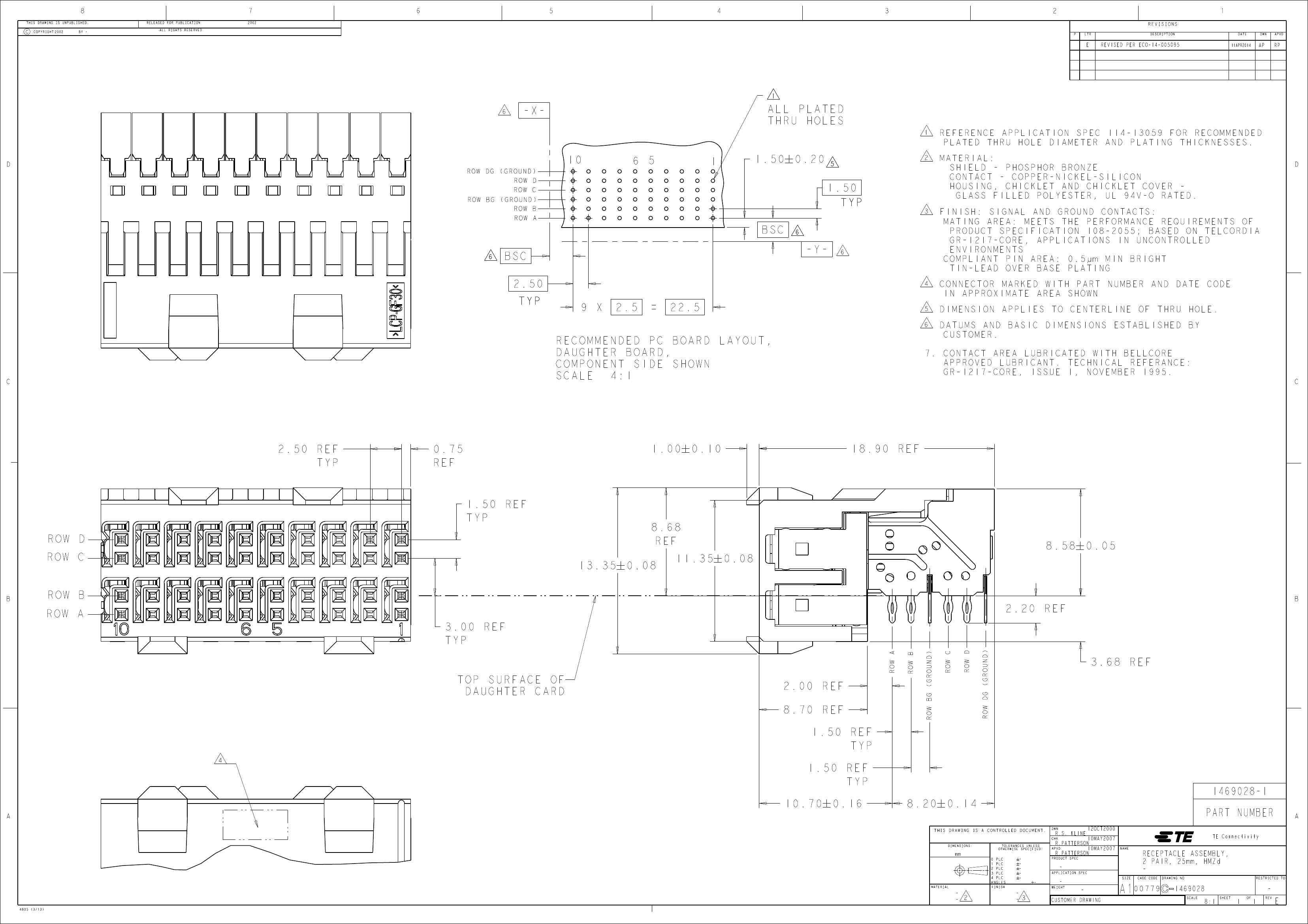

THIS DRAWING IS UNPUBLISHED.

RELEASED FOR PUBLICATION

BY -

2002

REVISIONS

LTR

DESCRIPTION

DATE

DWN

APVD

2002

REVISED PER ECO-14-005095

11APR2014

-X-

ALL PLATED

THRU HOLES

6 5

1.50

0.20

REFERENCE APPLICATION SPEC 114-13059 FOR RECOMMENDED

PLATED THRU HOLE DIAMETER AND PLATING THICKNESSES.

MATERIAL:

SHIELD - PHOSPHOR BRONZE

CONTACT - COPPER-NICKEL-SILICON

HOUSING, CHICKLET AND CHICKLET COVER -

GLASS FILLED POLYESTER, UL 94V-O RATED.

FINISH: SIGNAL AND GROUND CONTACTS:

MATING AREA: MEETS THE PERFORMANCE REQUIREMENTS OF

PRODUCT SPECIFICATION 108-2055; BASED ON TELCORDIA

GR-1217-CORE, APPLICATIONS IN UNCONTROLLED

ENVIRONMENTS

COMPLIANT PIN AREA: 0.5µm MIN BRIGHT

TIN-LEAD OVER BASE PLATING

CONNECTOR MARKED WITH PART NUMBER AND DATE CODE

IN APPROXIMATE AREA SHOWN

DIMENSION APPLIES TO CENTERLINE OF THRU HOLE.

DATUMS AND BASIC DIMENSIONS ESTABLISHED BY

CUSTOMER.

ROW DG (GROUND)

ROW BG (GROUND)

ROW B

ROW C

ROW D

1.50

TYP

BSC

ROW A

BSC

2.50

TYP

9 X

2.5

22.5

-Y-

RECOMMENDED PC BOARD LAYOUT,

DAUGHTER BOARD,

COMPONENT SIDE SHOWN

SCALE

4:1

7. CONTACT AREA LUBRICATED WITH BELLCORE

APPROVED LUBRICANT. TECHNICAL REFERANCE:

GR-1217-CORE, ISSUE 1, NOVEMBER 1995.

2.50

REF

TYP

0.75

REF

1.50

TYP

REF

1.00

0.10

18.90

REF

ROW D

ROW C

ROW B

ROW A

3.00

TYP

REF

13.35

0.08

8.68

REF

11.35

0.08

8.58

0.05

2.20

REF

ROW BG (GROUND)

ROW DG (GROUND)

ROW A

ROW B

ROW C

ROW D

3.68

REF

TOP SURFACE OF

DAUGHTER CARD

2.00

8.70

REF

1.50

REF

TYP

REF

TYP

0.16

1.50

10.70

8.20

0.14

THIS DRAWING IS A CONTROLLED DOCUMENT.

DIMENSIONS:

TOLERANCES UNLESS

OTHERWISE SPECIFIED:

DWN

CHK

1469028-1

PART NUMBER

R.S. KLINE

R.PATTERSON

12OCT2000

10MAY2007

NAME

TE Connectivity

APVD

MATERIAL

0 PLC

1 PLC

2 PLC

3 PLC

4 PLC

ANGLES

FINISH

PRODUCT SPEC

APPLICATION SPEC

WEIGHT

CUSTOMER DRAWING

00779

SIZE

CAGE CODE

RECEPTACLE ASSEMBLY,

2 PAIR, 25mm, HMZd

DRAWING NO

RESTRICTED TO

1469028

SCALE

4805 (3/13)

8:1

SHEET

REV
