532436-4 datasheet, PDF - EEWORLD Datasheet

532436-4: Descriptionconn plug 140pos 4row .100 vert; CategoryThe connector; File Size209KB，2 Pages; ManufacturerAll Sensors; Environmental Compliance

Download Datasheet Parametric Compare View All

532436-4 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	532436-4	-	-	View	Buy Now

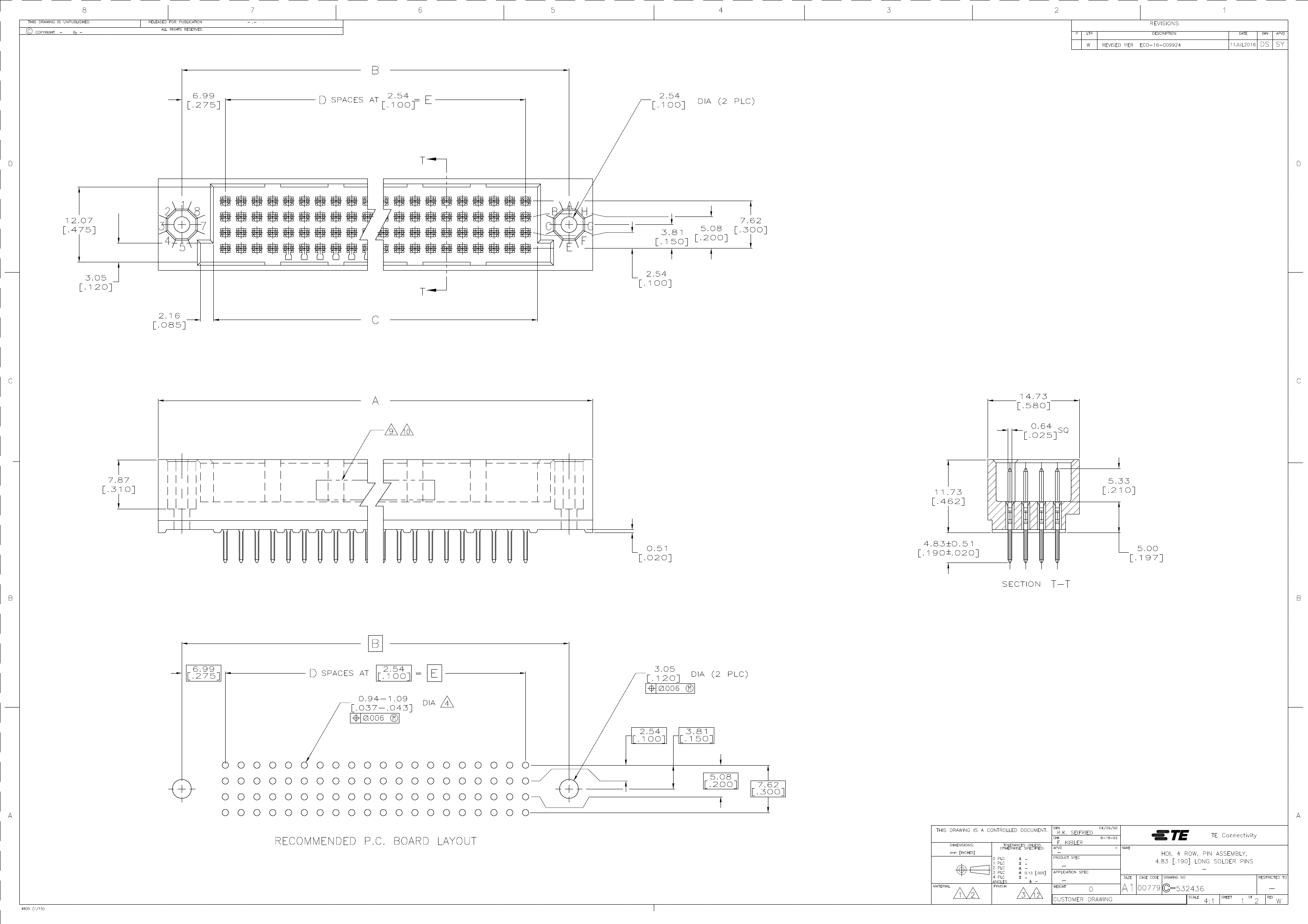

conn plug 140pos 4row .100 vert

Parameter Name	Attribute value
Datasheets
532436
RoHS Informati
532436-4 Statement of Compliance
3D Model
532436-4.pdf
Standard Package	1,050
Category	Connectors, Interconnects
Family	Backplane Connectors - Specialized
Packaging	Tube
Connector Usage	-
Connector Type	Header, Male Pins
Connector Style	High Density (HDC, HDI, HPC)
Number of Positions	140
Number of Positions Loaded	All
Pitch	0.100" (2.54mm)
Number of Rows	4
Number of Columns	-
Mounting Type	Through Hole
Terminati	Solde
Contact Layout, Typical	-
Features	Mating Guide
Contact Finish	Gold
Contact Finish Thickness	30µin (0.76µm)
Col	Black
Current Rating	-
Material Flammability Rating	UL94 V-0
Operating Temperature	-65°C ~ 125°C
Voltage Rating	-

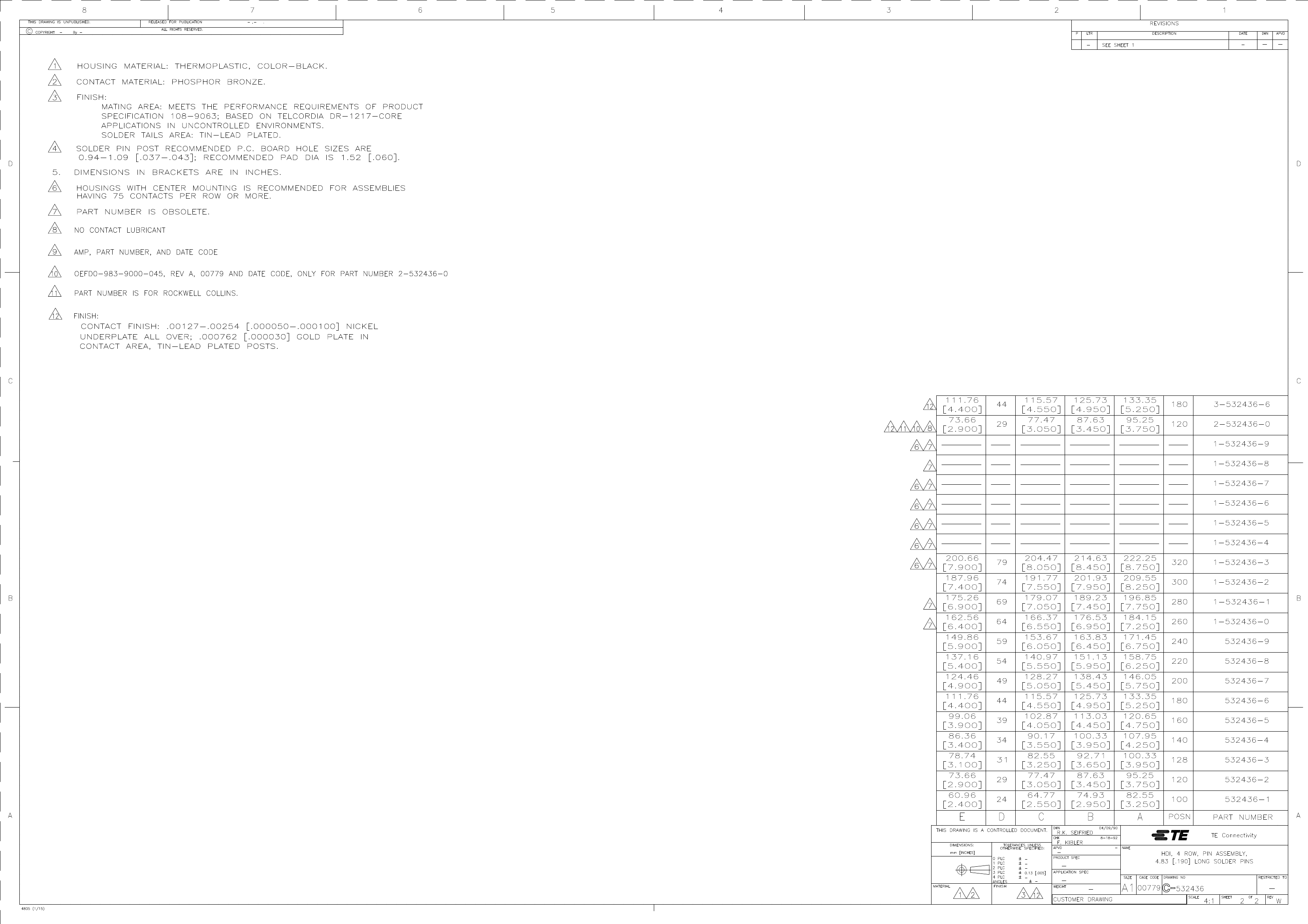

	532436-4	1-532436-2	1-532436-0	532436-3
Description	conn plug 140pos 4row .100 vert	conn plug 300pos 4row .100 vert	hdi pin assy 4 row 260 pos	conn plug vert 128 pos gold pcb
Standard Package	1,050	70	3	5
Category	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects	Connectors, Interconnects
Family	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized	Backplane Connectors - Specialized
Packaging	Tube	Tube	Tube	Tube
Connector Type	Header, Male Pins	Header, Male Pins	Header, Male Pins	Header, Male Pins
Connector Style	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)	High Density (HDC, HDI, HPC)
Number of Positions	140	300	260	128
Number of Positions Loaded	All	All	All	All
Pitch	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)	0.100" (2.54mm)
Number of Rows	4	4	4	4
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole
Terminati	Solde	Solde	Solde	Solde
Features	Mating Guide	Mating Guide	Mating Guide	Mating Guide
Contact Finish	Gold	Gold	Gold	Gold
Contact Finish Thickness	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)	30µin (0.76µm)
Col	Black	Black	Black	Black
Material Flammability Rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Operating Temperature	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C	-65°C ~ 125°C
