MP10.3STGBOMU: DescriptionIC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder, ROHS COMPLIANT; CategoryThe connector socket; File Size318KB，1 Pages; ManufacturerMPE-Garry GmbH; Environmental Compliance

Download Datasheet Parametric View All

MP10.3STGBOMU Overview

IC Socket, DIP16, 16 Contact(s), 2.54mm Term Pitch, 0.3inch Row Spacing, Solder, ROHS COMPLIANT

MP10.3STGBOMU Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1166545756
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	UL 94V-0
body width	0.397 inch
subject depth	0.161 inch
body length	0.497 inch
Contact to complete cooperation	NOT SPECIFIED
Contact style	RND PIN-SKT
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	DIP16
Dielectric withstand voltage	1000VAC V
Shell material	PLASTIC
Plug contact pitch	0.1 inch
Installation method	STRAIGHT
Number of contacts	16
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	0.3 mm
Terminal pitch	2.54 mm
Termination type	SOLDER

Preview

Download Datasheet

View All

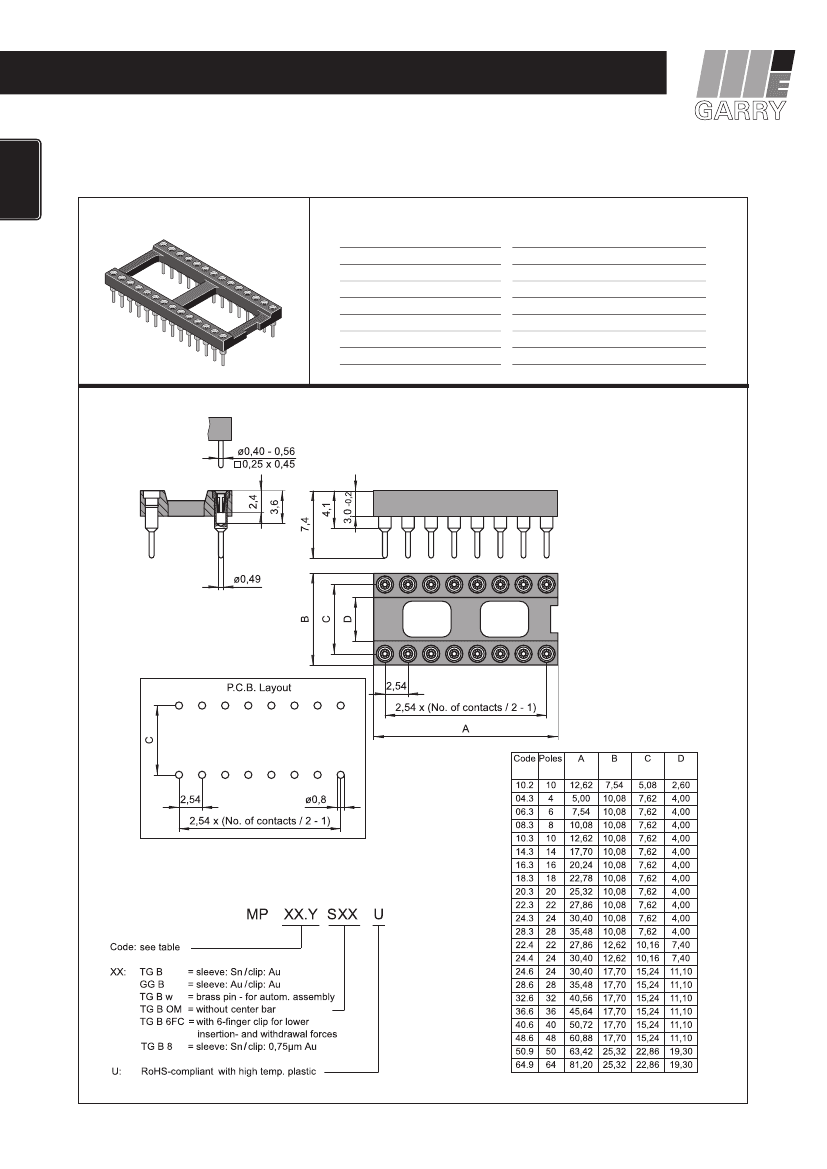

PRODUCT GROUP 1 - PRECISION IC-SOCKET

DIL SOCKETS „THROUGH HOLE”

ID: 001

MP open frame

Series 100

TECHNICAL DATA

Pitch

Insulating Material

Contact Material

Rated Current

Rated Voltage

Breakdown Voltage

Operating Temperature

Maximum Soldering Temperature

2,54 mm

high temp. thermoplast UL94V-0

Brass/BeCu

1 Amp.

100 V

RMS

/150 V

DC

min. 1000 V

RMS

-55°C bis +125°C

260°C for 10 seconds

1

| 2,54 mm

All dimensions in mm.

Other dimensions upon request.

2

MPE-Garry GmbH · Schäfflerstraße 13 · 87629 Füssen · Germany · Tel.: +49 (0) 83 62 / 91 56-0 · Fax.: +49 (0) 83 62 / 91 56-520

e-mail: vk@mpe-connector.de · www.mpe-connector.de
