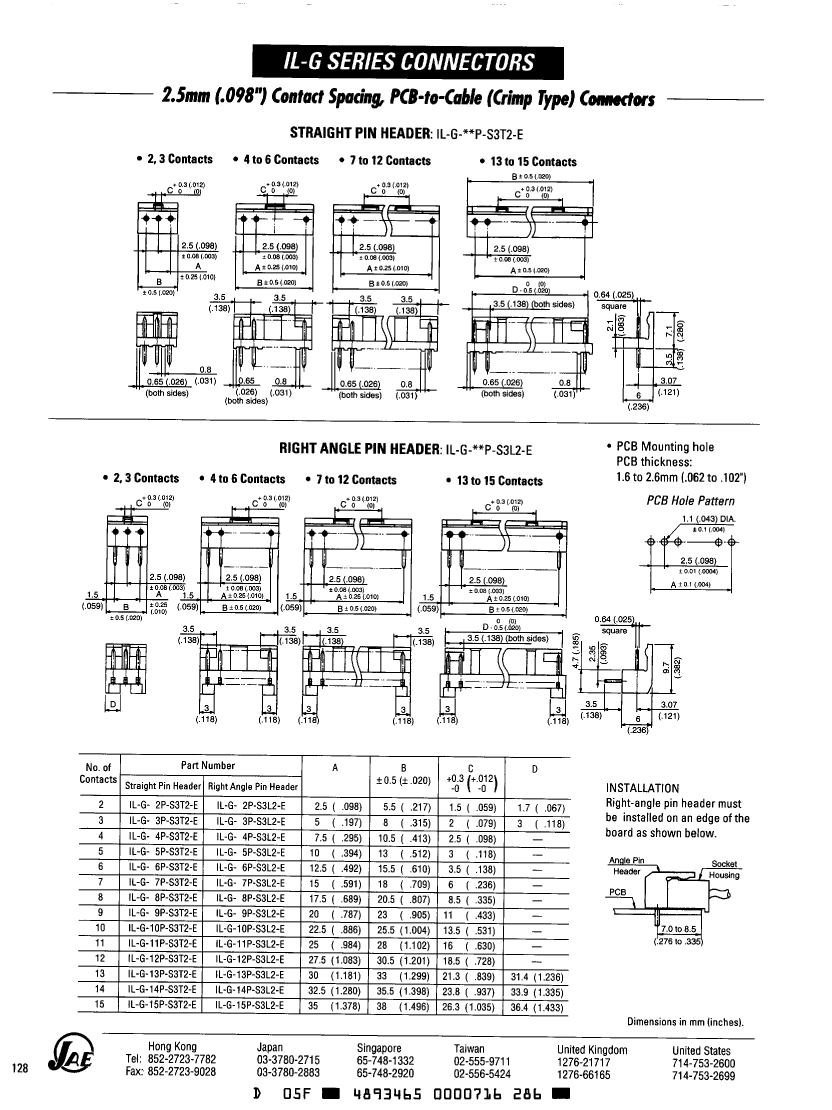

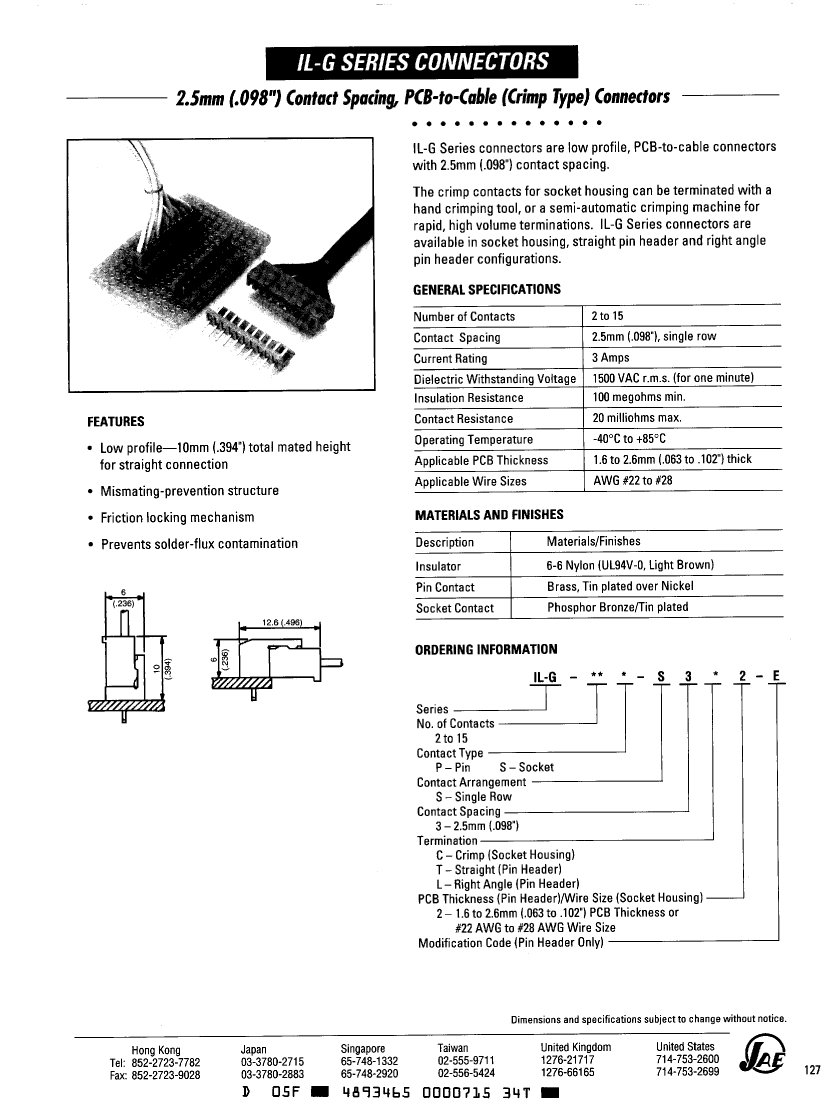

IL-G-05P-S3L2-E datasheet, PDF

IL-G-05P-S3L2-E: DescriptionBoard Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Brown Insulator, Receptacle; CategoryThe connector The connector; File Size201KB，2 Pages; ManufacturerJapan Aviation Electronics Industry Limited

Download Datasheet Parametric View All

IL-G-05P-S3L2-E Overview

Board Connector, 5 Contact(s), 1 Row(s), Male, Right Angle, 0.098 inch Pitch, Solder Terminal, Brown Insulator, Receptacle

Parameter Name	Attribute value
Objectid	301563920
Reach Compliance Code	unknown
ECCN code	EAR99
body width	0.236 inch
subject depth	0.382 inch
body length	0.512 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	SN ON NI
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	BRASS
contact mode	RECTANGULAR
Contact resistance	20 mΩ
Contact style	SQ PIN-SKT
Dielectric withstand voltage	1500VAC V
Insulation resistance	100000000 Ω
Insulator color	BROWN
insulator material	NYLON
Manufacturer's serial number	IL-G
Plug contact pitch	0.098 inch
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	1
Number of rows loaded	1
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PCB contact pattern	RECTANGULAR
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.138 inch
Terminal pitch	2.4892 mm
Termination type	SOLDER
Total number of contacts	5
