TC74HC7241AF(EL) datasheet, PDF

Datasheet> All Categories > logic> logic> TC74HC7241AF(EL)

TC74HC7241AF(EL): DescriptionIC HC/UH SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver; Categorylogic logic; File Size109KB，4 Pages; ManufacturerToshiba Semiconductor; Websitehttp://toshiba-semicon-storage.com/

Download Datasheet Parametric Compare View All

TC74HC7241AF(EL) Overview

IC HC/UH SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver

TC74HC7241AF(EL) Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Toshiba Semiconductor
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	unknown
Other features	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION; DISABLE & ENABLE TIME @ RL=1K
series	HC/UH
JESD-30 code	R-PDSO-G20
length	12.8 mm
Load capacitance (CL)	150 pF
Logic integrated circuit type	BUS DRIVER
Number of digits	4
Number of functions	2
Number of ports	2
Number of terminals	20
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Output characteristics	3-STATE
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
propagation delay (tpd)	41 ns
Certification status	Not Qualified
Maximum seat height	1.8 mm
Maximum supply voltage (Vsup)	6 V
Minimum supply voltage (Vsup)	2 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	5.3 mm
Base Number Matches	1

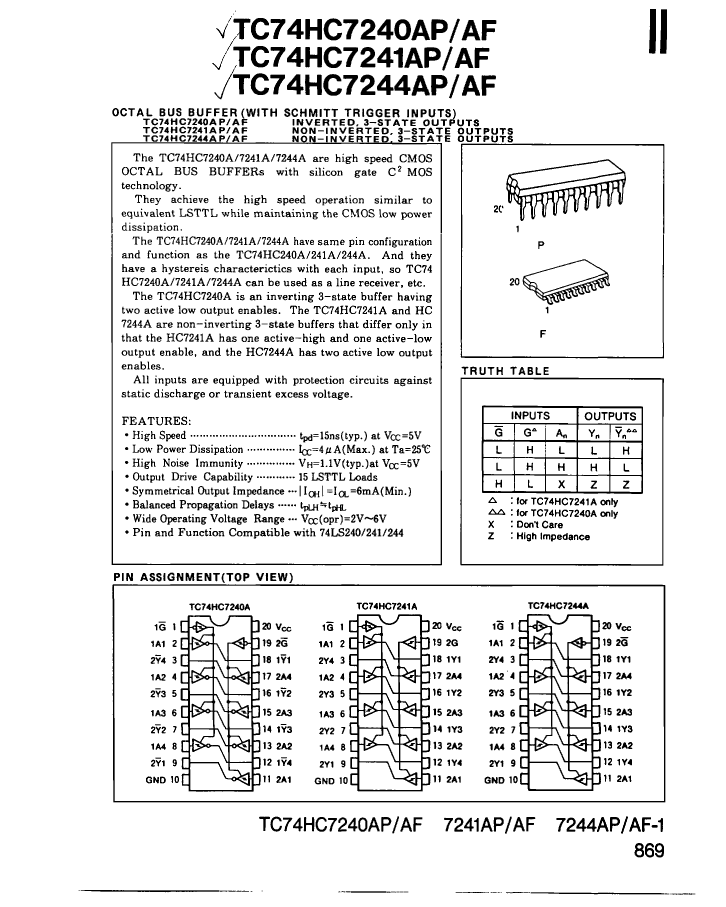

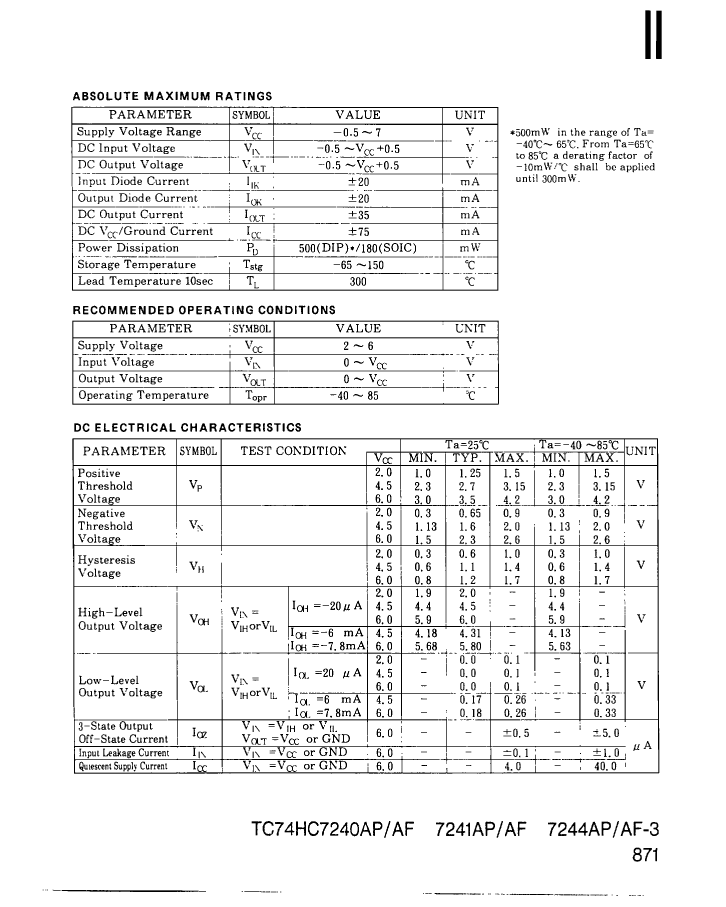

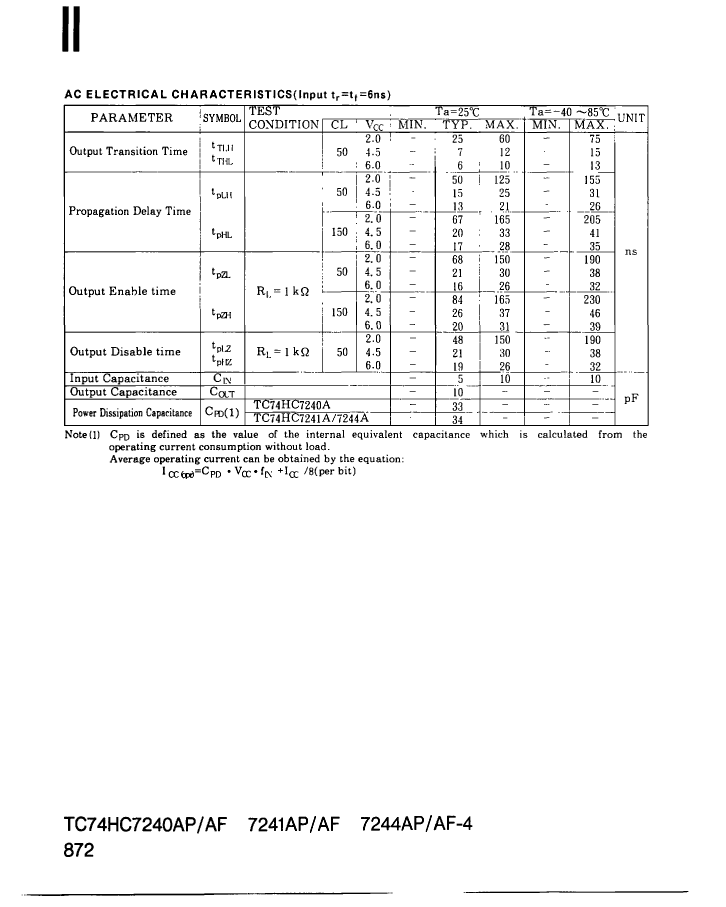

Preview

Download Datasheet

View All

TC74HC7241AF(EL) Related Products

	TC74HC7241AF(EL)	TC74HC7241AF(TP2)	TC74HC7240AF(EL)	TC74HC7244AF(TP2)	TC74HC7244AF(TP1)	TC74HC7244AF(EL)	TC74HC7240AF(TP2)	TC74HC7240AF(TP1)	TC74HC7241AF(TP1)
Description	IC HC/UH SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver	IC HC/UH SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver	IC HC/UH SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver	IC HC/UH SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver	IC HC/UH SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver	IC HC/UH SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver	IC HC/UH SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver	IC HC/UH SERIES, DUAL 4-BIT DRIVER, INVERTED OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver	IC HC/UH SERIES, DUAL 4-BIT DRIVER, TRUE OUTPUT, PDSO20, 0.300 INCH, PLASTIC, SOIC-20, Bus Driver/Transceiver
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor	Toshiba Semiconductor
Parts packaging code	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC	SOIC
package instruction	SOP,	SOP,	SOP, SOP20,.3	SOP,	SOP,	SOP, SOP20,.3	SOP,	0.300 INCH, PLASTIC, SOIC-20	SOP,
Contacts	20	20	20	20	20	20	20	20	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
JESD-30 code	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20	R-PDSO-G20
Load capacitance (CL)	150 pF	150 pF	50 pF	150 pF	150 pF	50 pF	150 pF	150 pF	150 pF
Logic integrated circuit type	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER	BUS DRIVER
Number of digits	4	4	4	4	4	4	4	4	4
Number of functions	2	2	2	2	2	2	2	2	2
Number of terminals	20	20	20	20	20	20	20	20	20
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE
Output polarity	TRUE	TRUE	INVERTED	TRUE	TRUE	TRUE	INVERTED	INVERTED	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
surface mount	YES	YES	YES	YES	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Other features	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION; DISABLE & ENABLE TIME @ RL=1K	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION; DISABLE & ENABLE TIME @ RL=1K	-	DISABLE & ENABLE TIME @ RL=1K	DISABLE & ENABLE TIME @ RL=1K	-	DISABLE & ENABLE TIME @ RL=1K	DISABLE & ENABLE TIME @ RL=1K	OUTPUT ENABLE ACTIVE HIGH FOR ONE FUNCTION; DISABLE & ENABLE TIME @ RL=1K
series	HC/UH	HC/UH	-	HC/UH	HC/UH	-	HC/UH	HC/UH	HC/UH
length	12.8 mm	12.8 mm	-	12.8 mm	12.8 mm	-	12.8 mm	12.8 mm	12.8 mm
Number of ports	2	2	-	2	2	-	2	2	2
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	-	240	240	-	240	240	NOT SPECIFIED
propagation delay (tpd)	41 ns	41 ns	-	41 ns	41 ns	-	41 ns	41 ns	41 ns
Maximum seat height	1.8 mm	1.8 mm	-	1.8 mm	1.8 mm	-	1.8 mm	1.8 mm	1.8 mm
Maximum supply voltage (Vsup)	6 V	6 V	-	6 V	6 V	-	6 V	6 V	6 V
Minimum supply voltage (Vsup)	2 V	2 V	-	2 V	2 V	-	2 V	2 V	2 V
Nominal supply voltage (Vsup)	5 V	5 V	-	5 V	5 V	-	5 V	5 V	5 V
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	-	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	5.3 mm	5.3 mm	-	5.3 mm	5.3 mm	-	5.3 mm	5.3 mm	5.3 mm
