622-025-360-013 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 622-025-360-013

622-025-360-013: DescriptionD Subminiature Connector,; CategoryThe connector The connector; File Size262KB，2 Pages; ManufacturerEDAC

Download Datasheet Parametric View All

622-025-360-013 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	622-025-360-013	-	-	View	Buy Now

622-025-360-013 Overview

D Subminiature Connector,

622-025-360-013 Parametric

Parameter Name	Attribute value
Objectid	8366987364
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.5
Other features	POLARIZED
Board mount options	HOLE .120
body width	0.494 inch
subject depth	0.488 inch
body length	2.088 inch
Body/casing type	RECEPTACLE
Connector type	D SUBMINIATURE CONNECTOR
Contact point gender	FEMALE
contact mode	STAGGERED
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Dielectric withstand voltage	1000VAC V
empty shell	NO
Filter function	NO
maximum insertion force	4.45 N
Insulation resistance	5000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE/POLYESTER
Plug contact pitch	0.109 inch
Match contact row spacing	0.112 inch
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation option 1	#4-40
Installation option 2	THREADED STANDOFF
Installation method	RIGHT ANGLE
Installation type	BOARD AND PANEL
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C
Options	GENERAL PURPOSE
PCB contact pattern	STAGGERED
PCB contact row spacing	2.84 mm
Plating thickness	15u inch
Rated current (signal)	3 A
Guideline	UL
Shell surface	NICKEL
Shell material	STEEL
Housing size	3/B
Terminal length	0.125 inch
Terminal pitch	2.77 mm
Termination type	SOLDER
Total number of contacts	25
UL Flammability Code	94V-0
Evacuation force-minimum value	0.28 N

Preview

Download Datasheet

View All

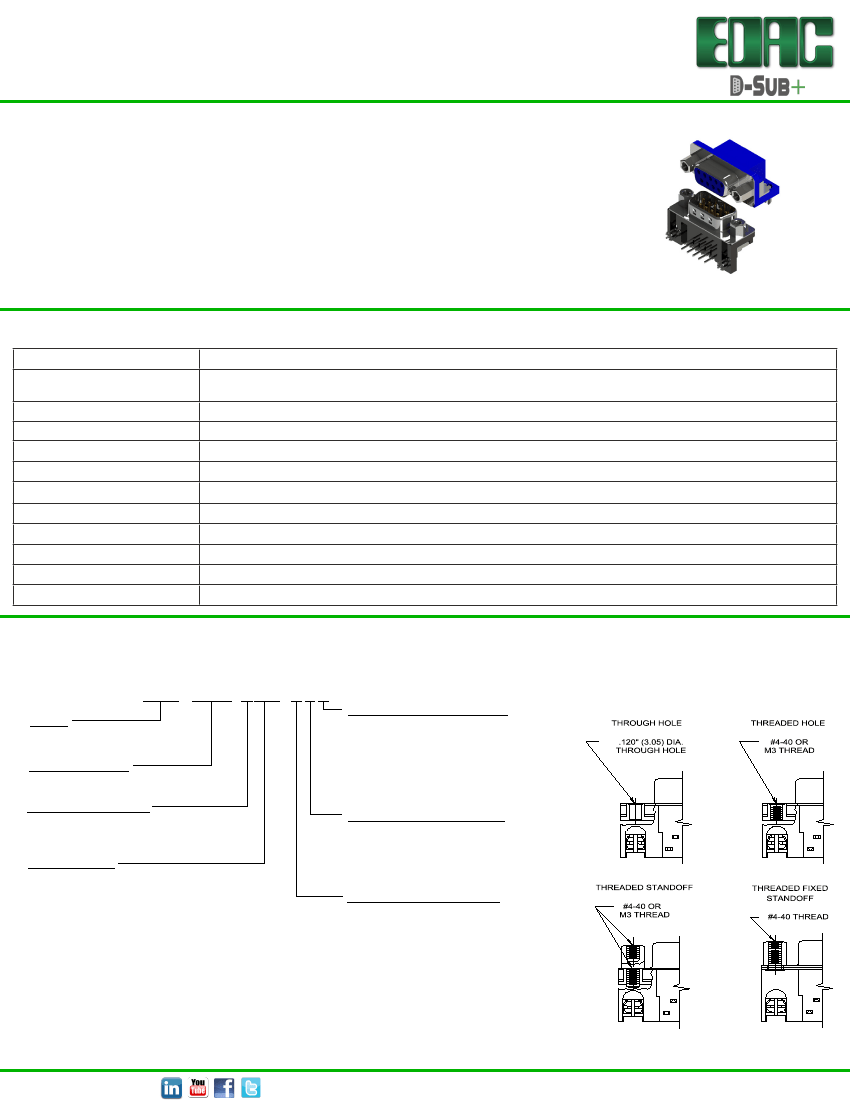

621/622

SERIES

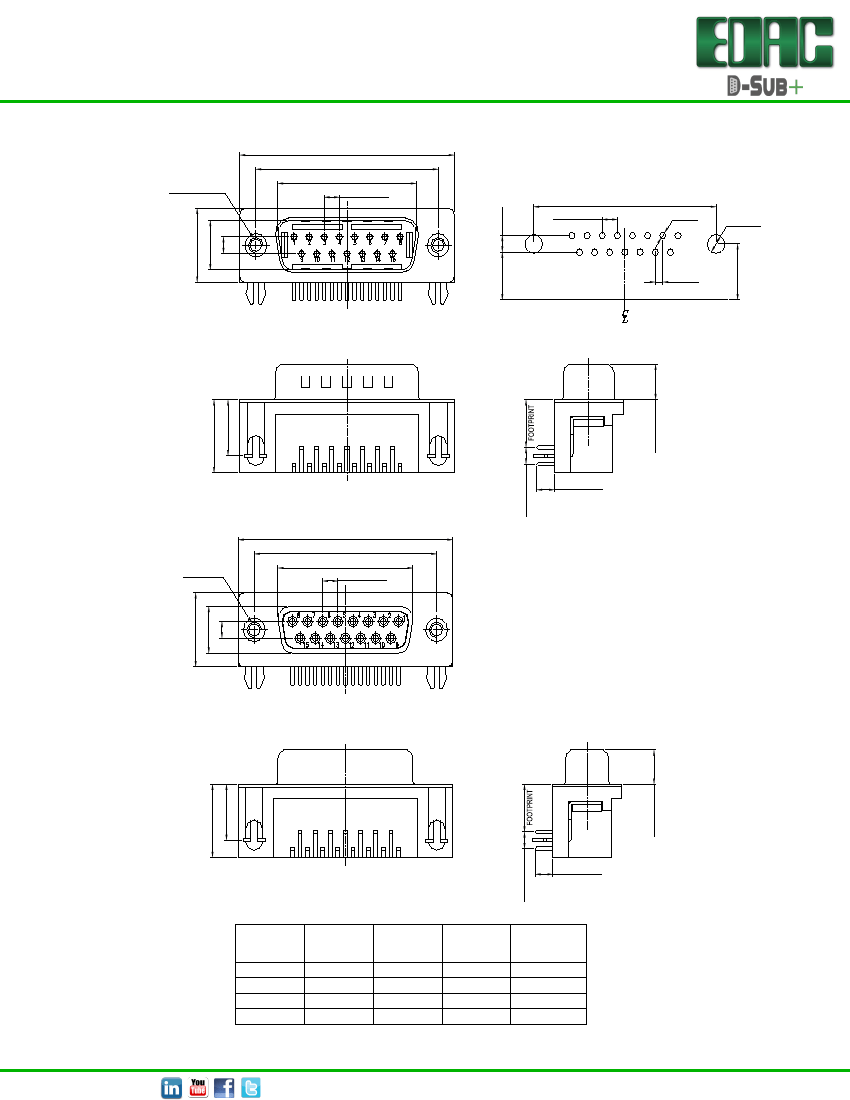

D-Sub Connectors: Right Angle, 0.318” (8.08mm) Footprint

Features:

•

Two contact rows with 0.318”(8.08mm) footprint, right angle bend

0.109”(2.77mm) contact spacing X 0.112”(2.84mm) row spacing

Plug and receptacle in 9, 15, 25, or 37 contact sizes

Pin and socket contact mating design with P.C. tail termination

Metal shell provides EMI/RFI shielding, plug shell indents provide grounding and additional mating

retention

Board mounting features include threaded hole, two and four prong boardlock for superior retention

to P.C. board

Flange mounting options for panel mount or connector mating include through hole, threaded hole

and threaded standoffs

D-shaped connector mating outline provides polarization

Design based on requirements of MIL-C-24038, EIA RS-232 and RS-449

Specifications:

Insulator Material

Contact Material

Contact Plating

Ferrite Specs

Shell Material

Current Rating

Contact Resistance

Dielectric Withstanding Voltage

Insulation Resistance

Operating Temperature

Insertion Force

Withdrawal Force

Thermoplastic Polyester, UL 94V-0, Chemical Resistant, Color: Black

Plug (Pins): Copper Alloy

Receptacle (Socket): Copper Alloy

Selective Gold (See Ordering Code) over Nickel for the Mating Area, Tin Plating for Tail Area

20dB MIN @30 MHz, 30dB MIN @50 MHz, and 50dB MIN @100 MHz

Nickel Plated Steel

3 amps

25 Milliohms maximum

5000 megaohms minimum

1000 V AC rms at Sea Level

-55°C To +85°C

16 oz (4.45 N) Maximum Per Contact Position

1 oz (0.28 N) Minimum Per Contact Position

Ordering Code:

621-025-260-013

SERIES:

621: PLUG (PIN)

622: RECEPTACLE (SOCKET)

NO. OF CONTACTS:

009 - 9 CONTACTS

025 - 25 CONTACTS

015 - 15 CONTACTS 037 - 37 CONTACTS

CONTACT FINISH CODE:

2 - GOLD FLASH PLATING

3 - 15 MICROINCHES OF GOLD PLATING

6 - 30 MICROINCHES OF GOLD PLATING

CONTACT CODE:

60 - .318" FOOTPRINT CONTACT

68 - .318" FOOTPRINT WITH FERRITE FILTER

FLANGE MOUNTING OPTIONS

FLANGE MOUNTING OPTIONS:

0 - #4-40 THREADED FIXED STANDOFF

1 - Ø.120"(Ø3.05MM) THROUGH HOLE

2 - #4-40 THREADED HOLE

3 - #4-40 THREADED STANDOFF

5 - M3 THREADED HOLE

6 - M3 THREADED STANDOFF

BOARD MOUNTING FEATURE:

1 - Ø.120"(Ø3.05MM) THROUGH HOLE

3 - TWO PRONG BOARDLOCKS

4 - FOUR PRONG BOARDLOCKS

5 - #4-40 THREADED HOLE

INSULATOR MATERIAL CODE:

0 - STANDARD

5 - HIGH TEMP INSULATOR

www.edac.net
