SPEEDMASTER
JAN UARY 2017
™
38999 HIGH-SPEED, IFEC CONTACT TECHNOLOGY
NEXT-GENERATION
SpeedMaster
™
10G
High-speed, repairable IFEC
connection system
Utilizes aerospace
industry standard
#22D contacts, tools
and widely available
Ethernet flight cable
Fast, easy termination
Significant weight
reduction compared
to Quadrax solutions
(reduces cable
requirement by 1/2)
High-density, repairable
solution—ideally suited
for today’s networked
IFEC environments
N
ewly developed SpeedMaster™ 10G is purpose - designed to meet the
performance requirements and installation/use preferences of aerospace industry
IFEC manufacturers. Optimized for high-speed Cat 6A Ethernet performance, the
SpeedMaster™10G system offers industry-leading NEXT, return loss and insertion loss
performance due to its highly-engineered isolation and separation architecture. Easy to
assemble, terminate, install and repair, the SpeedMaster™ 10G utilizes size #22D contacts,
tools, and cable, and meets the broad range of aerospace industry requirements for
random vibration, temperature cycling, durability, and safe, reliable performance.
SPEEDMASTER™ 10G NEXT-GENERATION IFEC CONNECTION SYSTEM
SpeedMaster™ 10G modular inserts are available for
233 Series SuperNine, Series 824 Mighty Mouse
and HiPer-D Series 28 packages
2
The SpeedMaster™ 10G is optimized for high-speed
/ Ethernet performance and incorporates standard
M39029 #22D contacts isolated for superior NEXT, return
loss and insertion loss performance
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
NEXT-GENERATION
High speed connectors
SpeedMaster
™
10G
High-speed, repairable IFEC connection system
The SpeedMaster™ Difference
SpeedMaster™ the high-speed multi-contact solution for
the SuperNine, 38999 type family of connectors, accommodates
up to 7 multi pin/socket contact modules. Each module
consists of 4 pairs of pins or sockets incorporating industry
standard, size #22 contacts to provide 10G performance.
Contacts are crimp terminated for easy replacement. Each
module is individually sealed within the 38999 type shell,
and retained in place with a threaded ferrule. Additionally,
module cavities are genderless allowing a pin or socket
interface for plugs or receptacles. These features result
in a two fold benefit. An easily removable and repairable
contact makes this high-performance, robust connector
an excellent choice for reducing network downtime and
improving overall network performance. Secondly, the 38999
type connector, the standard in aerospace applications,
ensures easy integration into existing systems with a proven
performance record. Available for plug, jam nut and wall
mount configurations with shell-contact arrangements of 11-
1, 19-3, 21-4 and 25-7. Meet the demand for next generation
IFEC networks with SpeedMaster™, the next generation
contact system from Glenair.

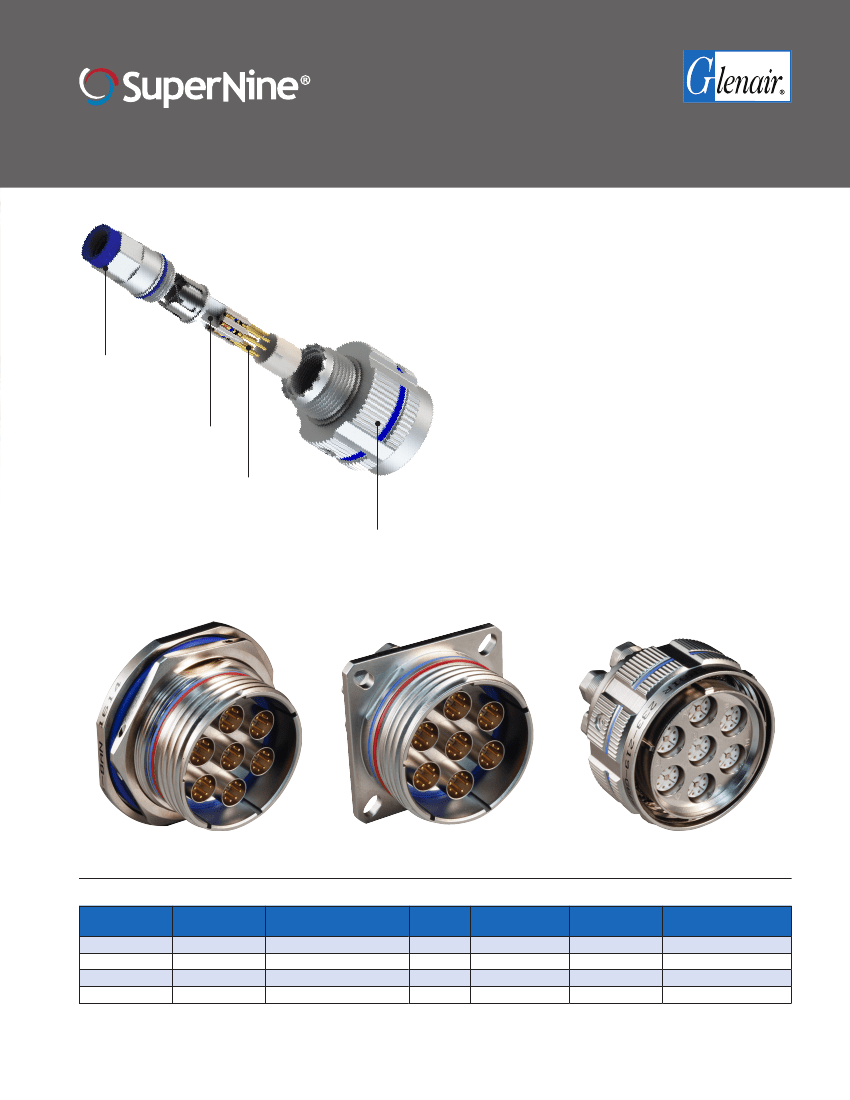

Retention ferrule
with wrench
interface and rear
grommet (9mm)
Genderless cavities
allow for plug
or receptacle
connectors with
pin or socket
interface each
with 8 contacts
per module
Industry standard
size #22D contacts
Proven performance
38999 type shell
233-219-07 SuperNine® Jam Nut Mount
233-219-00 SuperNine® Wall Mount
233-219-G6 SuperNine® Plug
HIGH SPEED CABLES
Cable
P/N
963-003-24
963-003-26
963-037
963-038
Cable
Category
CAT 6A
CAT 6A
CAT 6A
CAT 6A
Cable
Construction
SF/UTP
SF/UTP
SF/UTP
SF/UTP
Wire
Gage
24
26
24
24
Max Wire
Insulation Ø
.050
.050
.050
.050
Cable Ø
.280
.220
.260
.270
Assembly
Instructions
AI85082
AI85082
AI85082
AI85082
*Consult factory for use with other cable
3
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
SERIES 23
High speed connectors
SpeedMaster
™
10G
Standard Material and Finishes
• Shell, Barrel, Coupling Nut, Jam Nut: Aluminum alloy per
ASTM-B211.
• Grounding spring: BeCu alloy/electroless nickel finish
• Seals, O-Ring: Fluorosilicone Blend
Shell Type and Sizes
• Shell Type: D38999 Series III Type, sizes 11, 19, 21, 25
Contact module materials and specifications summary
Environmental/Mechanical Performance
• Sealing: IP67 mated condition with appropriate backshell
• Outgassing: UL94 V0 low smoke, zero halogen
• Operating Temperature Range: -55°C to +175°C
• Vibration: 50 Grms per D38999
• Mechanical Shock: 300g
• Backshell Interface: connector designator H; Series 320 required
• Durability (Mating Cycles): 500

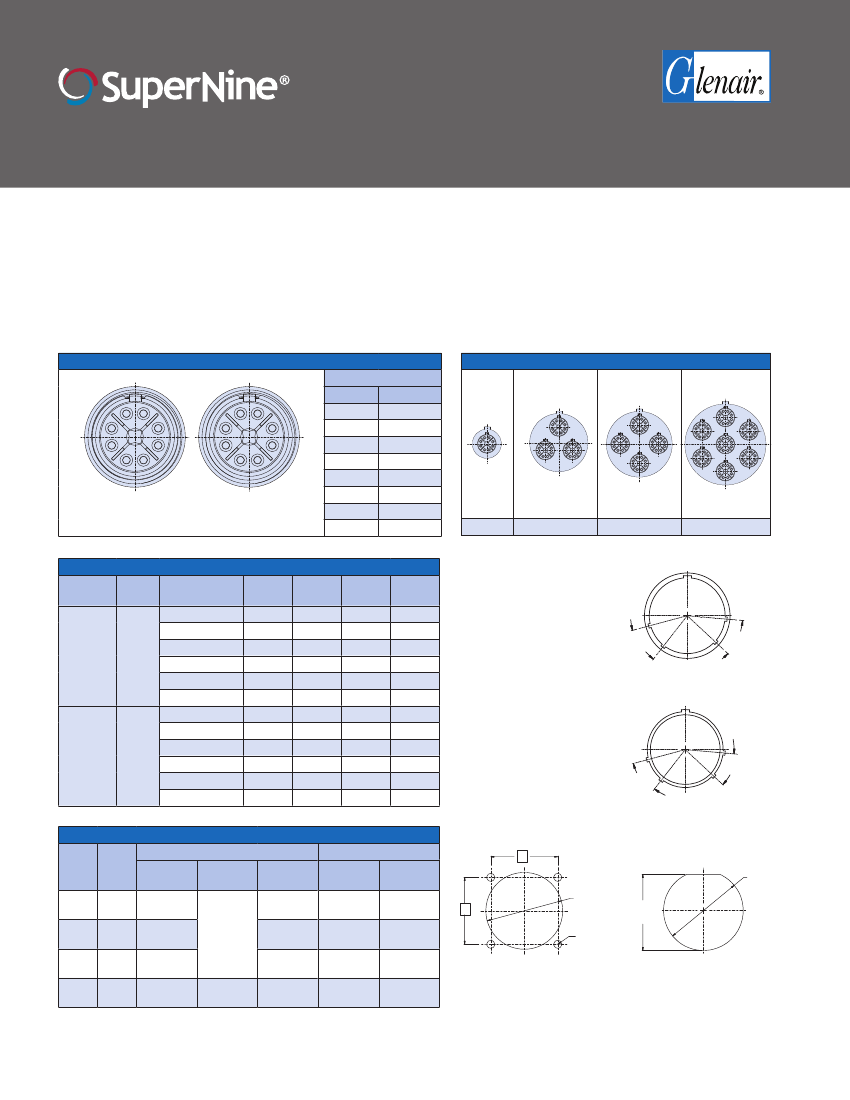

Insert Arrangements
Speedmaster™ Module Inner Contact Orientation
Pin Out
2
3
4
5
6
1
8
7
8
7
6
5
1
2
3
4
Location
1
2
3
4
5
6
7
8
Color
Orng/Wht
Orange
Bl/Wht
Blue
Brwn/Wht
Brown
Grn/White
Green
SOCKET MODULE FACE
858-100
PIN MODULE FACE
858-101
11-1
19-3
21-4
C
L
25-7
Shell Size
Code
Shell
Size
Alternate Keyway Positions
Altnernate
AR°
BR°
Keyway Code
AP°
BP°
N
A
B
C
D
E
N
A
B
C
D
E
95
113
90
53
119
51
80
135
49
66
62
79
141
156
145
156
146
141
142
170
169
140
145
153
CR°
CP°
208
182
195
220
176
184
196
200
200
200
180
197
DR°
DP°
236
292
252
255
298
242
293
310
244
257
280
272
Face View Receptacle
AR°
BR°
CR°
C
L
AP°
BP°
CP°
DR°
B
11
F
G
J
19
21
25
Face View Plug
DP°
Recommended Panel Cut-Out Dimensions
Shell
Size
Code
B
F
G
J
Shell
Size
11
19
21
25
Square Flange Mount
ØR
S
Ø N Min
Holes
BSC.
.796 (20.22)
1.297 (32.94)
1.422 (36.12)
1.672 (42.47)
.155 (3.94)
.145 (3.68)
.133 (3.38)
.123 (3.12)
.812 (20.62)
1.156 (29.370)
1.250 (31.75)
1.500 (38.10)
Jam Nut Mount
Ø AA
.835 (21.21)
.825 (20.95)
1.395 (35.43)
1.385 (35.18)
1.520 (38.61)
1.510 (38.35)
1.770 (44.96)
1.760 (44.70)
BB Flat
.771 (19.58)
.761 (19.33)
1.335 (33.91)
1.325 (33.65)
1.460 (37.08)
1.450 (36.83)
1.710 (43.43)
1.700 (43.18)
S
ø N MIN
BB
FLAT
S
ø AA
4X øR HOLES
BACK PANEL MOUNT
RECOMMENDED MOUNTING HOLES
FOR WALL MOUNT RECEPTACLES
PER MIL-DTL-38999.
RECOMMENDED PANEL
CUT OUT FOR JAM NUT
RECEPTACLES
4
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
SERIES 23
High speed connectors
SpeedMaster
™
10G

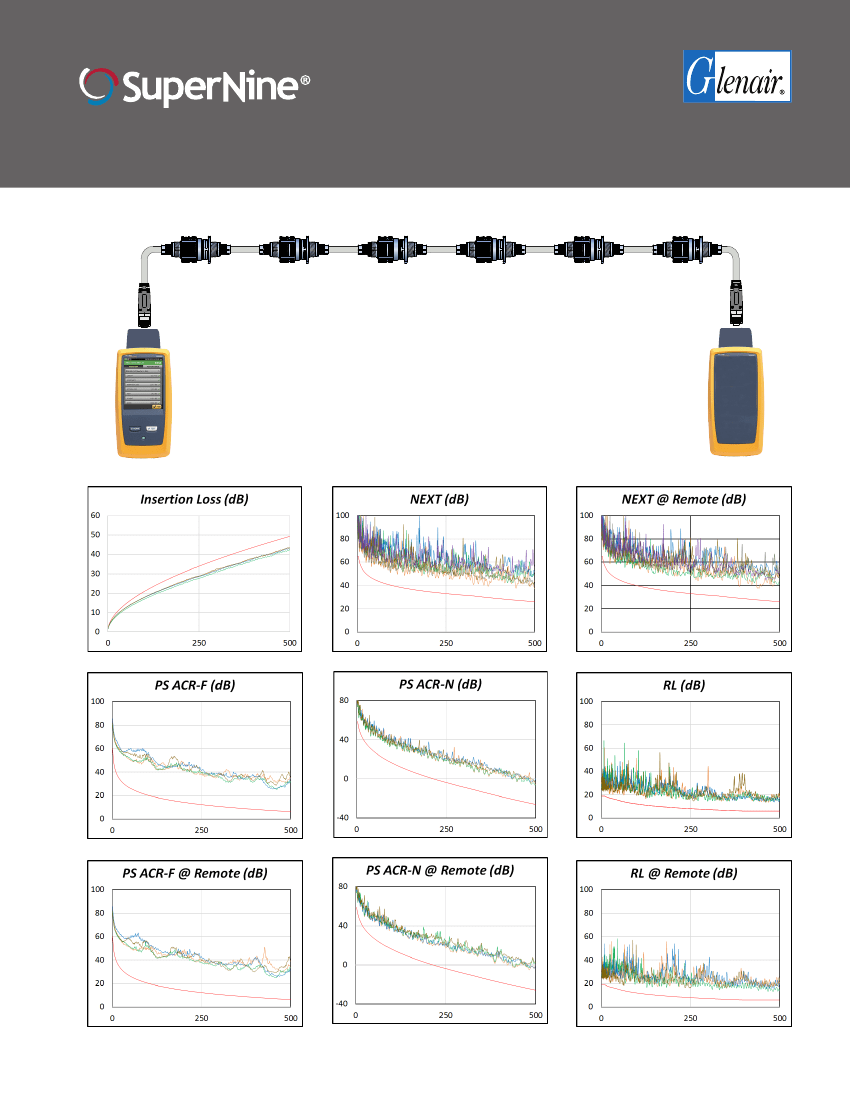

10GBase-T Cat 6a compliance testing
SEGMENT 1
15m
1m
Adapter
Cable
RJ-45 PLUG
SEGMENT 2
15m
SEGMENT 3
15m
SEGMENT 4
15m
SEGMENT 5
15m
PLUG
233-219-G6
PIN CONTACT
858-101
WALL MOUNT RECEPTACLE
233-319-00
SOCKET CONTACT
858-100
RJ-45 PLUG
1m
Adapter
Cable
963-003-24 CABLE
Testing was performed to assure compliance
with TIA/EIA 568B Cat 6a requirements.
5 cordset segments were connected in
a series for a combined length of 75m,
with a total of six SuperNine® mated pair
connectors utilizing SpeedMaster™ contacts.
REF: Glenair Test Report GT-17-13
FLUKE DSX-5000
REMOTE
FLUKE DSX-5000
MAIN
5
© 2015 Glenair, Inc • 1211 Air Way, Glendale, CA 91201 • 818-247-6000 • www.glenair.com • U.S. CAGE code 06324
