330HS001NF2508-5

Description
Connector Accessory,
CategoryThe connector    Connector bracket
File Size31KB,1 Pages
ManufacturerGlenair
Websitehttp://www.glenair.com/
Download Datasheet Parametric View All

330HS001NF2508-5 Overview

Connector Accessory,

330HS001NF2508-5 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
Objectid7215046750
Reach Compliance Codecompliant
Related Mil-Spec Back CasesMIL-DTL-38999
Connector bracket typeCONNECTOR ACCESSORY
DIN complianceNO
IEC complianceNO
MIL complianceYES
MaterialALUMINUM ALLOY
Military connector accessories nameBACKSHELL
Maximum operating temperature175 °C
Minimum operating temperature-65 °C
Housing size25

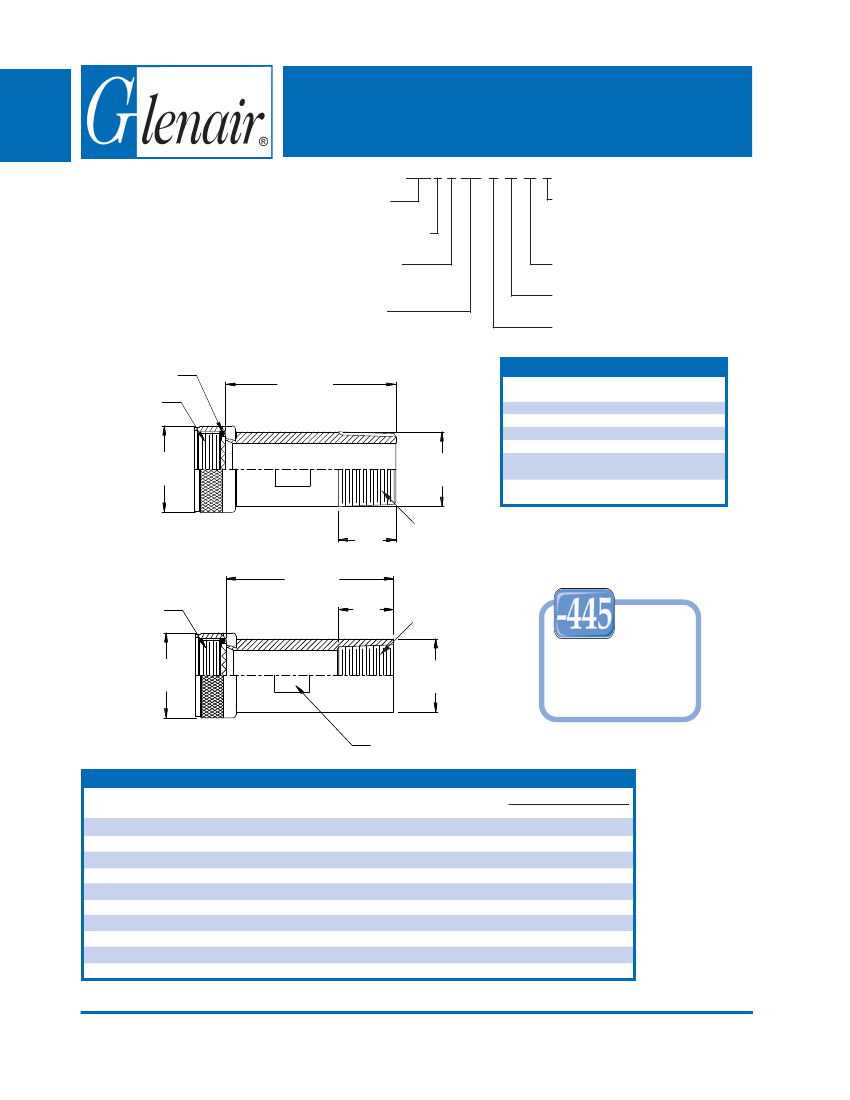

330-001 and 330-002
Pipe Thread Adapters
Rotatable Coupling
330 F S 001 M 16 03-5
33
CONNECTOR
DESIGNATORS
Product Series
A-F-H-L-S
ROTATABLE
COUPLING
Connector Designator
Angle and Profile
S = Straight
Basic Part No.
001 = External Thread
002 = Internal Thread
Length Designator (1/2 inch incre-
ments: e.g. 5=2.5 inches,
Minimum Lengths Table III)
Cable Entry (Table III)
Shell Size (Table I)
Finish (Table II)
TABLE II: STANDARD FINISHES
O-Ring
A Thread
(Table I)
C
(Table I)
Length
± .060 (1.52)
GLENAIR
SYMBOL
B
C
G
M
NF
F (Table III)
FINISH
Cadmium Plate, Olive Drab
Anodize, Black
Hard Coat, Anodic
Electroless Nickel
Cadmium Plate, Olive Drab Over
Electroless Nickel
See Back Cover for Complete Finish Information
and Additional Finish Options
E
(Table III)
Length
± .060 (1.52)
A Thread
(Table I)
C
(Table I)
E
(Table III)
External
Tapered Pipe
Thread
Internal
Tapered Pipe
Thread
See inside back cover fold-
out or pages 13 and 14 for
unabridged Tables I and II.
Now Available
with the “NESTOR”
G (Table III)
Add “-445” to Specify
Glenair’s Non-Detent,
Spring-Loaded, Self-
Locking Coupling. See
Page 41 for Details.
Wrench Flats Typ. (Space Permitting)
TABLE III: CABLE ENTRY
Dash
No.
01
02
03
04
05
06
07
08
09
10
Pipe
Thread
1/8
1/4
3/8
1/2
3/4
1
1 1/4
1 1/2
2
2 1/2
E
.391
.593
.593
.781
.812
1.000
1.031
1.031
1.062
1.453
(9.9)
(15.1)
(15.1)
(19.8)
(20.6)
(25.4)
(26.2)
(26.2)
(27.0)
(36.9)
F Dia
.405 (10.3)
.540 (13.7)
.675 (17.1)
.840 (21.3)
1.050 (26.7)
1.315 (33.4)
1.660 (42.2)
1.900 (48.3)
2.375 (60.3)
2.875 (73.0)
G Dia
.500 (12.7)
.625 (15.9)
.875 (22.2)
1.000 (25.4)
1.250 (31.8)
1.500 (38.1)
1.750 (44.5)
2.125 (54.0)
2.500 (63.5)
3.250 (82.6)
Length
Min
Desig.
1.5 (38.1)
3
1.5 (38.1)
3
1.5 (38.1)
3
2.0 (50.8)
4
2.0 (50.8)
4
2.0 (50.8)
4
2.5 (63.5)
5
2.5 (63.5)
5
2.5 (63.5)
5
2.5 (63.5)
5
1. Pipe threads per
American standard
taper pipe thread.
2. Metric dimensions
(mm) are indicated
in parentheses.
3. O-Ring not supplied
with Connector
Designator A.
© 2005 Glenair, Inc.
CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
1211 AIR WAY
GLENDALE, CA 91201-2497
818-247-6000
FAX 818-500-9912
www.glenair.com
E-Mail: sales@glenair.com
Series 33 - 2
