REVISIONS
REV.
A
F
ECO. NO
1740
1886
DESCRIPTION
DATE
8/20/2008
BY
ASK
MNH
F
B
SHOW CHANGES TO CONTACT POINTS DUE TO
CHANGES IN PIN
1/7/2009
E
E
D
D
C
C
B
A
NOTES:
1. MATERIALS:
A. INSULATOR: SEE PART NUMBER CODING.
B. CONTACT: SEE PART NUMBER CODING.
C. PLATING: SEE PART NUMBER CODING.
2. THERMAL:
A. OPERATING TEMPERATURE: SEE PART NUMBER CODING.
B. PROCESSING TEMP: SEE PART NUMBER CODING.
C. UL FLAMMABILITY RATING: 94V-0.
3. ELECTRICAL:
A. DIELECTRIC WITHSTANDING VOLTAGE: MATED CONNECTOR MUST EXHIBIT NO EVIDENCE OF
BREAKDOWN, FLASHOVER, OR DETERIORATION FROM AN APPLIED VOLTAGE OF 750 VAC (VALUE
HAS BEEN DE-RATED), RMS 60 Hz WHEN TESTED IN ACCORDANCE WITH MIL-STD-1344, METHOD
3001. DURATION OF APPLICATION SHALL BE 5 SECS MIN.
B. INSULATION RESISTANCE (IR): 5,000 MEGOHMS @ 500 VOLTS 10% WHEN TESTED IN
ACCORDANCE WITH MIL-STD-1344, METHOD 3003 @ 25 C.
C. CONTACT RESISTANCE: 30 MILLIOHM MAX AT RATED CURRENT WHEN TESTED PER MIL-STD-202,
METHOD 307 @ 25 C 3 C.
D. CURRENT RATING: 3 AMP PER CONTACT.
4. MECHANICAL:
A. CONNECTOR IDENTIFICATION: THE PART SHALL BE MARKED WITH A LOT CODE AS A MINIMUM.
IF SPACE PERMITS ALSO MARK PART WITH SULLINS WEBSITE, AND PART NUMBER.
B. DURABILITY: 500 CYCLES MINIMUM.
C. BOARD THICKNESS ACCOMMODATED: .062 .008"
D. BOARD INSERTION FORCE: 16 OZ MAX PER CONTACT PAIR WHEN USING A .062" TEST BLADE.
INTERNAL INSPECTION TO BE PER SULLIN'S WORK INSTRUCTION W17.3-01.
E. BOARD WITHDRAWAL FORCE: 1 OUNCE MINIMUM PER CONTACT PAIR USING .062" PCB.
8
7
6
5
B
CUSTOMER COPY
Pb
4
DIMENSIONS ARE IN INCHES[MM]
TOLERANCES:
ANGULAR: 30'
.XX= .02 [.508]
.XXX= .005 [.1270]
.XXXX= .0005 [.0127]
SURFACE FINISH: 63 Ra
UNLESS OTHERWISE SPECIFIED:
DRAWN
DATE
NAME
7/2/2008
IA
REMOVE ALL BURRS AND SHARP EDGES .010 MAX
THE INFORMATION HEREIN CONTAINS
PROPIETARY INFORMATION OF
SULLINS ELECTRONICS AND IS NOT
DESCRIPTION
TO BE REPRODUCED, USED OR
DISCLOSED TO OTHERS FOR ANY
PURPOSE EXCEPT AS SPECIFICALLY
PART NUMBER
AUTHORIZED IN WRITING BY AN
OFFICER OF SULLINS ELECTRONICS.
EDGECARD, .100 CC HP
REV
A

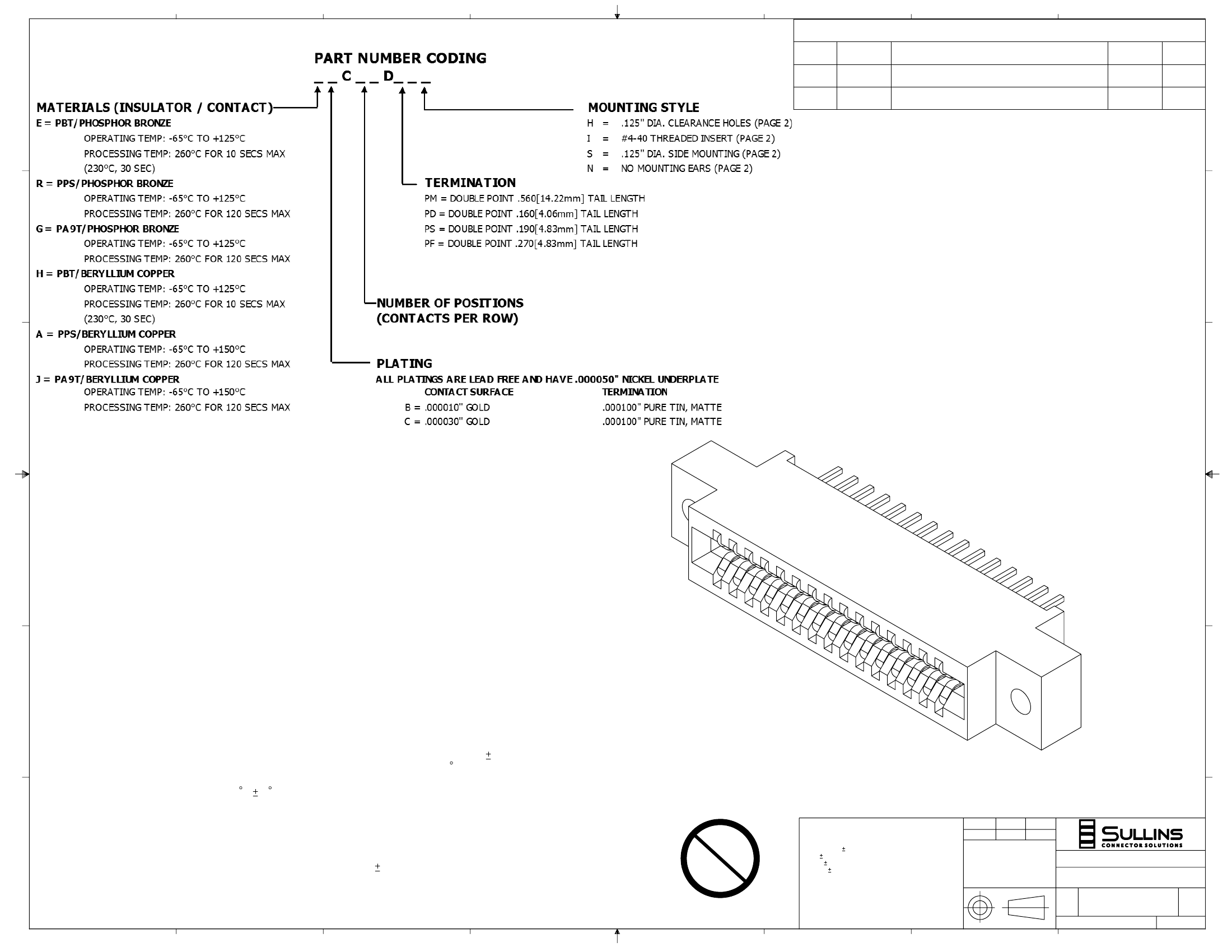

_ _C_ _D_ _ _(PF,PM,PD,PS)
SIZE DWG. NO.
R
oHS COMPLIANT
INTERPRET DIMENSIONS AND GEOMETRIC
TOLERANCING
PER: ANSI Y14.5M-1994
3
2
SCALE: 4:1
1
C
C11122
B
SHEET 1 OF 3
FILE NAME: \\Smserver\Solid Works Drawings\COMPONENTS\Part Assemblies\Customer Drawings\C11122, _ _C_ _D_ _ _, (PF,PM,PD,PS) PRINT: 4/3/2009
8
7
6
5
4
3
2
1
E
D
B
F
F
A
.075 1.91
CARDSLOT
E
E
2X
.125 3.18
.100 2.54 CC
.400 10.16
C
A
D
POINT OF
CONTACT
.180 4.57
.091 2.32
.345 8.75
.425 10.80
INSERTION DEPTH
D
.250 6.35
.610 15.49
POINT OF
CONTACT
2X .050 1.27
.025 0.64
A
FITS .043 MIN HOLE
C
.200 5.08
ROW SPACING
F
_ _C_ _D_ _H
PM = .560 .025[14.23 0.64]
PD = .160 .025[4.07 0.64]
PS = .174±.025 4.43±0.64
PF = .270 .025[6.86 0.64]
(CONSULT FACTORY FOR OTHER
SECTION A-A
AVAILABLE LENGTHS)
C
(D)
B
2X #4-40
THREADED INSERTS
(D)
(C)
2X
.125 3.18
B
.250 6.35
.255 6.48
CUSTOMER COPY
A
_ _C_ _D_ _I
(THREADED INSERT)
_ _C_ _D_ _S
(SIDE MOUNTING)
_ _C_ _D_ _N
(NO EARS)
MOUNTING STYLES
8
7
6
5
4
3
Pb
2
DESCRIPTION
PART NUMBER
EDGECARD, .100 CC HP
REV
A
_ _C_ _D_ _ _(PF,PM,PD,PS)
SIZE DWG. NO.
R
oHS COMPLIANT
C
C11122
1
B
SCALE: 4:1
SHEET 2 OF 3
FILE NAME: \\Smserver\Solid Works Drawings\COMPONENTS\Part Assemblies\Customer Drawings\C11122, _ _C_ _D_ _ _, (PF,PM,PD,PS) PRINT: 4/3/2009
