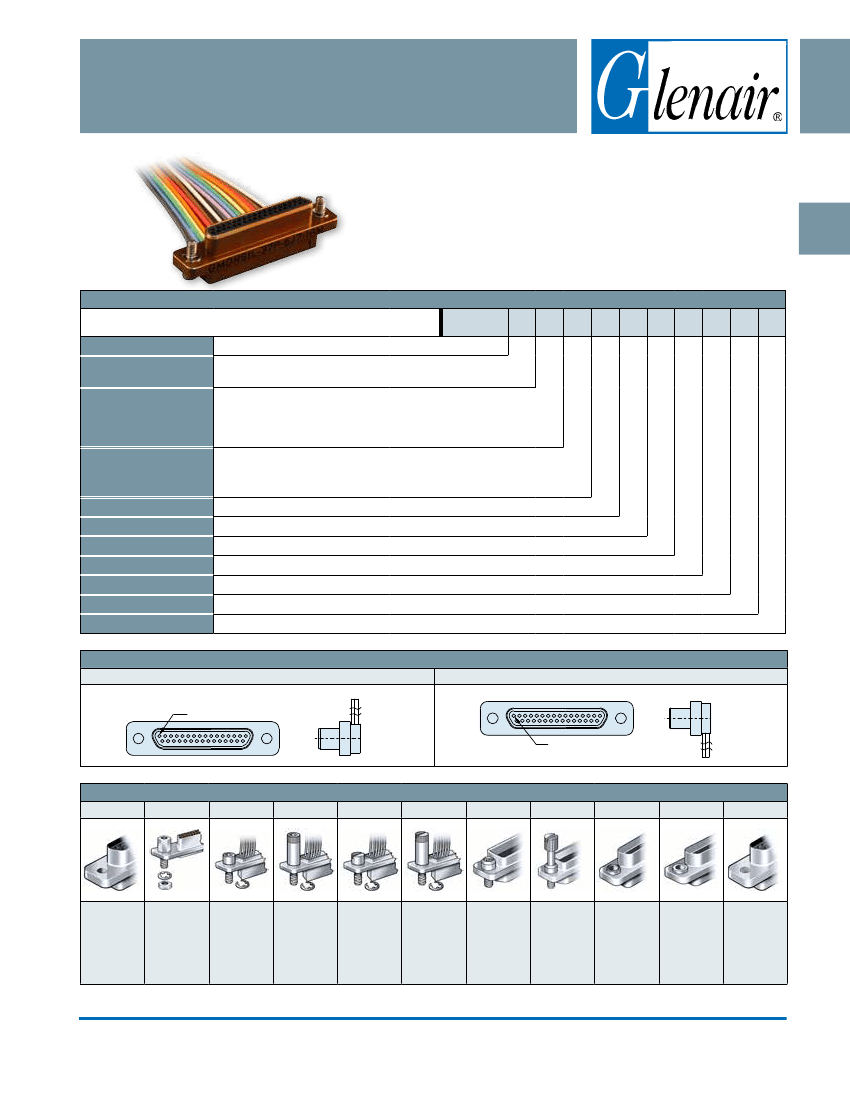

Micro-D Metal Shell
GMDR Insulated Wire
with Right Angle Exit
Micro-D Right Angle
–These connectors feature a space
saving right angle exit on either the long or short row and
incorporate gold-plated TwistPin contacts and mil spec crimp
termination. Specify nickel-plated shells or cadmium plated
shells for best availability. 100% tested and backpotted, ready
for use.
A
B
C
D
E
F
G
H
J
K
How To Order GMDR Right Angle Exit Connector
Sample Part Number
Series
Wire Exit
Shell Material
and Finish
GMDR
Glenair Micro-D Right Angle
S
- Exit Towards Short Row
(See Table I)
Aluminum Shell
1
- Cadmium
2
- Nickel
4
- Black Anodize
5
- Gold
6
- Chem Film
L
- Exit Towards Long Row
Stainless Steel Shell
3
- Passivated
GMDR
S
2
L-
37
S
6
k
7-
18
B
Insulator Material
Contact Layout
Contact Type
Wire Gage (AWG)
Wire Type
Wire Color
Wire Length Inches
Hardware
L
- LCP or PPS
LCP - 30% Glass-Filled Liquid Crystal Polymer
PPS - 40% Glass filled polyphenylene sulfide
9, 15, 21, 25, 31, 37, 51, 51-2, 67, 69, 75, 100, 130
(See Table III)
P
– Pin
4
- #24
1
- White
S
– Socket
6
- #26
8
- #28
0
- #30 (J Wire Only)
5
- Color Coded (Full Color)
7
- 10 Color Repeat
k
- M222759/11
J
- M22759/33
E
- NEMA HP3-EB
2
- Yellow
18
= 18 inches
B, P, M, M1, S, S1, L, k, F, R, H, G
(See Table II)
Table I: GMDR Wire Exit
GMDRL
PIN 1
PIN 1
GMDRS
L
M
N
P
Q
INDEX
Table II: Mounting Hardware
B
P
M
M1
S
S1
L
k
F
R
H
Thru-Hole
Jackpost
Hex Head
Jackscrew
Hex Head
Jackscrew,
Extended
Slot Head
Jackscrew
Slot Head
Jackscrew,
Extended
Hex Head
Jackscrew
Non-
Removable
Slot Head Float Mount
Jackscrew
For Front
Non-
Panel
Removable Mounting
Extended
Float
Mount
For Rear
Panel
Mounting
Threaded
Insert
© 2013 Glenair, Inc.
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-21
E-Mail: sales@glenair.com
Micro-D Harness
A
B
C
D
E
F
G
H
J
K
L
M
N
P
Q
INDEX
Micro-D Harness
.094
H
D
A
C
.250 max potting
size 51, 69, 75,
100 and 130
E
Micro-D Metal Shell
GMDR Insulated Wire
with Right Angle Exit
Table III: Dimensions
B
F
G
J
(GMDRS)
9-69 ContACtS:
.096/.088 (2.43/2.23) DIa.
75-130 ContACtS:
.151/.145 (3.81/3.68) DIa.
Length
L +0.2/-0.0
(+5.08-0.0)
Shell Size
9P
9S
15P
15S
21P
21S
25P
25S
31P
31S
37P
37S
51P
51S
51-2P
51-2S
67P
67P
69P
69S
75P
75S
100P
100S
130P
130S
A Max
in
0.785
0.785
0.935
0.935
1.085
1.085
1.185
1.185
1.335
1.335
1.485
1.485
1.435
1.435
1.835
1.835
2.235
2.235
1.735
1.735
2.080
2.080
2.170
2.170
2.520
2.520
mm
19.9
19.9
23.7
23.7
27.6
27.6
30.1
30.1
33.9
33.9
37.7
37.7
36.4
36.4
46.6
46.6
56.8
56.8
44.1
44.1
52.8
52.8
55.1
55.1
64.0
64.0
B ±.003
in
0.565
0.565
0.715
0.715
0.865
0.865
0.965
0.965
1.115
1.115
1.265
1.265
1.215
1.215
1.615
1.615
2.015
2.015
1.515
1.515
1.705
1.705
1.800
1.800
2.150
2.150
mm
14.4
14.4
18.2
18.2
22.0
22.0
24.5
24.5
28.3
28.3
32.1
32.1
30.9
30.9
41.0
41.0
51.2
51.2
38.5
38.5
43.3
43.3
45.7
45.7
54.6
54.6
C Max
in
0.333
0.400
0.483
0.551
0.633
0.701
0.733
0.801
0.883
0.951
1.033
1.101
0.983
1.051
1.384
1.450
1.784
1.850
1.284
1.350
1.384
1.450
1.383
1.451
1.735
1.795
mm
8.5
10.2
12.3
14.0
16.1
17.8
18.6
20.3
22.4
24.2
26.2
28.0
25.0
26.7
35.2
36.8
45.3
47.0
32.6
34.3
35.2
36.8
35.1
36.9
44.1
45.6
D Max
in
0.184
0.250
0.184
0.250
0.184
0.250
0.184
0.250
0.184
0.250
0.184
0.250
0.228
0.296
0.184
0.250
0.184
0.250
0.228
0.296
0.228
0.296
0.270
0.333
0.270
0.333
mm
4.7
6.4
4.7
6.4
4.7
6.4
4.7
6.4
4.7
6.4
4.7
6.4
5.8
7.5
4.7
6.4
4.7
6.4
5.8
7.5
5.8
7.5
6.9
8.5
6.9
8.5
E Max
in
0.308
0.308
0.308
0.308
0.308
0.308
0.308
0.308
0.308
0.308
0.308
0.308
0.351
0.351
0.308
0.308
0.308
0.308
0.351
0.351
0.351
0.351
0.394
0.394
0.394
0.394
mm
7.8
7.8
7.8
7.8
7.8
7.8
7.8
7.8
7.8
7.8
7.8
7.8
8.9
8.9
7.8
7.8
7.8
7.8
8.9
8.9
8.9
8.9
10.0
10.0
10.0
10.0
F±.003
in
0.183
0.195
0.183
0.195
0.183
0.195
0.183
0.195
0.183
0.195
0.183
0.195
0.183
0.195
0.183
0.195
0.183
0.195
0.183
0.195
0.183
0.195
0.183
0.195
0.183
0.195
mm
4.6
5.0
4.6
5.0
4.6
5.0
4.6
5.0
4.6
5.0
4.6
5.0
4.6
5.0
4.6
5.0
4.6
5.0
4.6
5.0
4.6
5.0
4.6
5.0
4.6
5.0
G Max
in
0.416
0.429
0.416
0.429
0.416
0.429
0.416
0.429
0.416
0.429
0.416
0.429
0.416
0.429
0.416
0.429
0.416
0.429
0.416
0.429
0.416
0.429
0.416
0.429
0.416
0.429
mm
10.6
10.9
10.6
10.9
10.6
10.9
10.6
10.9
10.6
10.9
10.6
10.9
10.6
10.9
10.6
10.9
10.6
10.9
10.6
10.9
10.6
10.9
10.6
10.9
10.6
10.9
H Max
in
0.400
0.400
0.550
0.550
0.700
0.700
0.800
0.800
0.950
0.950
1.100
1.100
1.050
1.050
1.450
1.450
1.850
1.850
1.350
1.350
1.440
1.440
1.442
1.442
1.780
1.780
mm
10.2
10.2
14.0
14.0
17.8
17.8
20.3
20.3
24.1
24.1
27.9
27.9
26.7
26.7
36.8
36.8
47.0
47.0
34.3
34.3
36.6
36.6
36.6
36.6
45.2
45.2
J Max
in
0.270
0.270
0.270
0.270
0.270
0.270
0.270
0.270
0.270
0.270
0.270
0.270
0.310
0.310
0.270
0.270
0.270
0.270
0.310
0.310
0.310
0.310
0.360
0.360
0.360
0.360
mm
6.9
6.9
6.9
6.9
6.9
6.9
6.9
6.9
6.9
6.9
6.9
6.9
7.9
7.9
6.9
6.9
6.9
6.9
7.9
7.9
7.9
7.9
9.1
9.1
9.1
9.1
Performance Specifications
Current Rating
DWV
Insulation Resistance
Contact Resistance
Low Level Contact Resist.
Magnetic Permeability
Operating Temperature
Shock, Vibration
Mating Force
© 2013 Glenair, Inc.
3 AMP
600 VAC Sea level
5000 Megohms Minimum
8 Milliohms Maximum
32 Milliohms Maximum
2
µ
Maximum
-55° C. to +150° C.
50 g., 20g.
(10 Ounces) X (# of Contacts)
Connector Shell
Insulator
Interfacial Seal
Pin Contact
Socket Contact
Hardware
Encapsulant
Materials and Finishes
Aluminum Alloy 6061 or Stainless Steel, 300 Series,
passivated. See Ordering Info for Plating Options
Liquid Crystal Polymer (LCP)
Fluorosilicone Rubber, Blue
Copper Alloy, Gold over Nickel Plating
Copper Alloy, Gold Over Nickel Plating
300 Series Stainless Steel
Epoxy Resin Hysol EE4215
High Performance Micro-D Connectors and Cables
U.S. CAGE Code 06324
Printed in U.S.A.
GLENAIR, INC.
•
1211 AIR WAY
•
GLENDALE, CA 91201-2497
•
818-247-6000
•
FAX 818-500-9912
www.glenair.com
B-22
E-Mail: sales@glenair.com
