MCSO2FHZ/BT225.0MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> MCSO2FHZ/BT225.0MHZ

MCSO2FHZ/BT225.0MHZ: DescriptionCMOS Output Clock Oscillator,; CategoryPassive components oscillator; File Size135KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/

Download Datasheet Parametric View All

MCSO2FHZ/BT225.0MHZ Overview

CMOS Output Clock Oscillator,

MCSO2FHZ/BT225.0MHZ Parametric

Parameter Name	Attribute value
Objectid	7151024570
Reach Compliance Code	compliant
YTEOL	6.05
Other features	TR; TRAY
maximum descent time	3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	100%
Installation features	SURFACE MOUNT
Nominal operating frequency	225 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	CMOS
Output load	3 pF
physical size	5.0mm x 3.2mm x 1.7mm
longest rise time	3 ns
Maximum supply voltage	1.89 V
Minimum supply voltage	1.71 V
Nominal supply voltage	1.8 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

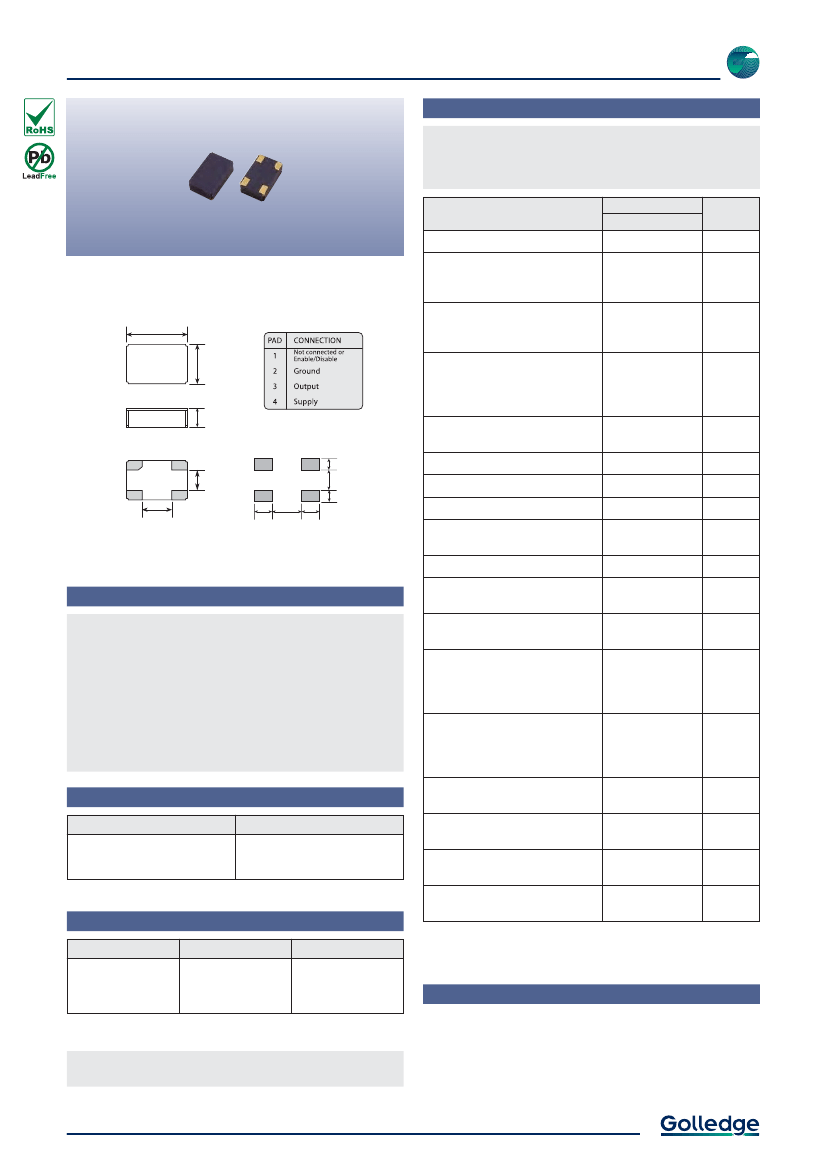

CMOS Oscillator -55+125°C Low Jitter

Specifications

MCSO2F: 10.0kHz ~ 20.0MHz

MCSO2FH:

20.0

~ 225MHz

MCSO2F

Parameters

Frequency range:

10.0kHz ~ 225MHz

Supply voltage (V

+3.3V (±5%)

+2.5V (±5%)

+1.8V (±5%)

Product

MCSO2F











See table

CMOS





Option

Codes

specify

5.00

±0.01

Frequency stability*:

±100ppm

±50ppm

tighter stabilities on request

3.20

±0.01

1.70

(max)

Operating temperature range:

0 to +70°C

-40 to +85°C

-55 to +125°C

Storage temperature range:

-65 to +125°C

Supply current:

Driving ability:

Load:

SOLDER PAD LAYOUT

1.60

2.35

1.00

1.60

1.00

3pF min, 47pF max

‘0’ level = +0.4V max

‘1’ level = V

-0.5V min

5ms max

1.50 2.70 1.50

TOP VIEW

Logic levels:

Start up time:

Features

Waveform symmetry:

40:60 max @ 50%V

Jitter RMS (1):

< 2ps (≤20.0MHz)

< 10ps (>20.0MHz)



Low jitter

Military temperature range -55+125°C option

Excellent shock & vibration resistance

Enable / disable tristate option (>500kHz)

Optional tinned pads (Ag/Cu/Zn)

Rise / fall times:

7ns max (≤20MHz, 15pF, 20~80%V

P-P

)

3ns max (>20MHz, 15pF, 10~90%V

P-P

)



150ns max@ 32.768kHz

Enable / disable function:

None (pad 1 NC)

Active* (control via pad 1)

* not available under 500kHz

Shock resistance:

5,000G, 0.3ms, ½ sine

Enable / Disable Function

Input (pad 1)

Open

‘1’ level

‘0’ level

Reaction time <1μs

Output (pad 3)

Enabled

No clock





Vibration resistance:

20G rms 10.0 ~ 2,000Hz

Soldering condition:

260°C, 10 sec max

Terminations:



Gold plated pads

Tinned Ag/Cu/Zn

Supply current

Freq / Supply

32kHz

<10MHz

10 ~ 20MHz

>20 ~ 225MHz

Maximum values, no load.



Packed in trays (128pcs/tray) or T&R 250 ~ 1,000pcs/reel



A 47nF ceramic capacitor must be connected between GND and V

2.5V

300μA

2mA

3mA

25mA

3.3V

1mA

4mA

5mA

30mA



Standard.



Optional - Please specify required code(s) when ordering

* Frequency stability is inclusive of calibration @ 25°C, operating temperature range,

supply voltage change, load change and ageing over 10 years (1 year for stability option T).

Ordering Information

Product name + option codes + frequency

eg:

MCSO2FV/CE 10.0MHz

3.3V ±100ppm -55 to +125°C Enable / disable

For frequencies

20.0MHz

add an 'H' to the product name

eg:

MCSO2FHW/TB 32.0MHz

2.5V ±50ppm -40 to +85°C no E/D

Option code X (eg MCSO2F/X) denotes a custom specification.

Tel:

+44 1460 256 100

30 Mar 2017

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
