687346124422 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 687346124422

687346124422: DescriptionCard Edge Connector, 46 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size1MB，4 Pages; ManufacturerWurth Elektronik; Environmental Compliance

Download Datasheet Parametric Compare View All

687346124422 Overview

Card Edge Connector, 46 Contact(s), 1 Row(s), Female, Straight, Surface Mount Terminal, ROHS COMPLIANT

687346124422 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Wurth Elektronik
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
Connector type	FFC/FPC CONNECTOR
Contact to complete cooperation	TIN (100) OVER NICKEL (50)
Contact completed and terminated	TIN (100) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	PHOSPHOR BRONZE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e3
MIL compliance	NO
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	1 mm
Termination type	SURFACE MOUNT
Total number of contacts	46
UL Flammability Code	94V-0
Base Number Matches	1

Preview

Download Datasheet

View All

MATERIAL:

HOUSING MATERIAL: LCP

COLOR: IVORY

ACTUATOR MATERIAL: LCP

COLOR: BLACK

CONTACT MATERIAL: PHOSPOR BRONZE

CONTACT PLATING: 100µ TIN OVER 50µ NI

QUALITY CLASS: 25 MATING CYCLES*

ENVIRONNEMENTAL:

OPERATING TEMPERATURE: -25°C UP TO 85°C

FLAMABILITY RATING: UL94-V0

COMPLIANCE: LEAD FREE AND ROHS

ELECTRICAL:

CURRENT RATING: 0.5A

WORKING VOLTAGE: 50V

INSULATION RESISTANCE: >100MOHM

DIELECTRIC WITHSTANDING VOLT.: 250VAC/MN

CONTACT RESISTANCE: 20mOHM MAX

STANDARD

CERTIFIED: E323964 / MODEL NUMBER 687

FOLLOWED BY 1, FOLLOWED BY 04 THRU 50, FOLLOWED

BY 140 OR 145, FOLLOWED BY NUMERIC DIGITS

SOLDERING:

REFLOW PROCESS ONLY

PACKAGING

TAPE & REEL WITH CAP

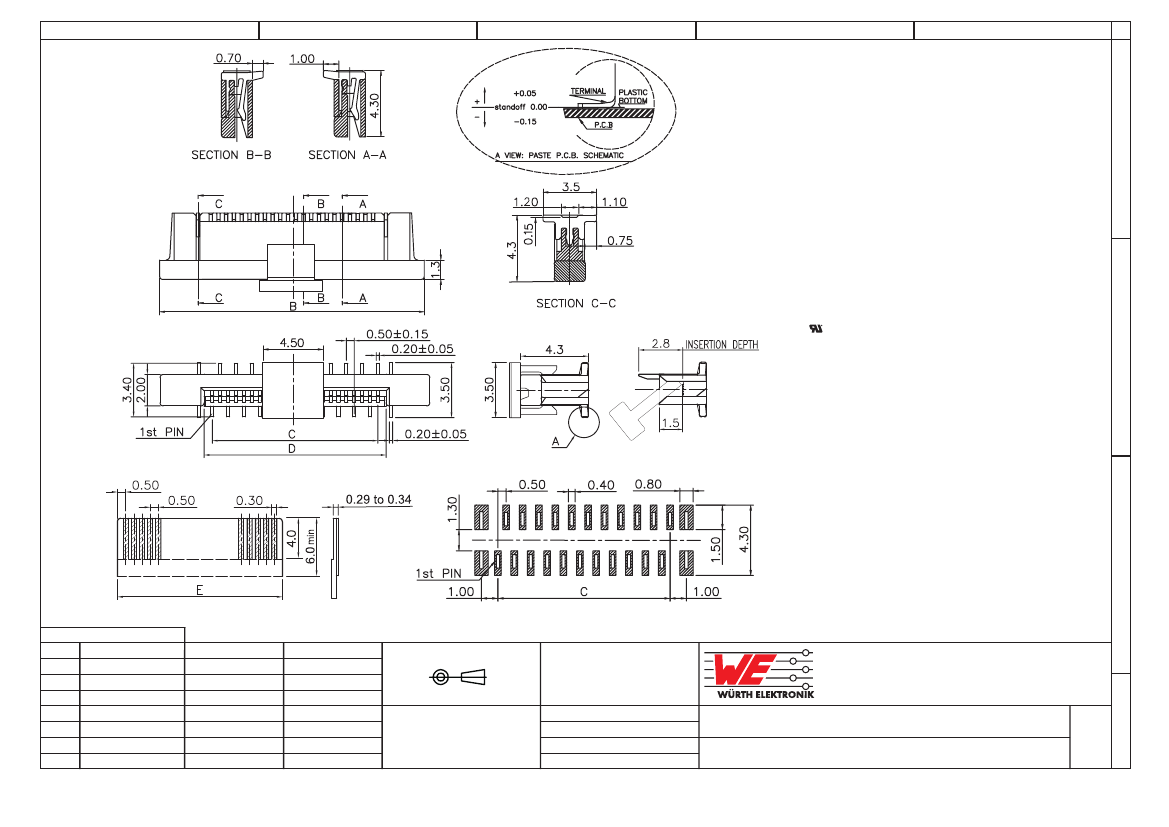

DIMENSION:

B =(0.50 x NB PINS) + 6.40

C =0.50 x (NB PINS - 1)

D =0.50 x (NB PINS + 1) + 0.10

E =D - 0.10

APPLICABLE FFC LAYOUT

RoHS Compliant

TYPE A RECOMMENDED PCB LAYOUT - COMPONENT VIEW

PROJECTION:

GENERAL TOLERANCE

.X = +/- 0.2

.XX = +/- 0.15

APPROVAL: RJ

UNIT: MM

SCALE:

SHEET: 1/3

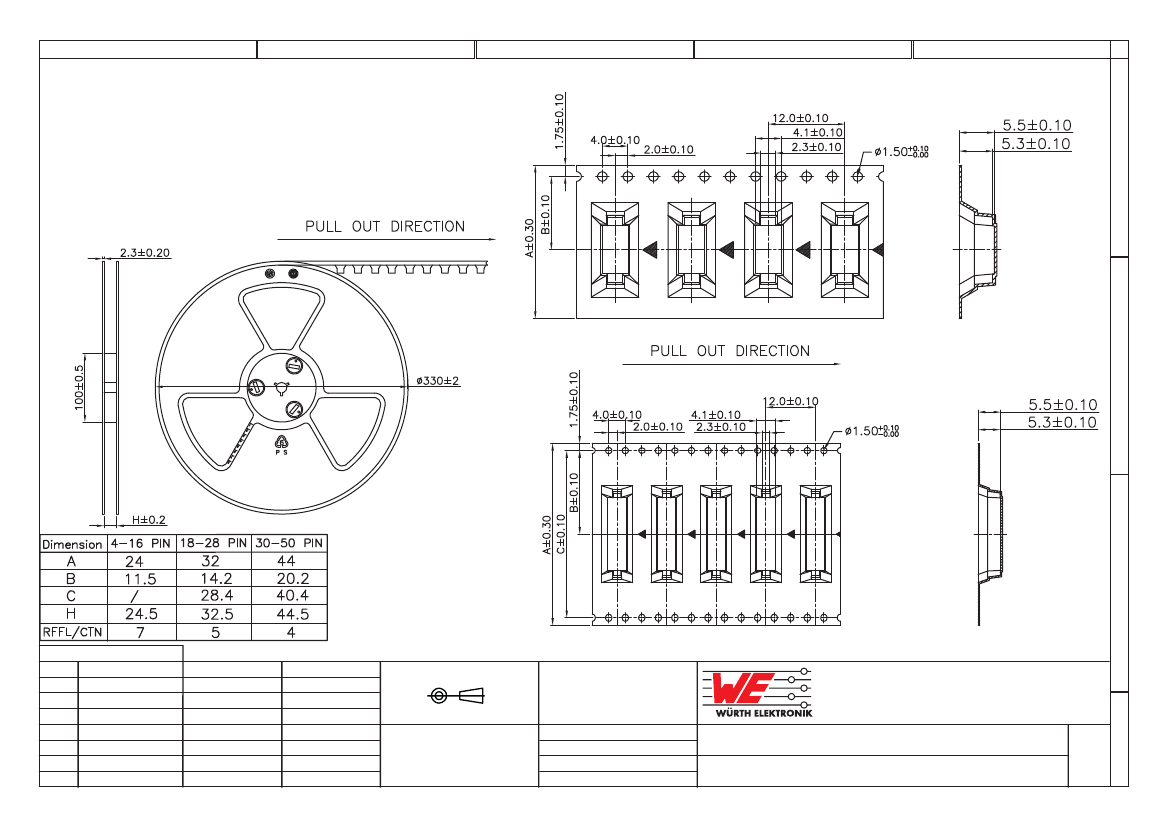

DRAW: PEARL

DESCRIPTION: 0.5MM ZIF FPC VERTICAL CONTACT A TYPE -

TAPE & REEL PACKAGING WITH CAP

WERI PART NO: 6873 xx 124422

SIZE

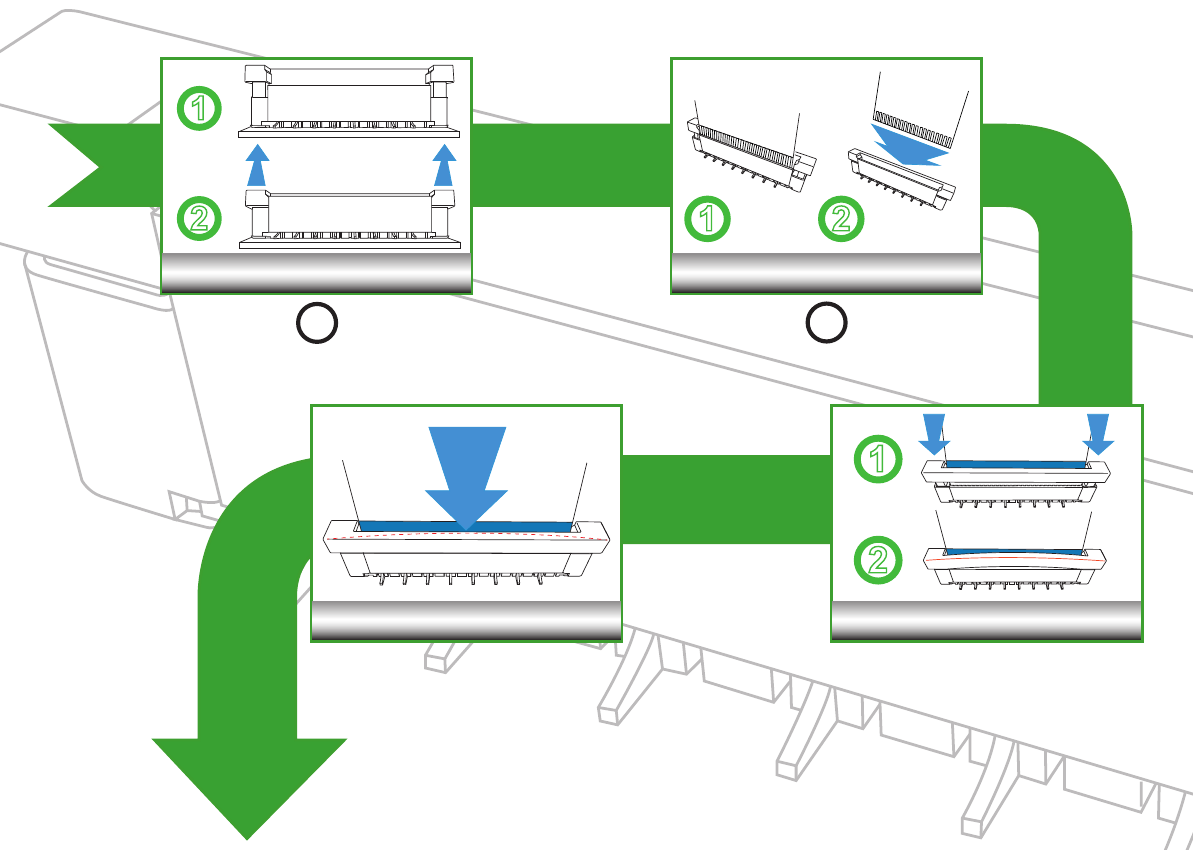

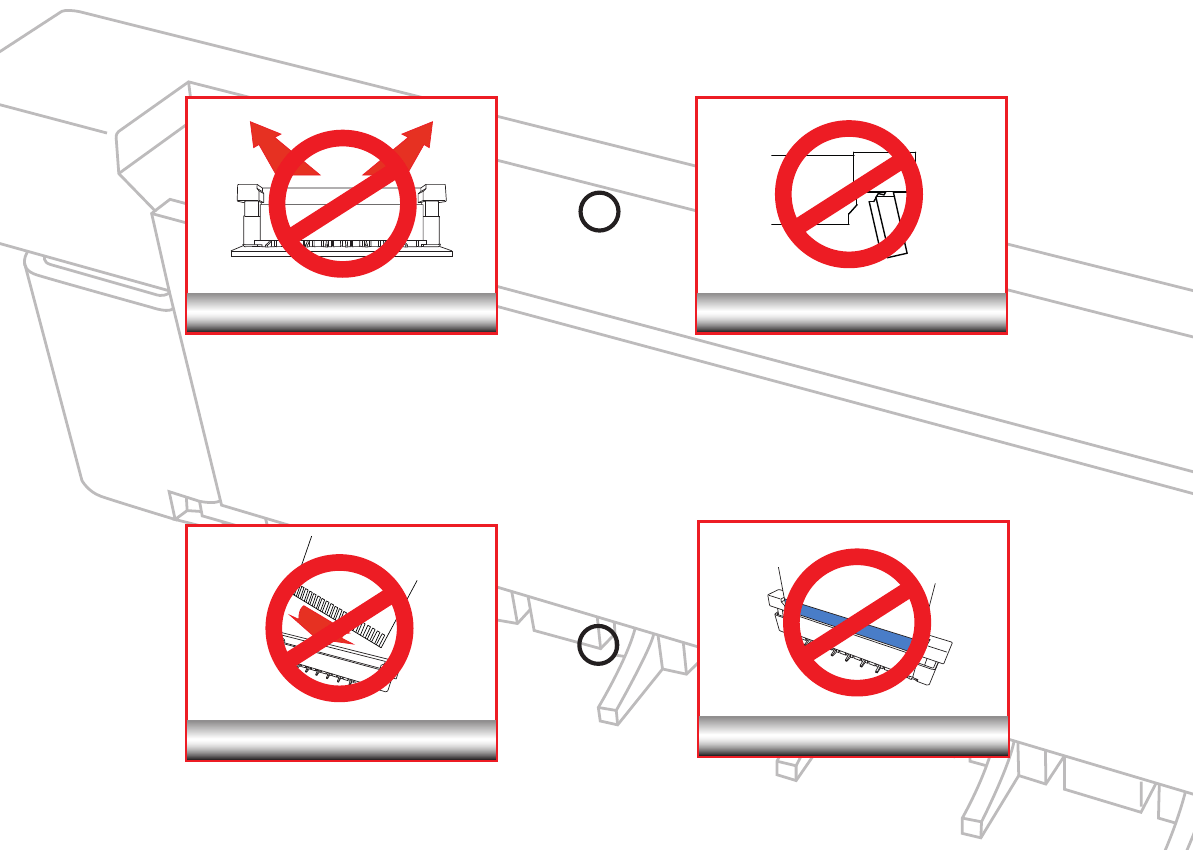

*NOTE: theoretical value related to the Tin plating; however, due to the sensitive actuator, we recommend not to make more than 1 or 2 cycles in order to maintain acceptable mechanical & electrical conditions

REV

13-DEC-13

18-SEP-12

DATE

TPK UPDATE

MC NOTE

FILE
