M80-5121805P datasheet, PDF - EEWORLD Datasheet

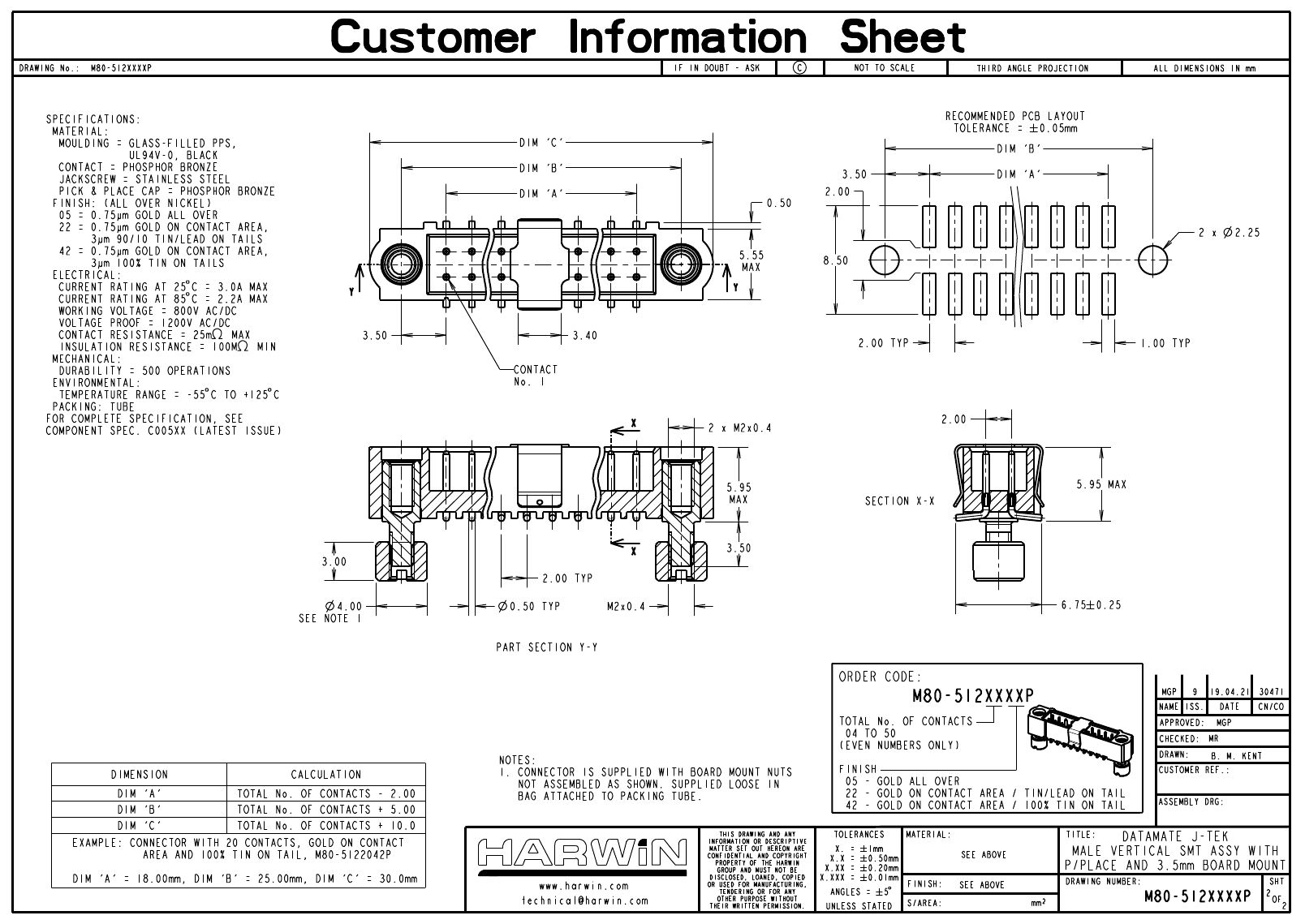

M80-5121805P: DescriptionBoard Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle; CategoryThe connector The connector; File Size68KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/; Environmental Compliance

Download Datasheet Parametric View All

M80-5121805P Overview

Board Connector, 18 Contact(s), 2 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, M2, Black Insulator, Receptacle

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Objectid	1177557598
Reach Compliance Code	compliant
Country Of Origin	UK
Samacsys Description	Datamate J-Tek DIL Male Vertical SMT Connector, gold, with jackscrews + 3.5mm board mount, 9+9 contacts, pick & place cap
Samacsys Manufacturer	Harwin
Samacsys Modified On	2020-07-23 05:43:34
YTEOL	8.4
Board mount options	HOLE .086-.098
body width	0.238 inch
subject depth	0.234 inch
body length	1.102 inch
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact completed and terminated	GOLD
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact resistance	25 mΩ
Contact style	RND PIN-SKT
Durability	500 Cycles
Insulation resistance	100000000 Ω
Insulator color	BLACK
insulator material	GLASS FILLED POLYPHENYLENE SULFIDE
JESD-609 code	e4
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	M2
Installation option 2	JACKSCREW
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
PCB row number	2
Number of rows loaded	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
PCB contact pattern	RECTANGULAR
PCB contact row spacing	5.2578 mm
Plating thickness	30u inch
polarization key	POLARIZED HOUSING
Rated current (signal)	3 A
Guideline	UL
reliability	COMMERCIAL
Terminal pitch	2.0066 mm
Termination type	SURFACE MOUNT
Total number of contacts	18
