202S54N272KV4U datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> capacitor> 202S54N272KV4U

202S54N272KV4U: DescriptionCeramic Capacitor, Ceramic, 2000V, 10% +Tol, 10% -Tol, NP0, -/+30ppm/Cel TC, 0.0027uF, 3640,; CategoryPassive components capacitor; File Size244KB，2 Pages; ManufacturerJohanson Dielectrics; Environmental Compliance

Download Datasheet Parametric View All

202S54N272KV4U Overview

Ceramic Capacitor, Ceramic, 2000V, 10% +Tol, 10% -Tol, NP0, -/+30ppm/Cel TC, 0.0027uF, 3640,

202S54N272KV4U Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	801933344
package instruction	, 3640
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	6.1
capacitance	0.0027 µF
Capacitor type	CERAMIC CAPACITOR
Custom functions	Other Size/Voltage/Capacitance Available
dielectric materials	CERAMIC
high	3.81 mm
JESD-609 code	e3
length	9.14 mm
negative tolerance	10%
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Package form	SMT
method of packing	TR, Embossed, 13 Inch
positive tolerance	10%
Rated (DC) voltage (URdc)	2000 V
series	S54(NP0,2KV)
size code	3640
Temperature characteristic code	NP0
Temperature Coefficient	30ppm/Cel ppm/°C
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
width	10.16 mm

Preview

Download Datasheet

View All

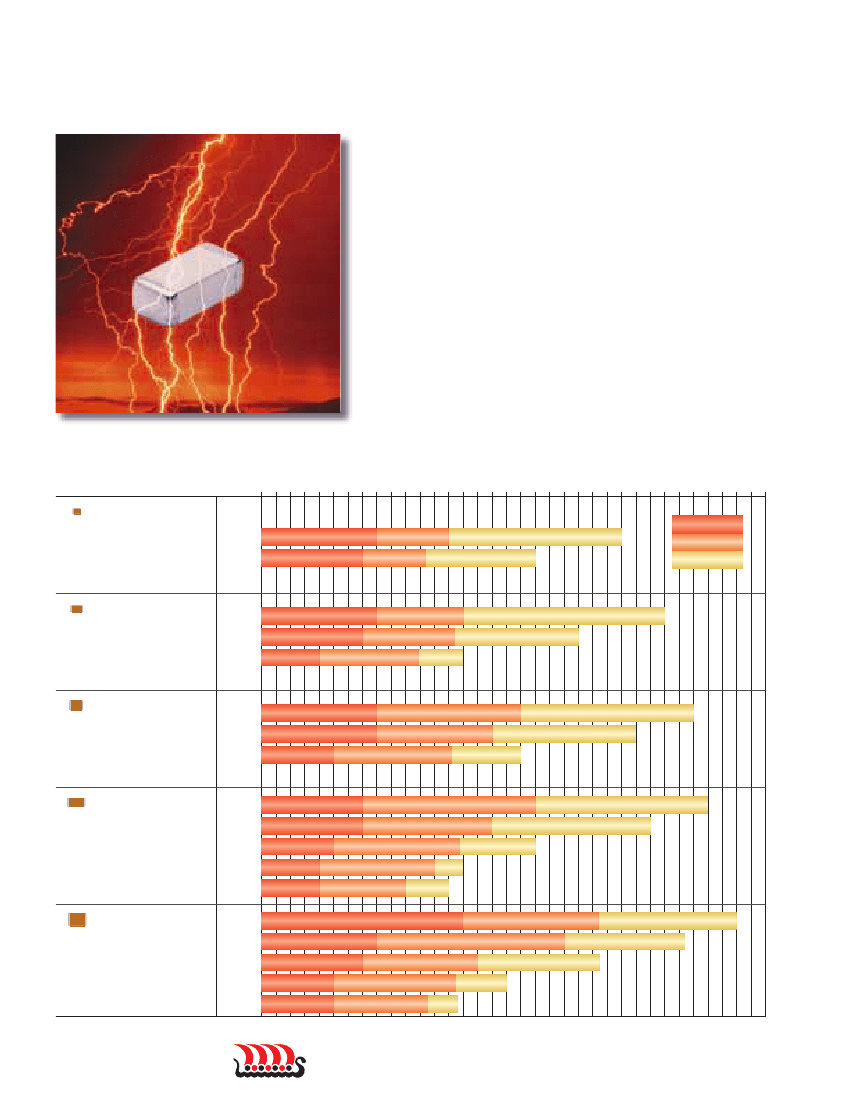

HIGH VOLTAGE SURFACE MOUNT MLCCs 500 - 5,000 VDC

These high voltage capacitors feature a special internal

electrode design which reduces voltage concentrations by

distributing voltage gradients throughout the entire capacitor.

This unique design also affords increased capacitance values

in a given case size and voltage rating. The capacitors are

designed and manufactured to the general requirement of

EIA198 and are subjected to a 100% electrical testing making

them well suited for a wide variety of telecommunication,

commercial, and industrial applications.

PPLICATIONS

• Analog & Digital Modems • LAN/WAN Interface

• Lighting Ballast Circuits • Voltage Multipliers

• DC-DC Converters

• Back-lighting Inverters

CASE SIZE

R15 / 0805

E/B

Inches

.080 ±.010

.050 ±.010

.050 Max.

.020 ±.010

(mm)

(2.03 ±.25)

(1.27 ±.25)

(1.27)

(0.51±.25)

NPO

500

1,000

R18 / 1206

E/B

Inches

.125 ±.010

.062 ±.010

.055 Max.

.020 ±.010

(mm)

(3.17 ±.25)

(1.57 ±.25)

(1.40)

(0.51±.25)

500

1,000

2,000

S41 / 1210

E/B

Inches

.125 ±.010

.095 ±.010

.065 Max.

.020 ±.010

(mm)

(3.18 ±.25)

(2.41 ±.25)

(1.65)

(0.51±.25)

500

1,000

2,000

R29 / 1808

E/B

Inches

.180 ±.010

.080 ±.010

.065 Max.

.020 ±.010

(mm)

(4.57 ±.25)

(2.41 ±.25)

(1.65)

(0.51±.25)

500

1,000

2,000

3,000

4,000

500

1,000

2,000

3,000

4,000

S43 / 1812

E/B

Inches

.175 ±.010

.125 ±.010

.085 Max.

.025 ±.015

(mm)

(4.45 ±.25)

(3.17 ±.25)

(2.16)

(0.64±.38)

100

120 F

180

220 F

330

470 F

100 F

120 F

150 pF

180 F

220 pF

270 F

330 pF

390 pF

470 F

560 pF

820 F

.01 pF

0µ

.01 F

.01 µF

.02 µF

2µ

.02 F

.04 µF

7µ

.06 F

0.1 µF

2µ

0.2 F

0.3 µF

9µ

VOLTS

101

470

271

471

272

103

NPO or X7R

X7R

101

470

180

221

102

681

102

472

223

101

220

561

152

222

153

222

473

470

220

180

181

331

821

102

152

272

183

272

683

471

102

682

392

122

561

271

681

182

682

333

124

101

470

220

www.johanson dielectrics.com
