HDSM-533F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> HDSM-533F

HDSM-533F: DescriptionSmart/Normal 7 Seg Numeric LED Display, 1-Character, Yellow, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10; CategoryLED optoelectronic/LED photoelectric; File Size129KB，9 Pages; ManufacturerBroadcom; Environmental Compliance

Download Datasheet Parametric Compare View All

HDSM-533F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	HDSM-533F	-	-	View	Buy Now

HDSM-533F Overview

Smart/Normal 7 Seg Numeric LED Display, 1-Character, Yellow, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10

HDSM-533F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Broadcom
package instruction	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10
Reach Compliance Code	compliant
ECCN code	EAR99
color	YELLOW
color@wavelength	Amber
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT
Display height	14.22 mm
Maximum forward current	0.025 A
Maximum forward voltage	2.6 V
JESD-609 code	e3
Number of characters	1
Number of functions	1
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	591 nm
Terminal surface	Tin (Sn)
Base Number Matches	1

Preview

Download Datasheet

View All

HDSM-531x/533x

0.56” (14.22mm) Single digit surface mount LED display

Data Sheet

Description

This is 0.56” (14.22mm) height single digit display. This

device utilizes AlInGaP / GaAs chip.This device is with top

surface gray and white segments.

Features

0.56” digit height

Low current operation

Excellent characters appearance

Available in CA and CC

1000 pieces per reel

Moisture Sensitivity Level: Level 3

RoHS compliant

Ordering Information

Red

HDSM-531C

HDSM-533C

Green

HDSM-531H

HDSM-533H

Yellow

HDSM-531F

HDSM-533F

Orange

HDSM-531L

HDSM-533L

Description

Common Anode, Right Hand Decimal

Common Cathode, Right Hand Decimal

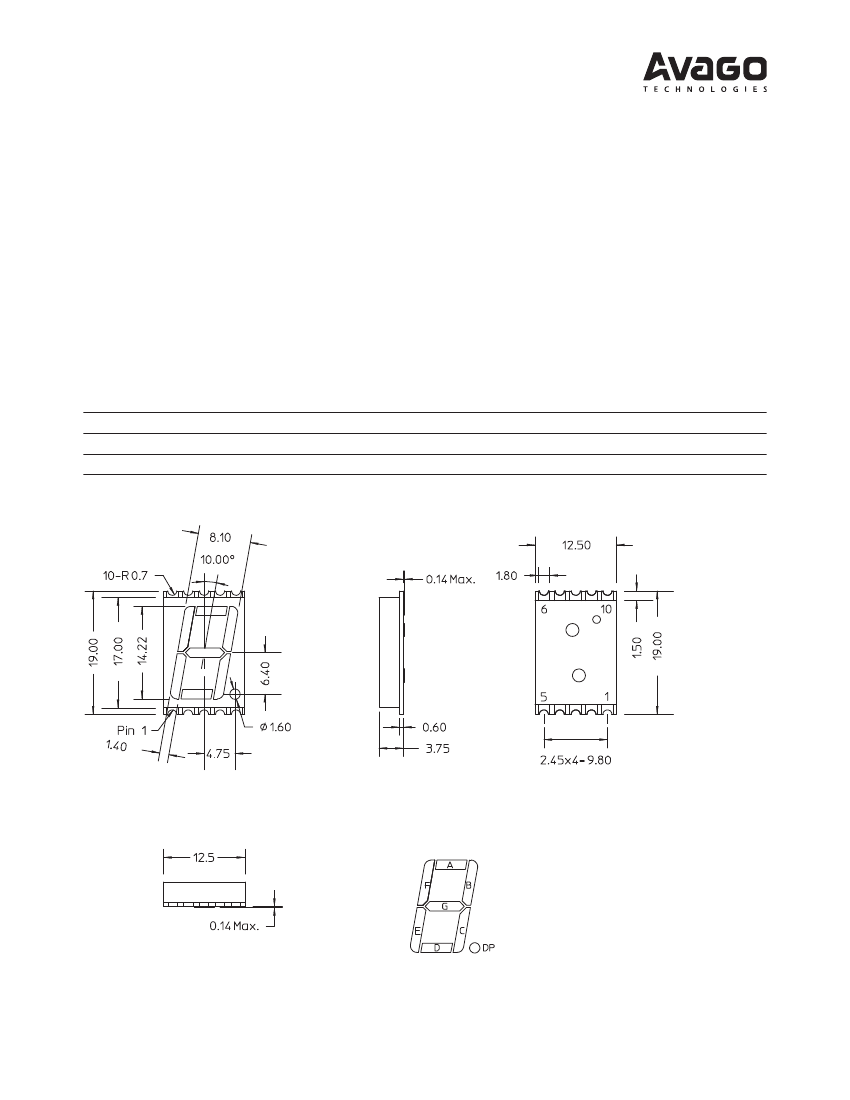

Package Dimensions

Notes:

All dimensions are in millimeters (inches).

Tolerance: ± 0.25mm (0.01”) unless otherwise noted.

HDSM-533F Related Products

	HDSM-533F	HDSM-533C	HDSM-533H	HDSM-533B	HDSM-531B	HDSM-531F	HDSM-531L	HDSM-533L	HDSM-531C
Description	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Yellow, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Green, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Blue, 14.22mm, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Blue, 14.22mm, ROHS COMPLIANT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Yellow, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Orange, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Orange, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	Smart/Normal 7 Seg Numeric LED Display, 1-Character, Red, 14.22mm, ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	ROHS COMPLIANT PACKAGE-10	ROHS COMPLIANT PACKAGE-10	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10	ROHS COMPLIANT, SURFACE MOUNT PACKAGE-10
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
color	YELLOW	RED	GREEN	BLUE	BLUE	YELLOW	ORANGE	ORANGE	RED
color@wavelength	Amber	Orange-Red	Green-Yellow	Blue	Blue	Amber	Amber	Amber	Orange-Red
Configuration	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT	COMMON CATHODE, 1 DIGIT WITH DECIMAL POINT	COMMON ANODE, 1 DIGIT WITH DECIMAL POINT
Display height	14.22 mm	14.22 mm	14.22 mm	14.22 mm	14.22 mm	14.22 mm	14.22 mm	14.22 mm	14.22 mm
Maximum forward current	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Maximum forward voltage	2.6 V	2.6 V	2.6 V	4 V	4 V	2.6 V	2.6 V	2.6 V	2.6 V
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3	e3
Number of characters	1	1	1	1	1	1	1	1	1
Number of functions	1	1	1	1	1	1	1	1	1
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY	SMART/NORMAL 7 SEG NUMERIC LED DISPLAY
peak wavelength	591 nm	632 nm	572 nm	462 nm	462 nm	591 nm	611 nm	611 nm	632 nm
Terminal surface	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)	Tin (Sn)
Maker	Broadcom	Broadcom	Broadcom	-	-	Broadcom	Broadcom	Broadcom	Broadcom
Base Number Matches	1	1	1	1	1	1	-	-	-
