RK73H3ATE2203F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> The resistor> RK73H3ATE2203F

RK73H3ATE2203F: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 1W, 1%, 100ppm, 220000ohm, SURFACE MOUNT, 2512, CHIP; CategoryPassive components The resistor; File Size103KB，2 Pages; ManufacturerKOA Speer; Websitehttp://www.koaspeer.com/

Download Datasheet Parametric View All

RK73H3ATE2203F Overview

RESISTOR, METAL GLAZE/THICK FILM, 1W, 1%, 100ppm, 220000ohm, SURFACE MOUNT, 2512, CHIP

RK73H3ATE2203F Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1951234668
package instruction	SMT, 2512
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	PRECISION; STANDARD : MIL-R-55342F
structure	Chip
JESD-609 code	e0
Manufacturer's serial number	RK73H
Installation features	SURFACE MOUNT
Number of terminals	2
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Package height	0.6 mm
Package length	6.3 mm
Package shape	RECTANGULAR PACKAGE
Package form	SMT
Package width	3.1 mm
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
Rated power dissipation(P)	1 W
Rated temperature	70 °C
Guideline	MIL-R-55342F
resistance	220000 Ω
Resistor type	FIXED RESISTOR
series	RK73H3A (F TOL)
size code	2512
surface mount	YES
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	100 ppm/°C
Terminal surface	Tin/Lead (Sn/Pb)
Terminal shape	WRAPAROUND
Tolerance	1%
Operating Voltage	200 V

Preview

Download Datasheet

View All

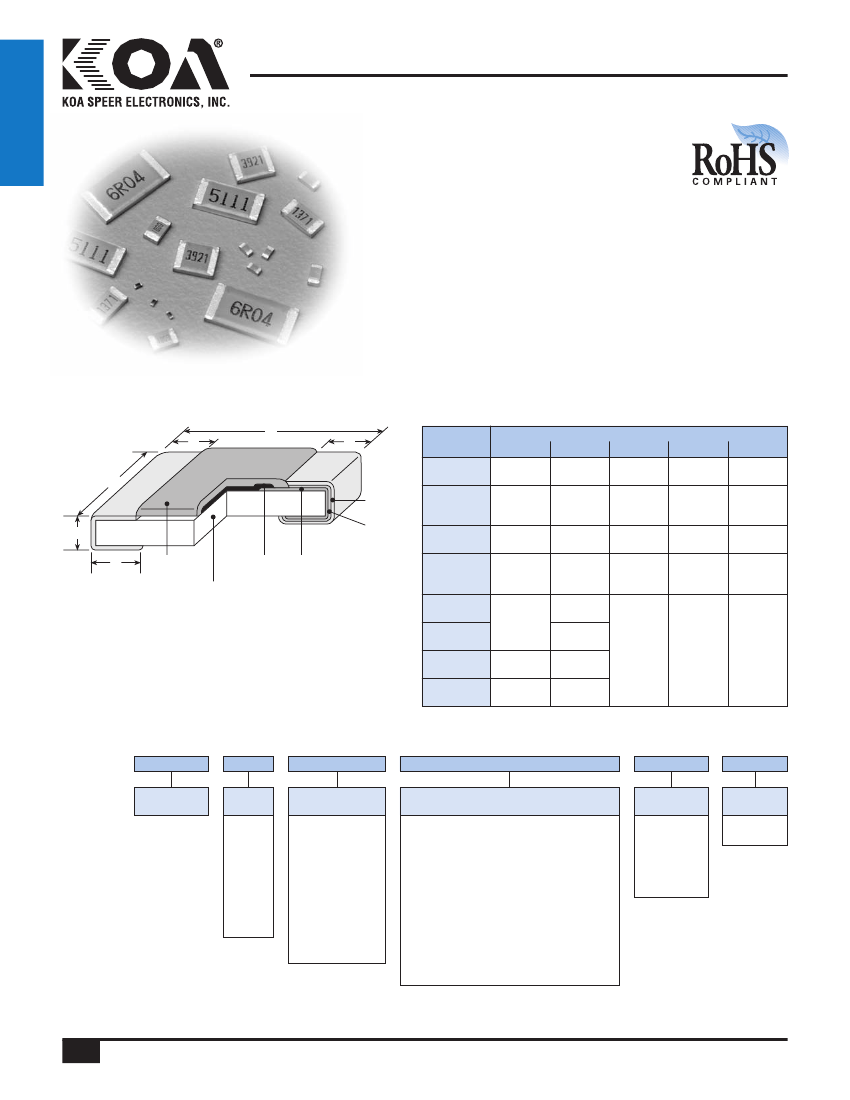

RK73H

resistors

precision 0.5%, 1% tolerance

thick film chip resistor

features

•

RuO

thick film resistor element

•

Anti-leaching nickel barrier terminations

•

Meets or exceeds EIA 575, EIAJ RC 2690A,

EIA PDP-100, MIL-R-55342F

•

Marking: Four-digit black on blue protective coat

on 1E - 3A sizes. No marking on 1E size

Black body and no marking on 1H size

Three-digit on 1J size, E-24 values only

•

Products with lead-free terminations meet

RoHS requirements. Pb located in glass material,

electrode and resistor element is exempt per Annex 1,

exemption 5 of EU directive 2005/95/EC

dimensions and construction

Type

(Inch Size Code)

Dimensions

inches

(mm)

Solder

Plating

Protective

Coating

Resistive Inner

Film

Electrode

Plating

(0201)

(0402)

(0603)

(0805)

(1206)

(1210)

(2010)

(2512)

.024±.001 .012±.001 .004±.002 .006±.002 .009±.001

(0.6±0.03) (0.3±0.03) (0.1±0.05) (0.15±0.05) (0.23±0.03)

.039

(1.0

+.004

-.002

+0.1

)

-0.05

+.002

.02±.002 .008±.004 .01

-.004

.014±.002

(0.5±0.05) (0.2±0.1) (0.25

+0.05

) (0.35±0.05)

-0.1

.063±.008 .031±.004 .012±.004 .012±.004 .018±.004

(1.6±0.2)

(0.8±0.1)

(0.3±0.1) (0.45±0.1)

(0.3±0.1)

.079±.008 .049±.004 .016±.008

(2.0±0.2) (1.25±0.1) (0.4±0.2)

.063±.008

.126±.008

(1.6±0.2)

(3.2±0.2)

.102±.008

(2.6±0.2)

.197±.008 .098±.008

(5.0±0.2)

(2.5±0.2)

.248±.008 .122±.008

(6.3±0.2)

(3.1±0.2)

.012

(0.3

+.008

-.004

+0.2

)

-0.1

.02±.004

(0.5±0.1)

Ceramic

Substrate

.02±.012

(0.5±0.3)

.016

(0.4

+.008

-.004

+0.2

-0.1

)

.024±.004

(0.6±0.1)

ordering information

New Part #

RK73H

Type

Size

Termination

Material

T: Sn

(1H, 1E, 1J, 2A,

2B, 2E, 2H, 3A)

L: SnPb

(1E, 1J, 2A, 2B,

2E, 2H, 3A)

(Other termination

styles may be

available, please

contact factory

for options)

Packaging

TC: 2mm pitch pressed paper

(0201 only)

TP: 2mm pitch punched paper

(0402, 0603 & 0805)

TD: 7" paper tape

(0603, 0805, 1206 & 1210)

TDD: 10" paper tape

(0603, 0805, 1206 & 1210)

TE: 7" punched plastic

(0805, 1206, 1210, 2010 & 2512)

TED: 10" punched plastic

(0805, 1206, 1210, 2010 & 2512)

1003

Nominal

Resistance

3 significant

figures + 1

multiplier

“R” indicates

decimal on

value <100Ω

Tolerance

D: ±0.5%

F: ±1%

For further information on packaging, please refer to Appendix A.

Specifications given herein may be changed at any time without prior notice. Please confirm technical specifications before you order and/or use.

2/13/07

KOA Speer Electronics, Inc.

• Bolivar Drive • P Box 547 • Bradford, PA 16701 • USA • 814-362-5536 • Fax: 814-362-8883 • www.koaspeer.com
