AMPAL16HD8LDMB datasheet, PDF - EEWORLD Datasheet

AMPAL16HD8LDMB: DescriptionEE PLD, 40ns, PAL-Type, TTL, CDIP20; CategoryProgrammable logic devices Programmable logic; File Size1MB，25 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric View All

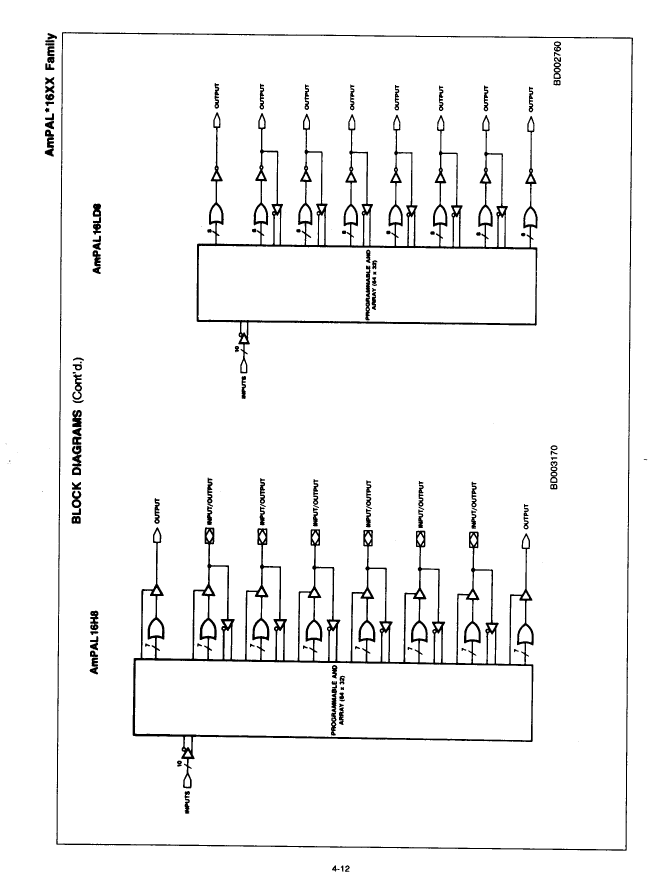

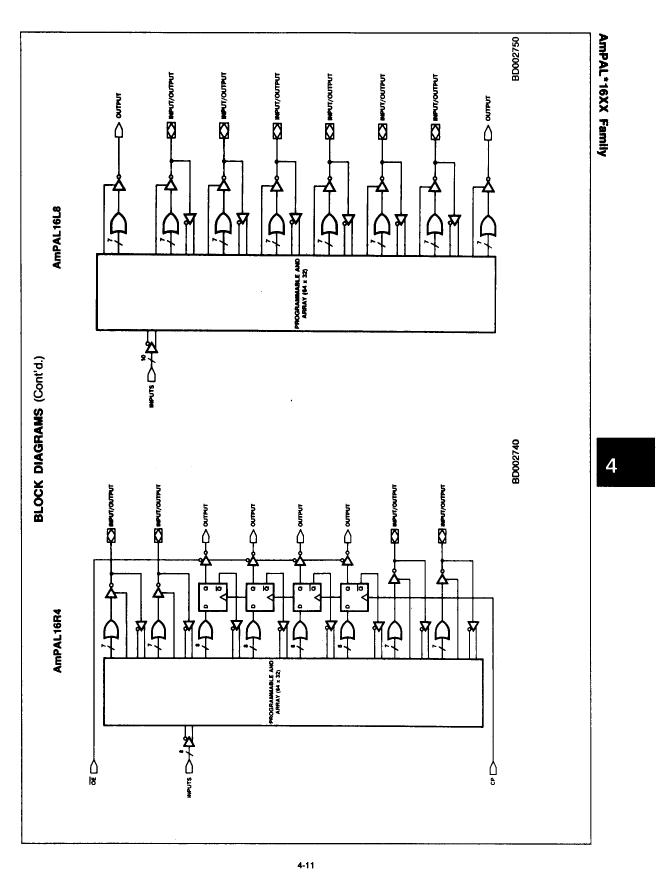

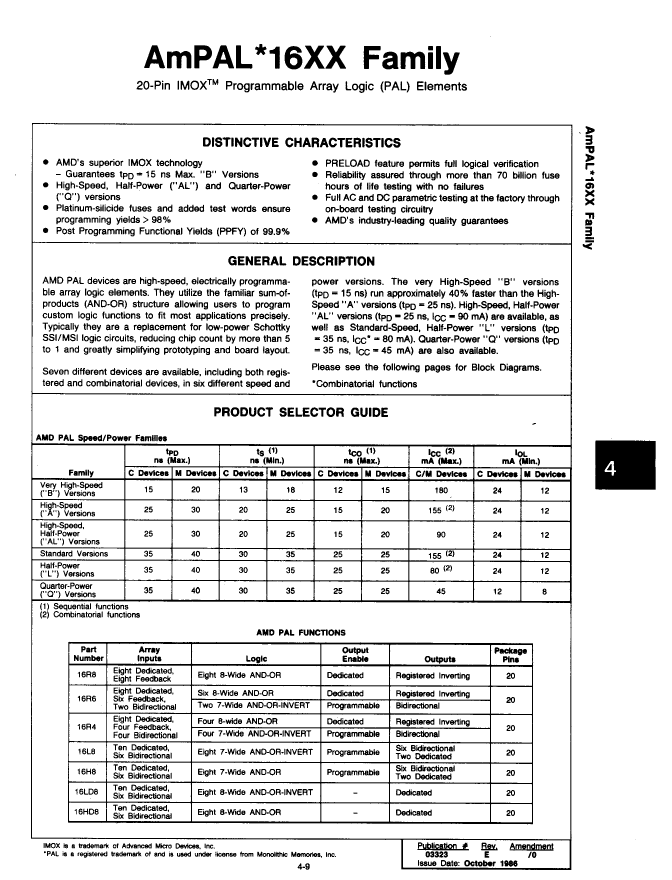

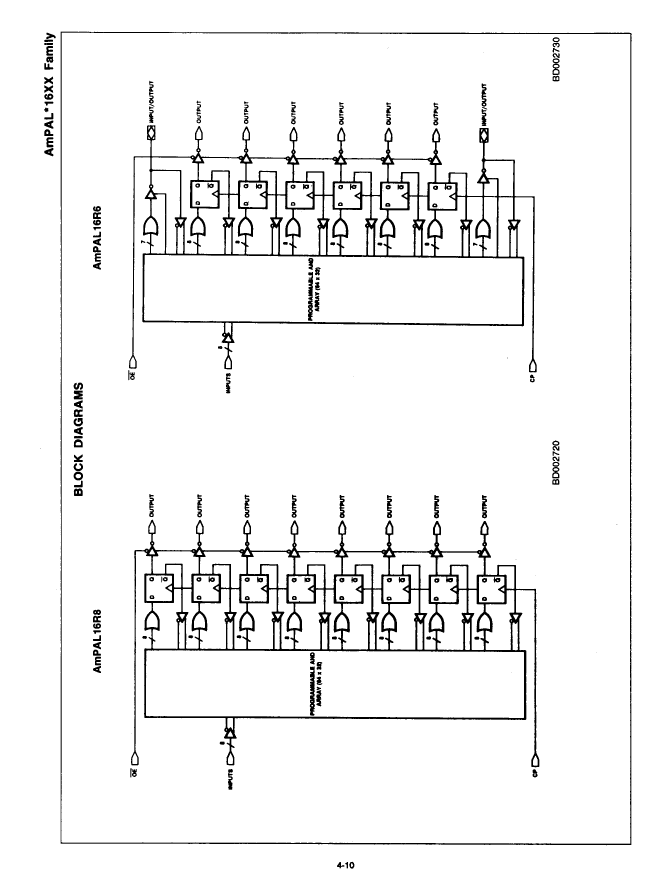

AMPAL16HD8LDMB Overview

EE PLD, 40ns, PAL-Type, TTL, CDIP20

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Objectid	1436125195
package instruction	DIP, DIP20,.3
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Architecture	PAL-TYPE
JESD-30 code	R-XDIP-T20
JESD-609 code	e0
Number of entries	16
Output times	8
Number of product terms	64
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output function	COMBINATORIAL
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP20,.3
Package shape	RECTANGULAR
Package form	IN-LINE
power supply	5 V
Programmable logic type	EE PLD
propagation delay	40 ns
Certification status	Not Qualified
Filter level	MIL-STD-883 Class B (Modified)
Nominal supply voltage	5 V
surface mount	NO
technology	TTL
Temperature level	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
