10128425-21ELF datasheet, PDF - EEWORLD Datasheet

10128425-21ELF: DescriptionBoard Connector, 200 Contact(s), 20 Row(s), Male, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator; CategoryThe connector The connector; File Size1MB，17 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/; Environmental Compliance

Download Datasheet Parametric View All

10128425-21ELF Overview

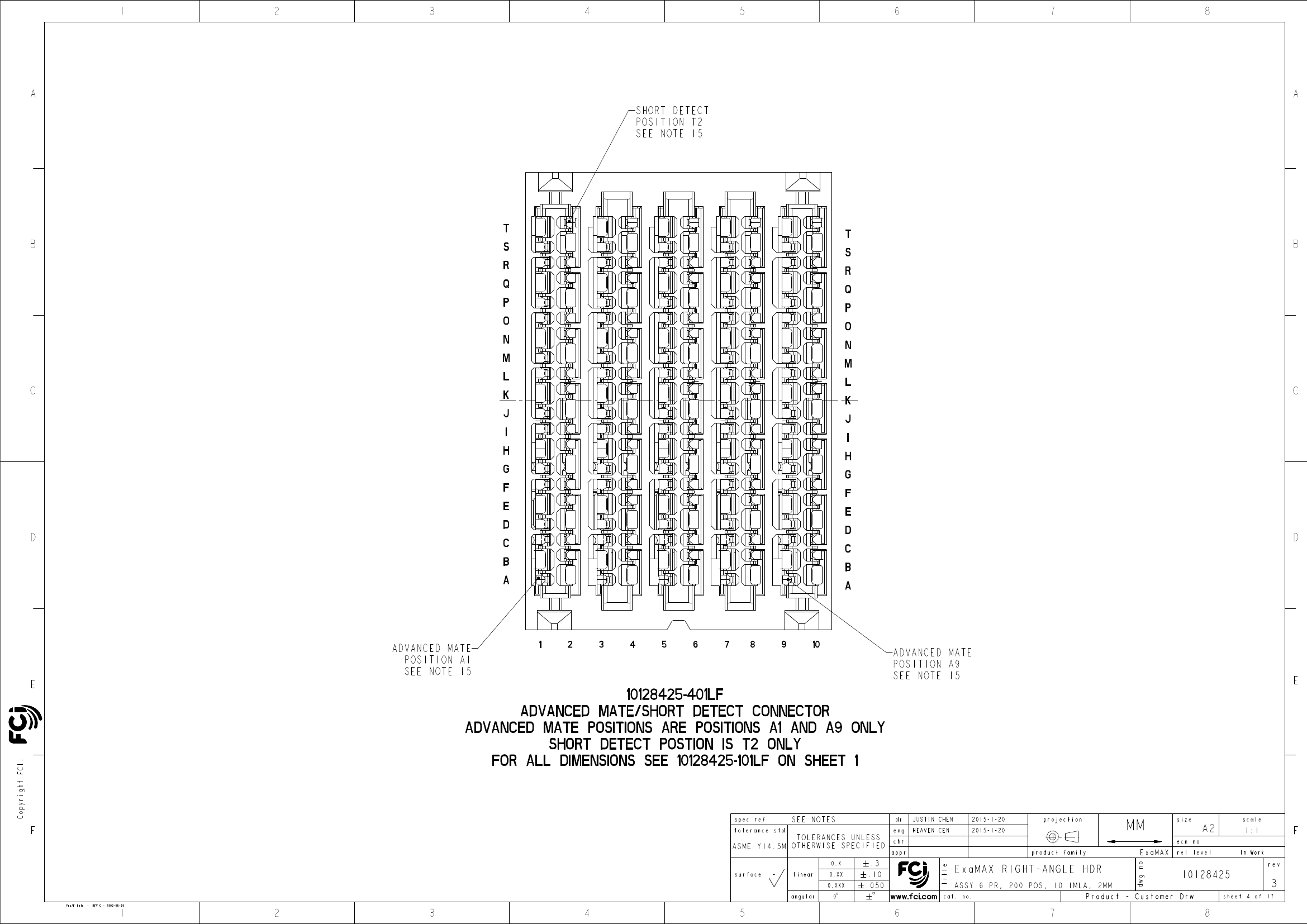

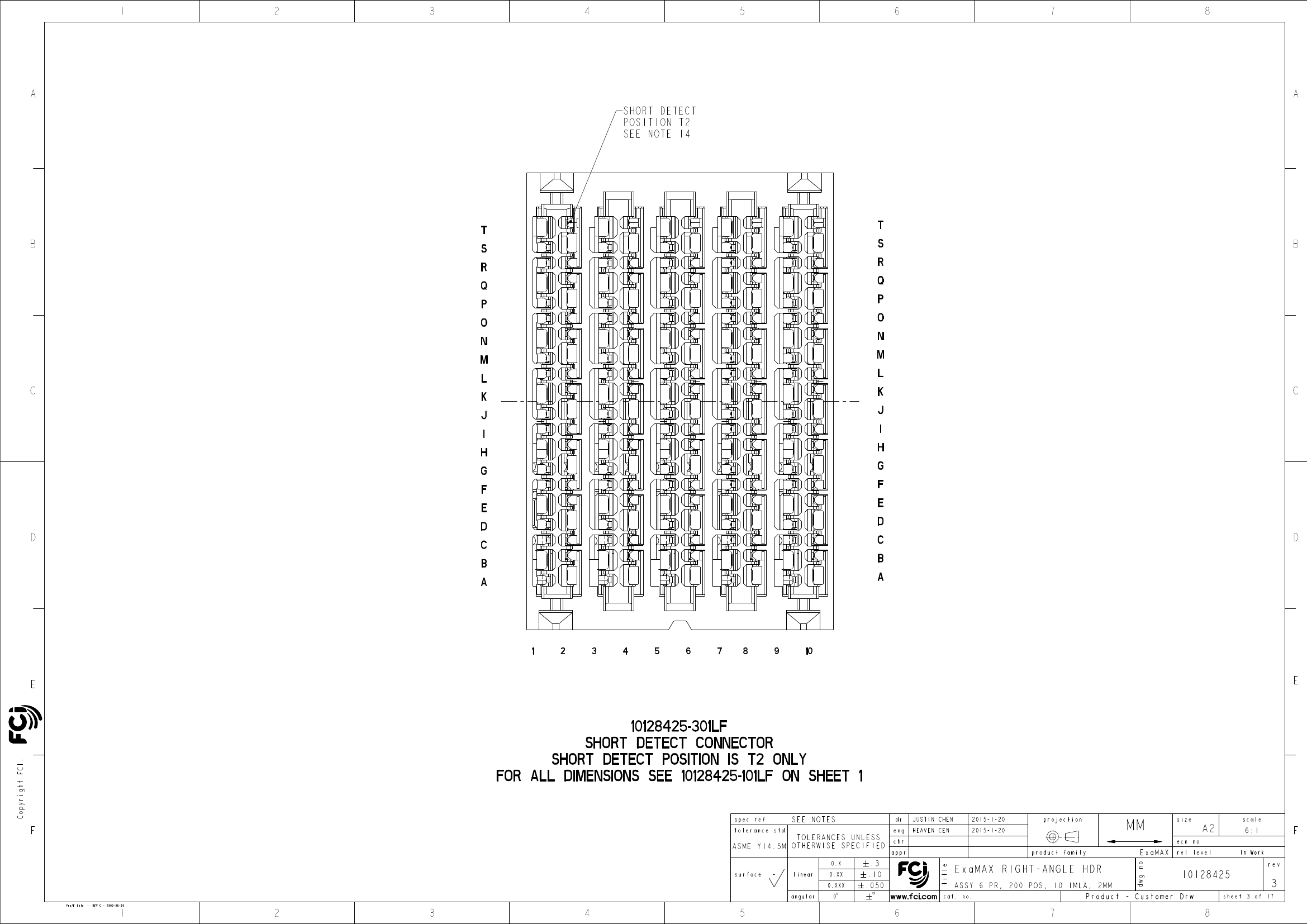

Board Connector, 200 Contact(s), 20 Row(s), Male, Right Angle, 0.079 inch Pitch, Press Fit Terminal, Guide Pin, Black Insulator

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Objectid	315319167
Reach Compliance Code	compliant
ECCN code	EAR99
YTEOL	8.6

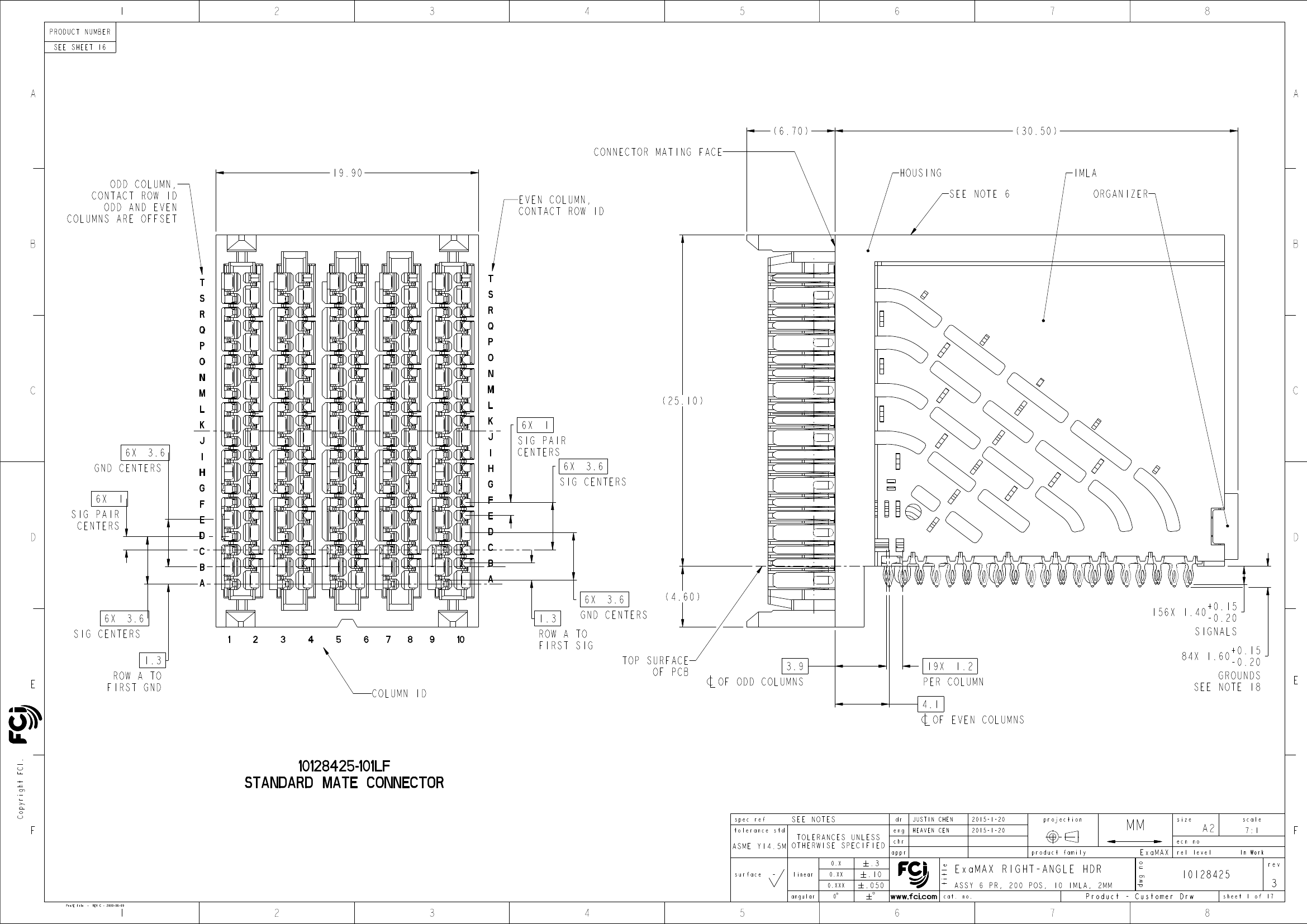

body width	0.744 inch
subject depth	1.055 inch
body length	1.037 inch
Connector type	BOARD CONNECTOR
Contact completed and terminated	Tin (Sn) - with Nickel (Ni) barrier
Contact point gender	MALE
Contact material	COPPER ALLOY
Durability	200 Cycles
maximum insertion force	.4448 N
Insulation resistance	1000000000 Ω
Insulator color	BLACK
insulator material	POLYETHYLENE
JESD-609 code	e3
Manufacturer's serial number	10128425
Plug contact pitch	0.079 inch
Match contact row spacing	0.079 inch
Installation option 1	GUIDE PIN
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of connectors	ONE
PCB row number	20
Number of rows loaded	20
Maximum operating temperature	85 °C
Minimum operating temperature	-55 °C

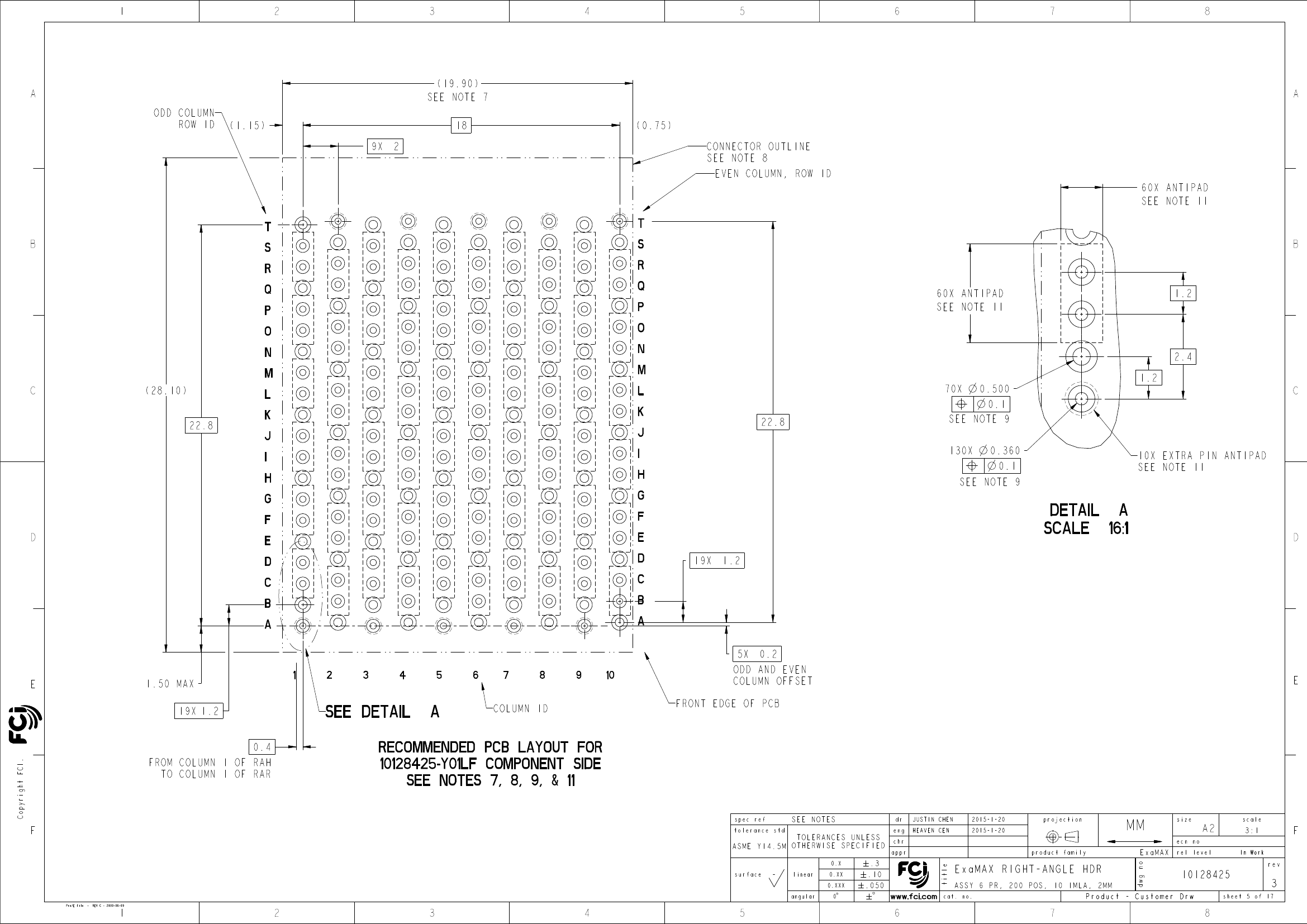

PCB contact row spacing	2.0066 mm
polarization key	RIGHT
Rated current (signal)	0.5 A
Guideline	UL
reliability	COMMERCIAL
Terminal length	0.055 inch
Terminal pitch	2.0066 mm
Termination type	PRESS FIT
Total number of contacts	200
Evacuation force-minimum value	.15012 N
