72339-005 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 72339-005

72339-005: DescriptionBoard Connector, 15 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal; CategoryThe connector The connector; File Size110KB，2 Pages; ManufacturerAmphenol; Websitehttp://www.amphenol.com/

Download Datasheet Parametric Compare View All

72339-005 Overview

Board Connector, 15 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal

72339-005 Parametric

Parameter Name	Attribute value
Maker	Amphenol
Reach Compliance Code	compli
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	72339
Mixed contacts	NO
Installation method	RIGHT ANGLE
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	15
UL Flammability Code	94V-0

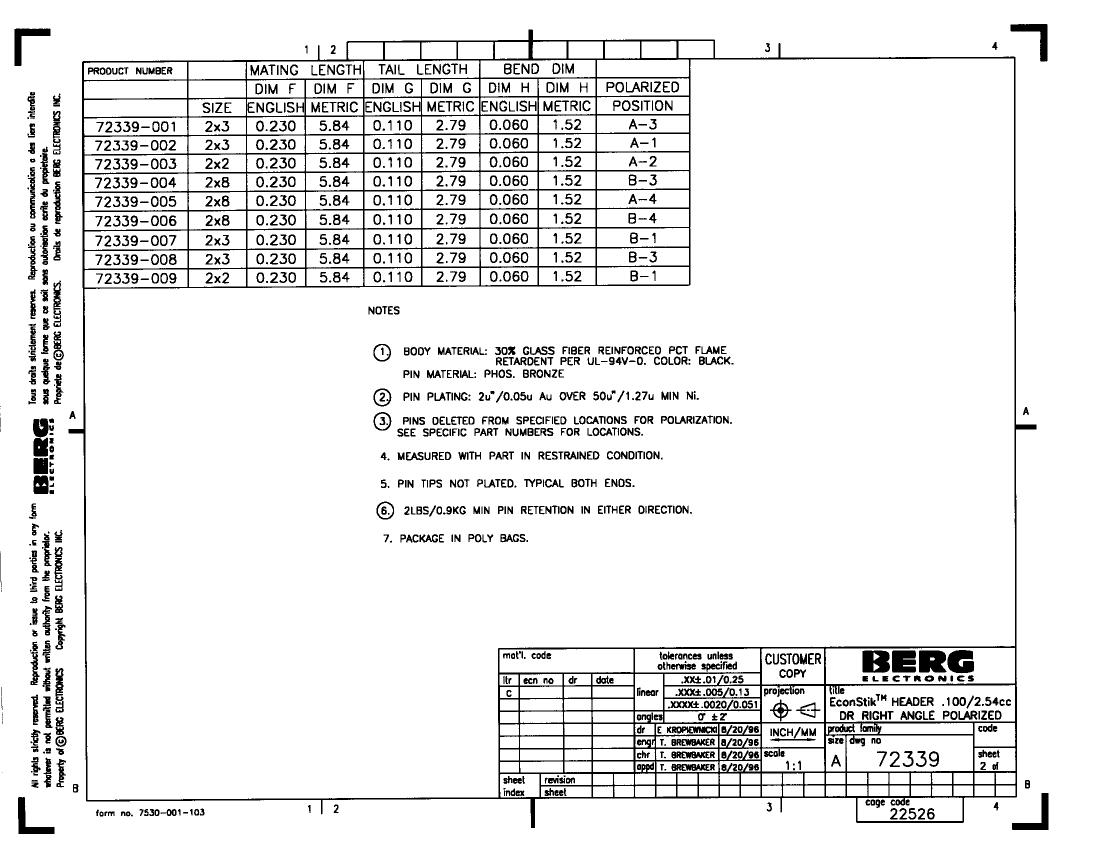

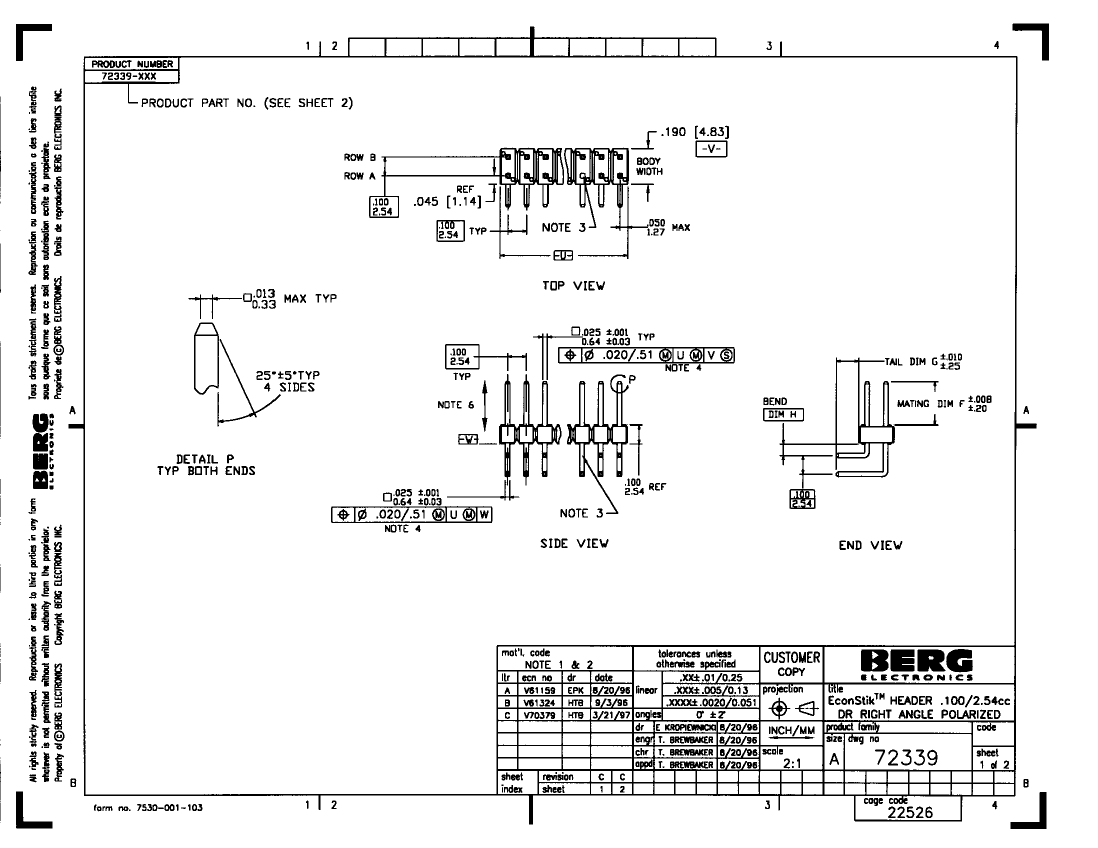

Preview

Download Datasheet

View All

PDM: Rev:C

STATUS:

Released

Printed: Dec 01, 2010

72339-005 Related Products

	72339-005	72339-001	72339-002	72339-003	72339-004	72339-006	72339-007	72339-008	72339-009
Description	Board Connector, 15 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 3 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 15 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 15 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 5 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal	Board Connector, 3 Contact(s), 2 Row(s), Male, Right Angle, Solder Terminal
Maker	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol	Amphenol
Reach Compliance Code	compli	compli	compli	compli	compli	compli	compli	compli	compli
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	72339	72339	72339	72339	72339	72339	72339	72339	72339
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE	RIGHT ANGLE
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	2	2	2	2	2	2	2	2	2
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm	2.54 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	15	5	5	3	15	15	5	5	3
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
