3-216103-4 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 3-216103-4

3-216103-4: DescriptionCONNECTOR, 34 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE; CategoryThe connector The connector; File Size80KB，1 Pages; ManufacturerTE Connectivity; Websitehttp://www.te.com; Environmental Compliance

Download Datasheet Parametric Compare View All

3-216103-4 Overview

CONNECTOR, 34 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE

3-216103-4 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Reach Compliance Code	unknow
Body/casing type	RECEPTACLE
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	FEMALE
Contact material	NOT SPECIFIED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	216103
Mixed contacts	NO
Installation type	CABLE
Number of rows loaded	2
Options	GENERAL PURPOSE
Total number of contacts	34
Base Number Matches	1

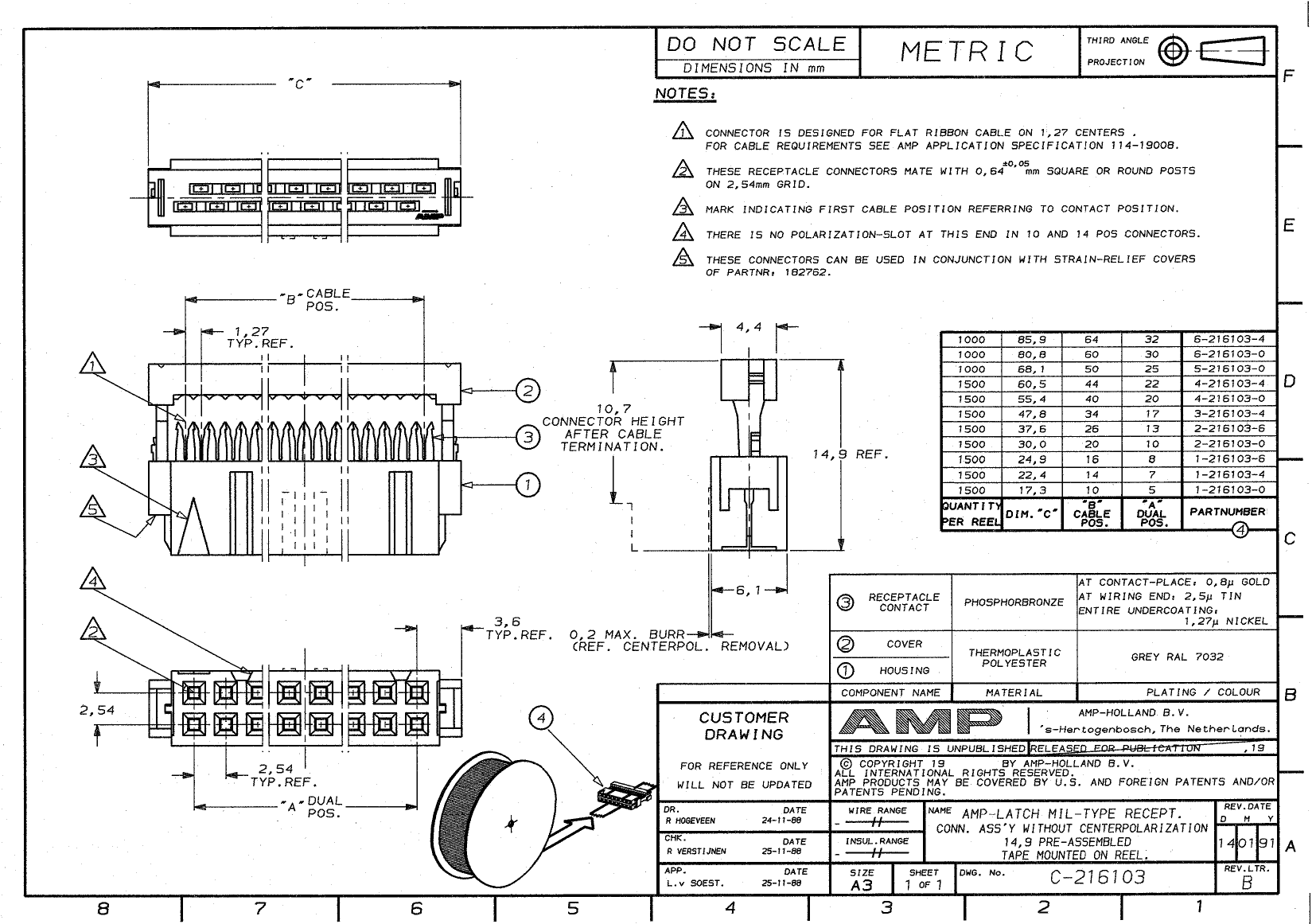

Preview

Download Datasheet

View All

3-216103-4 Related Products

	3-216103-4	4-216103-4	4-216103-0	STL12-A02-VGG-21U	STL12-A02-VGT-06U	1-216103-6	6-216103-0	6-216103-4
Description	CONNECTOR, 34 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE	CONNECTOR, 44 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE	CONNECTOR, 40 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE	Board Connector, 21 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, 0.079 inch Pitch, Surface Mount Terminal, Receptacle	CONNECTOR, 16 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE	60 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE	CONNECTOR, 64 CONTACT(S), FEMALE, TWO PART BOARD CONNECTOR, RECEPTACLE
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknow	unknown	unknown	compliant	compliant	unknown	unknown	unknown
Body/casing type	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE	RECEPTACLE
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Contact point gender	FEMALE	FEMALE	FEMALE	MALE	MALE	FEMALE	FEMALE	FEMALE
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Installation type	CABLE	CABLE	CABLE	BOARD	BOARD	CABLE	CABLE	CABLE
Number of rows loaded	2	2	2	1	1	2	2	2
Total number of contacts	34	44	40	21	6	16	60	64
DIN compliance	NO	NO	NO	-	-	NO	NO	NO
Filter function	NO	NO	NO	-	-	NO	NO	NO
IEC compliance	NO	NO	NO	-	-	NO	NO	NO
MIL compliance	NO	NO	NO	-	-	NO	NO	NO
Manufacturer's serial number	216103	216103	216103	-	-	216103	216103	216103
Mixed contacts	NO	NO	NO	-	-	NO	NO	NO
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	-	-	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Objectid	-	-	1932615908	1166383306	1166383330	1932615806	1932615933	-
