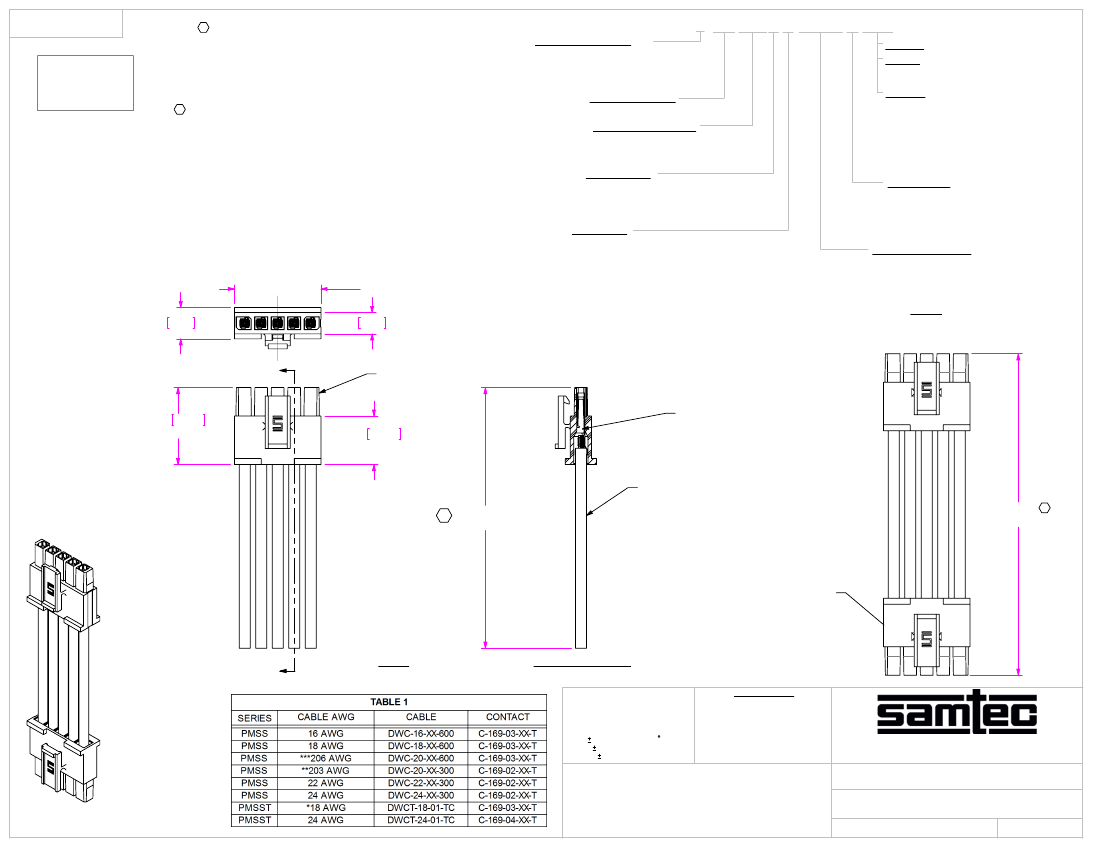

REVISION AC
DO NOT
SCALE FROM
THIS PRINT
NOTES:
1.
C
REPRESENTS A CRITICAL DIMENSION.
2. BURR ALLOWANCE: .003[.08] MAX.
FEP CABLE OPTION
3. PARTS TO BE MOLDED TO POSITION.
-T: FEP INSULATION
4. MINIMUM PULLOUT FORCE: 5 lbs[22.24 N].
(LEAVE BLANK FOR STANDARD
5. CONTACT MUST BE INSERTED UNTIL RETENTION FEATURE LOCKS
PVC INSULATION)
INTO PLACE.
(SEE NOTE 18)
6. FOLLOW CO-RF-WI-3001-M AND SAMTEC PACKAGING STANDARDS.
7. ONLY AVAILABLE IN TIN PLATING.
No OF POSITIONS
C
8. ALL PARTS TO PASS ELECTRICAL TEST UPON ASSEMBLY (INCLUDING
-02 THRU -10
HI-POT TEST AT 1000 VOLTS DC). AFTER FINAL ELECTRICAL TEST, LABEL
WIRE GAUGE (AWG)
EACH ASSEMBLY WITH 1 LABEL-ET STAMP ON THE BODY.
9. APPLICATIONS INVOLVING SEVERE BENDING REQUIRE 6" MINIMUM
[SEE TABLE 1]
CABLE LENGTH.
PVC: -16, -18, -206, -203, -22, -24
10. REFER TO CRIMP SPECIFICATIONS PRINT FOR CRIMP AND STRIP DIMENSIONS,
FEP: *-18, -24
TOLERANCES, TOOLING AND ITS REQUIREMENTS.
WIRE COLOR
11. NOTE DELETED.
LEAVE BLANK FOR ALL BLACK WIRE
12. FOR LENGTHS LESS THAN 12 IN, TOLERANCE SHALL
C: COLOR CODED WIRE
BE ±.125[3.18]. FOR OTHER LENGTHS, TOLERANCES SHALL BE ±2%.
(SEE COLOR SEQUENCE TABLE, SHEET 2)
13. AVAILABLE TO EXISTING CUSTOMERS ONLY. DO NOT DESIGN IN AS OF
(NOT AVAILABLE WITH FEP OPTION)
REVISION H.
14. -203 USES 20 GAGE 300 VOLT CABLE.
LEAD STYLE
15. AVAILABLE ONLY AS AN ASO.
-SP: STANDARD POWER (C-169-XX-SP-T)
16. -206 USES 20 GAGE 600 VOLT CABLE.
*(SEE NOTE 17)
17. AVAILABLE TO EXISTING CUSTOMERS ONLY. DO NOT DESIGN AS OF REVISION T.
-HP: HIGH POWER (C-169-XX-HP-T)
18. ASSEMBLIES USING THE FEP OPTION ARE FOR CRIMP APPLICATIONS ONLY.
01
PMSSX-XX-XXXX-X-XX.XX-X-XXX
OPTION
SINGLE
-M: METAL LATCH (USE IPBD-XX-S-X-M)
(LEAVE BLANK FOR PLASTIC)
DOUBLE
-LUS: PLASTIC LATCH UP, STRAIGHT
(SEE FIG 3, SHEET 2)
-LDS: PLASTIC LATCH DOWN, STRAIGHT
(SEE FIG.4, SHEET 2)
-MUS: METAL LATCH UP, STRAIGHT
-MDS: METAL LATCH DOWN, STRAIGHT
END OPTION
-S: SINGLE END
-D: DOUBLE END
(MUST CHOOSE LUS, LDS, MUS,
OR MDS OPTIONS)
ASSEMBLED LENGTH
SPECIFY IN INCHES (03.00 INCH MINIMUM)
[USE DWCX-XX-XX-XXX]
02
(No OF POS x .165[4.19])
+ .040[1.02]) REF
.213 5.41 REF
.313 7.95 REF
*(SEE NOTE 13)
-K: KEYED POLARIZATION (C-169-XX-SP-T)
(USE IPBD-XX-S-K-X) (SEE FIG. 6, SHEET 3)
(LEAVE BLANK FOR NO POLARIZATION;
AVAILABLE TO EXISTING CUSTOMERS ONLY)
*AVAILABLE TO EXISTING CUSTOMERS ONLY
"A"
IPBD-XX-S

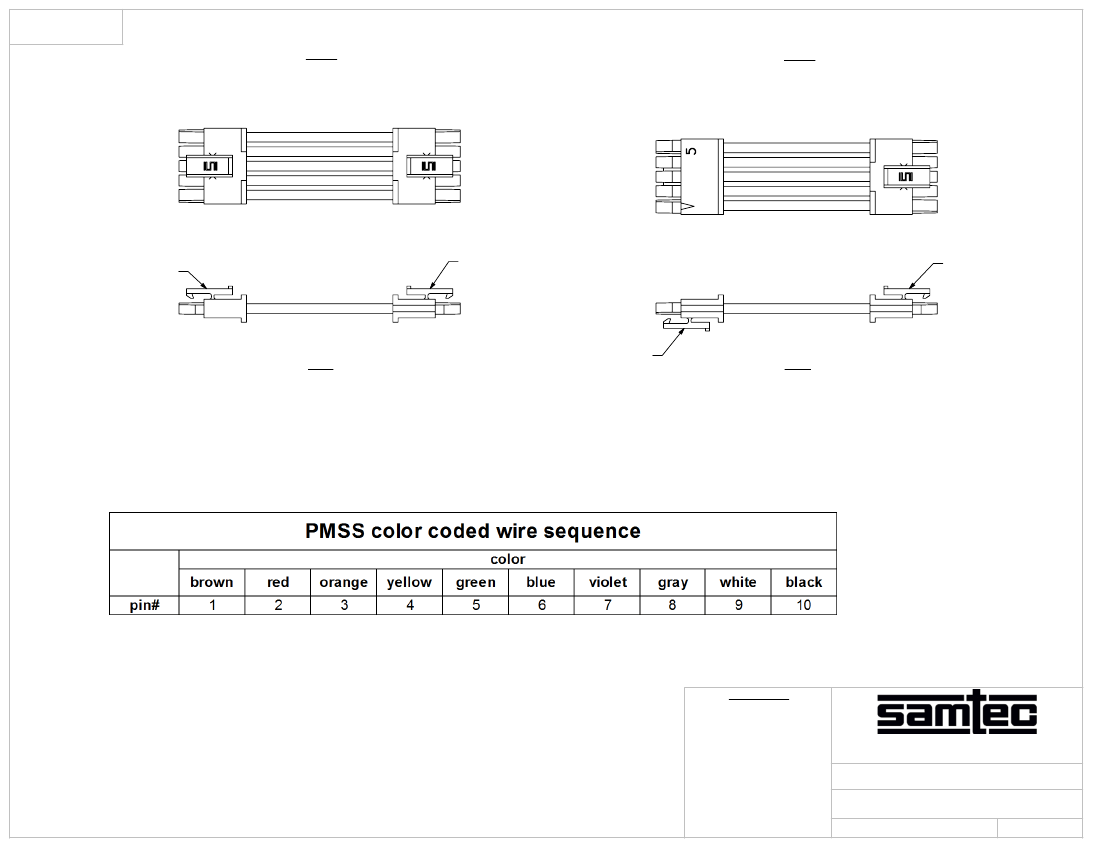

-LUS: PLASTIC LATCH UP, STRAIGHT
PMSSX-05-XXXX-X-XX.XX-D-LUS SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 2
.770 19.56
REF
.485 12.32
REF
C-169-XX-XX-T
(SEE TABLE 1)
DWCX-XX-XX-XXX
(SEE TABLE 1)
C
XX.XX
(SEE NOTE 12)
XX.XX
C
(SEE NOTE 12)
IPBD-XX-S
"A"
PMSSX-05-XXXX-X-XX.XX-S SHOWN
FIG 1
SECTION "A"-"A"
UNLESS OTHERWISE SPECIFIED,
DIMENSIONS ARE IN INCHES.
TOLERANCES ARE:
DECIMALS
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
*AVAILABLE TO
EXISTING CUSTOMERS
ONLY
** SEE NOTES 14 & 15
*** SEE NOTE 16
.XX: .01 [.3]
2
.XXX: .005 [.13]
.XXXX: .0020 [.051]
ANGLES
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
MATERIAL:
DO NOT SCALE DRAWING
SHEET SCALE: 1:1
HOUSING: VALOX 457, COLOR: NATURAL
CONTACT: PHOS BRONZE
CABLE; INSULATION: SEE CALLOUT
WIRE: SEE CABLE PRINT
(NOT LEAD FREE)
F:\DWG\MISC\MKTG\PMSSX-XX-XXXX-X-XX.XX-X-XXX-MKT.SLDDRW
.165[4.19] SOCKET DISCRETE CABLE ASSEMBLY
DWG. NO.
PMSSX-XX-XXXX-X-XX.XX-X-XXX
BY:
DEAN P
04/14/2005
SHEET
1
OF
3
REVISION AC
-LUS: PLASTIC LATCH UP, STRAIGHT
PMSSX-05-XXXX-X-XX.XX-D-LUS SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 3
-LDS: PLASTIC LATCH DOWN, STRAIGHT
PMSSX-05-XXXX-X-XX.XX-D-LDS SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
FIG 4
LATCH-
END 2
LATCH-
END 1
LATCH-
END 1
-LUS
[LATCH UP]
LATCH-
END 2
-LDS
[LATCH DOWN]
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DO NOT SCALE DRAWING
.165[4.19] SOCKET DISCRETE CABLE ASSEMBLY
DWG. NO.
SHEET SCALE: 0.875:1
PMSSX-XX-XXXX-X-XX.XX-X-XXX
DEAN P
04/14/2005
SHEET
2
OF
3
F:\DWG\MISC\MKTG\PMSSX-XX-XXXX-X-XX.XX-X-XXX-MKT.SLDDRW
BY:
REVISION AC
-M: METAL LATCH
PMSSX-08-XXXX-X-XX.XX-S-M SHOWN
FIG 5
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
.223 5.66
IPBD-XX-S-R
.618 15.70
REF
C
.125
- .002
3.17
- 0.05
+.003
+0.08
C
LTC-14-01-N
FIG 6
-K: KEYED POLARIZATION
PMSSX-05-XXXX-K-XX.XX-X-XXX SHOWN
(DIFFERENT AS SHOWN, OTHERWISE SAME AS FIG 1)
.040 1.02 REF
*
PROPRIETARY NOTE
*
THIS DOCUMENT CONTAINS CONFIDENTIAL AND
PROPRIETARY INFORMATION AND ALL DESIGN,
MANUFACTURING, REPRODUCTION, USE, PATENT RIGHTS
AND SALES RIGHTS ARE EXPRESSLY RESERVED BY SAMTEC,
.020 0.51 REF
IPBD-XX-S-K
INC. THIS DOCUMENT SHALL NOT BE DISCLOSED, IN WHOLE
OR PART, TO ANY UNAUTHORIZED PERSON OR ENTITY NOR
REPRODUCED, TRANSFERRED OR INCORPORATED IN ANY
OTHER PROJECT IN ANY MANNER WITHOUT THE EXPRESS
WRITTEN CONSENT OF SAMTEC, INC.
520 PARK EAST BLVD, NEW ALBANY, IN 47150
PHONE: 812-944-6733
FAX: 812-948-5047
e-Mail info@SAMTEC.com
code 55322
DESCRIPTION:
DWG. NO.
DO NOT SCALE DRAWING
.165[4.19] SOCKET DISCRETE CABLE ASSEMBLY
SHEET SCALE: 1:1
PMSSX-XX-XXXX-X-XX.XX-X-XXX
04/14/2005
SHEET
3
OF
3
F:\DWG\MISC\MKTG\PMSSX-XX-XXXX-X-XX.XX-X-XXX-MKT.SLDDRW
BY:
DEAN P
