DDZX5V1BTS - DDZX47TS
TRIPLE SURFACE MOUNT PRECISION ZENER
DIODE ARRAY
SPICE MODEL: DDZX7V5CTS DDZX8V2CTS DDZX9V1CTS DDZX10CTS DDZX11CTS DDZX12CTS DDZX13BTS DDZX14TS DDZX15TS
DDZX16TS DDZX18CTS DDZX20CTS DDZX22DTS DDZX24CTS DDZX27DTS DDZX30DTS DDZX33TS DDZX36TS DDZX39FTS DDZX43TS
DDZX47TS
NEW PRODUCT
Features
·
·
·
·
·
Very Sharp Breakdown Characteristics
Very Tight Tolerance on V
Z
Ideally Suited for Automated Assembly
Processes
Very Low Leakage Current
Lead Free Device
A
C
1
C
2
C
3
SOT-363
Dim
A
B
C
D
F
H
M
Min
0.10
1.15
2.00
0.30
1.80
¾
0.90
0.25
0.10
0°
Max
0.30
1.35
2.20
0.40
2.20
0.10
1.00
0.40
0.25
8°
KXX
A
1
A
2
YM
A
3
B C
0.65 Nominal
Mechanical Data
·
·
·
·
·
·
·
Case: SOT-363, Plastic
Plastic Material: UL Flammability Classification
Rating 94V-0
Moisture sensitivity: Level 1 per J-STD-020A
Terminals: Finish - Matte Tin Solderable
per MIL-STD-202, Method 208 (Note 1)
Orientation: See Diagram
Marking: See Below
Weight: 0.006 grams (approx.)
K
G
H
J
K
L
M
a
J
D
F
L
TOP VIEW
D
1
D
2
D
3
All Dimensions in mm
Maximum Ratings
Forward Voltage
Power Dissipation (Note 2)
@ T
A
= 25°C unless otherwise specified
Symbol
@ I
F
= 10mA
V
F
P
d
R
qJA
T
j,
T
STG
Value
0.9
200
625
-65 to +150
Unit
V
mW
°C/W
°C
Characteristic
Thermal Resistance, Junction to Ambient Air (Note 2)
Operating and Storage Temperature Range
Notes:
1. If lead-bearing terminal plating is required, please contact your Diodes Inc. sales representative for availability
and minimum order details.
2. Device mounted on FR-4 PC board with recommended pad layout, which can be found on our website at
http://www.diodes.com/datasheets/ap02001.pdf.
(Note 3)
Packaging
SOT-363
Shipping
3000/Tape & Reel
Ordering Information
Device
(Type Number)-7*
* Example: The part number for the 6.2 Volt device would be DDZX6V2BTS-7.
Note :
3. For Packaging Details, go to our website at http://www.diodes.com/datasheets/ap02007.pdf.
Marking Information
KXX = Product Type Marking Code (See Table 1)
YM = Date Code Marking
Y = Year ex: P = 2003
M = Month ex: 9 = September
KXX
Date Code Key
Year
Code
Month
Code
Jan
1
Feb
2
March
3
YM
2003
P
Apr
4
May
5
2004
R
Jun
6
Jul
7
2005
S
Aug
8
2006
T
Sep
9
2007
U
Oct
O
2008
V
Nov
N
2009
W
Dec
D
DS30416 Rev. 2 - 2
1 of 6
www.diodes.com
DDZX5V1BTS - DDZX47TS
ã
Diodes Incorporated
NEW PRODUCT
Electrical Characteristics
Type Number
Marking Code
@ T
A
= 25°C unless otherwise specified
Zener Voltage Range
(Notes 4,5)
V
Z
@ I
ZT
Min (V)
Max (V)
5.20
5.73
6.27
7.01
7.67
8.45
9.30
10.20
11.38
12.35
13.21
14.13
15.57
16.51
18.33
20.22
22.63
24.31
27.64
30.51
33.79
37.19
40.11
43.86
47.94
4.94
5.45
5.96
6.66
7.29
8.03
8.83
9.70
10.82
11.74
12.55
13.44
14.80
15.69
17.42
19.23
21.52
23.12
26.29
29.02
32.14
35.36
38.14
42.14
46.06
I
ZT
mA
20
20
20
20
20
20
20
20
10
10
10
10
10
10
10
10
5
5
5
5
5
5
5
5
5
17
11
7
5
6
8
8
8
10
12
14
16
18
18
23
28
30
35
45
55
75
85
85
90
90
Table 1
Maximum Zener Impedance
(Note 6)
Z
ZT
@
I
ZT
Maximum Reverse
Current (Note 7)
I
R
uA
5
0.5
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
@ V
R
V
1.5
2.5
4.0
5.0
6.0
6.5
7.0
8.0
8.4
9.1
10.0
11.0
12.0
12.0
14.0
15.0
17.0
19.0
21.0
23.0
27.0
30.0
30.0
33.0
36.0
Z
ZK
@ I
ZK
W
480
400
150
150
120
120
120
120
120
110
110
110
150
150
150
200
200
200
250
250
250
250
250
¾
¾
I
ZK
mA
1
1
1
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.5
¾
¾
DDZX5V1BTS
DDZX5V6BTS
DDZX6V2BTS
DDZX6V8CTS
DDZX7V5CTS
DDZX8V2CTS
DDZX9V1CTS
DDZX10CTS
DDZX11CTS
DDZX12CTS
DDZX13BTS
DDZX14TS
DDZX15TS
DDZX16TS
DDZX18CTS
DDZX20CTS
DDZX22DTS
DDZX24CTS
DDZX27DTS
DDZX30DS
DDZX33TS
DDZX36TS
DDZX39FTS
DDZX43TS
DDZX47TS
Notes:
KM
KN
KO
YP
YQ
YR
YS
YT
YU
YV
KW
GX
GY
YY
YZ
PJ
2K
PL
2M
2N
RP
ZQ
5Q
ZR
ZS
4. The Zener voltage is measured 40ms after power is supplied.
5. For inquiries on tighter tolerances, or alternate nominal zener voltages, please contact your Diodes Inc.
sales representative for availability and minimum order details.
6. f = 1kHz.
7. Short duration test pulse used to minimize self-heating effect.
DS30416 Rev. 2 - 2
2 of 6
www.diodes.com
DDZX5V1BTS - DDZX47TS
I
F
, INSTANTANEOUS FORWARD CURRENT (mA)
240
1000
NEW PRODUCT
200
P
d
, POWER DISSIPATION (mW)
100
160
10
120
1.0
80
0.1
40
0
0
25
50
75
100
125
150
T
A
, AMBIENT TEMPERATURE (°C)

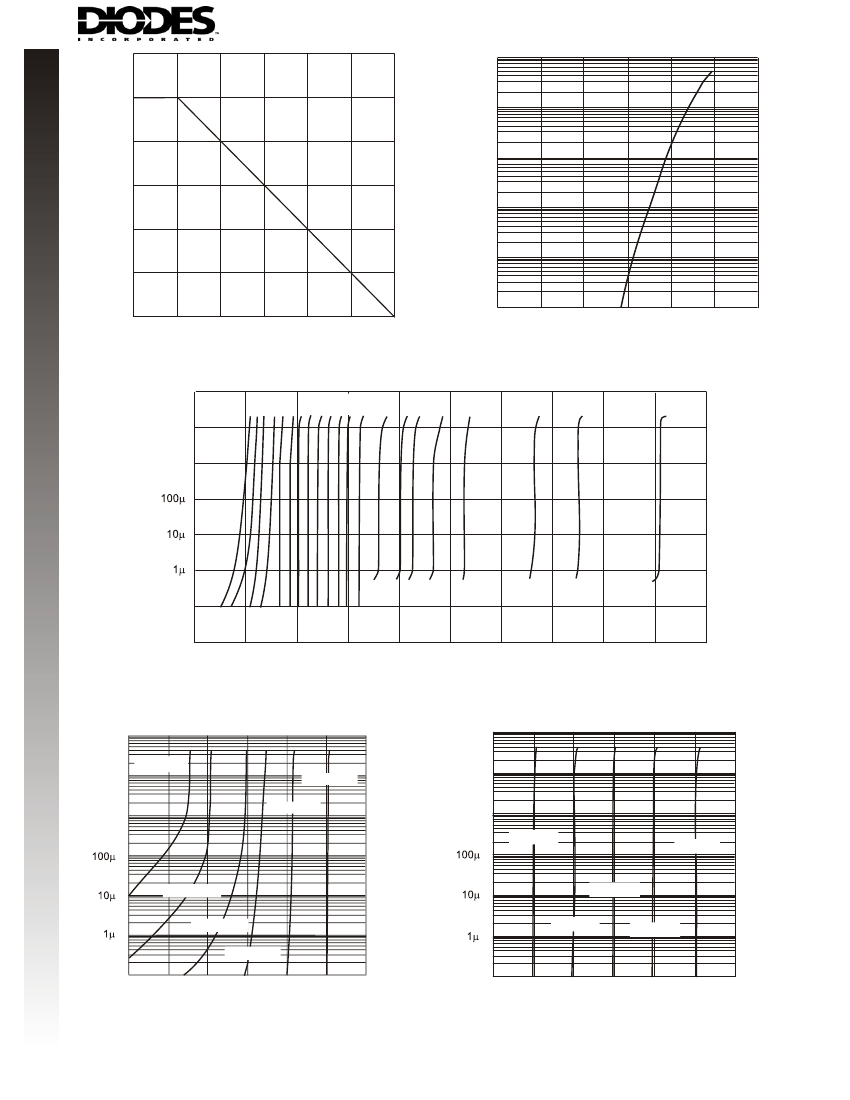

Fig. 1 Power Dissipation vs Ambient Temperature
0.01
0
0.2
0.4
0.6
0.8
1.0
1.2
V
F
, INSTANTANEOUS FORWARD VOLTAGE (V)
Fig. 2 Typical Forward Characteristics
5V6B
6V2B
6V8C
7V5C
8V2C
9V1C
10C
11C
12C
13B
14
15
16
20C
22D
18C
24C
27D
100m
10m
39
I
Z
, ZENER CURRENT (A)
1m
100n
10n
0
5
10
15
20
33
25
30
35
40
45
47
50
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
100m
DDZX5V6BTS
100m
10m
I
Z
, ZENER CURRENT (A)
DDZX9V1CTS
DDZX8V2CTS
10m
I
Z
, ZENER CURRENT (A)
1m
1m
DDZX10CTS
DDZX14TS
DDZX6V2BTS
DDZX12CTS
DDZX6V8CTS
DDZX11CTS
DDZX13BTS
DDZX7V5CTS
100n
4.0
5.0
6.0
7.0
8.0
9.0
10.0
V
Z
, ZENER BREAKDOWN VOLTAGE (V)

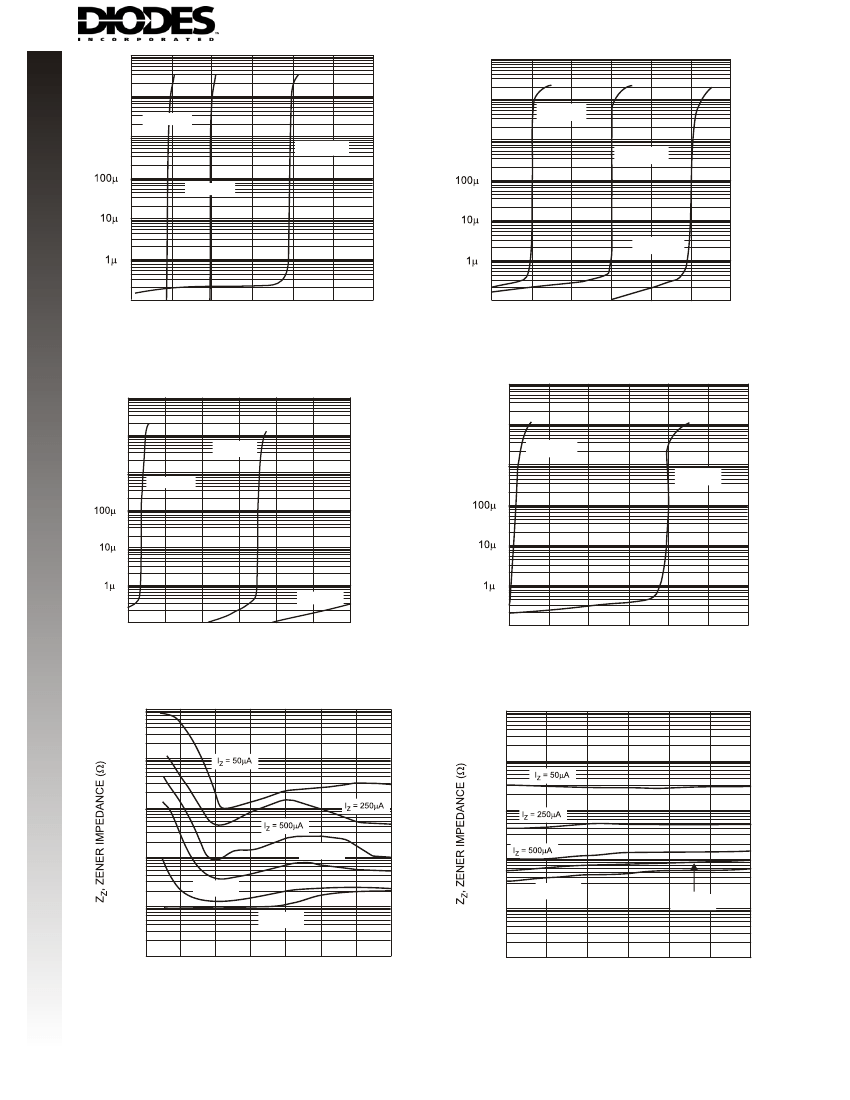

Fig. 4 Typical Reverse Characteristics, DDZX5V6BTS - DDZX9V1CTS
100n
8.0
10.0
11.0
12.0
13.0
14.0
15.0
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 5 Typical Reverse Characteristics, DDZX10CTS - DDZX14TS
DS30416 Rev. 2 - 2
3 of 6
www.diodes.com
DDZX5V1BTS - DDZX47TS
100m
100m
NEW PRODUCT
10m
I
Z
, ZENER CURRENT (A)
I
Z
, ZENER CURRENT (A)
DDZX15TS
10m
DDZX20CTS
1m
DDZX18CTS
1m
DDZX22DTS
DDZX16TS
DDZX24CTS
100n
14
15
16
17
18
19
20
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 6 Typical Reverse Characteristics, DDZX15TS - DDZX18CTS
100n
19
20
21
22
23
24
25
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 7 Typical Reverse Characteristics, DDZX20CTS - DDZX24CTS
100m
100m
10m
10m
I
Z
, ZENER CURRENT (A)
I
Z
, ZENER CURRENT (A)
DDZX33TS
DDZX39FTS
1m
DDZX27DTS
1m
DDZX47TS
DDZX39FTS
100n
26
28
30
32
34
36
38
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 8 Typical Reverse Characteristics, DDZX27DTS - DDZX39FTS
100n
38
40
42
44
46
48
50
V
Z
, ZENER BREAKDOWN VOLTAGE (V)
Fig. 9 Typical Reverse Characteristics,
DDZX39FTS - DDZX47TS
10,000
10,000
1000
1000
100
100
10
I
Z
= 5mA
I
Z
= 1mA
10
I
Z
= 5mA
1
I
Z
= 20mA
1
I
Z
= 1mA
0.1
5.0
9.0 10.0 11.0
12
8.0
V
Z
, ZENER VOLTAGE (V)
Fig. 10 Typical Zener Impedance Characteristics,
DDZX5V6BTS - DDZX12CTS
7.0
6.0
0.1
12
13
14
15
16
17
18
V
Z
, ZENER VOLTAGE (V)
Fig. 11 Typical Zener Impedance Characteristics,
DDZX12CTS - DDZX18CTS
DS30416 Rev. 2 - 2
4 of 6
www.diodes.com
DDZX5V1BTS - DDZX47TS
10,000
10,000
NEW PRODUCT
1000
1000
100
100
10
I
Z
= 5mA
I
Z
= 1mA
10
I
Z
= 2mA
1
1
0.1
18
19
20
21
22
23
24
V
Z
, ZENER VOLTAGE (V)

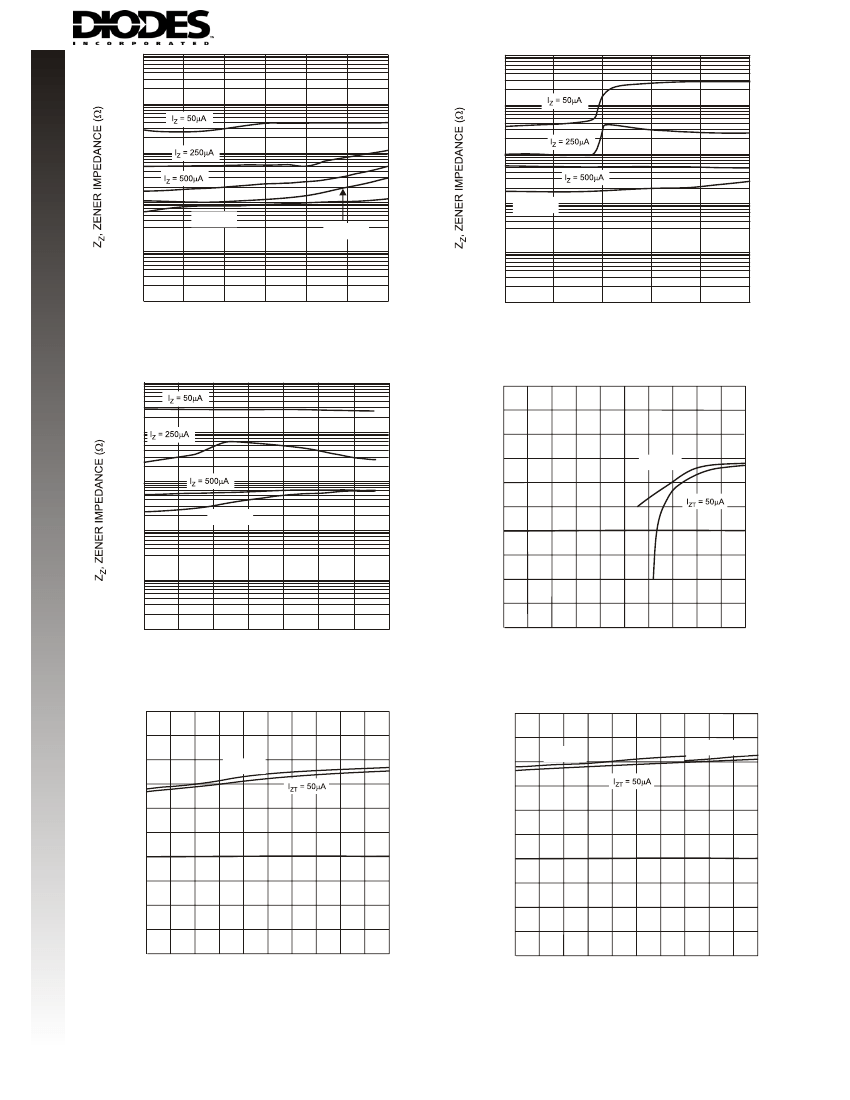

Fig. 12 Typical Zener Impedance Characteristics,
DDZX18CTS - DDZX24CTS
10,000
TC of V
Z
, TEMPERATURE COEFFICIENT
OF ZENER VOLTAGE (%/°C)
0.1
24
26
28
30
32
34
V
Z
, ZENER VOLTAGE (V)
Fig. 13 Typical Zener Impedance Characteristics,
DDZX24CTS - DDZX33TS
0.12
0.10
0.08
0.06
0.04
0.02
0
-0.02
-0.04
-0.06
-0.08
I
ZT
= 5mA
1000
100
I
Z
= 2mA
10
1
0.1
34
36
38
40
42
44
46
48
V
Z
, ZENER VOLTAGE (V)
Fig. 14 Typical Zener Impedance Characteristics,
DDZX36TS - DDZX47TS
0.12
TC of V
Z
, TEMPERATURE COEFFICIENT
OF ZENER VOLTAGE (%/°C)
0
2
4
6
8
10
V
Z
, ZENER VOLTAGE (V)
Fig. 15 Typical Temperature Coefficient of
Zener Voltage vs. Zener Voltage, DDZX6V62TS-DDZX10CTS
0.12
TC of V
Z
, TEMPERATURE COEFFICIENT
OF ZENER VOLTAGE (%/°C)
0.10
0.08
0.06
0.04
0.02
0
-0.02
-0.04
-0.06
-0.08
I
ZT
= 5mA
I
ZT
= 2mA
0.10
0.08
0.06
0.04
0.02
0
-0.02
-0.04
-0.06
-0.08
16
20
18
14
V
Z
, ZENER VOLTAGE (V)
Fig. 16 Typical Temperature Coefficient of
Zener Voltage vs. Zener Voltage, DDZX10CTS-DDZX20CTS
10
12
I
ZT
= 5mA
20
28
26
24
V
Z
, ZENER VOLTAGE (V)
Fig. 17 Typical Temperature Coefficient of
Zener Voltage, DDZX20CTS-DDZX30DTS
22
30
DS30416 Rev. 2 - 2
5 of 6
www.diodes.com
DDZX5V1BTS - DDZX47TS
