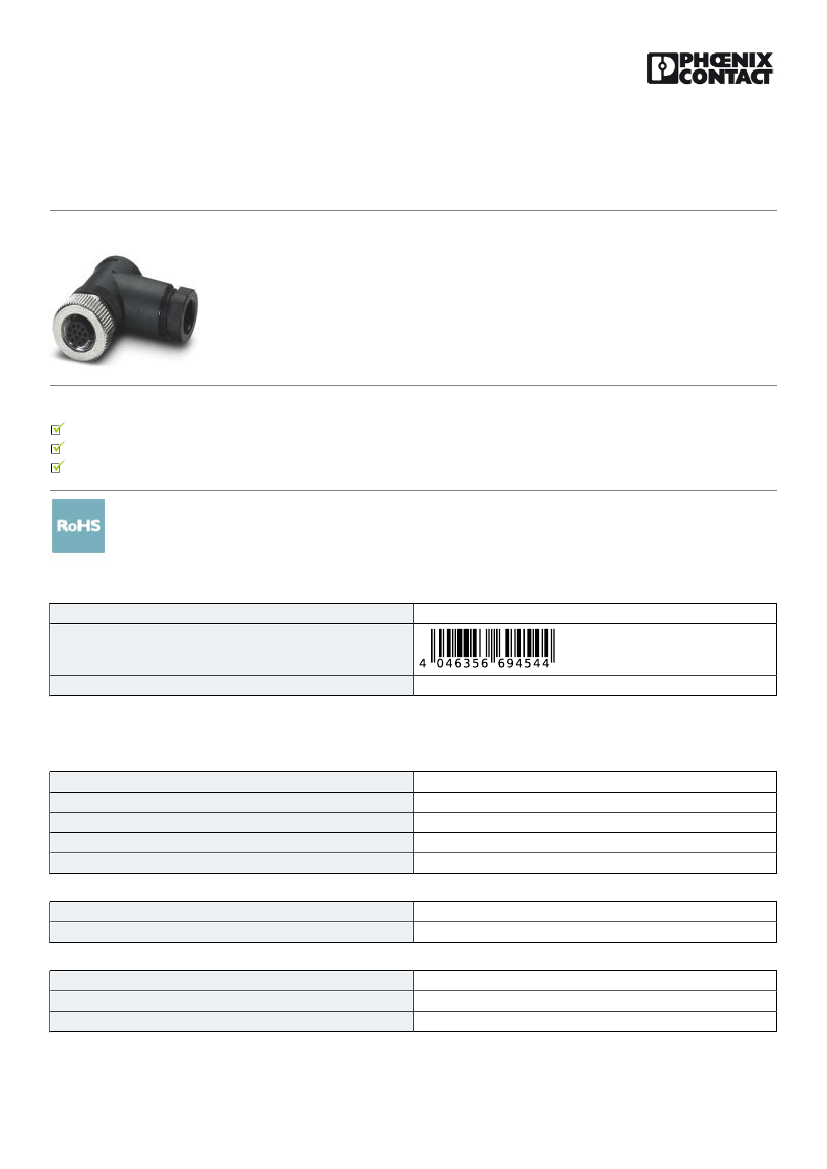

Connector - SACC-M12FR-12SOL-PG 9-M - 1404423
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Connector, Universal, 12-position, Socket angled M12, A-coded, Solder connection, knurl material: Zinc die-
cast, nickel-plated, cable gland Pg9, external cable diameter 6 mm ... 8 mm
Why buy this product
Safe use in the field, thanks to a high degree of protection
Flexible: connectors for on-site assembly
Save space – with high-pos. connectors
Key Commercial Data
Packing unit
GTIN
GTIN
4046356694544
1 pc
Technical data
Dimensions
Diameter housing
Length
External cable diameter
Stripping length of the sheath
Stripping length of the individual wire
20.2 mm
38 mm
6 mm ... 8 mm
20 mm
4 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-40 °C ... 85 °C (Plug / socket)
IP67
General
Rated current at 40°C
Rated voltage
1.5 A (up to 40 °C)
30 V AC
30 V DC
09/30/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/1404423
Connector - SACC-M12FR-12SOL-PG 9-M - 1404423
Technical data
General
Number of positions
Color handle area
Insulation resistance
Coding
Standards/regulations
Signal type/category
Status display
Overvoltage category
Degree of pollution
Connection method
Conductor cross section
Conductor cross section AWG
Insertion/withdrawal cycles
Torque
Tightening torque
Assembly instructions
12
black
> 10 GΩ
A - standard
M12 connector IEC 61076-2-101
Universal
No
II
3
Solder connection
0.08 mm² ... 0.25 mm² (without ferrule)
0.08 mm² ... 0.25 mm² (solid)
28 ... 24 (without ferrule)
≥ 100
0.4 Nm (M12 knurl)
0.8 Nm ... 1 Nm (Pressure nut with coupling sleeve)
Screw plug insert with sleeve housing as far it will go
The connector pin assignment can be rotated 90° to the cable outlet
Material
Flammability rating according to UL 94
Contact material
Contact surface material
Contact carrier material
Material of grip body
Material, knurls
Sealing material
HB
CuZn
Au
PA
PA
Zinc die-cast, nickel-plated
NBR
Standards and Regulations
Standard designation
Standards/regulations
Flammability rating according to UL 94
M12 connector
IEC 61076-2-101
HB
Environmental Product Compliance
REACh SVHC
China RoHS
Lead 7439-92-1
Environmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”,
Category “Manufacturer's declaration”
Drawings
09/30/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/1404423
Connector - SACC-M12FR-12SOL-PG 9-M - 1404423
Schematic diagram
10
1
9
12
8
7
5
6
2
3 11
4
Dimensional drawing
Ø20,2
M12x1
18
16
Pin assignment M12 socket, 12-pos., A-coded,
view female side
42
M12 x 1 socket, angled
Approvals
Approvals
Approvals
UL Recognized / cUL Recognized / EAC / cULus Recognized
Ex Approvals
Approval details
UL Recognized
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
30 V
1A
38
FILE E 221474
cUL Recognized
Nominal voltage UN
Nominal current IN
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
30 V
1A
FILE E 221474
EAC
RU C-
DE.AI30.B.01102
09/30/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/1404423
Connector - SACC-M12FR-12SOL-PG 9-M - 1404423
Approvals
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
Phoenix Contact 2018 © - all rights reserved
http://www.phoenixcontact.com
PHOENIX CONTACT GmbH & Co. KG
Flachsmarktstr. 8
32825 Blomberg
Germany
Tel. +49 5235 300
Fax +49 5235 3 41200
http://www.phoenixcontact.com
09/30/2018 Page 4 / 4
