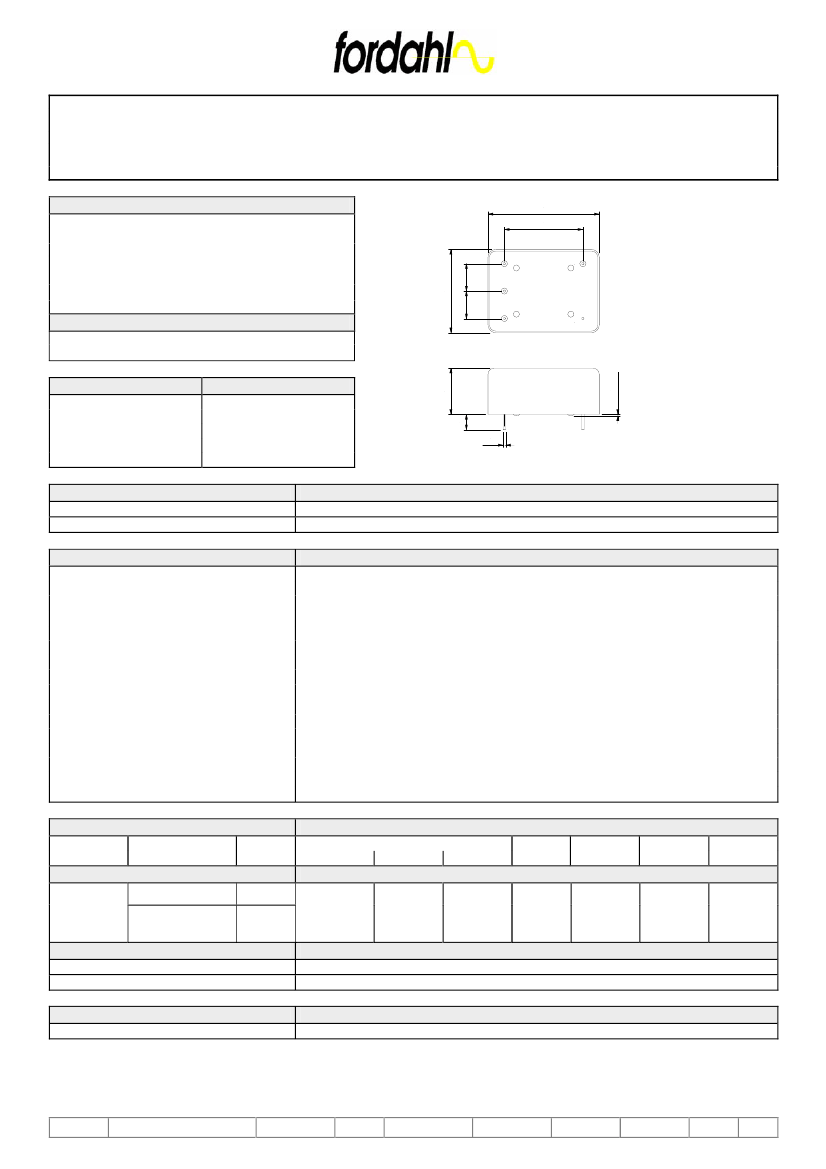

FREQUENCY CONTROL PRODUCTS

STRATUM IIIE OCXO

TYPES DFO 236-MSH

FEATURES

4 to 20 MHz

26.2±0.2

8.9

36±0.2

25.4

Stratum IIIE compliant over 0 to 70°C

SC cut crystal

APPLICATIONS

Stratum IIIE

Function

Vcc

Output

GND

8.9

DFO 236-MSH

0.4±0.1

H±0.1

H = 17.0 mm

0.8

TYPE

Frequency Range

Standard frequencies

DFO 236-MSH

4 to 20 MHz

12.8, 16.384, 19.44 & 20 MHz

ELECTRICAL SPECIFICATIONS

supply voltage

supply power (no load) @ 25°C

supply power during warm up

output load

duty cycle @ 2.5 V

rise & fall times (10 to 90%)

high/low levels or output amplitude

SSB phase noise (1 Hz BW)

(typical @ 12.8MHz)

@ 1 Hz

@ 10 Hz

@ 100 Hz

@ 1 kHz

5V±5%

≤

HCMOS 15 pF or 2 TTL

40/60...60/40 %

≤

15 ns

≥

3.5 V/≤ 0.5 V

-90 dBc/Hz

-120 dBc/Hz

-130 dBc/Hz

-135 dBc/Hz

≤

10 min

warm up time to reach

≤

1 x 10E-7

FREQUENCY STABILITY

type

temperature

range

model

code

detailed tolerances

stability versus:

temperature Vcc ± 5 %

ageing

≤

± 3.5

ppm

over

20 years

overall

stability

≤

± 4.6

ppm

over

20 years

Holdover

stability

24 hrs

drift

calibration

@ 25°C

Telcordia GR-1244 CORE Stratum IIIE

0 to 70°C BS3E

all types

-20 to 70°C CS3E

≤

±1x

10E-8

≤

±1x

10E-9

≤

± 12 x

10E-9

≤

±1x

10E-9

≤

±5x

10E-7

DEFINITIONS

24 hours drift

24 hours holdover mode

GR-1244-CORE

Over full temperature range and Vcc ± 1 %

ORDERING CODE

Example

type + option code + frequency + model code + voltage value

DFO 236-MSH 12.8 MHz CS3E

TYPE

DFO 236 SIIIE

REVISION

CHECKED

DATE

10.10.2004

PAGE

DFO236-MSH16.384MHZCS3E Related Products

	DFO236-MSH16.384MHZCS3E	DFO236-MSH12.8MHZBS3E	DFO236-MSHFREQCS3E	DFO236-MSHFREQBS3E	DFO236-MSH19.44MHZCS3E	DFO236-MSH19.44MHZBS3E	DFO236-MSH20MHZCS3E	DFO236-MSH16.384MHZBS3E	DFO236-MSH12.8MHZCS3E	DFO236-MSH20MHZBS3E
Description	Oscillator,	HCMOS/TTL Output Clock Oscillator, 12.8MHz Nom	HCMOS/TTL Output Clock Oscillator, 4MHz Min, 20MHz Max	HCMOS/TTL Output Clock Oscillator, 4MHz Min, 20MHz Max	HCMOS/TTL Output Clock Oscillator, 19.44MHz Nom	HCMOS/TTL Output Clock Oscillator, 19.44MHz Nom	HCMOS/TTL Output Clock Oscillator, 20MHz Nom	Oscillator,	HCMOS/TTL Output Clock Oscillator, 12.8MHz Nom	HCMOS/TTL Output Clock Oscillator, 20MHz Nom
Reach Compliance Code	unknown	compliant	compliant	unknown	compliant	compliant	compliant	unknown	compliant	compliant
Is it lead-free?	-	Lead free	-	Lead free	Lead free	Lead free	Lead free	-	Lead free	Lead free
Is it Rohs certified?	-	conform to	conform to	conform to	conform to	conform to	conform to	-	conform to	conform to
Ageing	-	3.5 PPM/20 YEAR	3.5 PPM/20 YEAR	3.5 PPM/20 YEAR	3.5 PPM/20 YEAR	3.5 PPM/20 YEAR	3.5 PPM/20 YEAR	-	3.5 PPM/20 YEAR	3.5 PPM/20 YEAR
Frequency Adjustment - Mechanical	-	NO	NO	NO	NO	NO	NO	-	NO	NO
input power	-	5 W	5 W	5 W	5 W	5 W	5 W	-	5 W	5 W
Manufacturer's serial number	-	DFO 236-MSH	-	DFO 236-MSH	DFO 236-MSH	DFO 236-MSH	DFO 236-MSH	-	DFO 236-MSH	DFO 236-MSH
Installation features	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	-	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Nominal operating frequency	-	12.8 MHz	-	-	19.44 MHz	19.44 MHz	20 MHz	-	12.8 MHz	20 MHz
Maximum operating temperature	-	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	-	70 °C	70 °C
Oscillator type	-	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	HCMOS/TTL	-	HCMOS/TTL	HCMOS/TTL
Output load	-	2 TTL, 15 pF	2 TTL, 15 pF	2 TTL, 15 PF	2 TTL, 15 pF	2 TTL, 15 pF	2 TTL, 15 pF	-	2 TTL, 15 pF	2 TTL, 15 pF
Oven power supply voltage	-	5V	5V	5V	5V	5V	5V	-	5V	5V
physical size	-	36.0mm x 26.0mm x 17.0mm	36.0mm x 26.0mm x 17.0mm	36.0mm x 26.0mm x 17.0mm	36.0mm x 26.0mm x 17.0mm	36.0mm x 26.0mm x 17.0mm	36.0mm x 26.0mm x 17.0mm	-	36.0mm x 26.0mm x 17.0mm	36.0mm x 26.0mm x 17.0mm
Maximum supply voltage	-	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	5.25 V	-	5.25 V	5.25 V
Minimum supply voltage	-	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	4.75 V	-	4.75 V	4.75 V
Nominal supply voltage	-	5 V	5 V	5 V	5 V	5 V	5 V	-	5 V	5 V
surface mount	-	NO	NO	NO	NO	NO	NO	-	NO	NO
Preheating power	-	5 W	5 W	5 W	5 W	5 W	5 W	-	5 W	5 W
Maximum warm-up time	-	10 Minute	10 Minute	10 Minute	10 Minute	10 Minute	10 Minute	-	10 Minute	10 Minute
