DCX114EU-13R-F datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > semiconductor> Discrete semiconductor> DCX114EU-13R-F

DCX114EU-13R-F: Descriptiontrans prebias npn/pnp 50v sot363; Categorysemiconductor Discrete semiconductor; File Size358KB，12 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/; Environmental Compliance

Download Datasheet Parametric View All

DCX114EU-13R-F Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DCX114EU-13R-F	-	-	View	Buy Now

DCX114EU-13R-F Overview

trans prebias npn/pnp 50v sot363

DCX114EU-13R-F Parametric

Parameter Name	Attribute value
Datasheets
DCXzzzzU
RoHS Informati
RoHS Cert of Compliance
Standard Package	10,000
Category	Discrete Semiconductor Products
Family	Transistors (BJT) - Arrays, Pre-Biased
Packaging	Tape & Reel (TR)
Transistor Type	1 NPN, 1 PNP - Pre-Biased (Dual)
Current - Collector (Ic) (Max)	100mA
Voltage - Collector Emitter Breakdown (Max)	50V
Resistor - Base (R1) (Ohms)	10k
Resistor - Emitter Base (R2) (Ohms)	10k
DC Current Gain (hFE) (Min) @ Ic, Vce	100 @ 1mA, 5V
Vce Saturation (Max) @ Ib, Ic	300mV @ 500µA, 10mA
Current - Collector Cutoff (Max)	500nA (ICBO)
Frequency - Transiti	250MHz
Power - Max	200mW
Mounting Type	Surface Mou
Package / Case	6-TSSOP, SC-88, SOT-363
Supplier Device Package	SOT-363
Other Names	DCX114EU-13R-FDI

Preview

Download Datasheet

View All

DCX(xxxx)U

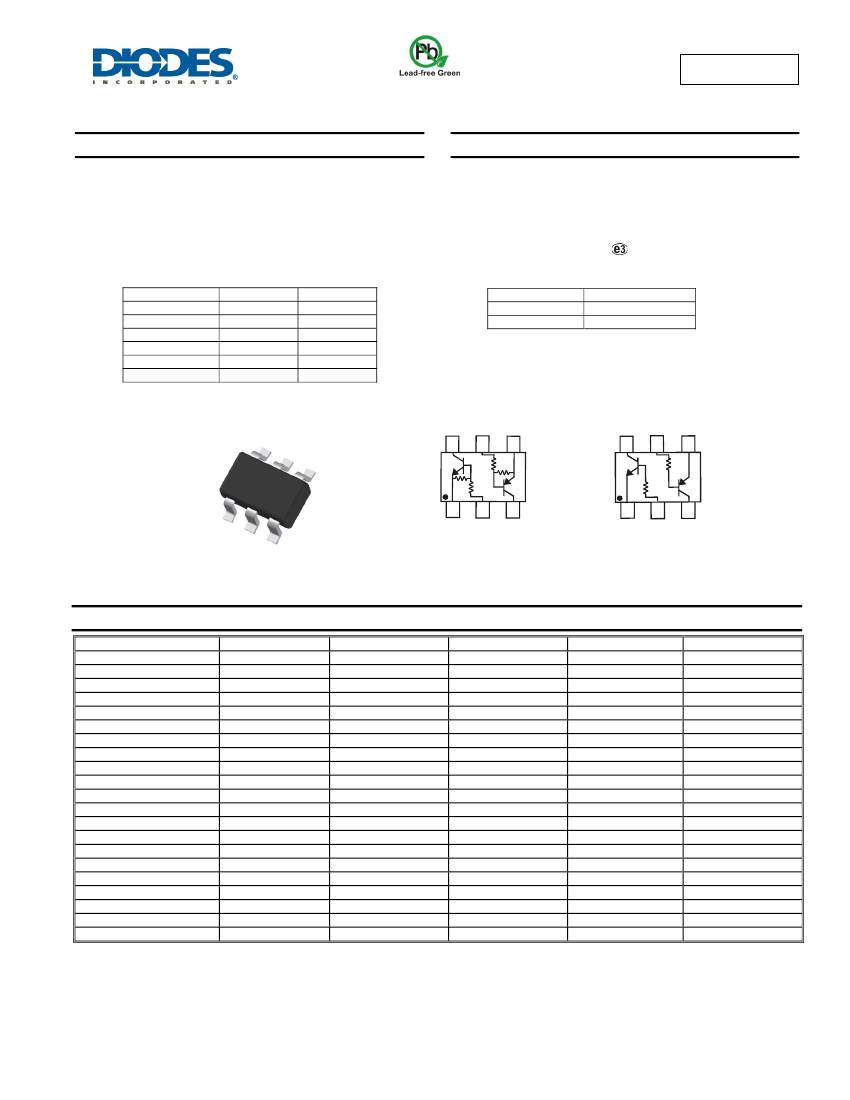

SMALL SIGNAL COMPLEMENTARY PRE-BIASED DUAL TRANSISTOR

Features



Epitaxial Planar Die Construction

Built-In Biasing Resistors

Surface Mount Package Suited for Automated Assembly

Totally Lead-Free & Fully RoHS compliant (Notes 1 &2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

PPAP Capable (Note 4)

Part Number

DCX124EU

DCX144EU

DCX114YU

DCX123JU

DCX114EU

DCX143EU

R1 (NOM)

22KΩ

47KΩ

10KΩ

2.2KΩ

10KΩ

4.7KΩ

R2 (NOM)

22KΩ

47KΩ

10KΩ

4.7KΩ

Mechanical Data



Case: SOT363

Case Material: Molded Plastic, “Green” Molding Compound

UL Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Finish – Matte Tin Plated Leads, Solderable per

MIL-STD-202, Method 208

Weight: 0.006 grams (approximate)

Part Number

DCX143TU

DCX114TU

R1 Only

4.7KΩ

10KΩ

SOT363

CQ1

BQ2

EQ2

CQ1

BQ2

EQ2

CQ2

EQ1

BQ1

EQ1

BQ1

Top View

R1, R2

Device Schematic

R1 Only

Ordering Information

(Notes 3 & 4)

Product

DCX124EU-7-F

DCX124EUQ-7-F

DCX124EUQ-13-F

DCX124EUQ-13R-F

DCX144EU-7-F

DCX144EU-7R-F

DCX144EUQ-7-F

DCX114YU-7-F

DCX114YUQ-7-F

DCX114YUQ-13-F

DCX114YUQ-13R-F

DCX123JU-7-F

DCX123JUQ-7-F

DCX114EU-7-F

DCX114EU-13R-F

DCX114EUQ-7-F

DCX114EUQ-13-F

DCX114EUQ-13R-F

DCX143TU-7-F

DCX143EU-7-F

DCX114TU-7-F

Notes:

Compliance

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Automotive

AEC-Q101

Marking

C17

C20

C14

C06

C13

C07

C08

C12

Reel size (inches)

Tape width (mm)

Quantity per reel

3,000

10,000

3,000

10,000

3,000

10,000

3,000

10,000

3,000

1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the

same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.

5. -7R and -13R are parts rotated in the pocket tape by +180°. For packaging details, go to our website at http://www.diodes.com/products/packages.html

DCX(xxxx)U

Document number: DS30347 Rev. 16 - 2

1 of 12

www.diodes.com

November 2013
