RF/Microwave Capacitors
RF/Microwave C0G (NP0) Capacitors
Ultra Low ESR “U” Series, C0G (NP0) Capacitors (RoHS)
Automotive, AEC Q200 Qualified
Automotive “U” Series capacitors are C0G (NP0) chip capacitors specially
designed for “Ultra” low ESR for applications in the automotive market. Max
ESR and effective capacitance are met on each value producing lot to lot
uniformity. Sizes available are EIA chip sizes 0402 and 0603.
GENERAL INFORMATION
DIMENSIONS:
inches (millimeters)
0402
0603
inches (mm)
Size
0402
0603
A
0.039±0.004
(1.00±0.1)
0.060±0.010
(1.52±0.25)
B
0.020±0.004
(0.50±0.1)
0.030±0.010
(0.76±0.25)
C
0.024 max
(0.6)
0.036 max
(0.91)
D
N/A
0.010±0.005
(0.25±0.13)
E
N/A
0.030 min
(0.76)
HOW TO ORDER
0402
Case Size
0402
0603
1
U
Dielectric =
Ultra Low
ESR
100
J
Capacitance
Tolerance Code
B
C
D
F
G
J
K
M
= ±0.1pF
= ±0.25pF
= ±0.5pF
= ±1%
= ±2%
= ±5%
= ±10%
= ±20%
A
T
Termination
2
A
Special Code
A = Standard
T= Plated Ni and Sn
Voltage Code
5 = 50V
1 = 100V
2 = 200V
Capacitance
EIA Capacitance Code in pF.
First two digits = significant fig-
ures or “R” for decimal place.
Third digit = number of zeros or
after “R” significant figures.
4 = Automotive
Failure Rate
Code
2 = 7” Reel
4 = 13” Reel
9 = Bulk
Packaging
Code
Capacitance Values and Tolerances:
Size 0402 - 0.2 pF to 22 pF @ 1 MHz
Size 0603 - 1.0 pF to 100 pF @ 1 MHz
ELECTRICAL CHARACTERISTICS
Dielectric Working Voltage (DWV):
250% of rated WVDC
LEAD-FREE COMPATIBLE
COMPONENT
Temperature Coefficient of Capacitance (TC):
0±30 ppm/°C (-55° to +125°C)
Equivalent Series Resistance Typical (ESR):
0402
0603
-
-
See Performance Curve, page 303
See Performance Curve, page 303
Insulation Resistance (IR):
10
12
Ω min. @ 25°C and rated WVDC
10
11
Ω min. @ 125°C and rated WVDC
Automotive Specifications
Meets or exceeds the requirements of AEC Q200
Working Voltage (WVDC):
Size
0402
0603
Working Voltage
- 100, 50, 25 WVDC
- 200, 100, 50 WVDC
590
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
120216
–
rf microwave products
–
RF/Microwave Capacitors
RF/Microwave C0G (NP0) Capacitors
Ultra Low ESR “U” Series, C0G (NP0) Capacitors (RoHS)
Automotive, AEC Q200 Qualified
CAPACITANCE RANGE
Cap
(pF)
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
Size
Available
Tolerance 0402 0603
50V N/A
B,C
B,C
B,C,D
B,C,D
Cap
(pF)
1.0
1.1
1.2
1.3
1.4
1.5
1.6
1.7
1.8
1.9
2.0
2.1
2.2
2.4
2.7
3.0
3.3
3.6
3.9
4.3
4.7
5.1
5.6
6.2
6.8
Size
Available
Tolerance 0402 0603
B,C,D
50V 200V
B,C,D
B,C,J,K,M
Cap
(pF)
7.5
8.2
9.1
10
11
12
13
15
18
20
22
24
27
30
33
36
39
43
47
51
56
68
75
82
91
Size
Available
Tolerance 0402 0603
B,C,J,K,M 50V 200V
B,C,J,K,M
F,G,J,K,M
200V
100V
50V
N/A
Size
Cap Available
(pF) Tolerance 0402 0603
F,G,J,K,M N/A 100V
100
50V
110
50V
120
N/A
130
140
150
160
180
200
220
270
300
330
360
390
430
470
510
560
620
680
750
820
910
1000 F,G,J,K,M

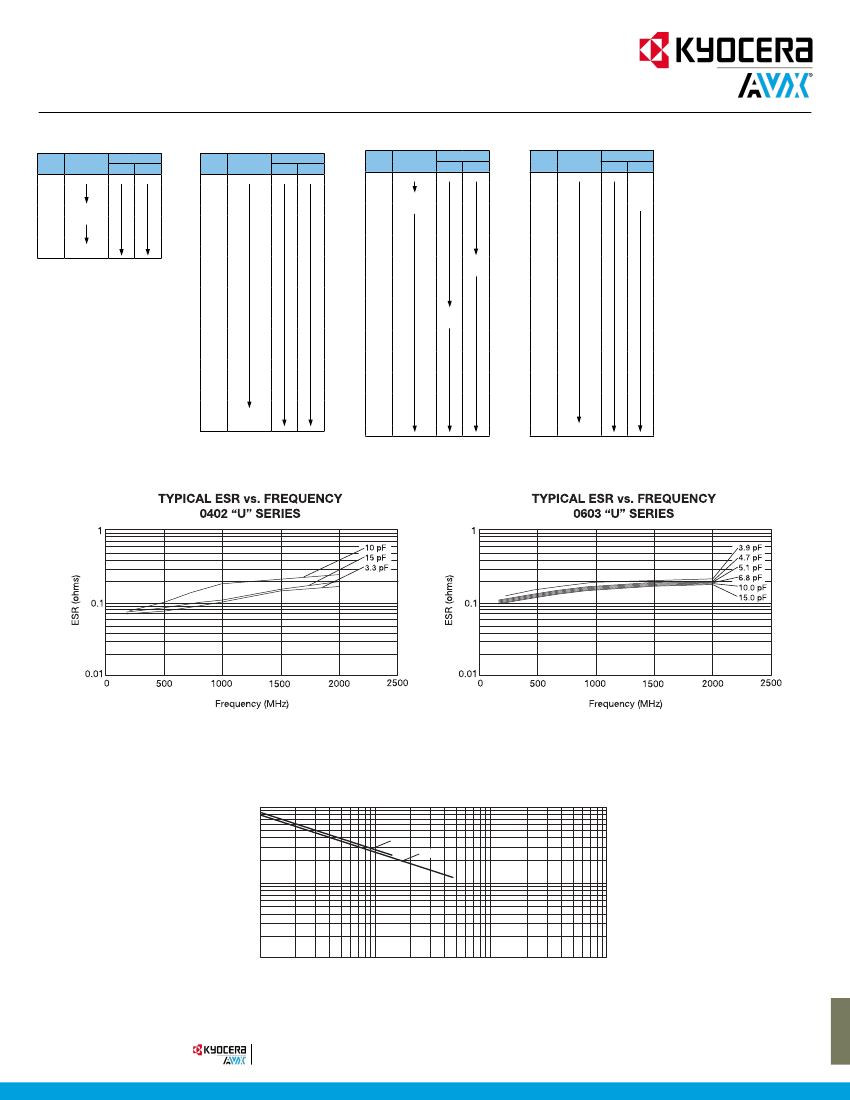

ULTRA LOW ESR, “U” SERIES
TYPICAL
SERIES RESONANT FREQUENCY
“U” SERIES CHIP
10
0402
Frequency (GHz)
0603
1.0
0.1
1.0
10
Capacitance (pF)
100
1000
The Important Information/Disclaimer is incorporated in the catalog where these specifications came from or
available online at www.avx.com/disclaimer/ by reference and should be reviewed in full before placing any order.
120216
591
–
rf microwave products
–
