SMRF3013S-220KLF datasheet, PDF

Datasheet> All Categories > Passive components> inductor> SMRF3013S-220KLF

SMRF3013S-220KLF: DescriptionGeneral Purpose Inductor, 0.22uH, 10%, 1 Element, Iron-Core, SMD, ROHS COMPLIANT; CategoryPassive components inductor; File Size2MB，2 Pages; ManufacturerGowanda Electronics; Environmental Compliance

Download Datasheet Parametric View All

SMRF3013S-220KLF Overview

General Purpose Inductor, 0.22uH, 10%, 1 Element, Iron-Core, SMD, ROHS COMPLIANT

SMRF3013S-220KLF Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Gowanda Electronics
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
core material	IRON
DC Resistance	0.11 Ω
Nominal inductance(L)	0.22 µH
Inductor Applications	RF INDUCTOR
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e2
Number of functions	1
Number of terminals	2
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Minimum quality factor (at nominal inductance)	60
Maximum rated current	0.959 A
self resonant frequency	330 MHz
Shape/Size Description	RECTANGULAR PACKAGE
shield	YES
surface mount	YES
Terminal surface	Tin/Copper (Sn/Cu)
Terminal location	DUAL ENDED
Terminal shape	WRAPAROUND
Test frequency	25 MHz
Tolerance	10%
Base Number Matches	1

Preview

Download Datasheet

View All

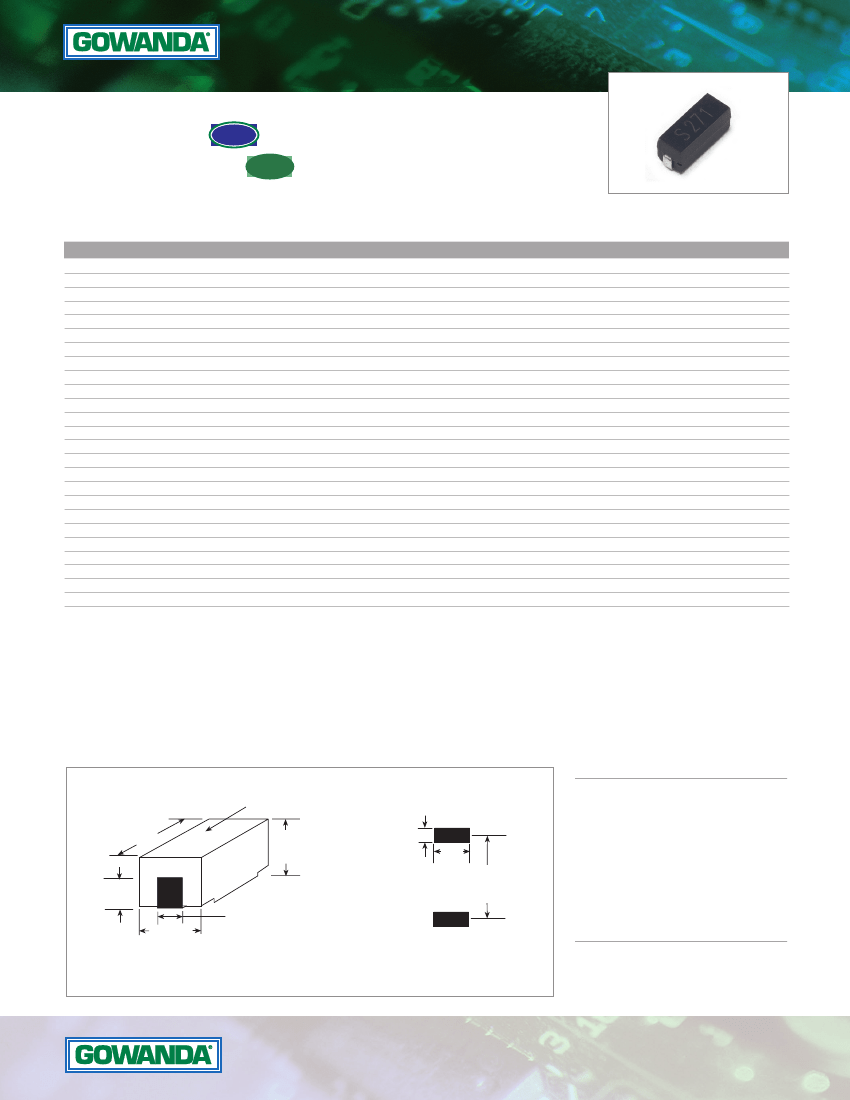

STANDARD RF INDUCTORS - SURFACE MOUNT

SMRF3013S

SMRF3013SLF

PART

NUMBER

SMRF3013S-100K

SMRF3013S-120K

SMRF3013S-150K

SMRF3013S-180K

SMRF3013S-220K

SMRF3013S-270K

SMRF3013S-330K

SMRF3013S-390K

SMRF3013S-470K

SMRF3013S-560K

SMRF3013S-680K

SMRF3013S-820K

SMRF3013S-101K

SMRF3013S-121K

SMRF3013S-151K

SMRF3013S-181K

SMRF3013S-221K

SMRF3013S-271K

SMRF3013S-331K

SMRF3013S-391K

SMRF3013S-471K

SMRF3013S-561K

SMRF3013S-681K

SMRF3013S-821K

SMRF3013S-102K

µH

0.10

0.12

0.15

0.18

0.22

0.27

0.33

0.39

0.47

0.56

0.68

0.82

1.0

1.2

1.5

1.8

2.2

2.7

3.3

3.9

4.7

5.6

6.8

8.2

10.0

TRADITIONAL

COMPLIANT

RoHS

Wirewound, Shielded, Molded

TEST

SRF

FREQ

MHz

MIN

MHz

MIN

POWDERED IRON CORE/POWDERED IRON SLEEVE

7.9

490

430

415

375

330

300

260

230

220

210

180

165

150

130

115

105

DCR

OHMS

MAX

0.08

0.10

0.11

0.12

0.13

0.15

0.17

0.20

0.24

0.28

0.30

0.35

0.55

0.65

0.70

0.75

1.20

1.50

1.70

2.00

2.60

CURRENT

RATING

mA DC

1124

1005

959

918

882

821

771

711

649

601

580

537

394

380

367

290

260

244

225

197

INC I

mA DC

1124

1005

959

918

882

821

771

711

649

601

580

537

394

380

367

290

260

244

225

197

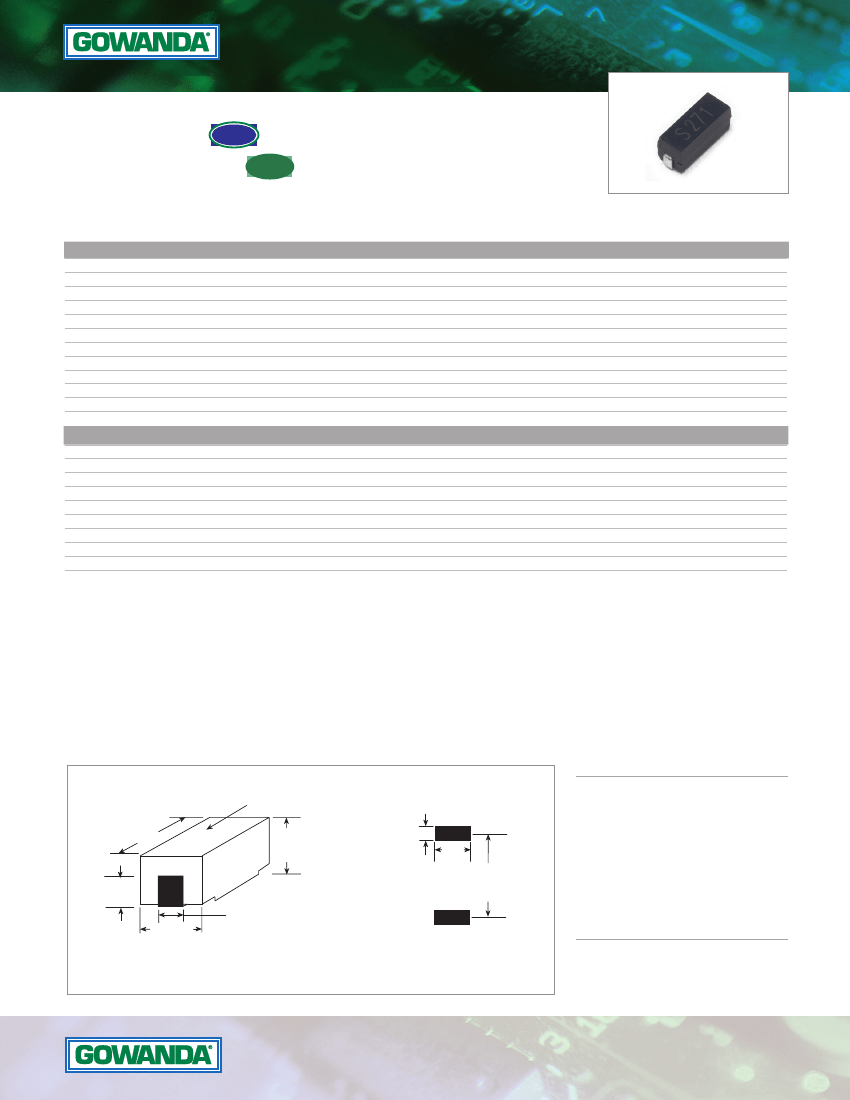

continued next page

All part numbers provide 10% tolerance on inductance

Optional tolerances available; please consult factory

0.300/0.325

(7.62/8.26)

Custom designs are available to meet your specific requirements; please consult factory

OVER TERMINAL

MARKING: SXXX

0.125/0.145

(3.18/3.68)

OVER TERMINAL

*Add “LF” suffix for RoHS requirement. Example: SMRF3013S-100KLF

REF

Gowanda designates a component RoHS-compliant by adding “LF” (lead free) to the part number.These LF components

0.070

meet the ≤ .1% lead requirement and they are compatible with 260°C soldering processes.

(1.78)

0.110/0.130

(2.79/3.30)

MARKING: SXXX

0.300/0.325

(7.62/8.26)

OVER TERMINAL

0.125/0.145

(3.18/3.68)

OVER TERMINAL

0.040/0.060 (1.02/1.52) WIDE X

0.020 (0.508) MIN DEEP

2 SIDES

NOTES:

• Operating Temperature Range:

-55°C to +125°C

RECOMMENDED FOOT PRINT

0.075 (1.91)

0.150

(3.81)

0.310

(7.87)

CENTERS

• Current Rating is based on a 35°C temperature

rise at an ambient temperature of 90°C

• Incremental Current is the current that will

cause a maximum 5% decrease in inductance

• Epoxy-encapsulated for environmental

protection and superior strength to withstand all

types of reflow soldering

• L and Q tested on HP4194A @ .01V

TAPE AND REEL SPECS:

Pcs./Reel maximum:

Pitch between parts:

Tape width:

Reel diameter:

2200

8 mm

16 mm

13 in.

0.070

(1.78)

REF

0.110/0.130

(2.79/3.30)

0.040/0.060 (1.02/1.52) WIDE X

0.020 (0.508) MIN DEEP

2 SIDES

RECOMMENDED FOOT PRINT

0.075 (1.91)

0.310

(7.87)

www.gowanda.com

CENTERS

0.150

(3.81)

in. (mm)

One Magnetics Pkwy, Gowanda, NY 14070 • (t) 716-532-2234 • (f) 716-532-2702 • sales@gowanda.com

030314
